ViewSonic TD2455 24" 1080p IPS 10-Point Multi Touch Screen Monitor with Advanced Dual-Hinge Ergonomics USB C HDMI and DisplayPort Out

ViewSonic TD2455 24" 1080p IPS 10-Point Multi Touch Screen Monitor with Advanced Dual-Hinge Ergonomics USB C HDMI and DisplayPort Out

$849.00 SGD
$849.00 SGD
Sale Sold out

TD2455 24” In-Cell Touch Monitor with USB Type-C Input and Advanced Ergonomics

  • Versatile touch applications
  • Efficient multitasking
  • Touch annotation for presentations
  • Accurate yet smooth touch experience
  • Comfortable working angles & quickly start your work
  • Touch support with Windows, macOS, Android, Chrome OS, Linux & Raspberry Pi

Versatile Touch Applications

Whether used as a check-in kiosk at reception, as a collaboration station with co-workers and colleagues at the office, or as a touch podium for front-facing teaching, this sleek and slim touch display seamlessly integrates into your workflow for boosted efficiency and productivity.

Efficient Multitasking

With advanced DisplayPort Multi-Stream technology and support for up to 4-screen daisy chaining*, this display can transform into the ultimate touch screen workstation – in mirror and extended modes – for increased productivity. *up to 4 with a PC; up to 3 with a laptop

Touch Annotation for Presentations

An included stylus pen easily attaches to the magnetic base of the display, and allows you to draw, write notes, or perform other detailed tasks that require more accuracy than your fingertips alone. The pen is especially useful during presentations when the TD2455 is attached to a projector.

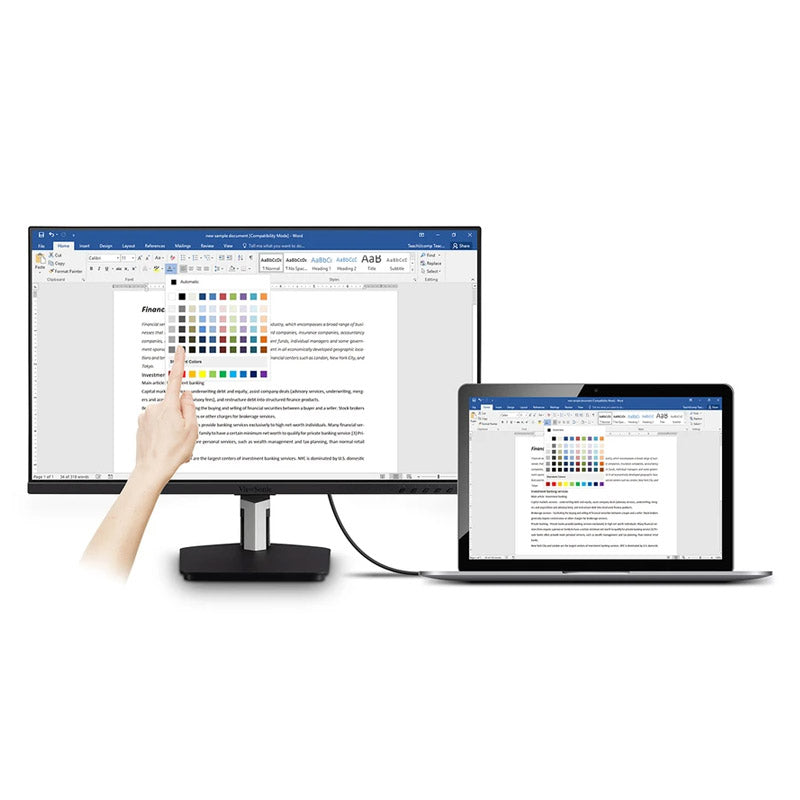

Accurate yet Smooth Touch Experience

Powered by in-cell touch technology, the TD2455 offers sensitive yet smooth touch response for detailed content editing with fingertips or the touch pen.
10-Point In-Cell Projected Capacitive (PCAP) Touch Technology

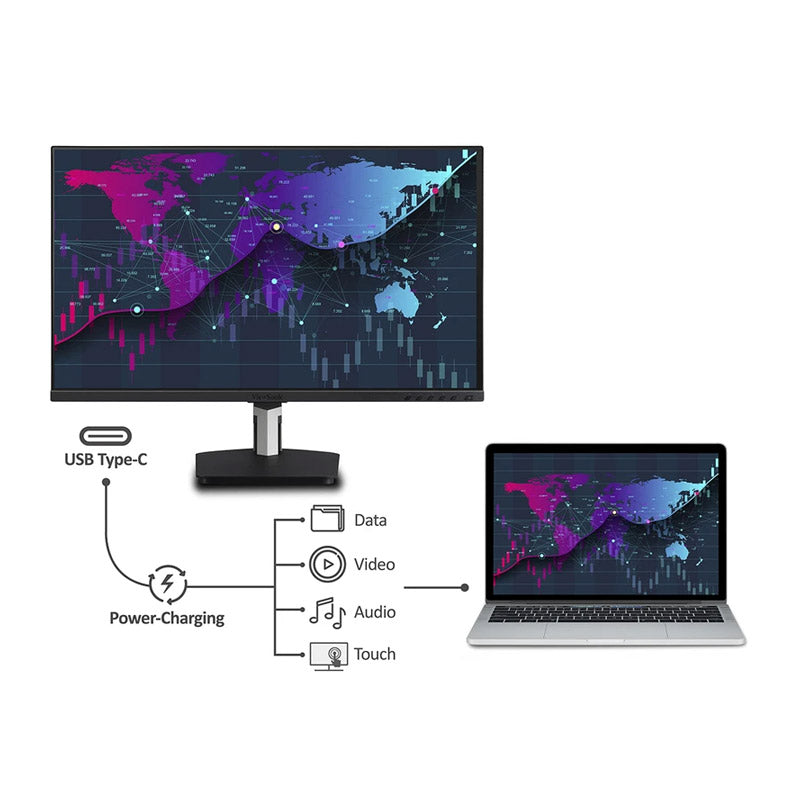

Quickly Start Your Work

The latest USB Type-C input transforms this display into a powerful hub by enabling easy connectivity to PC, laptop, and Chrome systems. In addition, it delivers charging power, video, and audio over a single cable.

Comfortable Working Angles

Designed with an ergonomically advanced dual-hinge stand, this display can be tilted and adjusted to deliver a more comfortable user experience.

Incredible Images, Sleek Design

With high-performance in-cell touch technology, this display provides smooth and responsive touch tracking, along with amazing screen performance, within a sleek and bezel-less design.

Minimal Design Concept

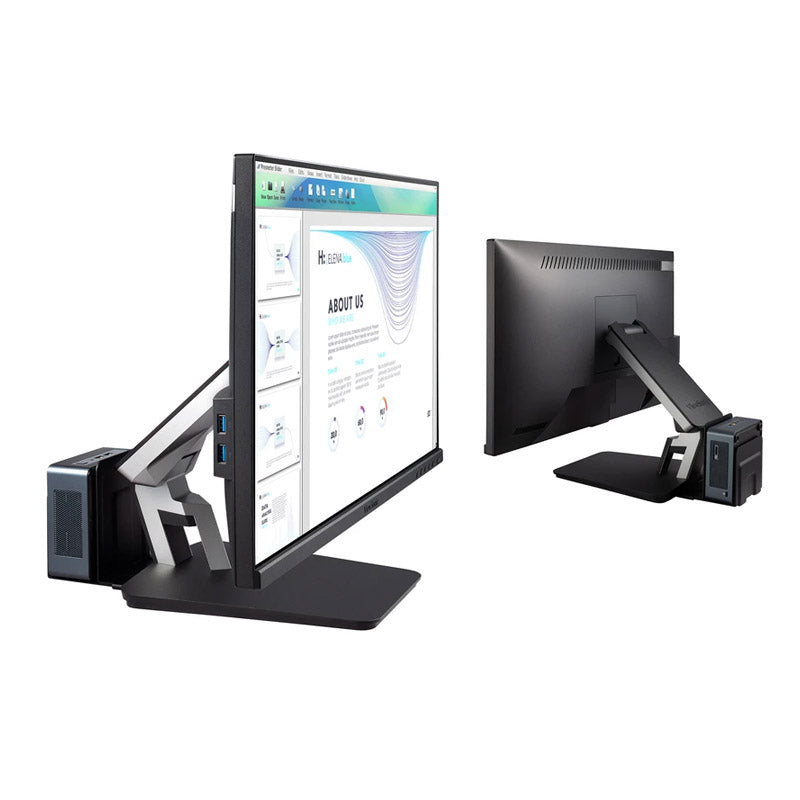

The ergonomic stand features an integrated client mount for quick installation of optional mini PC mount on the back of the display. Cable management features also keep your workspace neat.

Extra Features

VESA compatibility, low energy consumption with Energy Star, SuperClear® IPS technology, blue light filter, and flicker-free

VESA-compatible mount

It features a 100 x 100mm VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs. With an easily detachable base, it’s easy to mount the display on its new stand or attach it to a wall mount.

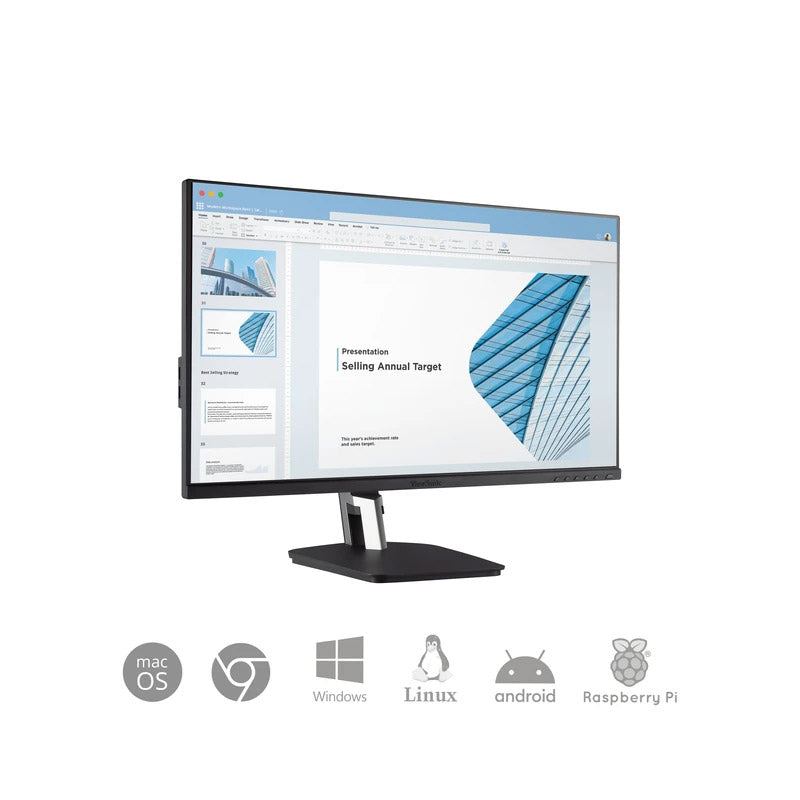

Touch support with Windows, Android, Chrome, Linux & Raspberry Pi



SPECIFICATIONS

Display

  • Display Size (in.): 24
  • Viewable Area (in.): 23.8
  • Panel Type: IPS Technology
  • Resolution: 1920 x 1080
  • Resolution Type: FHD (Full HD)
  • Static Contrast Ratio: 1,000:1 (typ)
  • Dynamic Contrast Ratio: 50M:1
  • Light Source: LED
  • Brightness: 250 cd/m² (typ)
  • Colors: 16.7M
  • Color Space Support: 8 bit (6 bit + Hi-FRC)
  • Aspect Ratio: 16:9
  • Response Time (Typical GTG): 6ms
  • Response Time (GTG w/OD): 6ms
  • Viewing Angles: 178º horizontal, 178º vertical
  • Backlight Life (Hours): 30000 Hrs (Min)
  • Curvature: Flat
  • Refresh Rate (Hz): 60
  • Low Blue Light: Software solution
  • Flicker-Free: Yes
  • Color Gamut: NTSC: 72% size (Typ) / sRGB: 104% size (Typ)
  • Pixel Size: 0.275 mm (H) x 0.275 mm (V)
  • Touch Screen: Projected Capacitive, 10-point multi-touch
  • Surface Treatment: Anti-Glare, Hard Coating (3H)

Compatibility

  • PC Resolution (max): 1920x1080
  • Mac® Resolution (max): 1920x1080
  • PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
  • Mac® Resolution (min): 1920x1080

Connector

  • USB 3.2 Type A Down Stream: 2
  • USB 3.2 Type B Up Stream: 1
  • USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (60W power charger)
  • 3.5mm Audio Out: 1
  • HDMI 1.4: 1
  • DisplayPort: 1
  • DisplayPort Out: 1
  • Power in: 3-pin Socket (IEC C14 / CEE22)

Audio

  • Internal Speakers: 2Watts x2

Power

  • Eco Mode (Conserve): 9.7W
  • Eco Mode (optimized): 12.8W
  • Consumption (typical): 17.9W
  • Consumption (max): 20.4W
  • Voltage: AC 100-240V
  • Stand-by: 0.3W
  • Power Supply: Internal Power Supply

Additional Hardware

  • Kensington Lock Slot: 1

Controls

  • Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
  • On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Operating Conditions

  • Temperature: 32°F to 104°F (0°C to 40°C)
  • Humidity (non-condensing): 20% to 90%

Wall Mount

  • VESA Compatible: 100 x 100 mm

Input Signal

  • Frequency Horizontal: 15 ~ 82KHz
  • Frequency Vertical: 50 ~ 75Hz

Video Input

  • Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C

Ergonomics

  • Tilt (Forward/Back): -5º / 60º

Weight (imperial)

  • Net (lbs): 14.2
  • Net Without Stand (lbs): 8.2
  • Gross (lbs): 18.6

Weight (metric)

  • Net (kg): 6.4
  • Net Without Stand (kg): 3.7
  • Gross (kg): 8.4

Dimensions (imperial) (WxHxD)

  • Packaging (in.): 24.3 x 16.3 x 11.2
  • Physical (in.): 21.2 x 16.8 x 11.3
  • Physical Without Stand (in.): 21.2 x 12.6 x 2

Dimensions (metric) (WxHxD)

  • Packaging (mm): 617 x 415 x 285
  • Physical (mm): 539 x 426 x 286
  • Physical Without Stand (mm): 539 x 320 x 52
