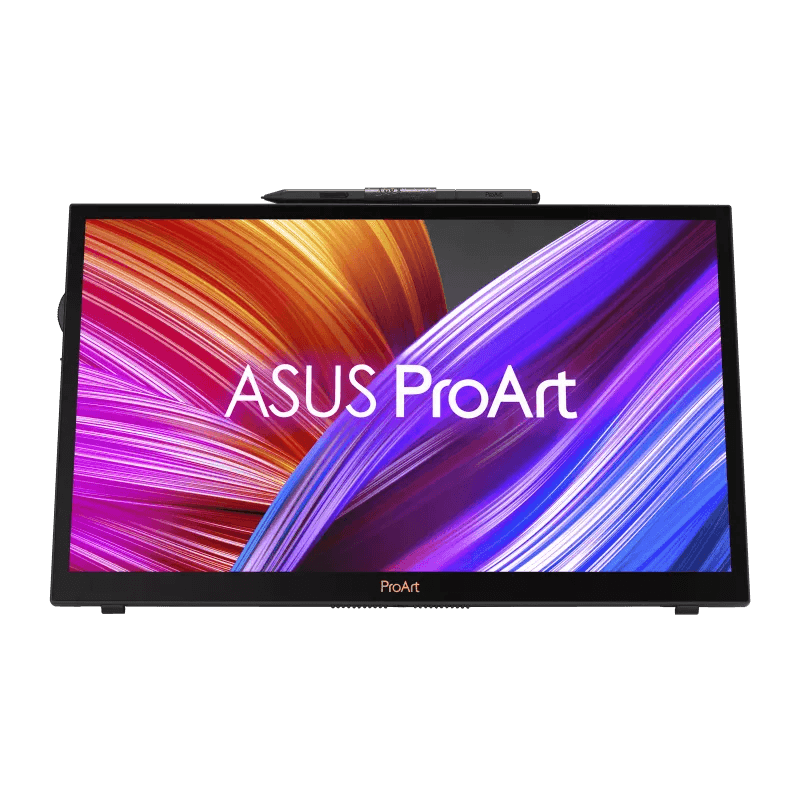

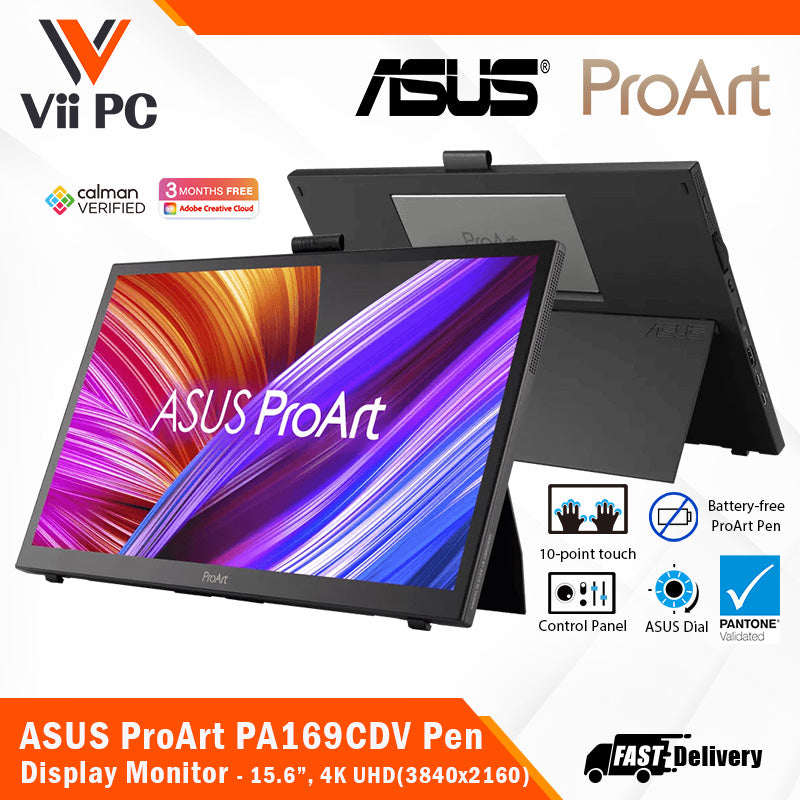

ASUS ProArt PA169CDV Pen Display
– 15.6-inch, IPS, 4K UHD (3840 x 2160), WACOM EMR, 100% sRGB, Color Accuracy ΔE < 2, Calman Verified, PANTONE Validated, USB-C, 10-point Touch, ASUS Dial, Control Panel
FEATURES
• 15.6-inch 4K UHD (3840 x 2160) IPS panel with anti-glare and capacitive 10-point multitouch

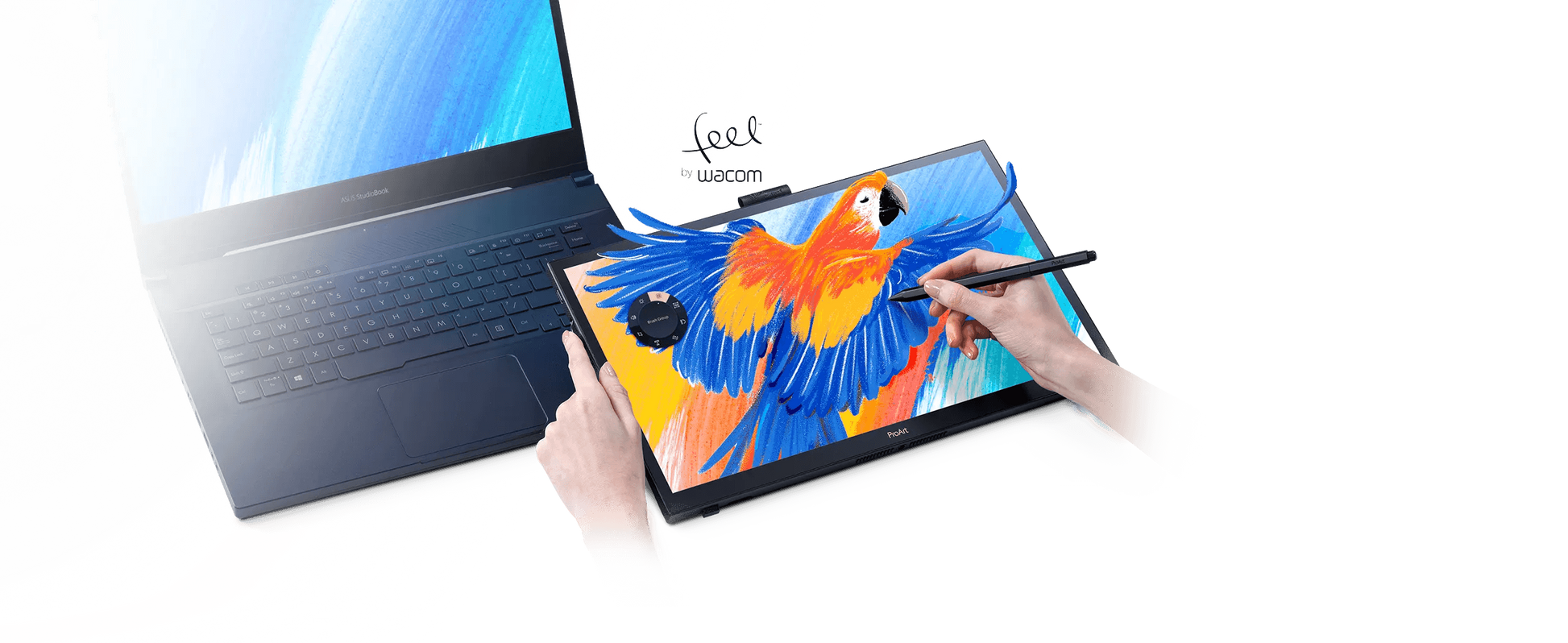

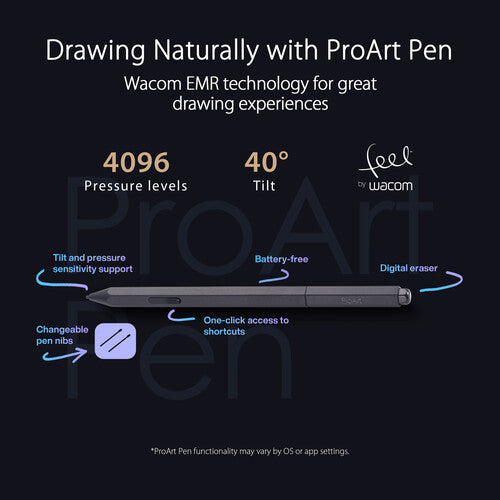

• Comes with ProArt Pen with Wacom EMR technology for pen-on-paper-like writing and drawing experiences

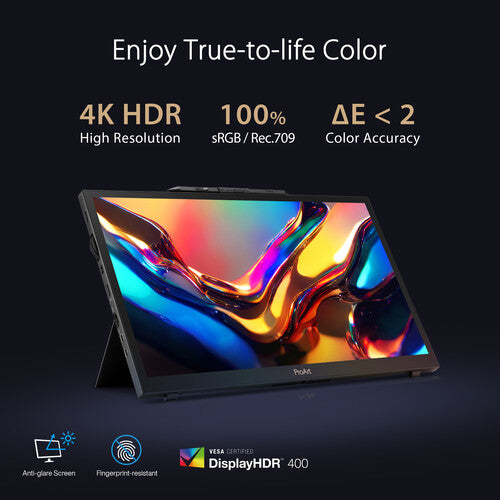

• 100% sRGB, Calman Verified, and factory pre-calibrated to Delta E < 2 for exceptional color accuracy
• ASUS Dial and Virtual Control Panel offer productive shortcuts and programmable hotkeys for compatible creative software
• Two innovative kickstands prop the display up at different angles to suit different needs

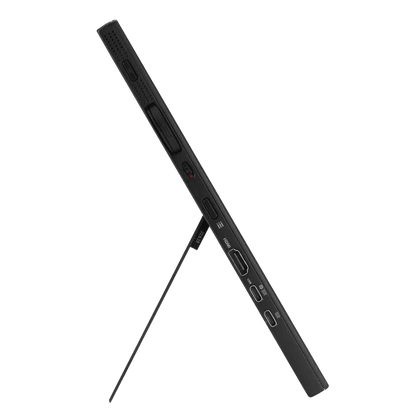

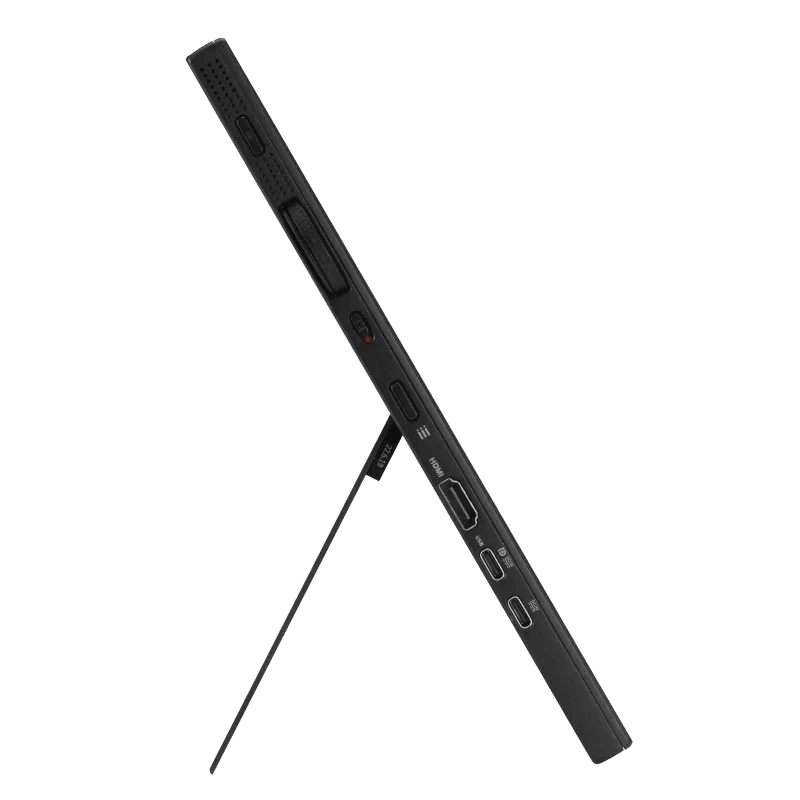

• Extensive I/O connectivity including USB-C (with DP Alt mode) and HDMI for compatibility with various devices
• TÜV Rheinland-certified Flicker-free and Low Blue Light technologies for comfortable viewing experiences
SPECIFICATIONS
MODEL: ProArt Display PA169CDV
DISPLAY:
• Panel Size (inch) : 15.6
• Pixels Per Inch (PPI) : 282
• Aspect Ratio : 16:9
• Display Viewing Area (H x V) : 345.60 ×194.40 mm
• Display Surface : AGAF (Anti-Glare, Anti-FingerPrint)
• Backlight Type : LED
• Panel Type : IPS
• Viewing Angle (CR≧10, H/V) : 178°/ 178°
• Pixel Pitch : 0.09mm
• Resolution : 3840x2160
• Color Space (sRGB) : 100%
• Brightness (HDR, Peak) : 500 cd/㎡
• Brightness (Typ.) : 450cd/㎡
• Contrast Ratio (HDR, Max) : 15,000:1
• Contrast Ratio (Typ.) : 1200:1
• Display Colors : 1073.7M (10 bit)
• Response Time : 10ms(GTG)
• Refresh Rate (Max) : 60Hz
• HDR (High Dynamic Range) Support : HDR10
• Touch : Yes, Projective Capacitive 10-point Touch

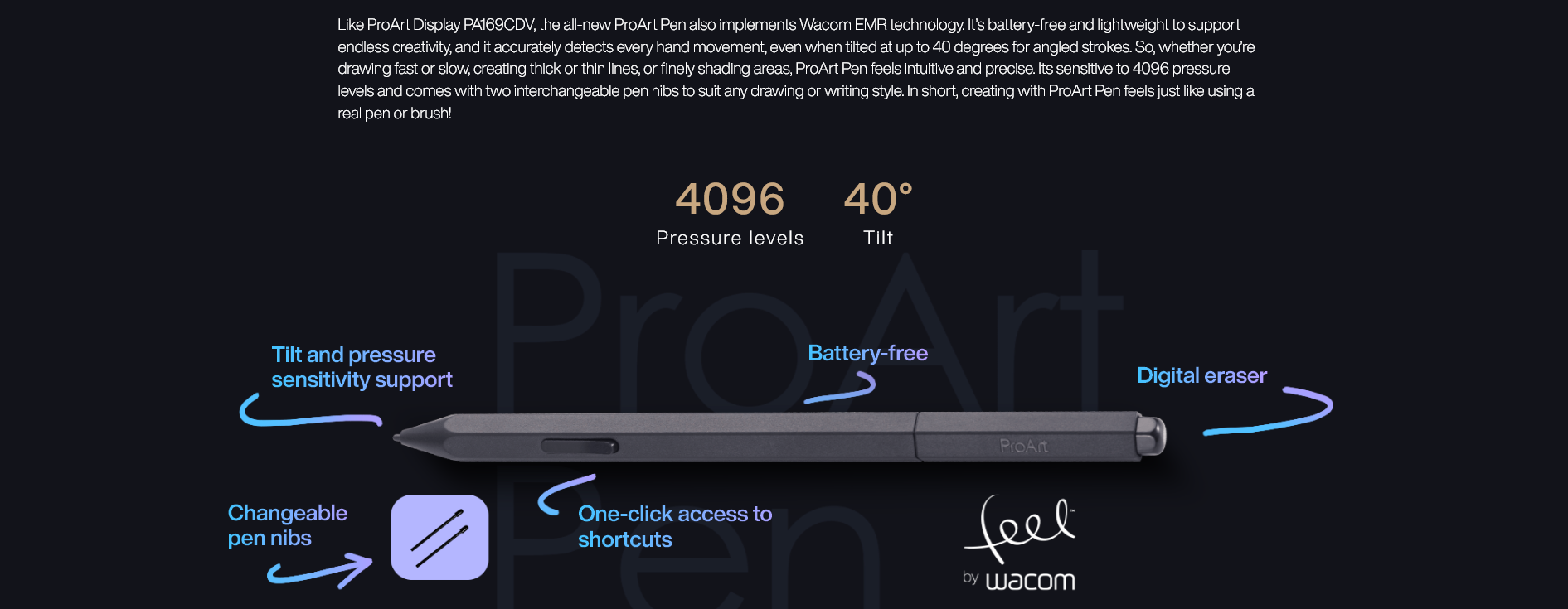

• Stylus Support : Yes, Wacom EMR Technology ProArt Pen (Feel by Wacom)
• Protection Glass : Yes
• Flicker-free : Yes
• LCD ZBD Warranty : Yes(3 yr)
VIDEO FEATURE:
• ProArt Preset : Standard
• ProArt Preset : sRGB
• ProArt Preset : Adobe RGB
• ProArt Preset : DCI-P3
• ProArt Preset : Rec. 709
• ProArt Preset : Scenery
• ProArt Preset : Reading
• ProArt Preset : HDR
• ProArt Preset : User mode1
• ProArt Preset : User mode2
• Color Temp. Selection : Yes(5 modes)
• Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
• Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
• Color Accuracy : △E< 2
• ProArt Palette : Yes
• QuickFit Plus : Yes
• PIP / PBP Technology : Yes
• HDCP : Yes, 2.2
• Low Blue Light : Yes
Audio Feature: Speaker : Yes(1Wx2)

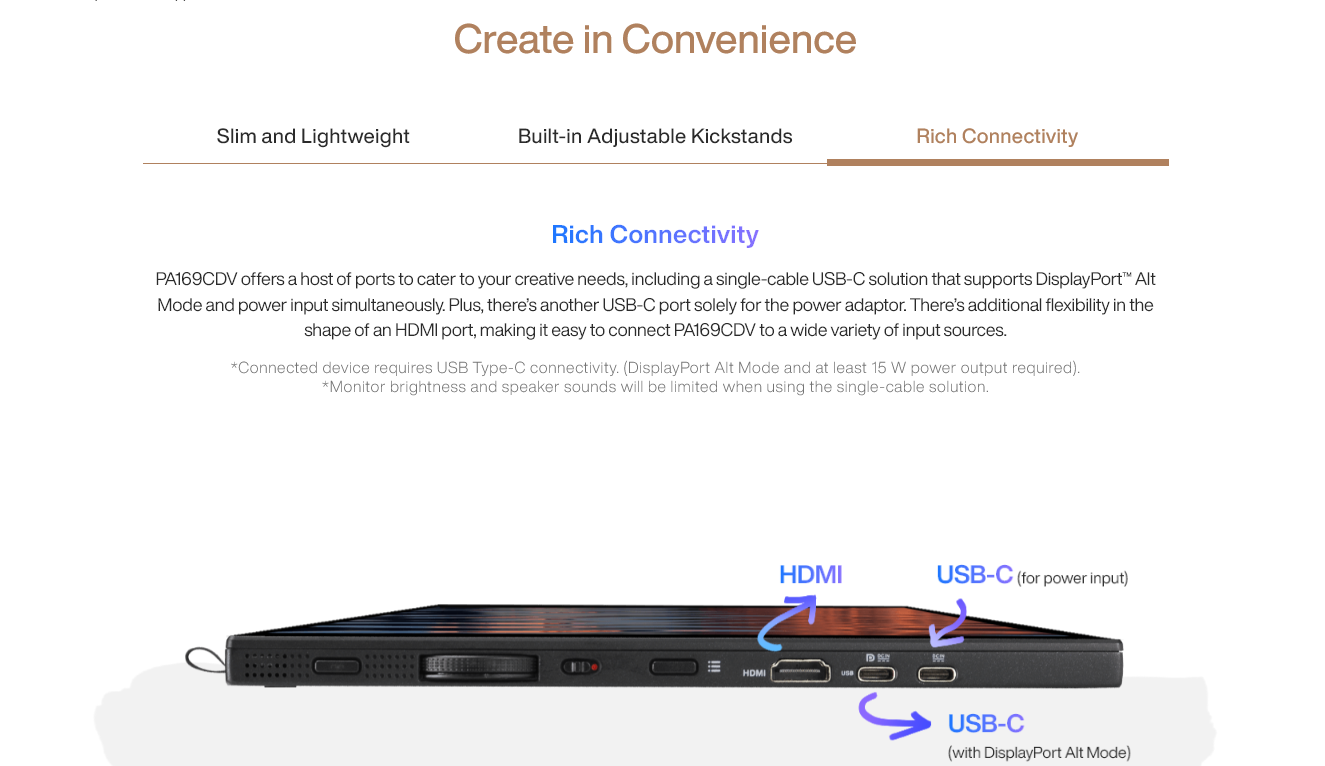

I/O PORTS:
• USB-C x 1 (DP Alt Mode)
• HDMI(v2.0) x 1
• USB-C Power Delivery : 15W
SIGNAL FREQUENCY:
- Digital Signal Frequency :
• HDMI: 29~160 KHz (H) / 40~60Hz (V)
• USB-C: 29~160 KHz (H) / 40~60Hz (V)
POWER CONSUMPTION:
• Power Consumption : <15W
• Power Saving Mode : <0.5W
• Power Off Mode : <0.3W
• Voltage : 100-240V, 50/60Hz
MECHANICAL DESIGN:
• Tilt : Yes (Upper Stand: 17°, Lower Stand: 54° ~ 75°)
• Pivot : Yes (0° ~ 90° Clockwise)
• 1/4" Tripod Socket : Yes
DIMENSIONS (Esti.):

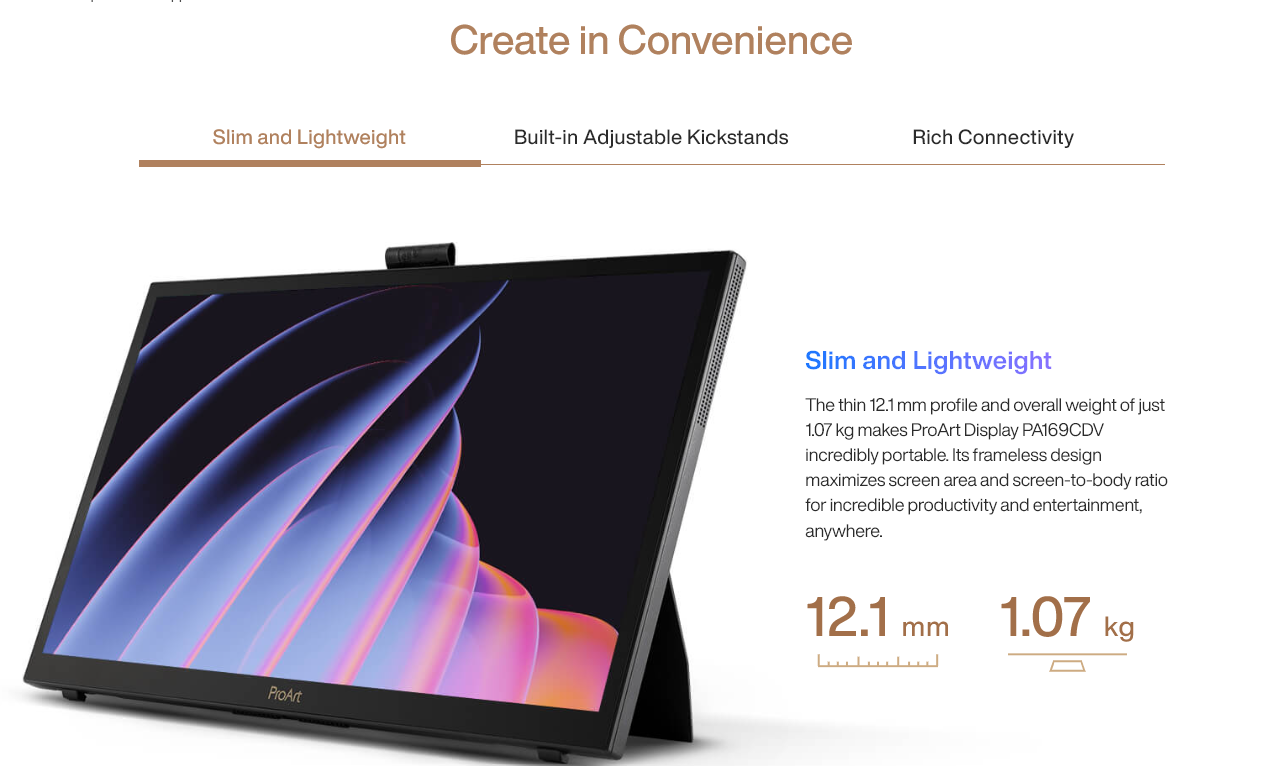

• Phys. Dimension (W x H x D) : 37.0 x 23.7 x 1.2 cm (14.57" x 9.33" x 0.47")
• Box Dimension (W x H x D) : 53.90 x 10.75 x 32.30 cm (21.22" x 4.23" x 12.72")
WEIGHT (Esti.):
• Net Weight : 1.07 kg (2.36 lbs)
• Gross Weight : 2.95 kg (6.50 lbs)
ACCESSORIES (vary by regions):
• Color pre-calibration report
• HDMI cable
• Power adapter
• ProArt Pen (Wacom EMR)
• ProArt Carry Bag
• Quick start guide
• USB-C cable
• Warranty Card
• Welcome Card
CERTIFICATE:
• Energy Star
• TÜV Flicker-free
• TÜV Low Blue Light
• VESA DisplayHDR 400
• Calman Verified
• Pantone Validated
