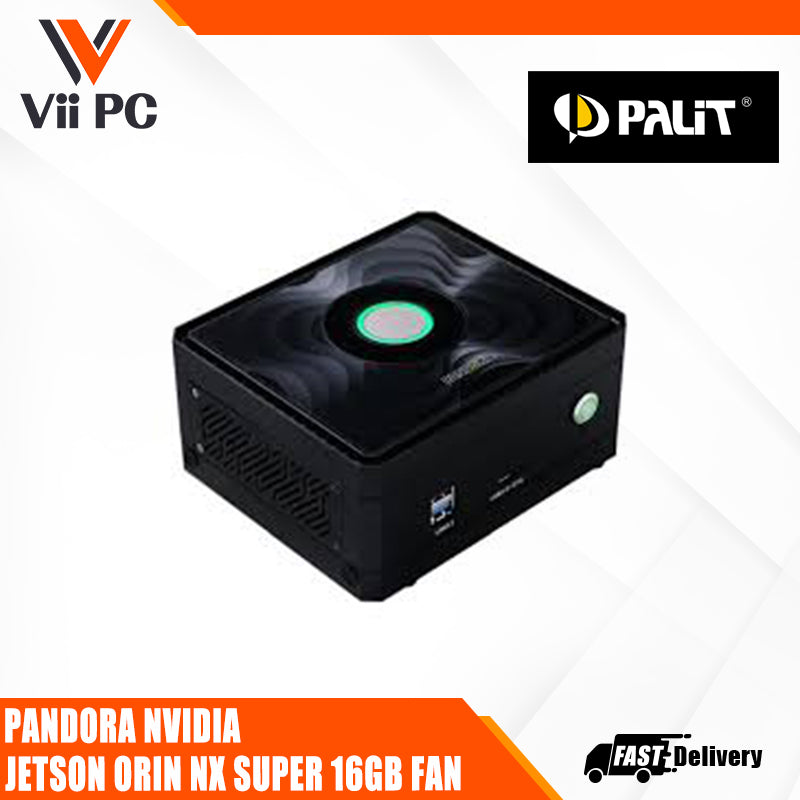

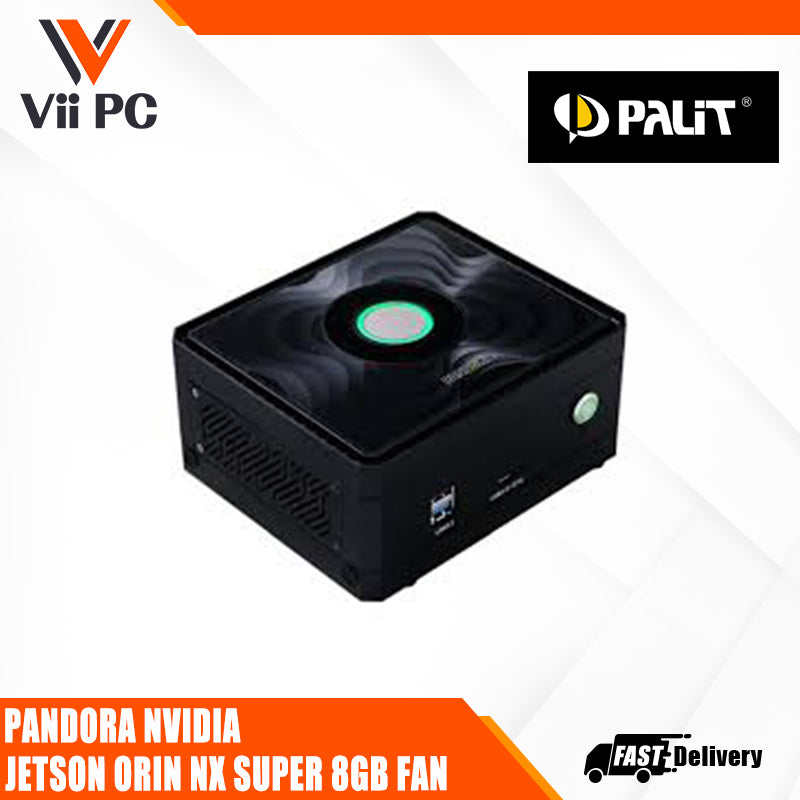

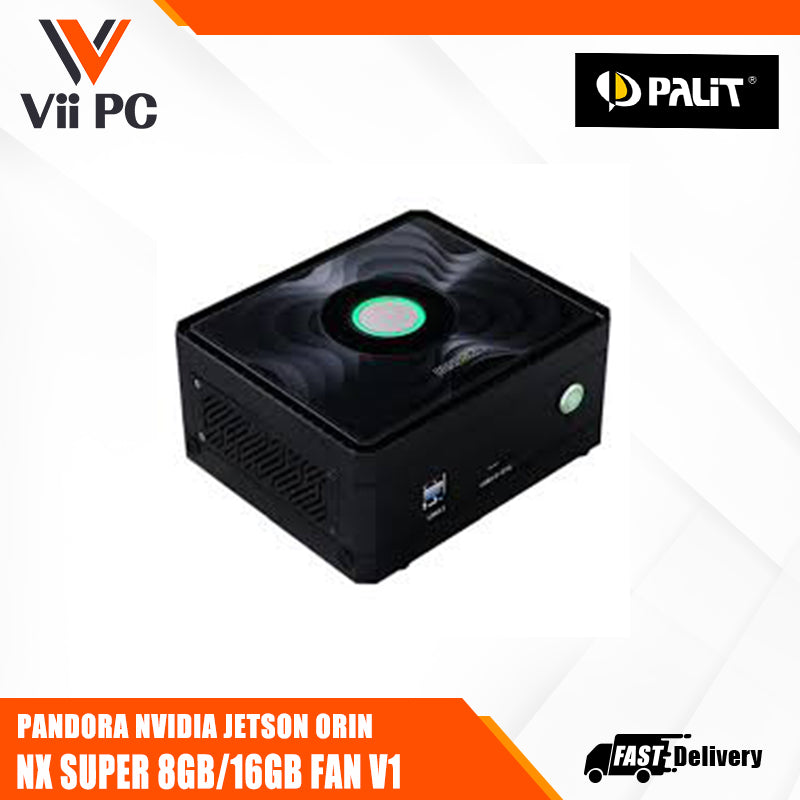

PANDORA NVIDIA JETSON ORIN NX SUPER 8GB/16GB FAN V1 NVIDIA Jetson Orin™ NX Super Ready

NVIDIA Jetson Orin™ NX Super Ready

Compact Size : 145mm × 123mm × 66mm

4×M.2, 8 Lanes MIPI CSI-2, and I2C / UART / GPIO / CAN Bus

2×USB3.2 Gen2, 2 × USB2.0, 1 x Nano SIM Card Slot

1×HDMI2.0

SpecificationsSYSTEMSOM ModuleNVIDIA® Jetson Orin™ NX 8GB SuperNVIDIA® Jetson Orin™ NX 16GB SuperCPU6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU

1.5MB L2 + 4MB L3

8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU

2MB L2 + 4MB L3

GPU1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor CoresAI Performance117 / 58 TOPS (Sparse / Dense)157 / 78 TOPS (Sparse / Dense)System Memory8GB 128-bit LPDDR5

total 102.4 GB/s bandwidth

16GB 128-bit LPDDR5

total 102.4 GB/s bandwidth

Part NumberA001FV1P1A002FV1P1INTERFACEStorageSupports External NVMeDisplay Interface1×HDMI2.0Ethernet2×RJ45 for 10/100/1000Mbps Ethernet DHCP ClientUSB2×USB3.2 Gen2 ( Type-A )

1×USB3.2 Gen2 ( Type-C ) ( OTG )

2×USB2.0 ( Type-A )

Expansion Slot1×M.2 2280 M Key PCIe Gen4×2 Slot ( with Pre-Installed 128GB SSD )

1×M.2 2280/3080 M Key PCIe Gen4×4 Slot, Support SSD or Video Capture Cards

1×M.2 2230 E Key PCIe Gen4×1+USB2.0 Slot, Support WiFi Module.

1×M.2 3042/3052 B Key USB3.2 Gen1 Slot, Support 5G/4G Wireless Module.

MIPI8-Lane MIPI CSI-2

( D-PHY 2.1, Support MIPI Camera, Capture Card )

Audio1×Line In ( 3.5mm Phone Jack )

1×Line Out ( 3.5mm Phone Jack )

Peripheral Communication40 Pin Header

1×I2S

2×I2C

2×SPI

1×UART

3×GPIO

14 Pin Header

1×CAN Bus

1×UART with CTS/RTS

1×UART for Debug

1×Nano SIM Card Slot

Misc. FeaturesFirmware Upgradable

VIDEO FEATUREVideo EncodeAV1 ( UHP ) - 1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30

H.265 ( UHP )- 1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30

H.264 ( UHP ) - 1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30

Video DecodeAV1 ( Main Profile ) - 1×8K30 | 2×4K60 | 4×4K30 | 10×1080p60 | 20×1080p30

H.265 ( Main, Main10 ) - 1×8K30 | 2×4K60 | 4×4K30 | 9×1080p60 | 18×1080p30

H.264 ( Baseline, Main, High ) - 1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30

VP9 ( Profile 0, Profile 2 ) - 1×4K60 | 3×4K30 | 7×1080p60 | 15×1080p30

DEVELOPMENT ENVIRONMENTJetPack6.2 or HigherENVIRONMENTPower SupplyDC input : 12~36VOperating TemperatureStandard Version: 0~60°C with AirflowStorage Temperature-20~80°CMECHANICALDimension of Main Board115mm × 115mmDimension of System145mm × 123mm × 66mmWeight470g
