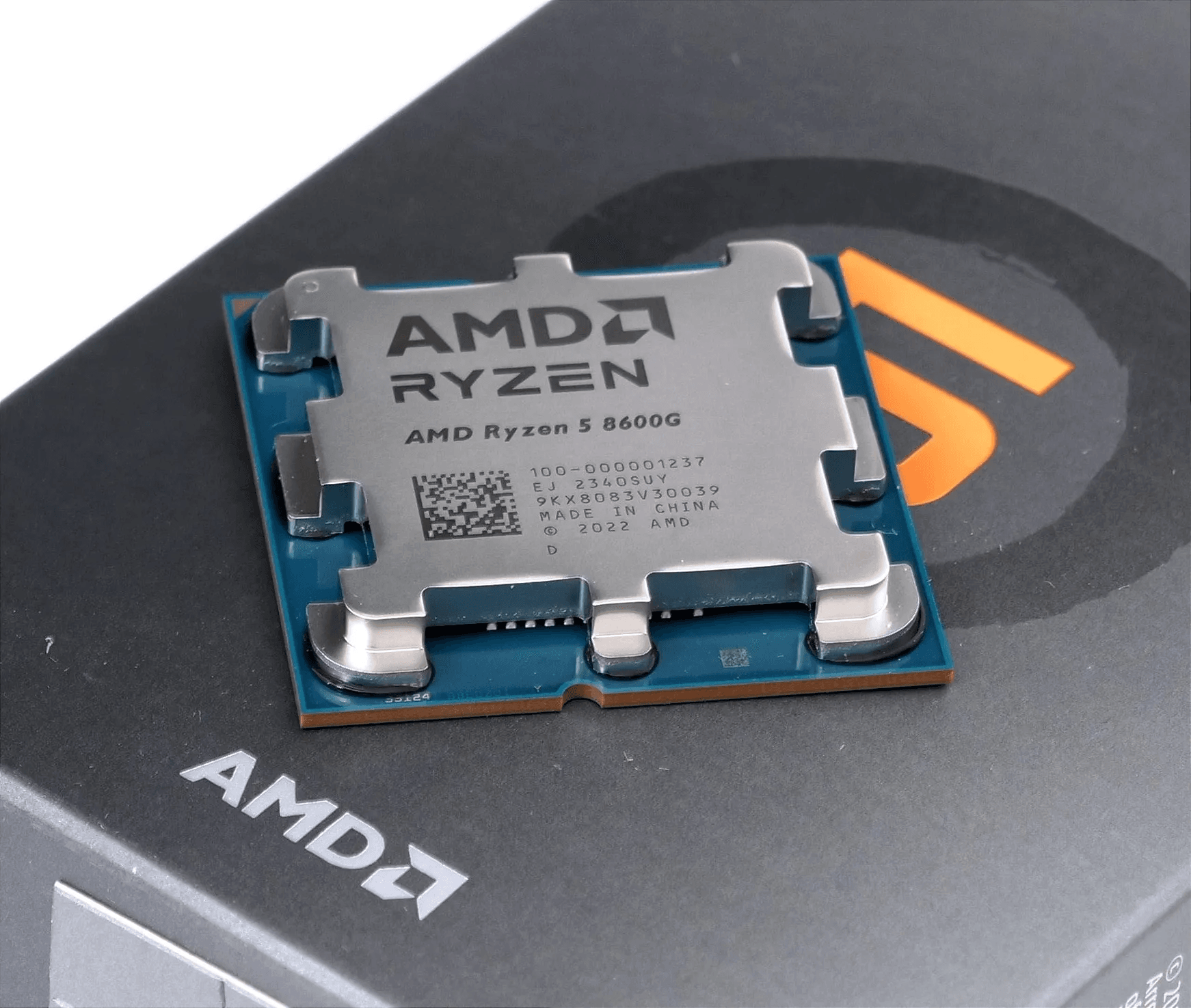

AMD Ryzen™ 5 8600G with Wraith Stealth Cooler - Ryzen 5 8000 Series Desktop Processor (6-Cores, 12-threads, 4.3GHz, Socket AM5, 65W)

AMD Ryzen™ 5 8600G with Wraith Stealth Cooler - Ryzen 5 8000 Series Desktop Processor (6-Cores, 12-threads, 4.3GHz, Socket AM5, 65W)

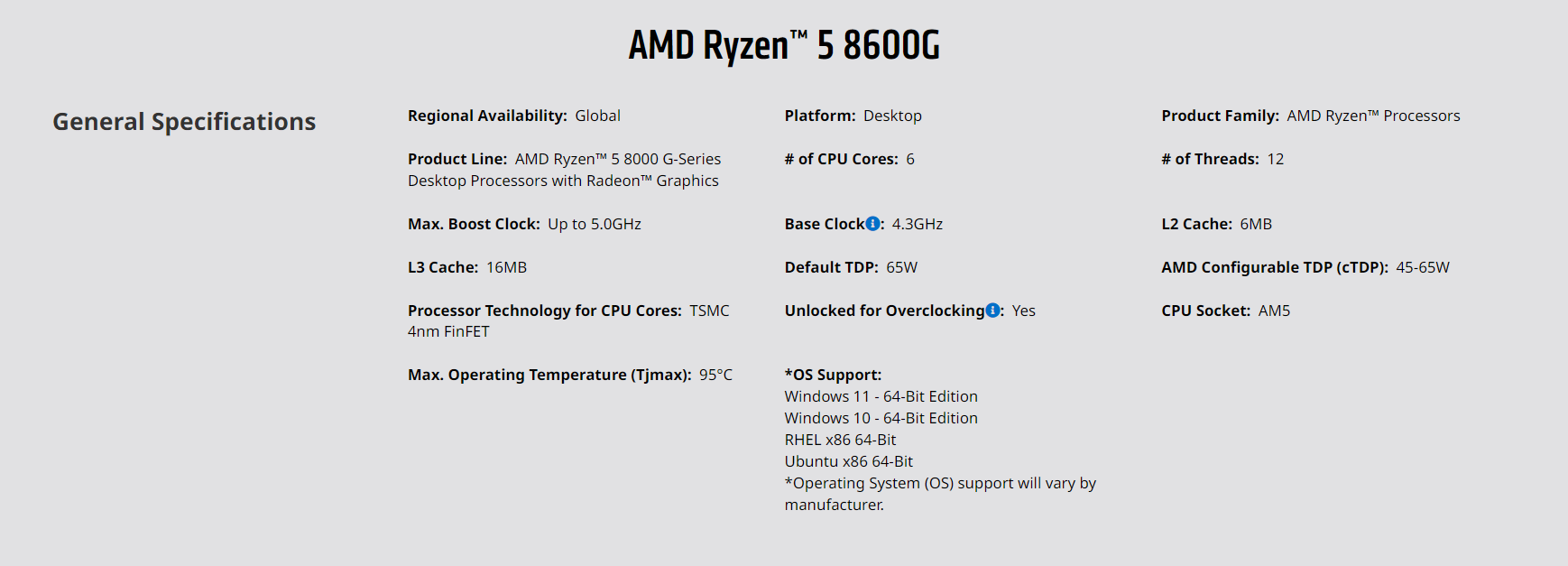

GENERAL SPECIFICATIONS

Platform: Desktop
Product Family: AMD Ryzen™ Processors
Product Line: AMD Ryzen™ 5 8000 G-Series Desktop Processors with Radeon™ Graphics
AMD PRO Technologies: No
Consumer Use: Yes
Regional Availability: Global

Former Codename: "Phoenix"
Architecture: "Zen 4"
# of CPU Cores: 6
Multithreading (SMT): Yes
# of Threads: 12
Max. Boost Clock: Up to 5.0GHz
Base Clock: 4.3GHz
L2 Cache: 6MB
L3 Cache: 16MB

Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
Processor Technology for CPU Cores: TSMC 4nm FinFET
CPU Compute Die (CCD) Size: 178mm²
Package Die Count: 1
Unlocked for Overclocking: Yes
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes

CPU Socket: AM5
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax): 95°C

*OS Support:
• Windows 11 - 64-Bit Edition
• Windows 10 - 64-Bit Edition
• RHEL x86 64-Bit
• Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

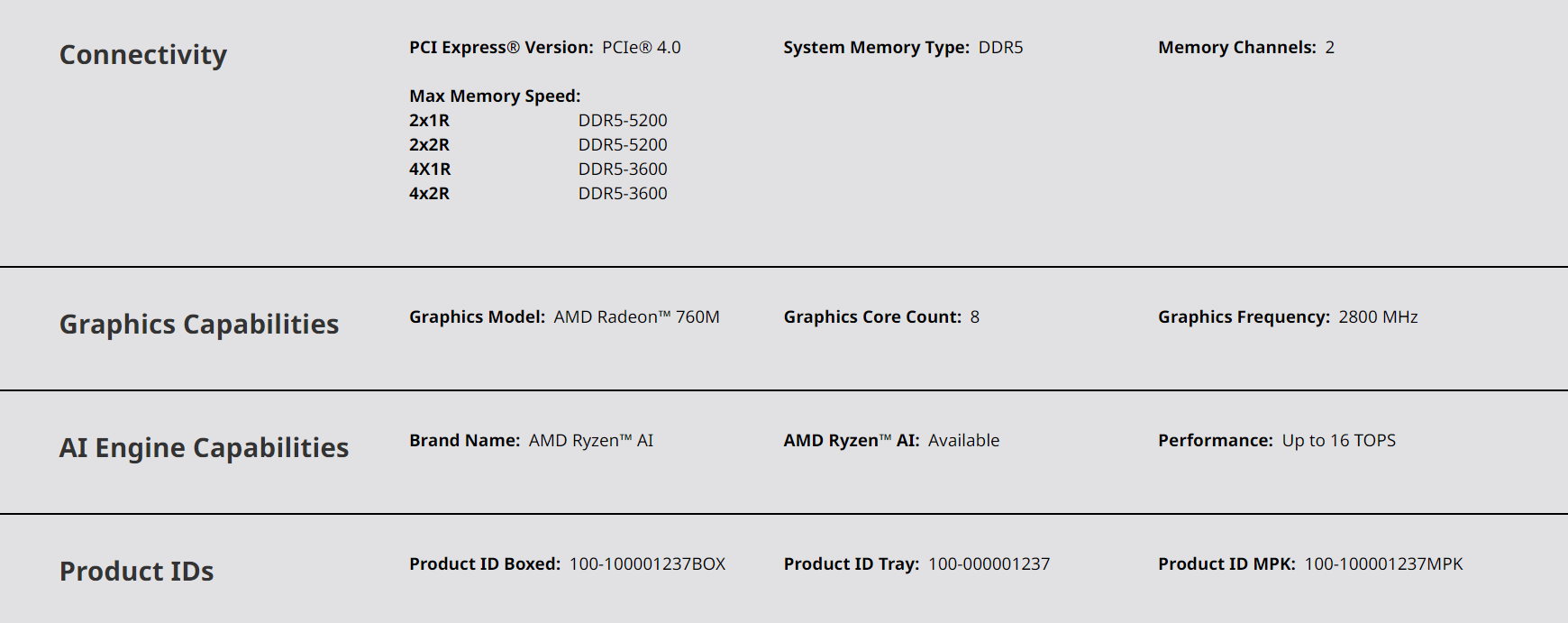

CONNECTIVITY

Native USB 4 (40Gbps) Ports: 2
Native USB 3.2 Gen 2 (10Gbps) Ports: 2
Native USB 2.0 (480Mbps) Ports: 1
PCI Express® Version: PCIe® 4.0
Native PCIe® Lanes (Total/Usable): 20 / 16
NVMe Support: Boot, RAID0, RAID1
System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 256GB
System Memory Subtype: UDIMM

Max Memory Speed:
• 2x1R - DDR5-5200
• 2x2R - DDR5-5200
• 4X1R - DDR5-3600
• 4x2R - DDR5-3600

GRAPHICS CAPABILITIES

Integrated Graphics: Yes
Graphics Model: AMD Radeon™ 760M
Graphics Core Count: 8
Graphics Frequency: 2800 MHz
DirectX® Version: 12
DisplayPort™ Version: 2.1

DisplayPort Extensions
• HDR Metadata
• Adaptive-Sync
• UHBR10

DisplayPort Max Refresh Rates (SDR)
• 7680x4320 @ 60Hz
• 3840x2160 @ 240Hz
• 3440x1440 @ 360Hz
• 2560x1440 @ 480Hz
• 1920x1080 @ 600Hz

DisplayPort Max Refresh Rates (HDR)
• 7680x4320 @ 60Hz
• 3840x2160 @ 240Hz
• 3440x1440 @ 360Hz
• 2560x1440 @ 480Hz
• 1920x1080 @ 600Hz

HDMI® Version: 2.1
HDCP Version Supported: 2.3
USB Type-C® DisplayPort™ Alternate Mode: Yes
Multi-Monitor Support: Yes
Max Displays: 4
AMD FreeSync™: Yes
Wireless Display: Miracast

Max Video Encode Bandwidth (SDR)
• 1080p630 8bpc H.264
• 1440p373 8bpc H.264
• 2160p175 8bpc H.264
• 1080p630 8bpc H.265
• 1440p373 8bpc H.265
• 2160p175 8bpc H.265
• 4320p43 8bpc H.265
• 1080p864 8/10bpc AV1
• 1440p513 8/10bpc AV1
• 2160p240 8/10bpc AV1
• 4320p60 8/10bpc AV1

Max Video Decode Bandwidth
• 1080p60 8bpc MPEG2
• 1080p60 8bpc VC1
• 1080p786 8/10bpc VP9
• 2160p196 8/10bpc VP9
• 4320p49 8/10bpc VP9
• 1080p1200 8bpc H.264
• 2160p300 8bpc H.264
• 4320p75 8bpc H.264
• 1080p786 8/10bpc H.265
• 2160p196 8/10bpc H.265
• 4320p49 8/10bpc H.265
• 1080p960 8/10bpc AV1
• 2160p240 8/10bpc AV1
• 4320p60 8/10bpc AV1

AMD SmartAccess Memory: Yes

AI ENGINE CAPABILITIES

Brand Name: AMD Ryzen™ AI
AMD Ryzen™ AI: Available
Performance: Up to 16 TOPS

SECURITY, VIRTUALIZATION, and MANAGEABILITY

AMD Enhanced Virus Protection (NX bit): Yes
