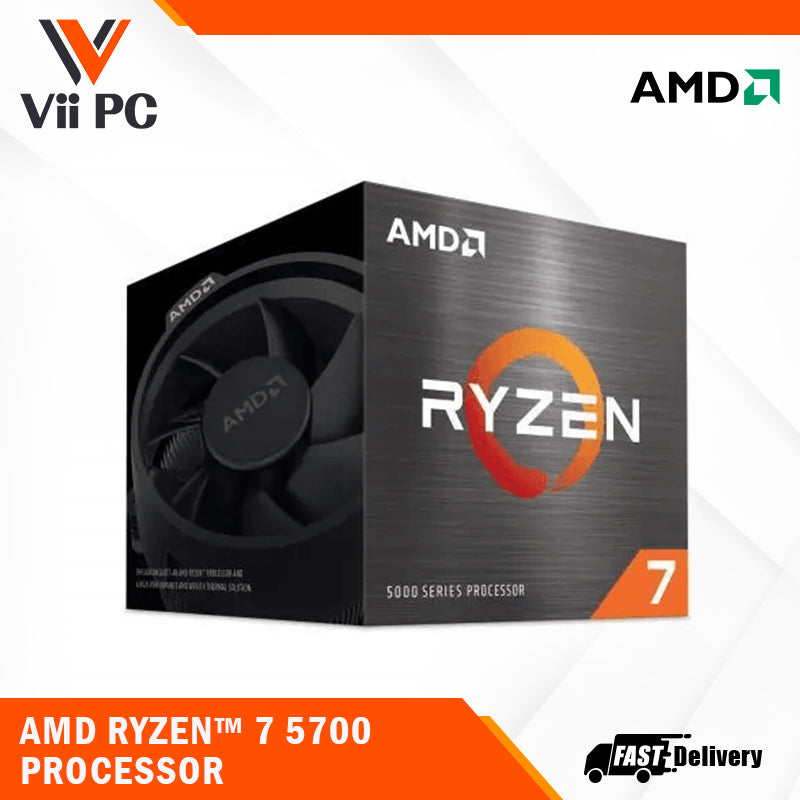

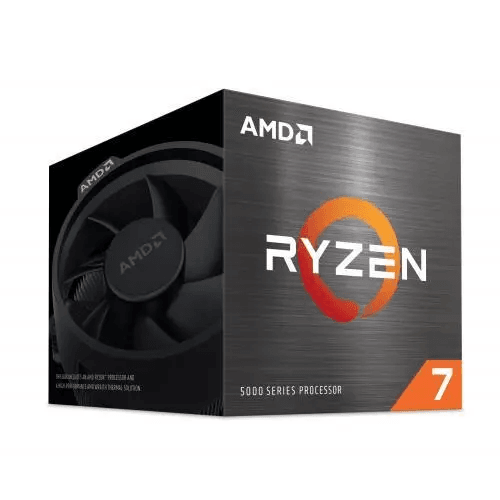

AMD Ryzen™ 7 5700 With Wraith Spire Cooler Ryzen 7 5000 G-Series 8-Cores, 16-threads, 3.7GHz, Socket AM4, 65W, Non-Integrated Boxed Processor
• AMD Ryzen™ 7 Desktop Processors
• # of CPU Cores : 8
• # of Threads : 16
• Base Clock : 3.7GHz
• Supporting Chipsets : X570, X470, X370, B550, B450, B350, A520
• System Memory Type : DDR4
• Integrated Graphics : No
• Graphics Model : Discrete Graphics Card Required

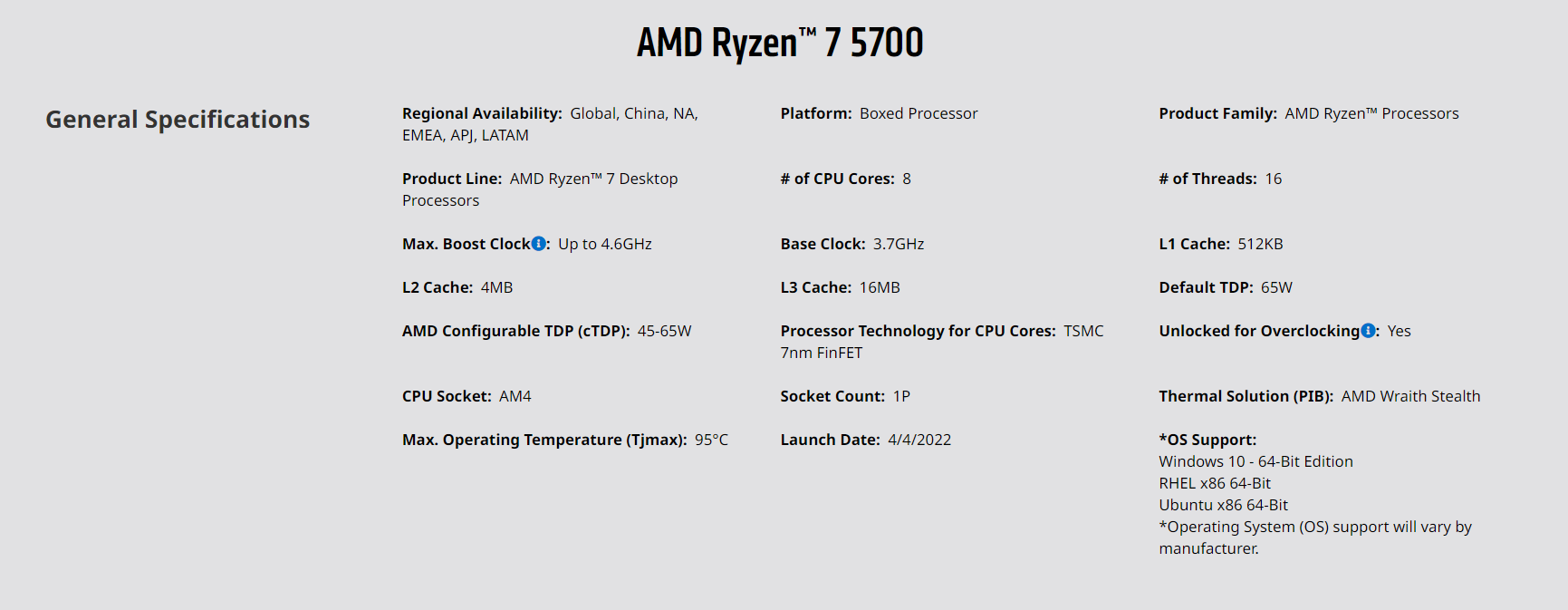

GENERAL SPECIFICATIONS
Platform: Boxed Processor
Market Segment: Mainstream Desktop
Product Family: AMD Ryzen™ Processors
Product Line: AMD Ryzen™ 7 Desktop Processors
Consumer Use: Yes
Regional Availability: Global, China, NA, EMEA, APJ, LATAM
Former Codename: "Cezanne"
Architecture: "Zen 3"
# of CPU Cores: 8
# of Threads: 12
Max. Boost Clock: Up to 4.6GHz
Base Clock: 3.7GHz
L1 Cache: 512KB
L2 Cache: 4MB
L3 Cache: 16MB
Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
Processor Technology for CPU Cores: TSMC 7nm FinFET
CPU Compute Die (CCD) Size: 180mm²
Package Die Count: 1
Unlocked for Overclocking: Yes
CPU Socket: AM4
Socket Count: 1P
Supporting Chipsets:
• X570
• X470
• X370
• B550
• B450
• B350
• A520
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB): AMD Wraith Stealth
Max. Operating Temperature (Tjmax): 95°C
Launch Date: 1/8/2024
*OS Support:
• Windows 11 - 64-Bit Edition
• Windows 10 - 64-Bit Edition
• RHEL x86 64-Bit
• Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

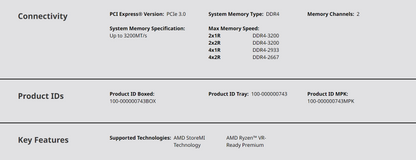

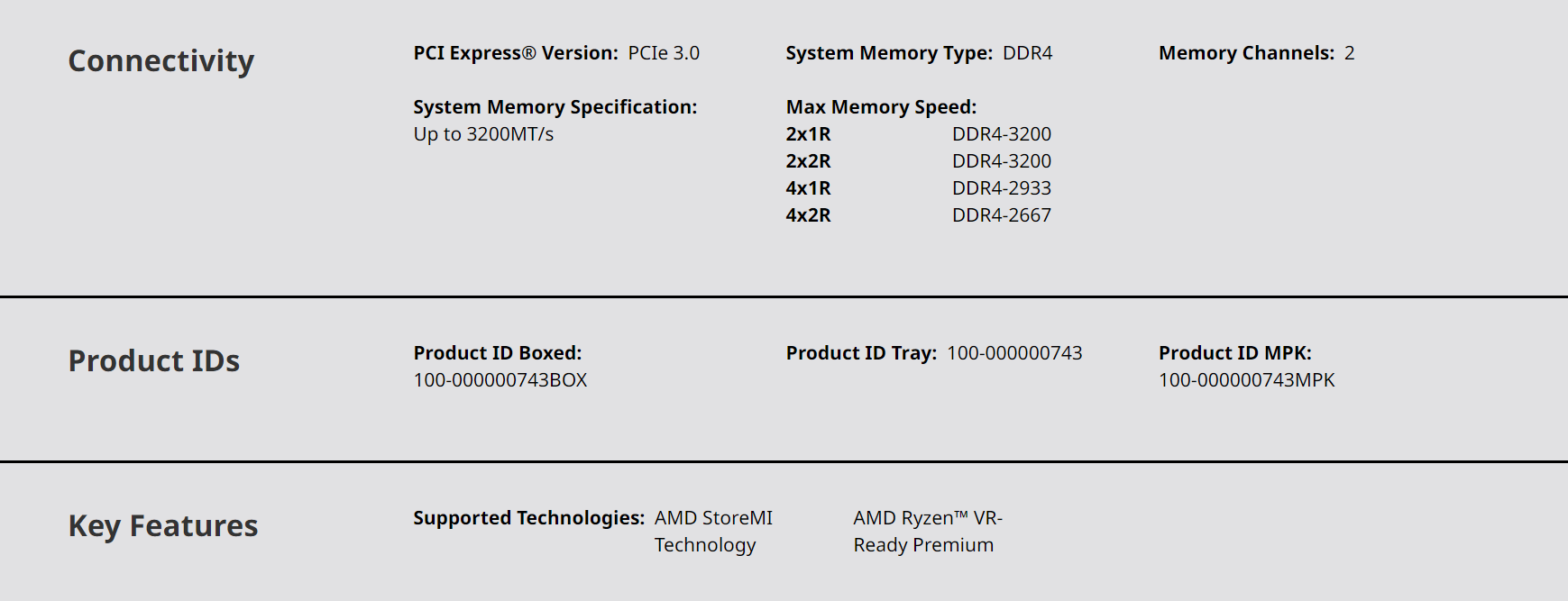

CONNECTIVITY
USB Type-C® Support: Yes
Native USB 4 (40Gbps) Ports: 0
Native USB 3.2 Gen 2 (10Gbps) Ports: 4
Native USB 3.2 Gen 1 (5Gbps) Ports: 0
Native USB 2.0 (480Mbps) Ports: 0
Native SATA Ports: 2
PCI Express® Version: PCIe® 3.0
Native PCIe® Lanes (Total/Usable): 24 / 20
Additional Usable PCIe Lanes from Motherboard:
• AMD X570 - 16x Gen 3
• AMD X470 - 2x Gen 3
• AMD X470 - 8x Gen 2
NVMe Support: Boot, RAID0, RAID1, RAID10
System Memory Type: DDR4
Memory Channels: 2
System Memory Subtype: UDIMM
System Memory Specification: Up to 3200MT/s
Max Memory Speed:
• 2x1R - DDR4-3200
• 2x2R - DDR4-3200
• 4x1R - DDR4-2933
• 4x2R - DDR4-2667
ECC Support: No
GRAPHICS CAPABILITIES
Integrated Graphics: Yes
Graphics Model: Discrete Graphics Card Required
KEY FEATURES
Supported Technologies:
• AMD StoreMI Technology
• AMD Ryzen™ VR-Ready Premium
