ASUS HA3281A HealthCare Monitor
ASUS HealthCare Displays provides comprehensive line-up targeting for every HealthCare institutions needs. ASUS HealthCare Displays are factory calibrated with DICOM® Part 14 GSDF (Grayscale standard display function) compliance to ensure visual accuracy and consistency in finest details. ASUS HA3281A features 31.5-inch 8MP Anti-Glare, Low-Reflection (AGLR) pure RGB OLED panel, built-in colorimeter supports self / auto calibration to keep DICOM long term accuracy. ASUS HealthCare Displays delivers high-performance, precise and stable capabilities to fit any scenario.
-
31.5-inch 8MP (3840 x 2160) pure RGB OLED true 10-bit panel
-
Anti-Glare, Low-Reflection (AGLR) with Eye Care+ to protect eyes from long time use
-
Compliant with DICOM Part 14 GSDF standard
-
DICOM Preset and auto compensation of DICOM curve for ambient light changing
-
Built-in colorimeter supports Self / Auto calibration to ensures DICOM accuracy
-
Factory calibrated to ensures JND < 10%
-
Multiple I/O for flexibility: DisplayPort, HDMI, USB-C and USB hub
-
Ergonomic design with tilt, swivel, pivot and height adjustments for a comfortable viewing experience
-
IEC 60601-1-2, AAPM 270, TG18 and ISO13485 Compliance
SPECIFICATIONS
MODEL: HA3281A
DISPLAY
• Panel Size (inch) : 31.5
• Aspect Ratio : 16:9
• Resolution : 3840x2160
• Pixel Pitch : 0.182mm
• Display Viewing Area (H x V) : 697.92 x 392.58 mm
• Display Surface : AGLR (Anti-Glare, Low-Reflection)
• Panel Type : OLED
• Viewing Angle (CR≧10, H/V) : 178°/ 178°
• Brightness (Typ.) : 250cd/㎡
• Contrast Ratio (Typ.) : 1,000,000:1
• Display Colors : 1073.7M (10 bit)
• Response Time : 0.1ms(GTG)
• Flicker-free : Yes
VIDEO INPUTS
• USB-C x 1 (DP Alt Mode)
• HDMI(v2.0) x 3
• DisplayPort 1.4 x 1
• USB-C Power Delivery : 15W
• USB Hub : 4x USB 3.2 Gen 2 Type-A
• Earphone Jack : Yes
VIEDO FEATURE
• Preset Mode : Native
• Preset Mode : sRGB
• Preset Mode : DICOM_0 lux
• Preset Mode : DICOM_50 lux
• Preset Mode : DICOM_100 lux
• Preset Mode : DICOM_Auto
• Preset Mode : User Mode 1
• Preset Mode : User Mode 2
• Color Temp. Selection : Yes(5000K, 5500K, 6500K, 7500K, 9300K, 12000K)
• Gamma adjustment : Yes (Support Gamma 2.0/2.2/2.4)
• PIP(PbP) Technology : Yes
• ASUS Hardware Calibration : Yes
• HDCP : Yes, 2.2
• Low Blue Light : Yes
• Eye Care+ Technology : Yes
SENSOR
• Embedded Colorimeter : Yes (Support Self-Calibration)
• Ambient Light Sensor : Yes
• Proximity Sensor : Yes
POWER CONSUMPTION
• Power Consumption : < 23.2W
• Power Saving Mode : < 0.5W
• Power Off Mode : <0.3W
• Voltage : 100-240V, 50/60Hz
MECHANICAL DESIGN

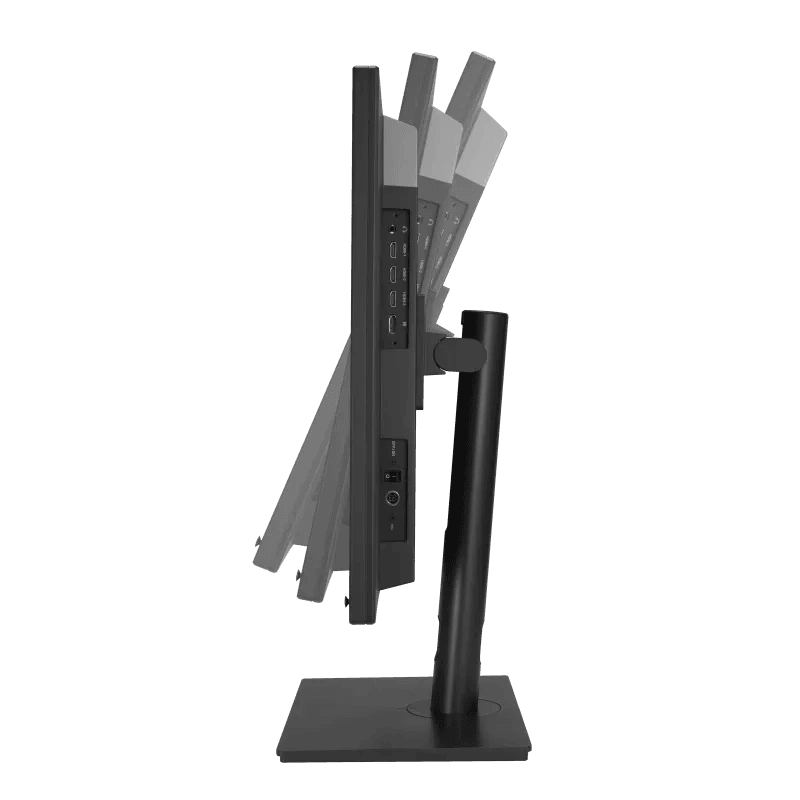

• Tilt : Yes (+23° ~ -5°)
• Height Adjustment : 0~130mm
• Pivot : Yes (+90° ~ -90°)
• Swivel : Yes (+30° ~ -30°)
• VESA Wall Mount : 100x100mm
• Kensington Lock : Yes
DIMENSIONS (Esti.)
• Phys. Dimension with Stand (W x H x D) : 73.5 x 62.6 x 24.5 cm (28.94" x 24.65" x 9.65")
• Phys. Dimension without Stand (W x H x D) : 73.54 x 46.69 x 5.44 cm (28.95" x 18.38" x 2.14")
• Box Dimension (W x H x D) : 87.8 x 61.6 x 29.8 cm (34.57" x 24.25" x 11.73")
WEIGHT (Esti.)
• Net Weight : 14.8 kg (32.63 lbs)
• Net Weight without Stand : 7.4 kg (16.31 lbs)
• Gross Weight : 18.2 kg (40.12 lbs)
RELIABILITY
• Operation Temperature : 0°C ~ 40°C
• Operation Humidity : 5% ~ 90%
COMPLIANCE STANDARD
• Energy Star
• TÜV Flicker-free
• TÜV Low Blue Light
• ISO 13485
• IEC 60601-1-2
• AAPM TG18
• AAPM TG270
WARRANTY: 3 years (including panel burn-in)
ACCESSORIES (vary by regions)
• Cable Clip
• Color pre-calibration report
• DisplayPort cable
• Ergonomic Stand
• HDMI cable
• Power adapter
• Power cord
• USB-C cable
• Warranty Card
