ASUS ROG Rapture GT-BE98
GT-BE98 Quad-band WiFi 7 (802.11be) Gaming Router, support new 320MHz bandwidth & 4096-QAM, dual 10G ports, backup WAN, Triple-level Game Acceleration, Mobile Game Mode, AURA RGB, AiMesh support, subscription-free network security and comprehensive VPN features
-
Beyond-fast WiFi 7 (802.11be) with new 320MHz channels in the 6 GHz band and 4096-QAM significantly increases network capacity and throughput, with speeds of up to 25 Gbps
-
Multi-link Operation links to multiple bands at the same time to ensure stable internet connections and efficient data transfers
-
Cutting-edge external dual-feeding antennas boost coverage by providing high efficiency and significantly enhanced signal strength
-

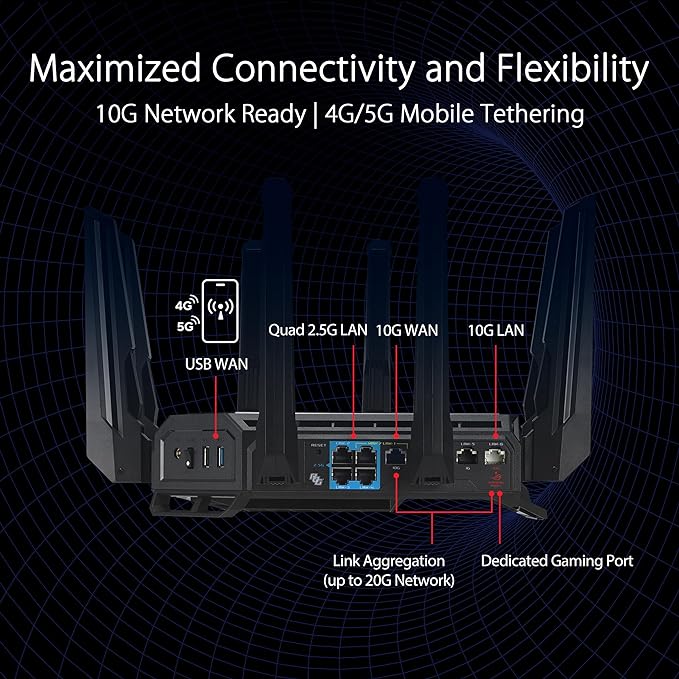

Maximized wired connectivity and flexibility with dual 10G ports and quad 2.5G ports, paving the way for most bandwidth-intensive games
-
Subscription-free network security with commercial-grade AiProtection Pro powered by Trend Micro™, plus a one-tap security scan and Safe Browsing
-
Comprehensive VPN features including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi
-
AiMesh extendable routers enable whole home seamless roaming with rich, advanced features
SPECIFICATIONS
MODEL NAME: ROG Rapture GT-BE98 (GT-BE98)
NETWORK STANDARD
• WiFi 6 (802.11ax)
• WiFi 7 (802.11be)
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac
• IPv4
• IPv6
PRODUCT SEGMENT: BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps
WIFI DATA RATE
• 2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
• 5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
• 5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
• 6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp
ANTENNA: External antenna x 8
TRANSMIT/RECEIVE
• 2.4GHz 4x4
• 5GHz-1 4x4
• 5GHz-2 4x4
• 6GHz 4x4
PROCESSOR: 2.6GHz quad-core processor
MEMORY: 256 MB Flash and 2 GB RAM
BOOSTS SPEED
• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 4096-QAM high data rate
• 20/40/80/160/320 MHz bandwidth
OPERATING FREQUENCY: 2.4 GHz / 5 GHz / 6 GHz
OPERATING MODE: Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
I/O PORTS
• 1 x 10Gbps for WAN/LAN
• 1 x 2.5Gbps for WAN/LAN
• 1 x 10Gbps for LAN
• 3 x 2.5Gbps for LAN
• 1 x RJ45 10/100/1000Mbps for LAN
• 1 x USB 3.2 Gen1
• 1 x USB 2.0
BUTTONS: WPS Button, Reset Button, Power Switch, LED control Button
LED INDICATOR
• WAN(Internet) x1
• 10G LAN x1
• 1G/2.5G LAN x1
• 6GHz x1
• 5GHz-1 x 1
• 5GHz-2 x 1
• 2.4GHz x1
• Power x1
POWER SUPPLY
• AC Input : 110V~240V(50~60Hz)
• DC Output : 19.5 V with max. 3.33 A current
PACKAGE CONTENT
• GT-BE98 quad-band gaming router
• RJ-45 cable
• Power adapter
• Quick Start Guide
• Warranty card
PRODUCT WEIGHT (g): 2000 g
PRODUCT DIMENSIONS: 350.41 x 350.41 x 220.6 mm
AIMESH
• Primary AiMesh Router
• AiMesh Node
GAME
• Game Boost / Acceleration
• WTFast
• ROG_First
• OpenNAT (Game Profile)
• Gaming Port
PARENTAL CONTROL
- "Allow you to block access to unwanted websites and apps."
Parental Control Customized Internet Schedule
• Maximum Parental Control profile : 64
• Maximum Parental Control content filter rule : 64
GUEST NETWORK
- "The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
- Guest Network Connection time limit
- Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
SECURITY
- WiFi Encryption : WPA/WPA2/WPA3 Personal
- WPA/WPA2/WPA3 Enterprise - Open System & OWE
- WPS
- Let's Encrypt
- DNS-over-TLS
- SSH
- Security Scan
- Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AIPROTECTION
- AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
TRAFFIC CONTROL
- Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
- Traditional QoS
- Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
- Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
- Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
- Dual WAN
- 3G / 4G LTE Dongle
- 4G / 5G Auto Mobile Tethering
- Port Forwarding
• Maximum Port Forwarding Rule : 64
- Port Triggering
• Maximum Port Triggering Rule : 32
- DMZ
- DDNS
- NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay
LAN
- DHCP Server
- IPTV
- LAN Link Aggregation
- Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 128
- Wake on LAN (WOL)
WIRELESS
- MU-MIMO
- UTF-8 SSID
- WiFi MAC Address Filter
• Maximum MAC Filters : 64
- Wireless Scheduler
- Airtime Fairness
- RADIUS Client
- Universal Beamforming
- Explicit Beamforming
USB APPLICATION
• 4G / 5G Auto Mobile Tethering
• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges
USER INTERFACE: Operating system : ASUSWRT
ADMINISTRATION
• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
