ASUS ROG STRIX B650E-F GAMING WIFI AM5 ATX Motherboard + AMD Ryzen 7 7800X3D (AM5) Processor BUNDLE

ROG STRIX B650E-I GAMING WIFI (AM5)

AMD B650 Chipset

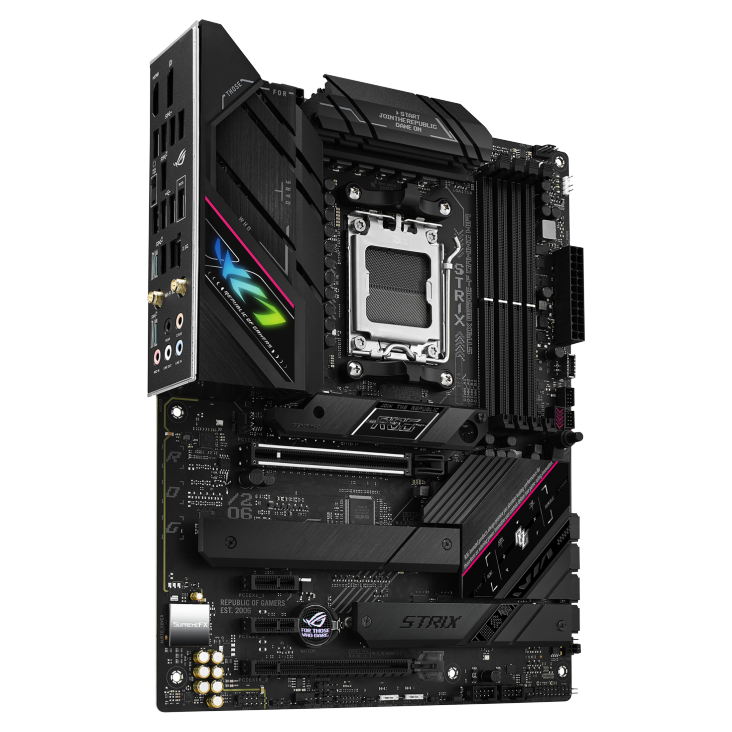

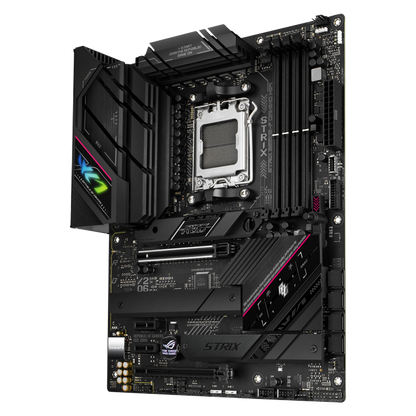

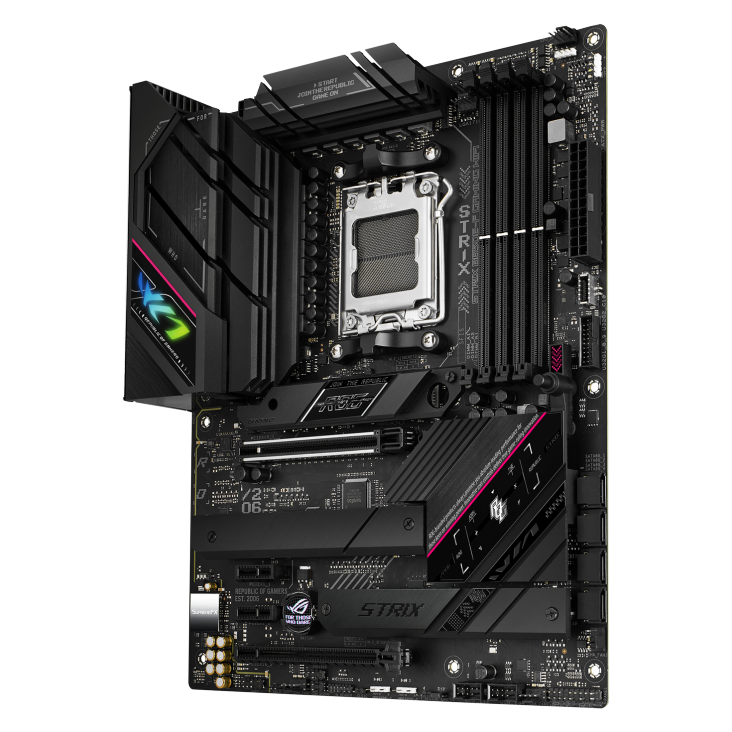

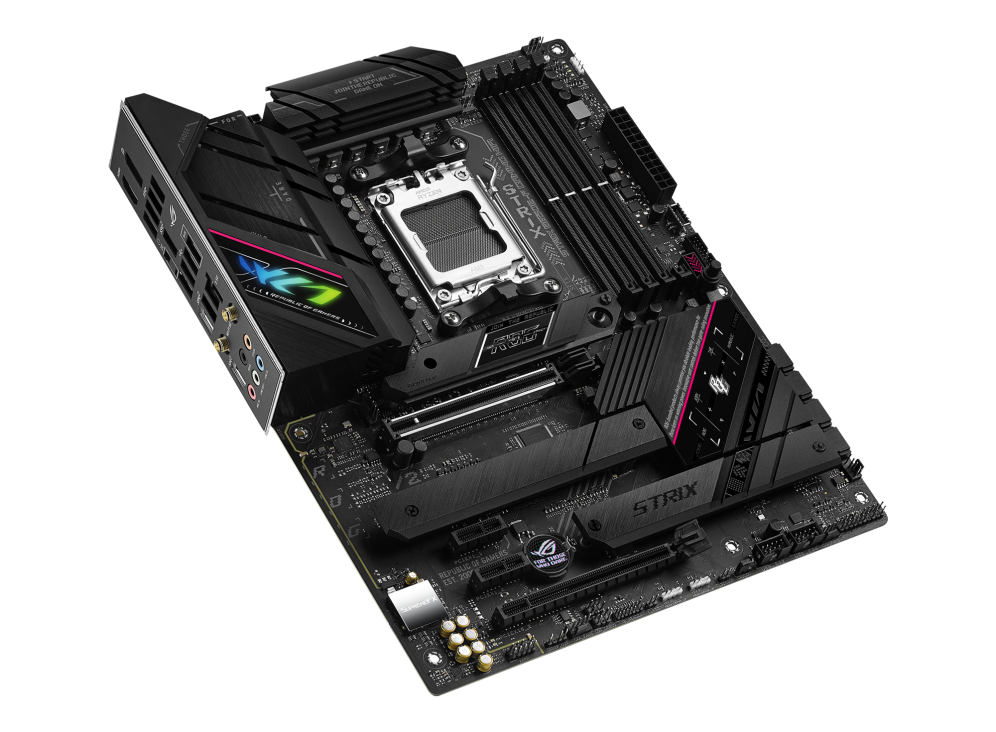

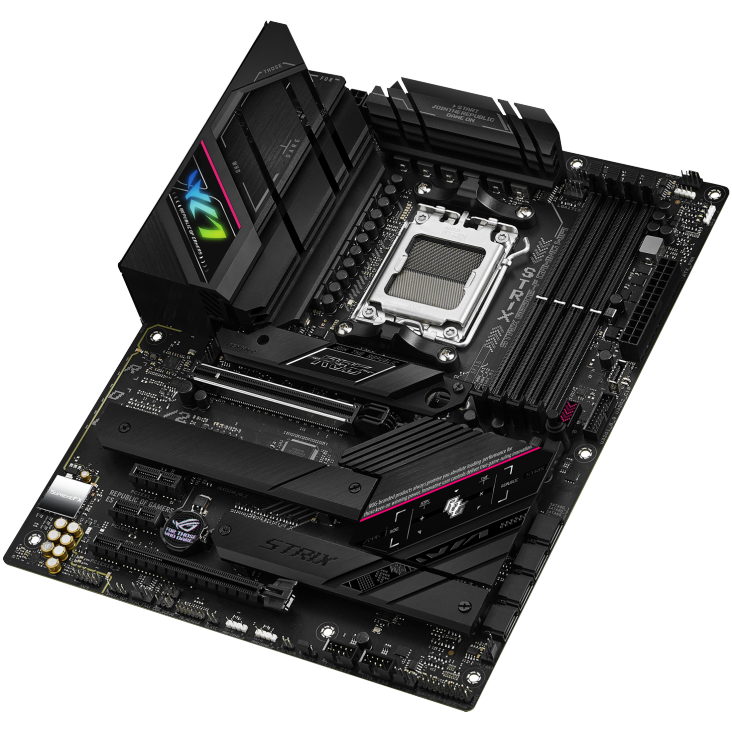

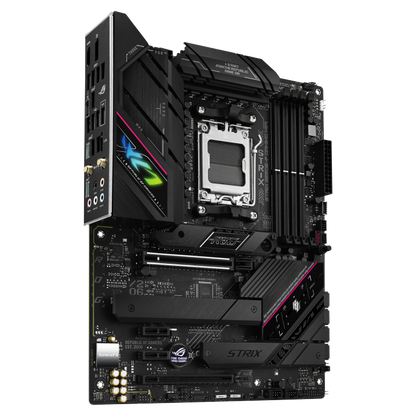

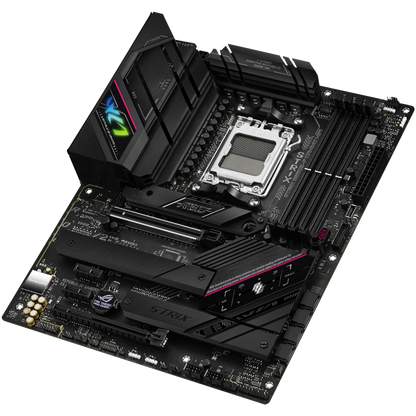

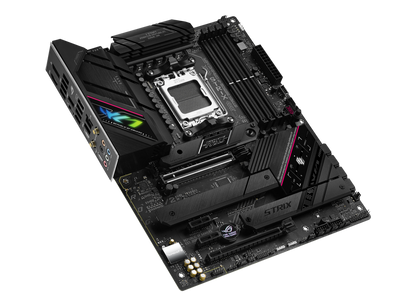

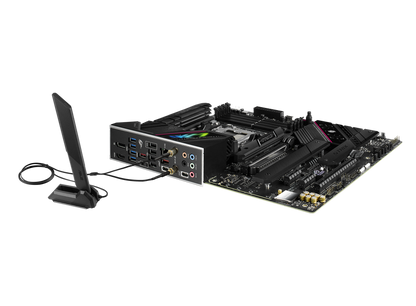

This mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen™ processors, the ROG Strix B650E-F leaves its competition in the dust.

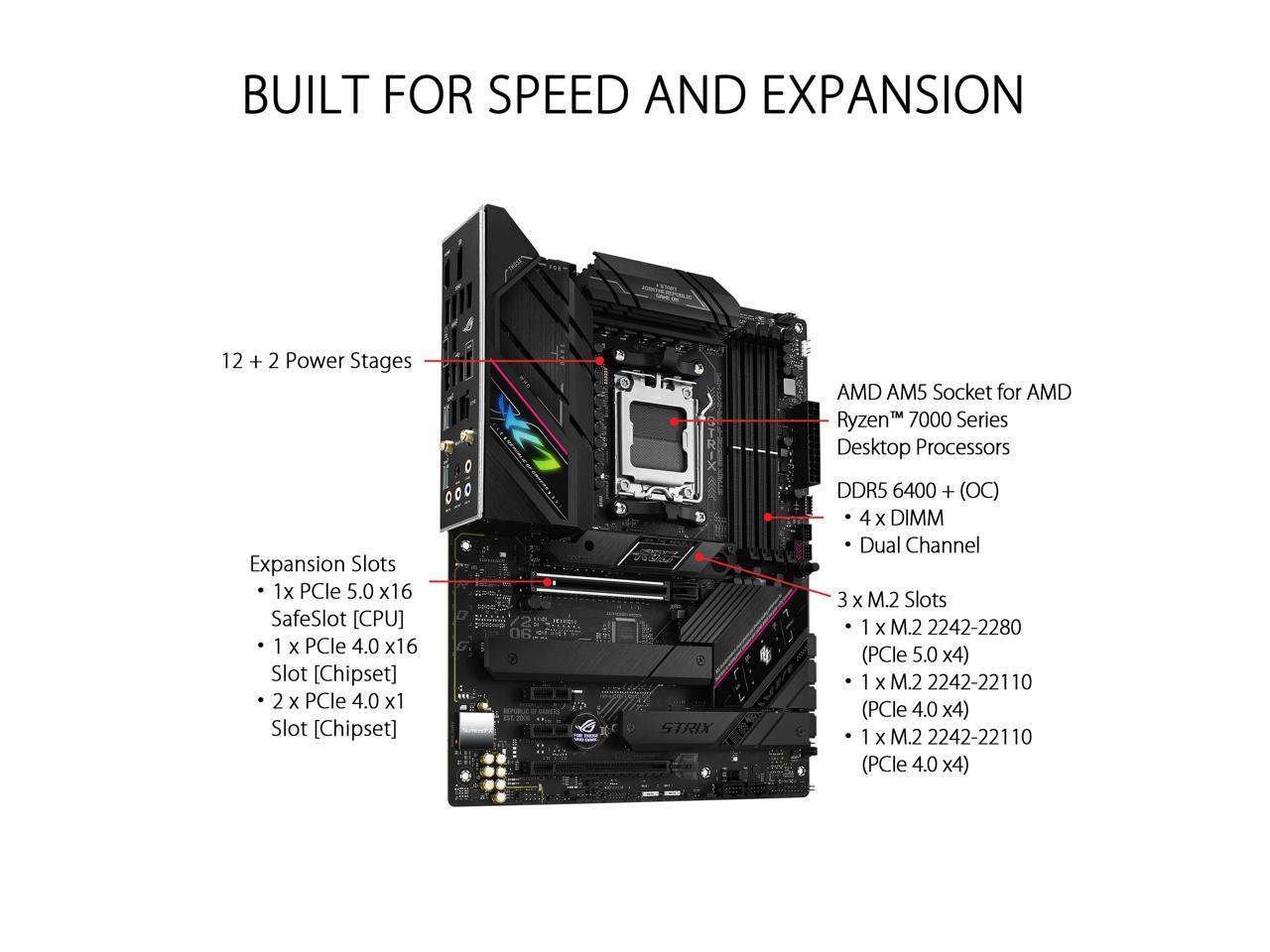

AMD B650E AM5 ATX motherboard with 12+2 power stages, DDR5, PCIe® 5.0 NVMe®SSD support, one PCIe 5.0 x16 SafeSlot with Q-Release, USB 3.2 Gen 2x2 Type-C® rear I/O port, USB 3.2 Gen 2 Type-C® front-panel connector, WiFi 6E, and Aura Sync RGB lighting.

• AMD Socket AM5: Ready for AMD Ryzen^™ 7000 Series desktop processors
• Robust Power Solution:12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors

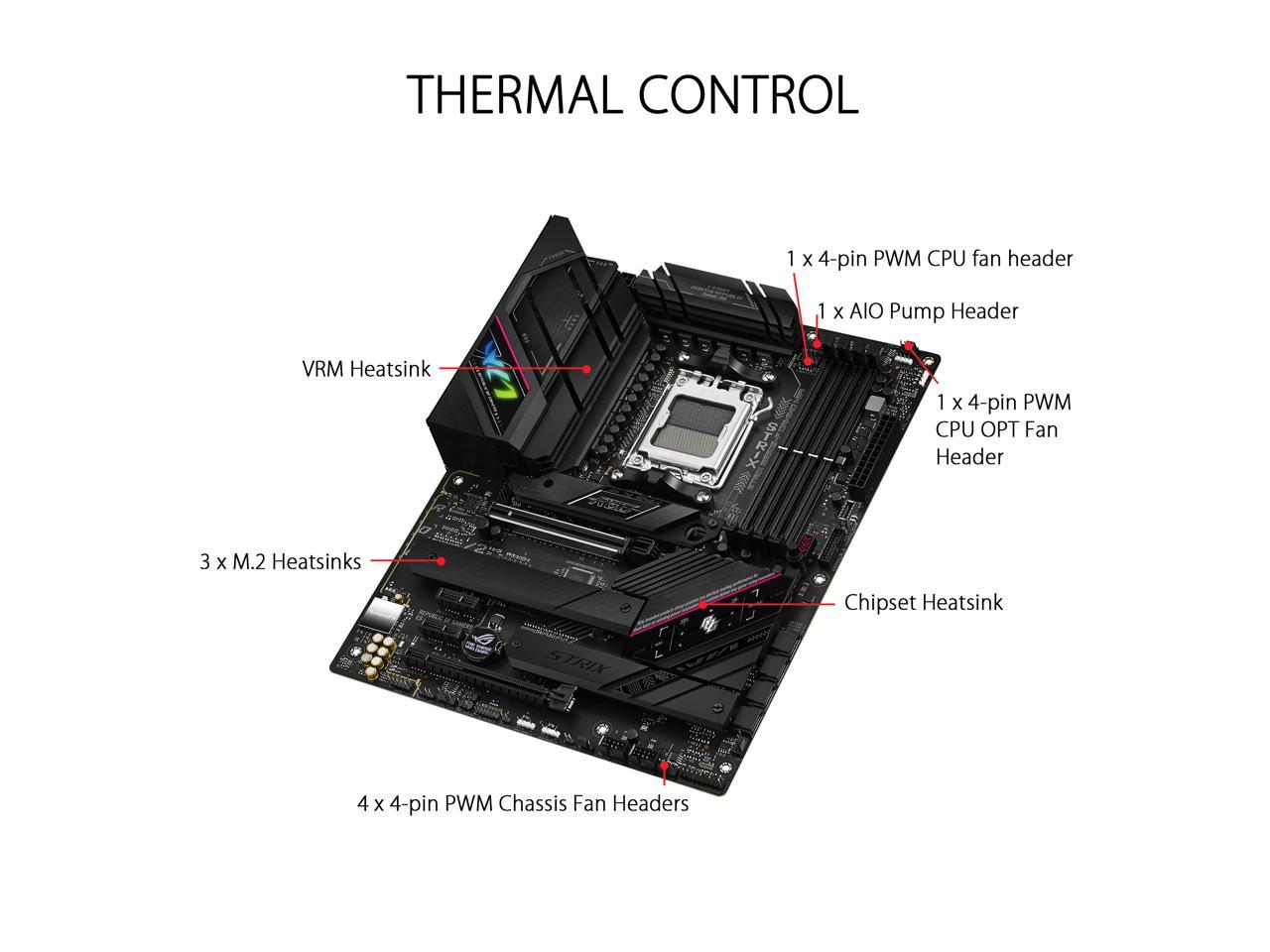

• Optimized Thermal Design:Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads
• Next-Gen M.2 Support: One PCIe^® 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance

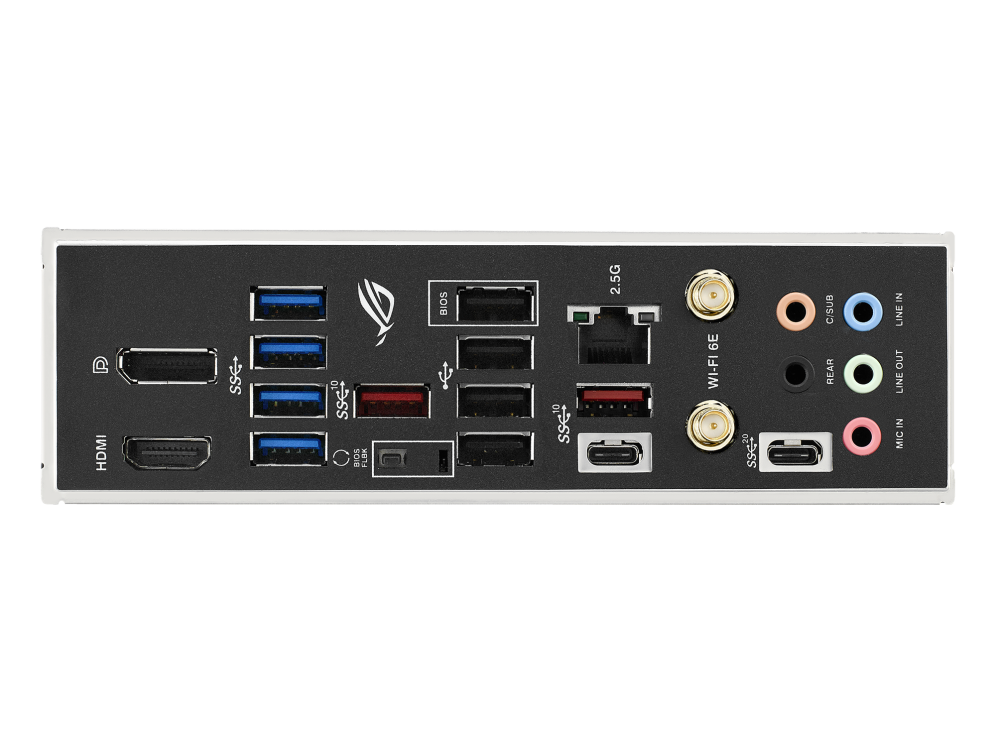

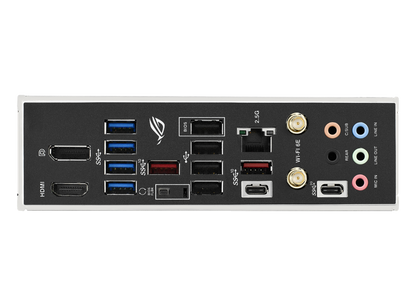

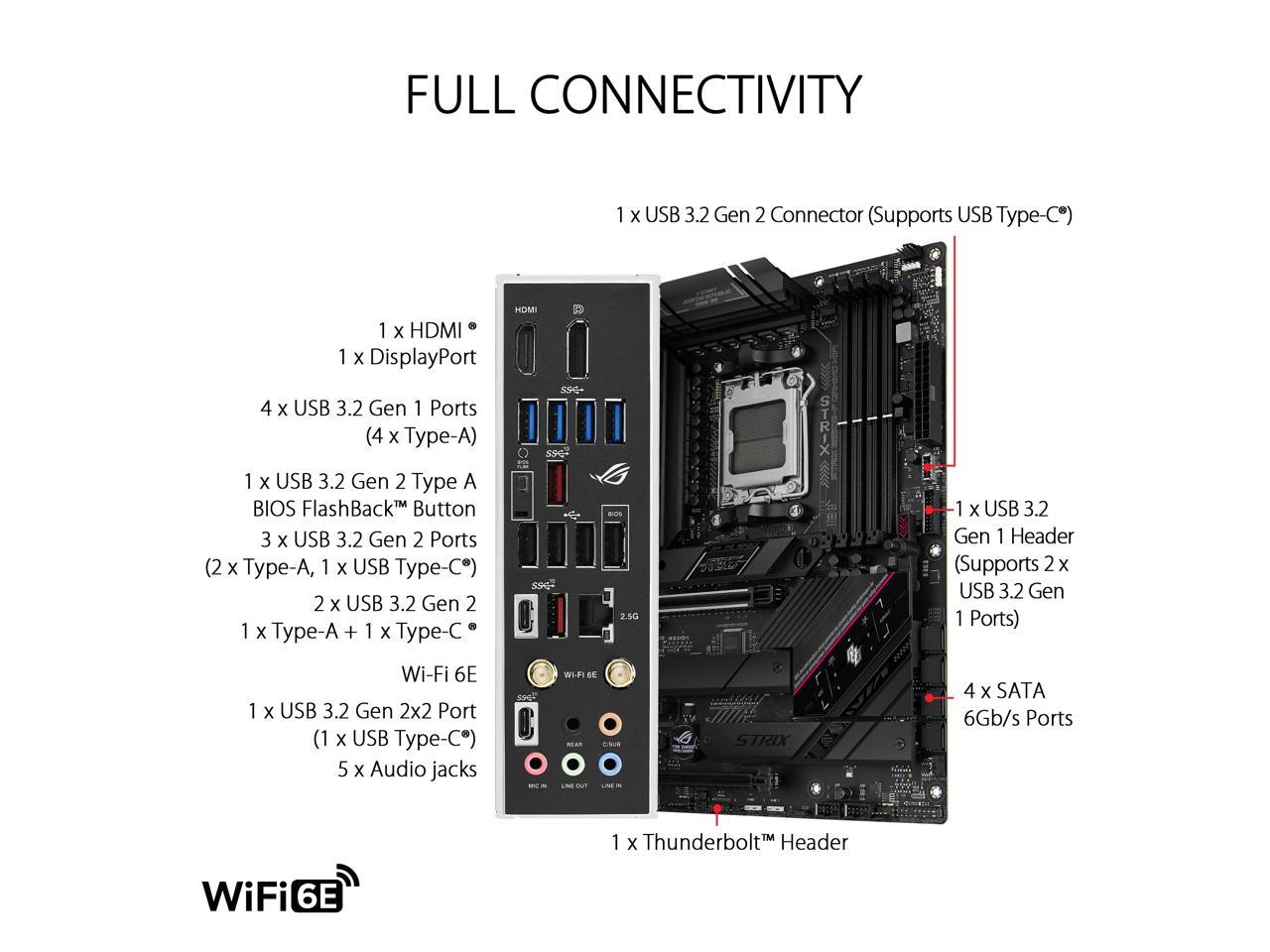

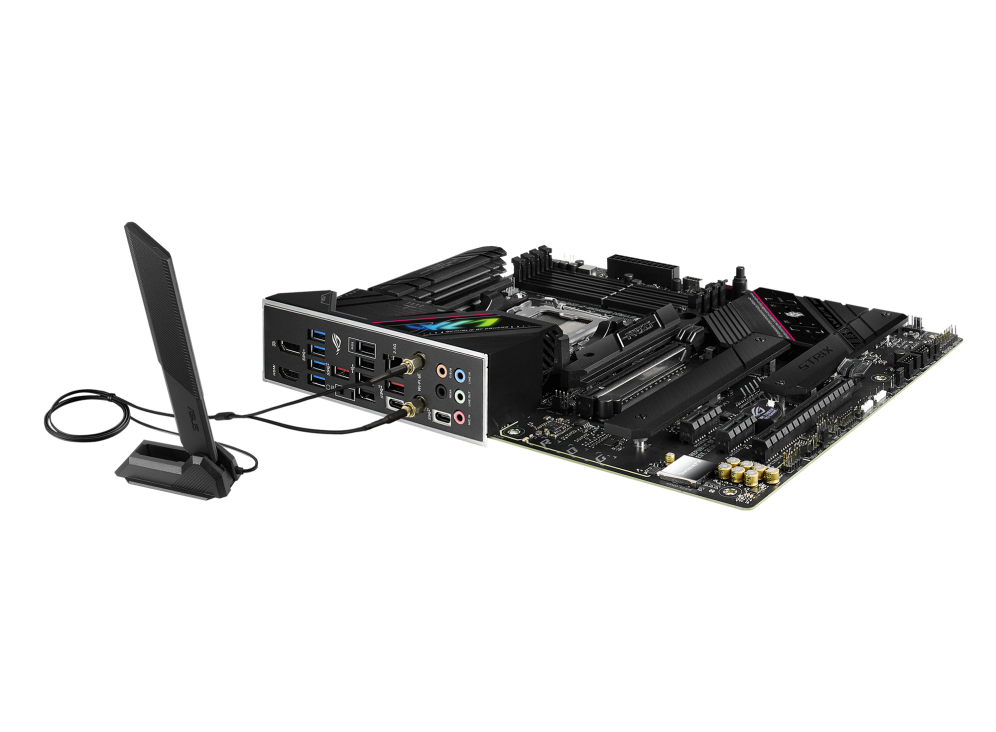

• Advanced Connectivity:One USB 3.2 Gen 2x2 Type-C^® and eleven  additional rear USB ports, USB 3.2 Gen 2 Type-C^® front-panel connector, HDMI^® 2.1, DisplayPort^™ 1.4, and one PCIe 5.0 x16 SafeSlot
• High-Performance Networking:On-board WiFi 6E (802.11ax), Bluetooth^® 5.2, and Intel^® 2.5G Ethernet with ASUS LANGuard
• Intelligent Control:ASUS-exclusive Two-Way AI Noise Cancelation and AI Networking

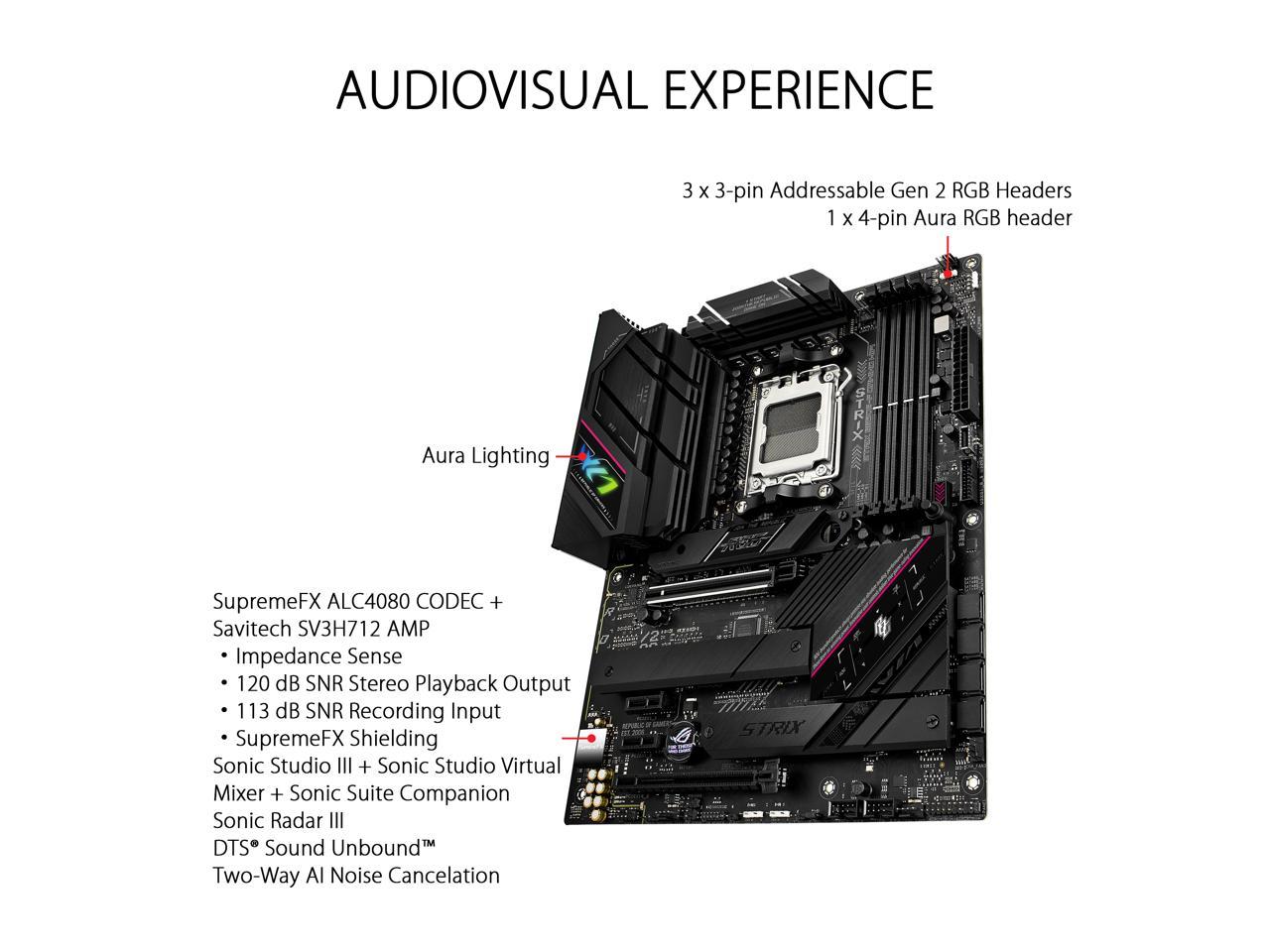

• Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS^®  Sound Unbound and Sonic Studio III
• Unmatched Personalization:ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
• DIY-Friendly Design:PCIe^® Slot Q-release, M.2 Q-Latch, Pre-mounted I/O shield, and  BIOS FlashBack^™ button
• Intuitive Software: Easy-to-use UEFI BIOS dashboard, Armoury Crate RGB and device manager, and bundled 60-day AIDA64 Extreme trial

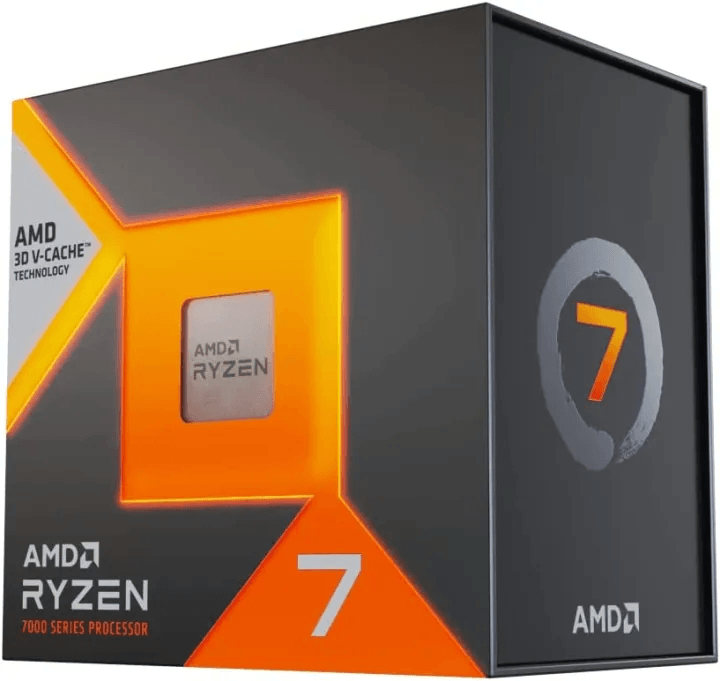

AMD Ryzen™ 7 7800X3D Gaming Processor

The Dominant Gaming Processor, with AMD 3D V-Cache™ Technology for Even More Game Performance

Whatever the setting, whatever the resolution, lead your team to victory with this incredible gaming processor. Plus, enjoy the benefits of next-gen AMD 3D V-Cache™ technology for low latency and even more game performance.

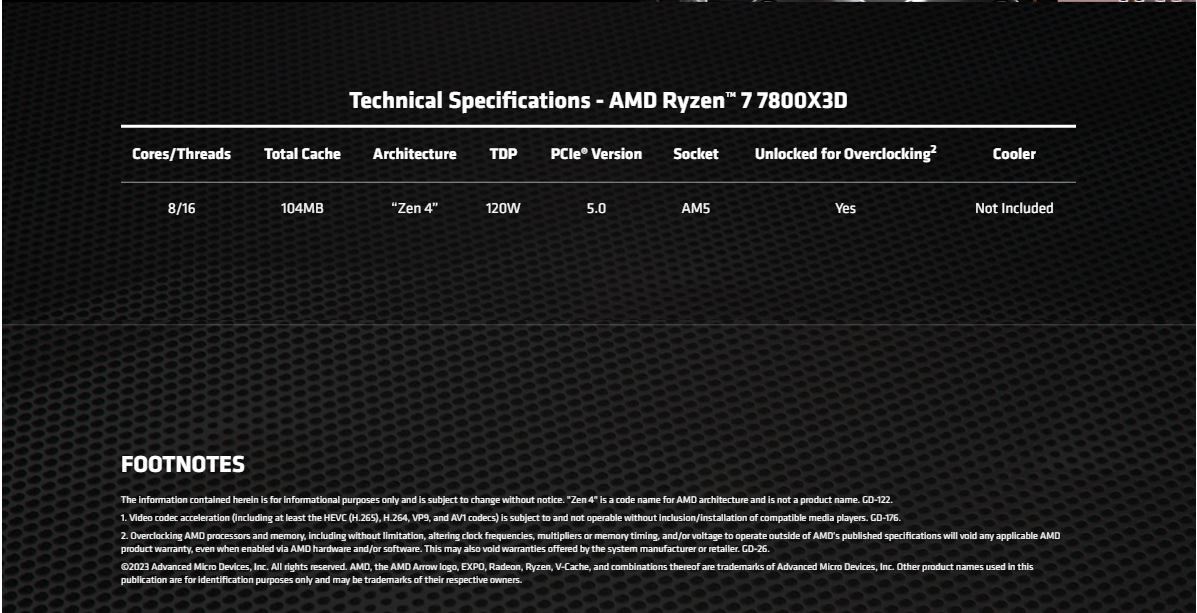

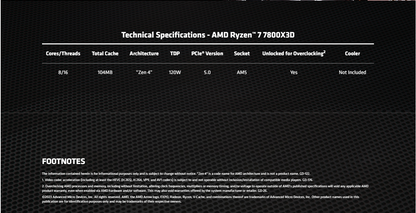

General Specifications

• Product Family: AMD Ryzen™ Processors
• Product Line: AMD Ryzen™ 7 Processors
• AMD PRO Technologies: No
• Former Codename: "Raphael AM5"
• Architecture: "Zen 4"
• # of CPU Cores: 8
• Multithreading (SMT): Yes
• # of Threads: 16
• Max. Boost Clock: Up to 5.0GHz
• Base Clock: 4.2GHz
• L1 Cache: 512KB
• L2 Cache: 8MB
• L3 Cache: 96MB
• Default TDP: 120W
• Processor Technology for CPU Cores: TSMC 5nm FinFET
• Processor Technology for I/O Die: TSMC 6nm FinFET
• CPU Compute Die (CCD) Size: 71mm²
• I/O Die (IOD) Size: 122mm²
• Package Die Count: 2
• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes
• CPU Socket: AM5
• Supporting Chipsets: A620 / X670E / X670 / B650E /B650
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Thermal Solution (PIB): Not included
• Recommended Cooler: Liquid cooler recommended for optimal performance
• Max. Operating Temperature (Tjmax): 89°C

*OS Support:

• Windows 11 - 64-Bit Edition / Windows 10 - 64-Bit Edition / RHEL x86 64-Bit / Ubuntu x86 64-Bit
  *Operating System (OS) support will vary by manufacturer.

Connectivity

• USB Type-C® Support: Yes
• Native USB 3.2 Gen 2 (10Gbps) Ports: 4
• Native USB 3.2 Gen 1 (5Gbps) Ports: 0
• Native USB 2.0 (480Mbps) Ports: 1
• Native SATA Ports: 0
• PCI Express® Version: PCIe® 5.0
• Native PCIe® Lanes (Total/Usable): 28 / 24
• Additional Usable PCIe Lanes from Motherboard:
• AMD X670E / 12x Gen4
• AMD X670 / 12x Gen4
• AMD B650E / 8x Gen4
• AMD B650 / 8x Gen4
• NVMe Support: Boot, RAID0, RAID1, RAID10
• System Memory Type: DDR5
• Memory Channels: 2
• Max. Memory: 128GB
• System Memory Subtype: UDIMM
• Max Memory Speed:
  2x1R / DDR5-5200 | 2x2R / DDR5-5200
  4x1R / DDR5-3600 | 4x2R / DDR5-3600
• ECC Support: Yes (Requires mobo support)

Graphics Capabilities

• Integrated Graphics: Yes
• Graphics Model: AMD Radeon™ Graphics
• Graphics Core Count: 2
• Graphics Frequency: 2200 MHz
• USB Type-C® DisplayPort™ Alternate Mode: Yes

Product IDs

• Product ID Boxed: 100-100000910WOF
• Product ID Tray: 100-000000910

Key Features

• Supported Technologies: AMD EXPO™ Technology / AMD Ryzen™ Technologies
