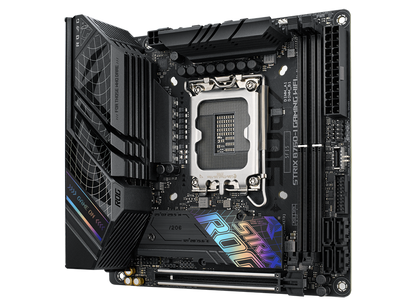

ASUS ROG STRIX B760-I GAMING WIFI LGA1700 Intel B760 Chipset 2 x DDR5 DIMM Wi-Fi 6 PCI-Express x16 Mini-ITX Motherboard

ASUS ROG STRIX B760-I GAMING WIFI LGA1700

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

  * Refer to www.asus.com for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® B760 Chipset

Memory

• 2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

  * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics

• 1 x DisplayPort**
• 1 x HDMI®***

  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Support 4K@60Hz as specified in DisplayPort 1.4
  *** Support 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® 13th & 12th Gen Processors*
• 1 x PCIe 5.0 x16 slot

  - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel® 13th & 12th Gen Processors
  M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)


• Intel® B760 Chipset**
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports

  * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E 2x2

• Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

• Supports 2.4/5/6GHz frequency band*

• Bluetooth® v5.3
  * WiFi 6E 6GHz regulatory may vary between countries.

USB

• Rear USB (Total 8 ports)
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
  3 x USB 2.0 ports (3 x Type-A)

• Front USB (Total 5 ports)
  1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen
  1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio ROG

• SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
  - Impedance sense for front and rear headphone outputs
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  - Supports up to 32-Bit/192 kHz playback*


• Audio Features
  - SupremeFX Shielding Technology
  - Savitech SV3H712 AMP
  - Premium audio capacitors

  * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.



Back Panel I/O Ports

• 1 x USB 3.2
  Gen 2x2 port (1 x USB Type-C®)

• 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
• 3 x USB 2.0 ports (3 x Type-A)
• 1 x HDMI® port
• 1 x DisplayPort
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet
• 5 x Audio jacks



Internal I/O Connectors



• Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chasis Fan header
  1 x 4-pin AIO Pump header


• Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
• Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports

• USB
  1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  1 x USB 2.0 headers support additional 2 USB 2.0 ports

• Miscellaneous
  1 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x 10-1 pin System Panel header
  1 x Thermal Sensor header



Special Features

• Extreme Engine Digi+
  - 5K Black Metallic Capacitors


• ASUS Q-Design
  - M.2 Q-Latch
  - Q-DIMM
  - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - Q-Slot


• ASUS Thermal Solution
  - M.2 heatsink backplate ASUS EZ DIY
  - CPU Socket lever protector
  - ProCool
  - Pre-mounted I/O shield
  - SafeSlot
  - SafeDIMM AURA Sync
  - Aura RGB header
  - Addressable Gen 2 header

Software Features

• ROG Exclusive Software
  - GameFirst VI
  - ROG CPU-Z
  - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
  - Sonic Radar III
  - DTS® Sound Unbound
• ASUS Exclusive Software Armoury Crate
  - AIDA64 Extreme (60 days free trial)
  - AURA Creator
  - AURA Sync
  - Fan Xpert 4
  - Two-Way AI Noise Cancelation
  - Power Saving
• AI Suite 3
  - Performance And Power Saving Utility
  - PC Cleaner
  - DIGI+ VRM
• MyAsus
• Norton 360 for Gamers
• WinRAR

UEFI BIOS

• ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
• MemTest86

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE

Accessories

• Cables
  2 x SATA 6Gb/s cables
  1 x ROG USB2.0 splitter cable
  1 x Panel cable

• Additional Cooling Kit
  1 x Thermal pad for M.2

• Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x Cable ties package
  1 x M.2 Rubber Package2 x Screw packages for M.2 SSD
  1 x M.2 bracket
  1 x ROG key chain
  1 x ROG STRIX stickers
  1 x ROG STRIX thank you card

• Documentation: 1 x User manual

• Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

• Mini-ITX Form Factor
• 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
