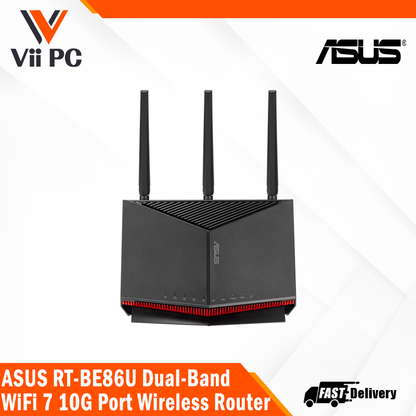

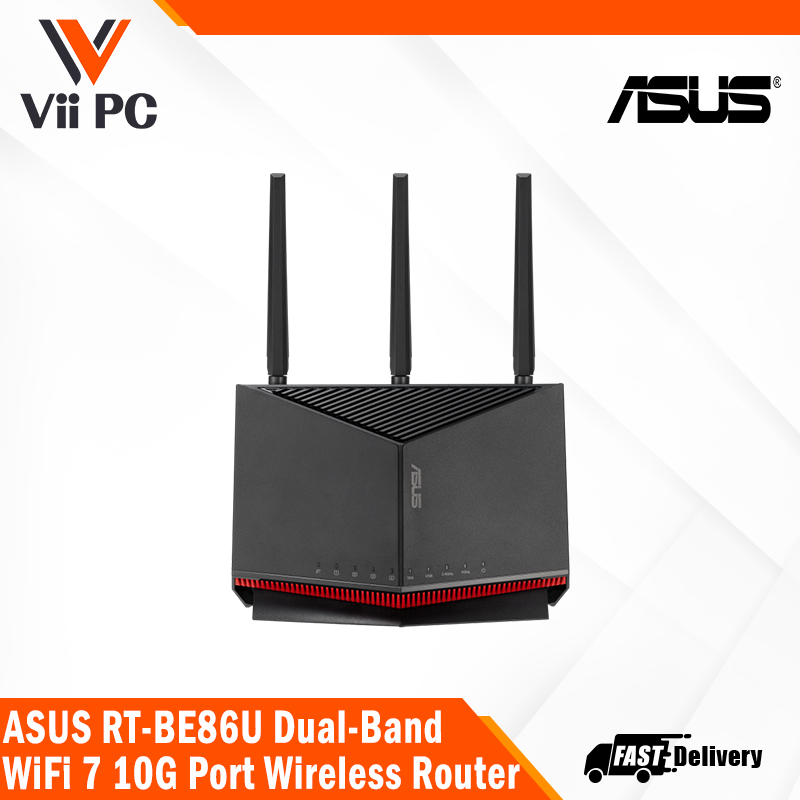

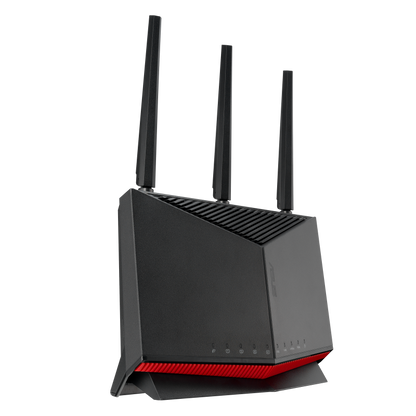

ASUS RT-BE86U Dual Band WiFi 7 Wireless Router

ASUS RT-BE86U

Transcend WiFi 7, Beyond Performance

Dominate your network with the ultimate performance for those who demand the absolute best, today and tomorrow. ASUS RT-BE86U, the successor to the legacy RT-AX86U, powered by next-level WiFi 7, delivers blazing-fast dual-band 6800 Mbps for your connected living. The RT-BE86U boasts a monster 20G combined network capacity, unlocking cutting-edge 10G network with a 10G WAN/LAN port and up to four 2.5G LAN ports. The new ASUSWRT 5.0 ensures a worry-free network experience from end-to-end and 24/7.

Beyond Fast WiFi 7

The RT-BE86U boasts dual-band WiFi 7 technology, achieving blazing-fast speeds of 6800 Mbps, ensuring seamless streaming, gaming, and data-intensive tasks. Whether you’re binge-watching your favorite shows or collaborating in a virtual meeting, this router delivers.

Technical Specification

Model

• RT-BE86U



Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• WiFi 7 (802.11be)
• IPv4, IPv6



Product Segment

• BE6800 ultimate BE performance : 1032+5764 Mbps



WiFi Data Rate

• WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps
• WiFi 7 (802.11be) (5GHz): up to 5764 Mbps



Antenna

• External antenna x 3； Internal antenna x 1


Transmit / Receive

• 2.4GHz 3x3
• 5GHz 4x4



Processor

• 2.6GHz quad-core processor



Memory

• 256 MB Flash and 1 GB RAM



Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 4096-QAM high data rate
• 20/40/80/160 MHz bandwidth



Operating Frequency

• 2.4 GHz
• 5 GHz



Operating Mode

• Wireless Router Mode
• AiMesh Node Mode
• Access Point Mode
• Media Bridge Mode
• Repeater Mode



I/O Ports

• 1 x 10G for WAN/LAN
• 1 x 2.5G for WAN/LAN,
• 3 x 2.5G for LAN
• USB 3.2 Gen1 x1
• USB 2.0 Gen1 x1



Buttons

• WPS Button, Reset Button, Power Switch, LED on/off Button



LED Indicator

• WAN x1
• 10G Port x1
• LAN x4
• USB x1
• 2.4GHz x1
• 5GHz x1
• Power x1



Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 5 A current ; 19.5 V with max. 2.31 A current



Package Content

• RT-BE86U WiFi router
• RJ-45 cable
• Power adapter
• Quick Start Guide
• Warranty card



Product Weight (g)

• 854 g



Product Dimensions

• 235*90*316 mm



AiMesh

• AiMesh
  • Primary AiMesh Router
  • AiMesh Node


Game

• Mobile Game
• Mode Gear Accelerator
• OpenNAT (Game Profile)
• Gaming Port



Parental Control

"Allow you to block access to unwanted websites and apps."

• Web & Apps Filters
• Time Scheduling
• Safe Browsing
• Customized Internet Schedule
  • Maximum Parental Control Profile : 64
  • Maximum Parental Control Content Cilter Rule : 64



Guest Network

"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."

• Support Guest Network Pro
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
• Guest Network Connection Time Limit
• Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal



Security

• AiProtection
• VPN
• WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE
• WPS
• Let's Encrypt
• DNS-over-TLS SSH
• Security Scan
• Firewall
  • Maximum Firewall Keyword Filter : 64
  • Maximum Firewall Network Service Filter : 32
  • Maximum Firewall URL Filter : 64



AiProtection

• AiProtection Pro
  • Router Security Assessment
  • Malicious Site Blocking
  • Two-Way IPS
  • Infected Device Prevention and Blocking



VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
• Support Surfshark



Traffic Control

• Adaptive QoS
  • Bandwidth Monitor
  • Bandwidth Limiter
  • -- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• Traffic Monitor
  • Real-time Traffic Monitor
  • Wired Traffic Monitor
  • Wireless Traffic Monitor Traffic Analyzer
• Traffic Analysis
  • Period : Daily, Weekly, Monthly
  • Website History



WAN

• Internet Connection Type :
  • PPPoE
  • PPTP
  • L2TP
  • Automatic IP
  • Static IP
  • IPSec
• Dual WAN
• WAN Aggregation
• 3G / 4G LTE dongle
• Port forwarding
  • Maximum Port Forwarding Rule : 64
• Port triggering
  • Maximum Port Triggering Rule : 32
• DMZ
• DDNS
• NAT Passthrough :
  • PPTP Pass-Through
  • L2TP Pass-Through
  • IPSec Pass-Through
  • RTSP Pass-Through
  • H.323 Pass-Through
  • SIP Pass-Through
  • PPPoE Relay



LAN

• DHCP Server
• IGMP Snooping
• IPTV
• LAN Link Aggregation
• Manually Assign IP Address
  • Maximum Manually Assign IP Address Rule : 128
• Wake on LAN (WOL)



Wireless

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter
  • Maximum MAC Filters : 64
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming



USB application

• File System : HFS+ / NTFS / vFAT / ext2 / ext3 / ext4
• Safely Remove
• Disk AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges



User Interface

• WEB: ASUSWRT
• APP: ASUS Router APP



Administration

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
