Asus RT-BE88U WiFi 7 Router 7200Mbps Gigabit High Speed Routing Wireless Dual Band Router

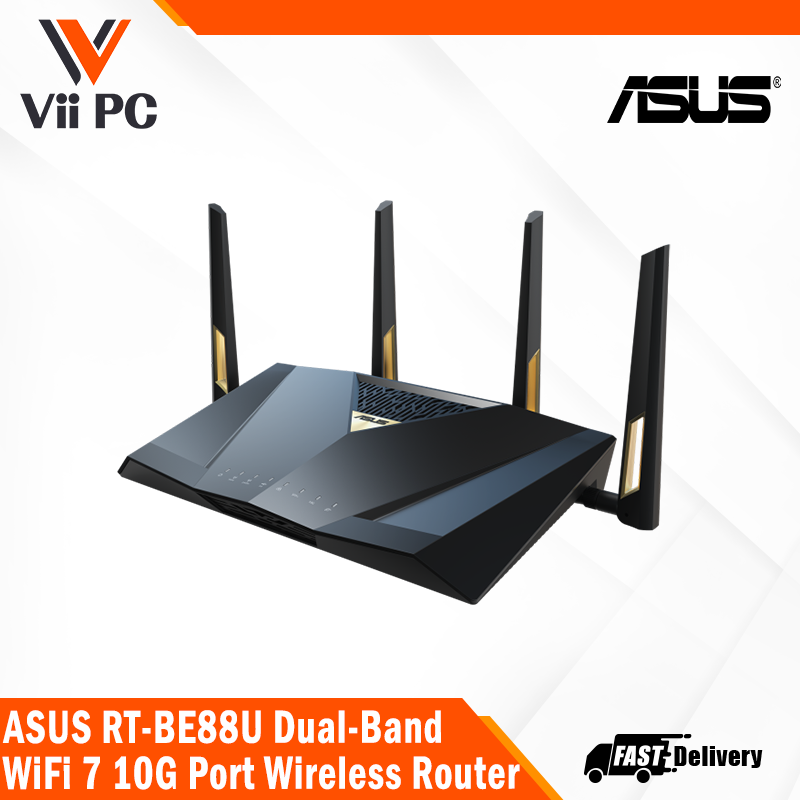

Asus RT-BE88U Wireless Dual Band Router

Dual-band WiFi 7(801.11be) AiMesh extendable router, 7.2 Gbps, 34G wired capacity, Dual 10G ports, SFP+ port, Four 2.5G ports, Commercial-grade security, Guest Network Pro, VPNs

• Blazing-fast dual-band WiFi 7 boosts throughput up to 7200Mbps with Multi-Link Operation (MLO) and 4K-QAM.
• Bolster your wired network capacity up to 34G with up to 10 WAN and LAN ports with one cutting-edge 10G SFP+ port
• Versatile WAN configuration options with automatic WAN detection, and 4G LTE/5G Mobile Tethering for always-on internet
• Unleash demanding network applications with a powerhouse quad-core 2.6GHz CPU, 2Gb RAM and robust cooling
• Establish up to five SSIDs with Guest Network Pro to easily set up a guest portal, IoT devices, VPNs, and parental controls
• Enjoy end-to-end protection with commercial-grade AiProtection Pro, advanced internet protection, and comprehensive VPNs
• AI-powered Smart AiMesh leverages MLO for fast, stable connections, efficient data transmission, and easy network management

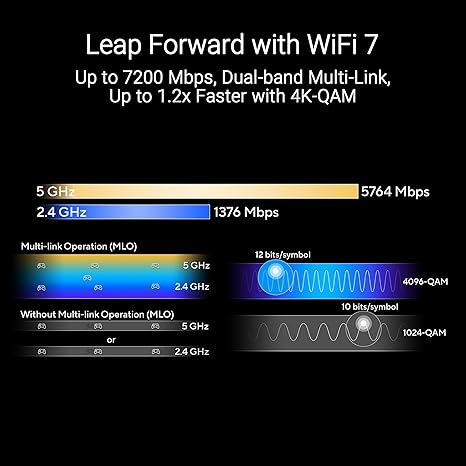

Leap Forward with WiFi 7

WiFi 7 introduces revolutionary features that deliver exceptionally fast speeds, extremely low latency, and enhanced reliability. With these advancements, you can experience unparalleled network performance for gaming, streaming, smart home devices, and more. WiFi 7 brings all this to the table – and it retains all the congestion-busting tech of WiFi 6, too.

• Up to 7,200 Mbps
• Dual-band Multi-link 2.4 Ghz + 5 GHz
• Up to 1.2x Faster with 4K-QAM



Technical Specification

Model

• RT-BE88U



Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax
• WiFi 7 (802.11be)
• IPv4, IPv6



Product Segment

• BE7200 ultimate BE performance : 1376+5764 Mbps



WiFi Data Rate

• WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps

• WiFi 7 (802.11be) (5GHz): up to 5764 Mbps



Antenna

• External antenna x 4



Transmit / Receive

• 2.4GHz 4x4
• 5GHz 4x4

Processor

• 2.6GHz quad-core processor



Memory

• 256 MB Flash and 2 GB RAM



Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 4096-QAM high data rate
• 20/40/80/160 MHz bandwidth



Operating Frequency

• 2.4 GHz
• 5 GHz



Operating Mode

• Wireless Router Mode
• AiMesh Node Mode
• Access Point Mode
• Media Bridge Mode
• Repeater Mode

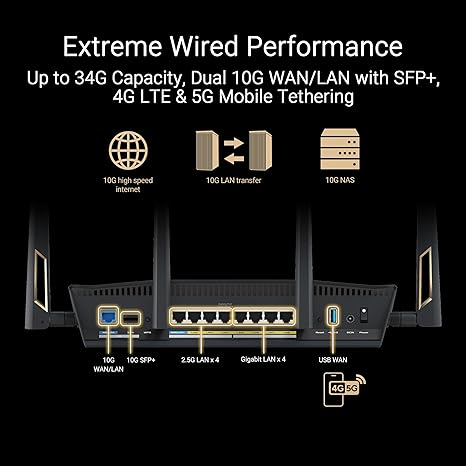

I/O Ports

• 1 x 10Gbps for WAN/LAN
• 1 x 10Gbps SFP+ for WAN
• 1 x 2.5Gbps for WAN/LAN
• 3 x 2.5 Gbps for LAN
• 4 x RJ45 10/100/1000Mbps for LAN
• USB 3.2 Gen1 x1



Buttons

• WPS Button, Reset Button, Power Switch



LED Indicator

• WAN x1
• 10G WAN x1
• 10G SFP+ x1
• LAN x1 USB 3.2 Gen 1 x1
• 2.4GHz x1
• 5GHz x1 Power x1



Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 19 V with max. 2.37 A current; 19.5 V with max. 2.31 A current



Package Content

• RT-BE88U WiFi router
• RJ-45 cable
• Power adapter
• Quick Start Guide
• Warranty card


Product Weight (g)

• 1060 g



Product Dimensions

• 300*188*60.5



AiMesh

• AiMesh
  • Primary AiMesh Router
  • AiMesh Node



Game

• WTFast
• Mobile Game Mode
• Gear Accelerator
• OpenNAT (Game Profile)
• Gaming Port



Parental Control

"Allow you to block access to unwanted websites and apps."

• Web & Apps Filters
• Time Scheduling
• Safe Browsing
• Customized Internet Schedule
  • Maximum Parental Control Profile : 64
  • Maximum Parental Control Content Cilter Rule : 64



Guest Network

"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."

• Support Guest Network Pro
  • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
• Guest Network Connection Time Limit
• Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal



Security

• AiProtection
• VPN
• WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE
• WPS
• Let's Encrypt
• DNS-over-TLS SSH
• Security Scan
• Firewall
  • Maximum Firewall Keyword Filter : 64
  • Maximum Firewall Network Service Filter : 32
  • Maximum Firewall URL Filter : 64



AiProtection

• AiProtection Pro
  • Router Security Assessment
  • Malicious Site Blocking
  • Two-Way IPS
  • Infected Device Prevention and Blocking



VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
• Support Surfshark



Traffic Control

• Adaptive QoS
  • Bandwidth Monitor
  • Bandwidth Limiter
  • -- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS Traffic Monitor
  • Real-time Traffic Monitor
  • Wired Traffic Monitor
  • Wireless Traffic Monitor Traffic Analyzer
  • Traffic Analysis Period : Daily, Weekly, Monthly
  • Website History



WAN

• Internet Connection Type :
  • PPPoE
  • PPTP
  • L2TP
  • Automatic IP
  • Static IP
  • IPSec
• Dual WAN
• WAN Aggregation
• 3G / 4G LTE dongle Port forwarding
  • Maximum Port Forwarding Rule : 64
• Port triggering
  • Maximum Port Triggering Rule : 32
• DMZ
• DDNS
• NAT Passthrough :
  • PPTP Pass-Through
  • L2TP Pass-Through
  • IPSec Pass-Through
  • RTSP Pass-Through
  • H.323 Pass-Through
  • SIP Pass-Through
  • PPPoE Relay



LAN

• DHCP Server
• IGMP Snooping
• IPTV LAN Link Aggregation
• Manually Assign IP Address
  • Maximum Manually Assign IP Address Rule : 128
• Wake on LAN (WOL)



Wireless

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter
  • Maximum MAC Filters : 64
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming



USB application

• File System : HFS+ / NTFS / vFAT / ext2 / ext3/ ext4
• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges



User Interface

• WEB: ASUSWRT
• APP: ASUS Router APP



Administration

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
