ASUS TUF Gaming Radeon™ RX 9070 OC Edition 16GB GDDR6 Graphics Card

ASUS TUF Gaming Radeon™ RX 9070
Game TUF. Built to Last.

The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.

Military-Grade Components

TUF Chokes & MOSFETs

Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.

TUF Capacitors

TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors..

Phase-Change GPU Thermal Pad

By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Protective PCB Coating

A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Dual-Fan Ball Bearings

Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.

Cooling Mastery

This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.

MaxContact Design

MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.

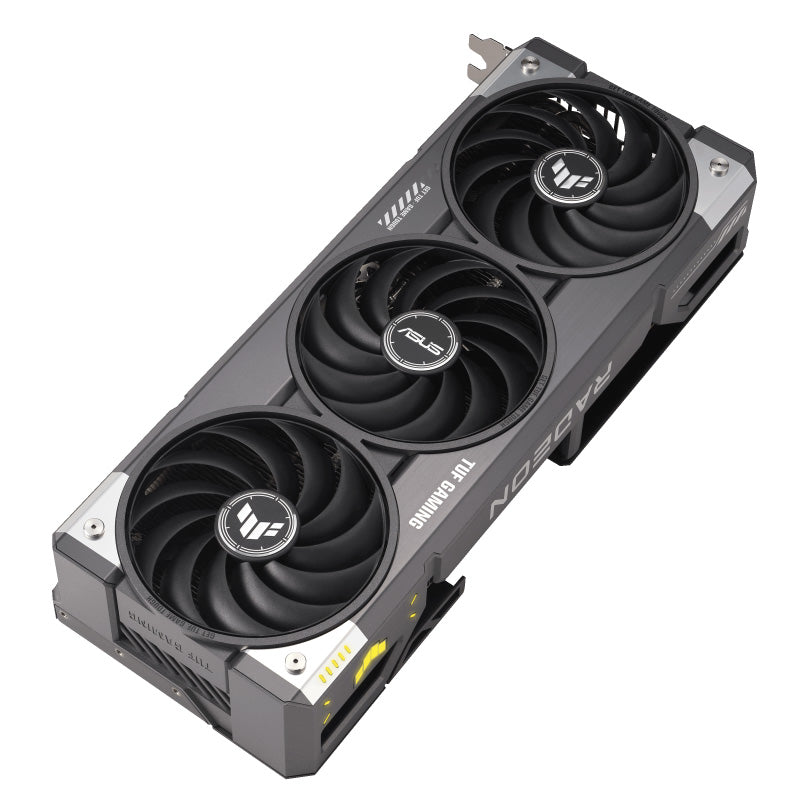

Axial-tech Upgrades

Axial-tech fans spin on dual-ball bearings and propel up to 31% more air than standard fans.

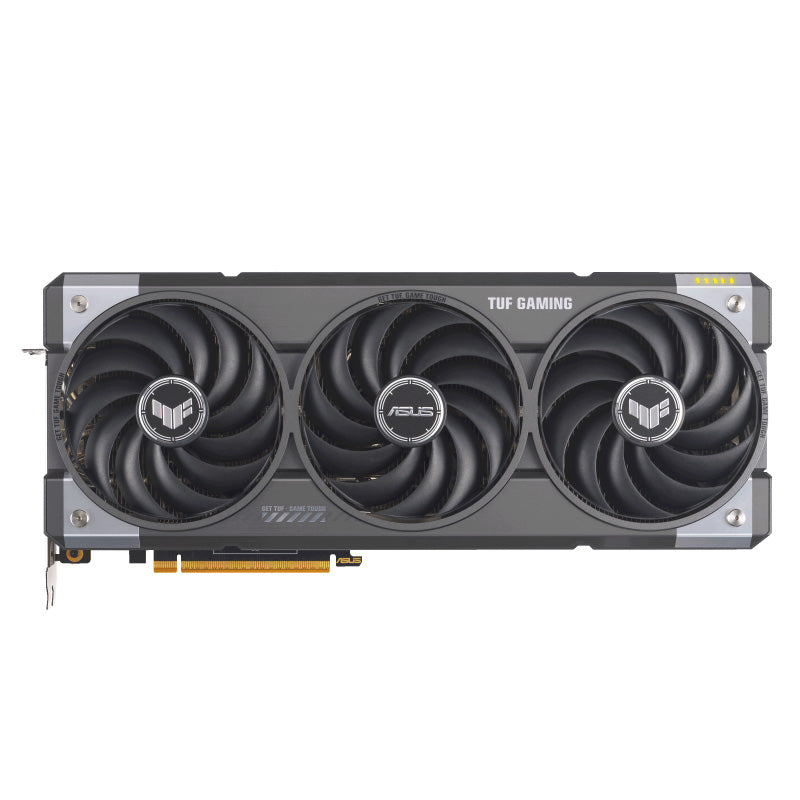

New Directions

The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 55°C, for quieter operation during light tasks. They restart above 60°C, following a speed curve that balances performance and acoustics.

Vented Exoskeleton

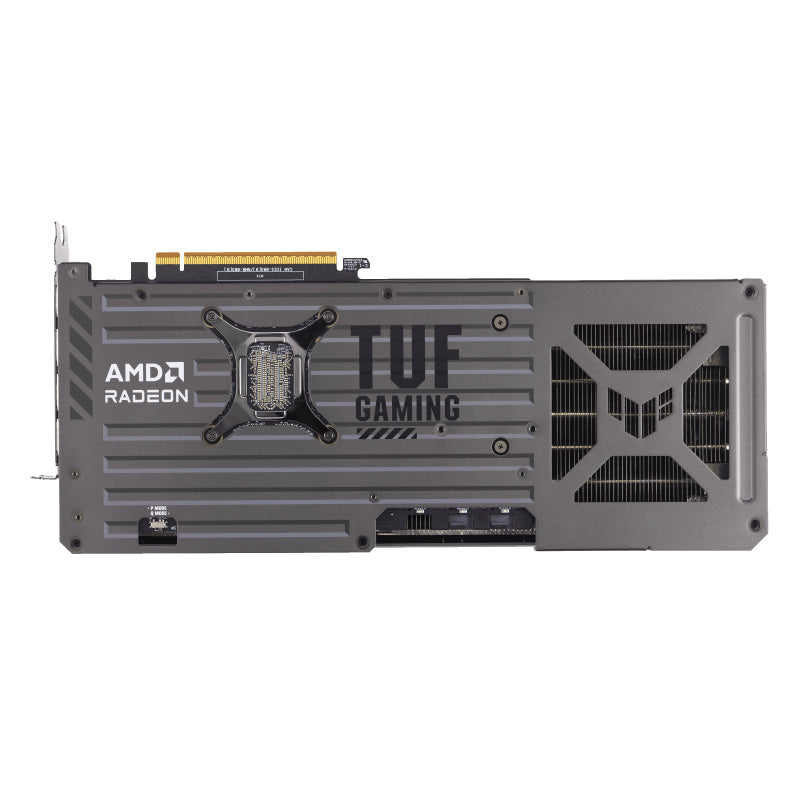

A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation.

Reliability

ASUS GPU Guard & Bracket

ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Auto−Extreme Technology

An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

Light ‘em Up!

Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.

SPECIFICATION:

• Model: TUF-RX9070-O16G-GAMING
• Graphic Engine: AMD Radeon™ RX 9070
• Engine Clock:
  • OC mode(GPU Tweak III): up to 2670 MHz (Boost Clock) / up to 2190 MHz (Game Clock)
  • Default mode: up to 2650 MHz (Boost Clock) / up to 2170MHz (Game Clock)


• Memory Speed: 20 Gbps
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 16GB GDDR6
• Stream Processors: 3584
• Memory Interface: 256-bit
• Resolution: Digital Max Resolution 7680 x 4320

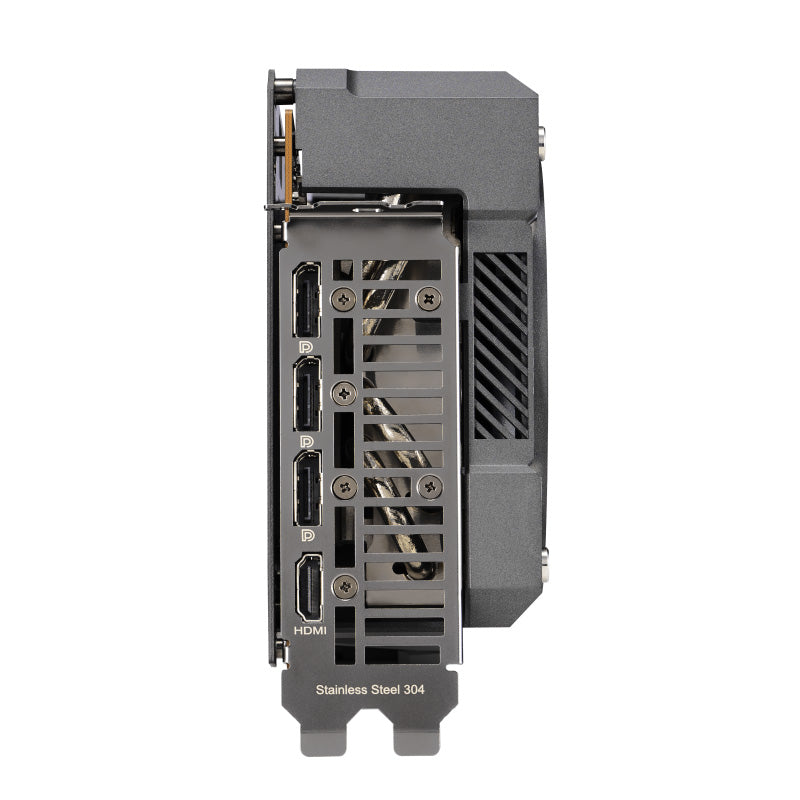

• Interface:
  • Yes x 1 (Native HDMI 2.1b)
  • Yes x 3 (Native DisplayPort 2.1a)
  • HDCP Support Yes (2.3)


• Maximum Display Support: 4
• NVlink / Crossfire Support: No

• Accessories:
  • 1 x TUF certificate of Reliability
  • 1 x TUF Gaming Graphics Card Holder
  • 1 x TUF Velcro Hook & Loop
  • 1 x TUF Fridge Magnet
  • 1 x Thank you card
  • 1 x Speedsetup Manual


• Software: ASUS GPU Tweak III & Drivers: please download all software from the support site.

• Dimensions: 330 x 140 x 62.5 mm / 13 x 5.5 x 2.5 inch
• Recommended PSU: 750W
• Power Connectors: 2 x 8-pin
• Slot: 3.125 Slot
• AURA SYNC: RGB

<sup>Note:
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.</sup>
