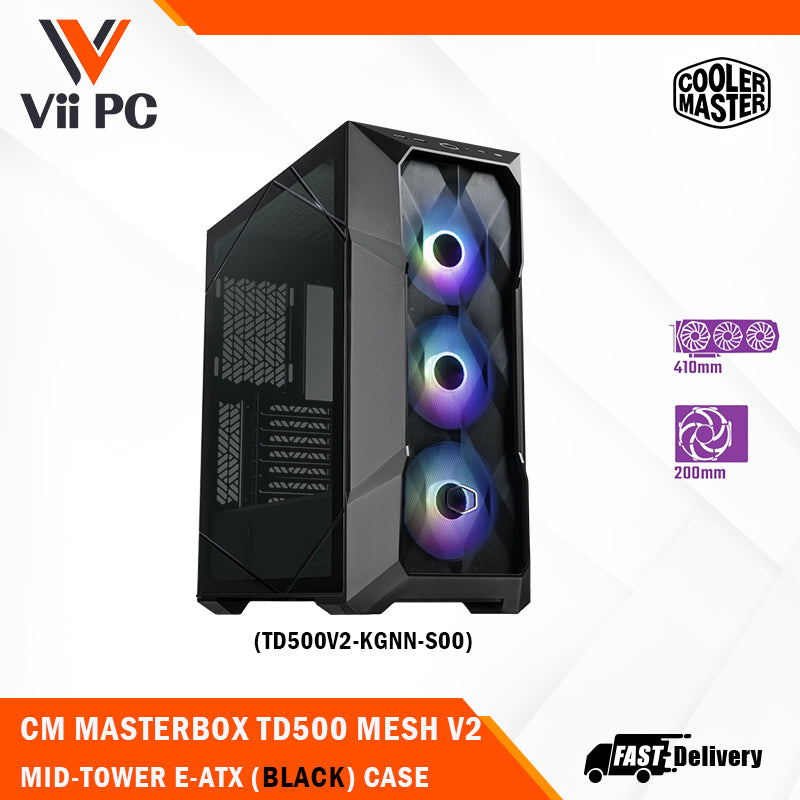

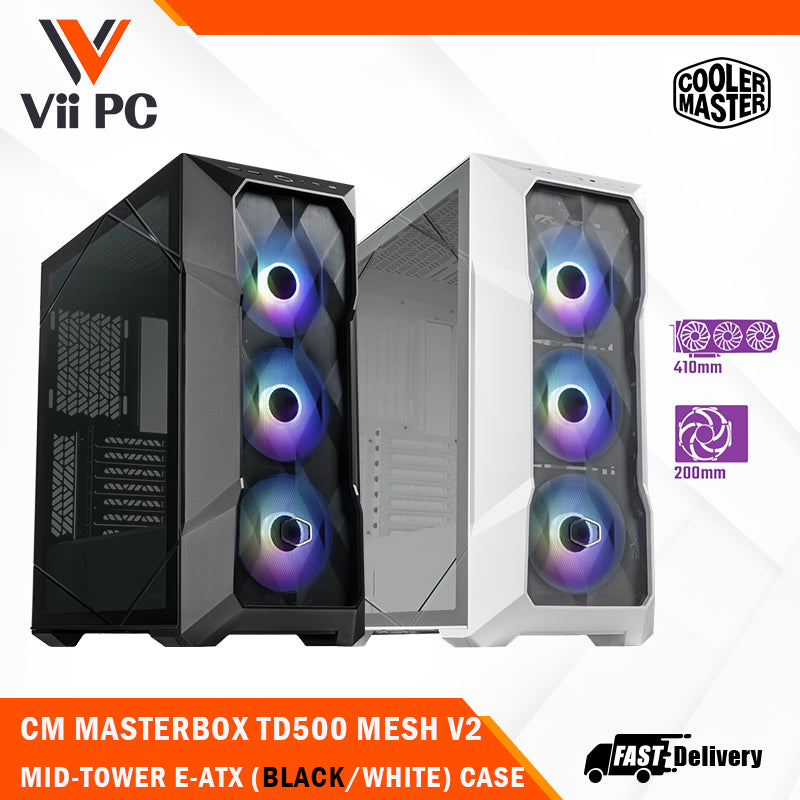

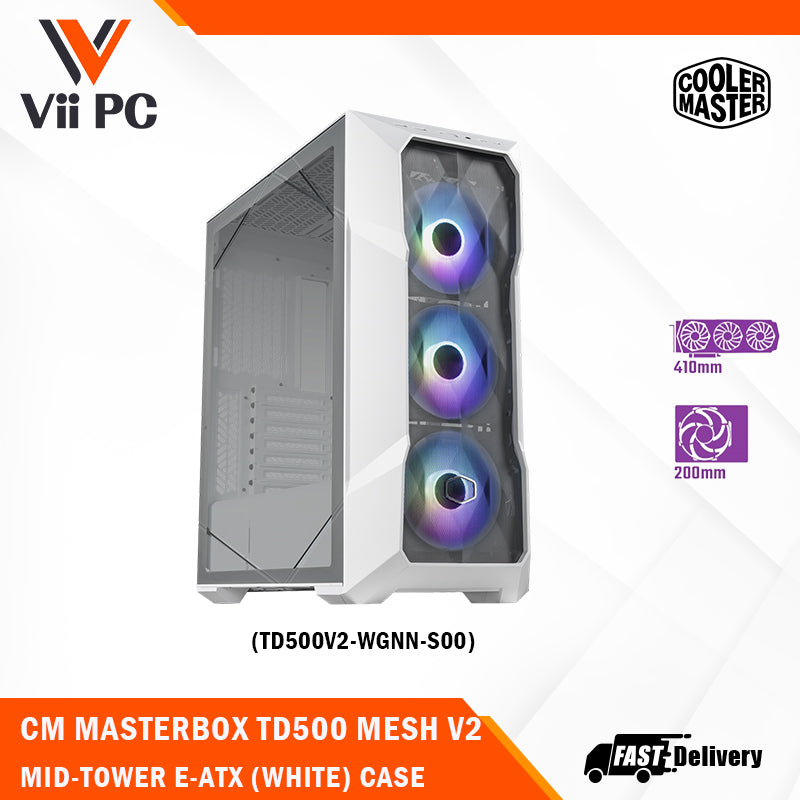

COOLER MASTER MASTERBOX TD500 MESH V2 Mid Tower E-ATX BLACK/WHITE Casing
COOLER MASTER MASTERBOX TD500 MESH V2 Mid Tower E-ATX BLACK/WHITE Casing
COOLER MASTER MASTERBOX TD500 MESH V2 MID TOWER E-ATX CASING
- Polygonal Mesh:Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.
- Triple ARGB Fans: Three addressable RGB fans flood the Polygonal Mesh front panel with lighting while providing considerable airflow to the system.
- USB 3.2 Gen 2 Type C Support: USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
- Versatile Cooling Options: Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
- Tool-Free Crystalline TG Side Panel: Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.
- PSU Shroud With Removable Cover: TD500 Mesh V2’s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.
- EXQUISITELY RUTHLESS: MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.
SPECIFICATIONS
MODEL NUMBER: TD500V2-KGNN-S00(Black), TD500V2-WGNN-S00(White)
EXTERIOR COLOR: Black, White
MATERIALS - EXTERIOR: Steel, Mesh, Plastic
MATERIALS - LEFT SIDE PANEL: Tempered Glass
DIMENSIONS (L x W x H): 499 x 210 x 500mm(incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)
MOTHERBOARD SUPPORT: Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature)
EXPANSION SLOTS: 7
3.5" DRIVE BAYS: 2
2.5" DRIVE BAYS: 3
I/O PANEL - USB PORTS: 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C
I/O PANEL - AUDIO IN / OUT: 1x Audio Jack
I/O PANEL - OTHER: 1x ARGB Fan Hub
PRE-INSTALLED FANS - FRONT: 3x 120mm CF120 ARGB
PRE-INSTALLED FANS - REAR: N/A
FAN SUPPORT - TOP: 3x 120mm, 2x 140mm
FAN SUPPORT - FRONT: 3x 120mm, 2x 140mm
FAN SUPPORT - REAR: 1x 120mm
RADIATOR SUPPORT - TOP: 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
RADIATOR SUPPORT - FRONT: 120mm, 140mm, 240mm, 280mm, 360mm
RADIATOR SUPPORT - REAR: 120mm
CLEARANCE - CPU COOLER: 165mm/6.49"
CLEARANCE - PSU: 200mm, (Recommended up to 170mm)
CLEARANCE - GFX: 410mm / 16.14"
CABLE ROUTING - BEHIND MOTHERBOARD TRAY: 19mm / 0.74"
DUST FILTERS: Front, Top, Bottom
POWER SUPPLY SUPPORT: Bottom Mount, ATX
WARRANTY: 2 years
SERIES: MasterBox Series
SIZE: Mid Tower
