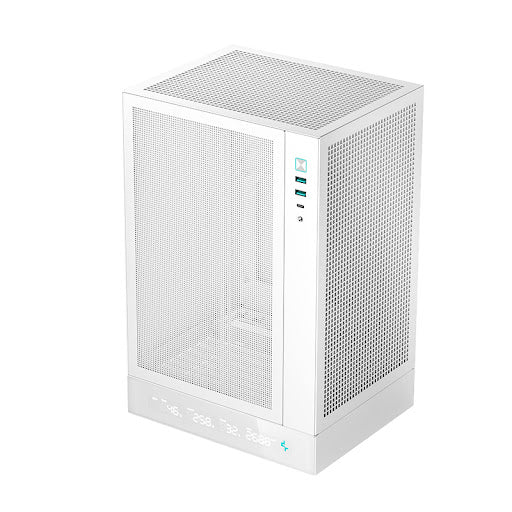

The CH170 DIGITAL is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for coolers and PSU options.

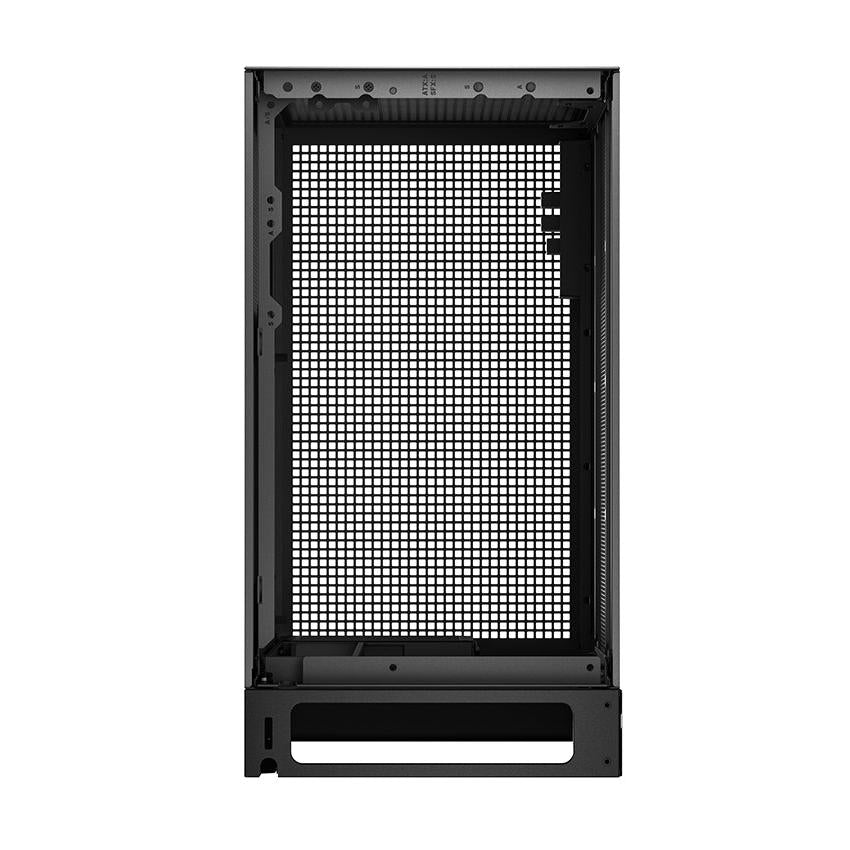

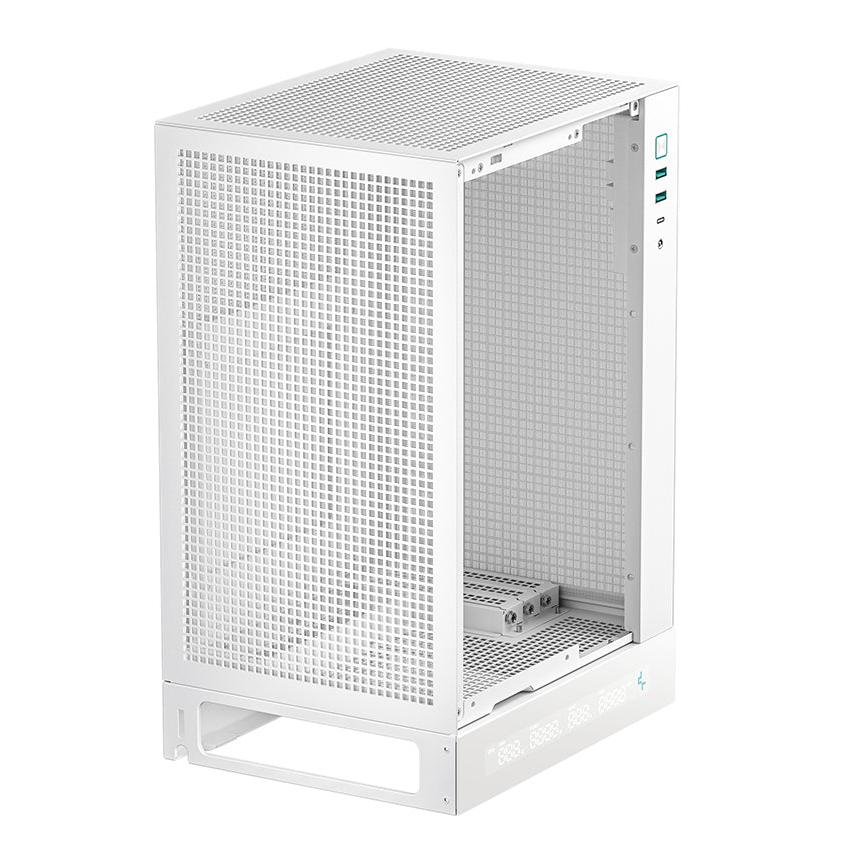

HIGH AIRFLOW PANELS Mesh panels surround the CH170 DIGITAL from every side and create a high-airflow, small-form-factor case like no other.

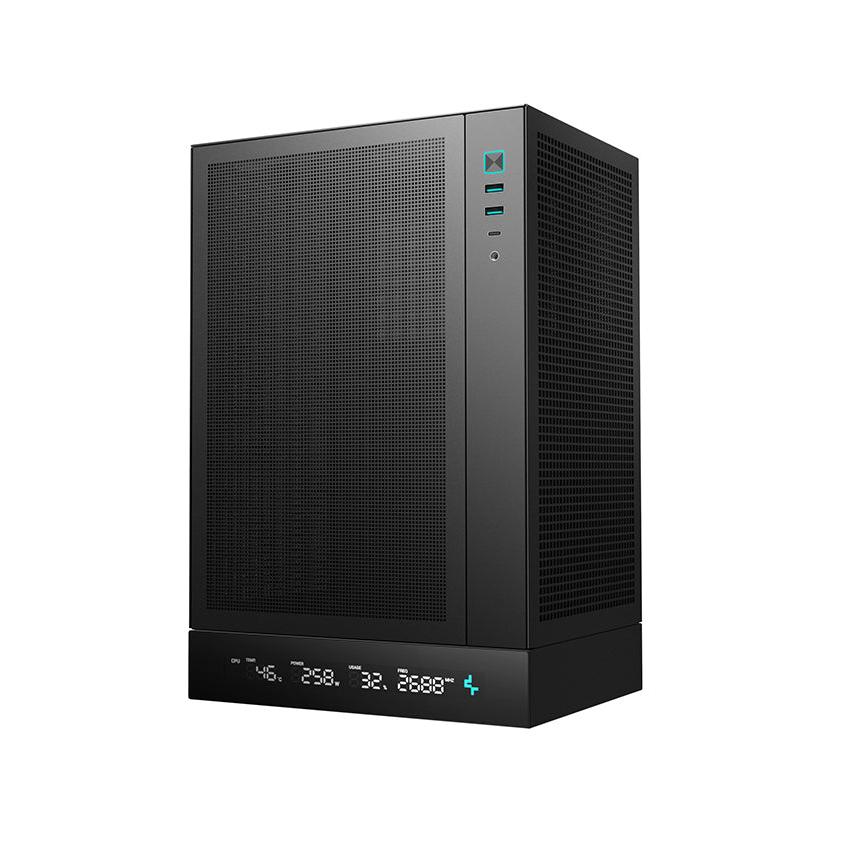

MULTIPLE DATA POINT DISPLAY The CH170 DIGITAL has a digital base that displays four vital points of data at the same time. The display can focus on CPU, GPU, and PSU information at any given point in time. It can scroll through all aspects at a timed interval.
FULL SIZED AIR COOLING! Lack of air cooler support in small mITX cases is a thing of the past. The CH170 DIGITAL can support giant air coolers up to 172mm in height!
OR GO LIQUID If liquid cooling is preferred, that is also an option with the CH170 DIGITAL. A specialized radiator bracket and a full mesh panel make it possible to mount a standard-sized 240mm AIO without any worries.
NO ADDED GPU LATENCY! Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!
Maximum GPU Length Based on PSU:
SFX/SFX-L：305mm
ATX：230mm
FLEXIBLE POWER OPTIONS Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL can support any of them up to 140mm.
QUALITY OF LIFE IMPROVEMENTS Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL makes everything a little easier.
Product details of Deepcool CH170 Digital ITX
Clean Design, performance, quality and value all in one.
Vertical ITX Case to use lesser footprint on table
