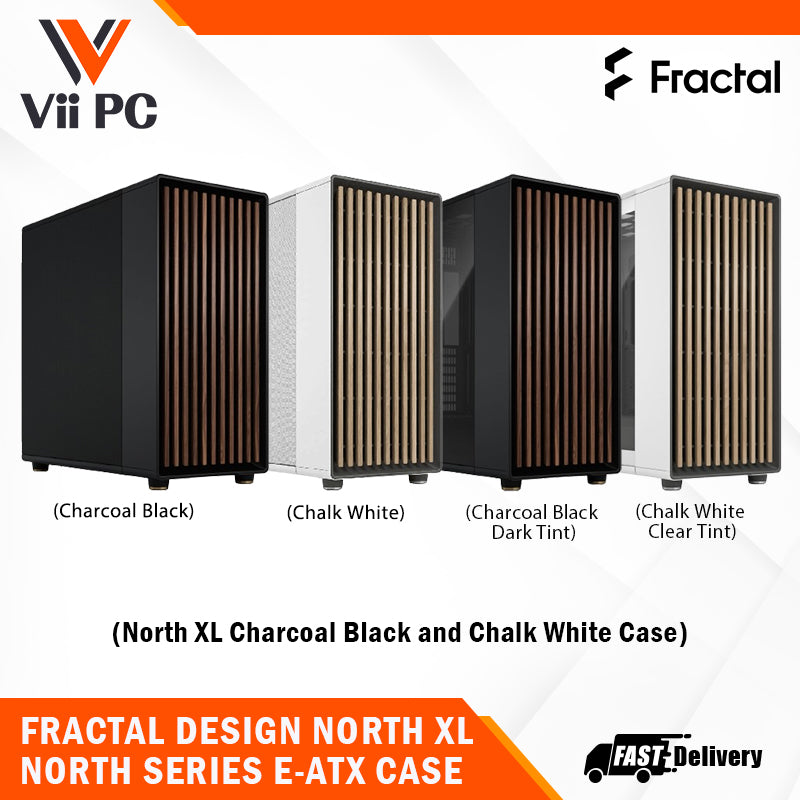

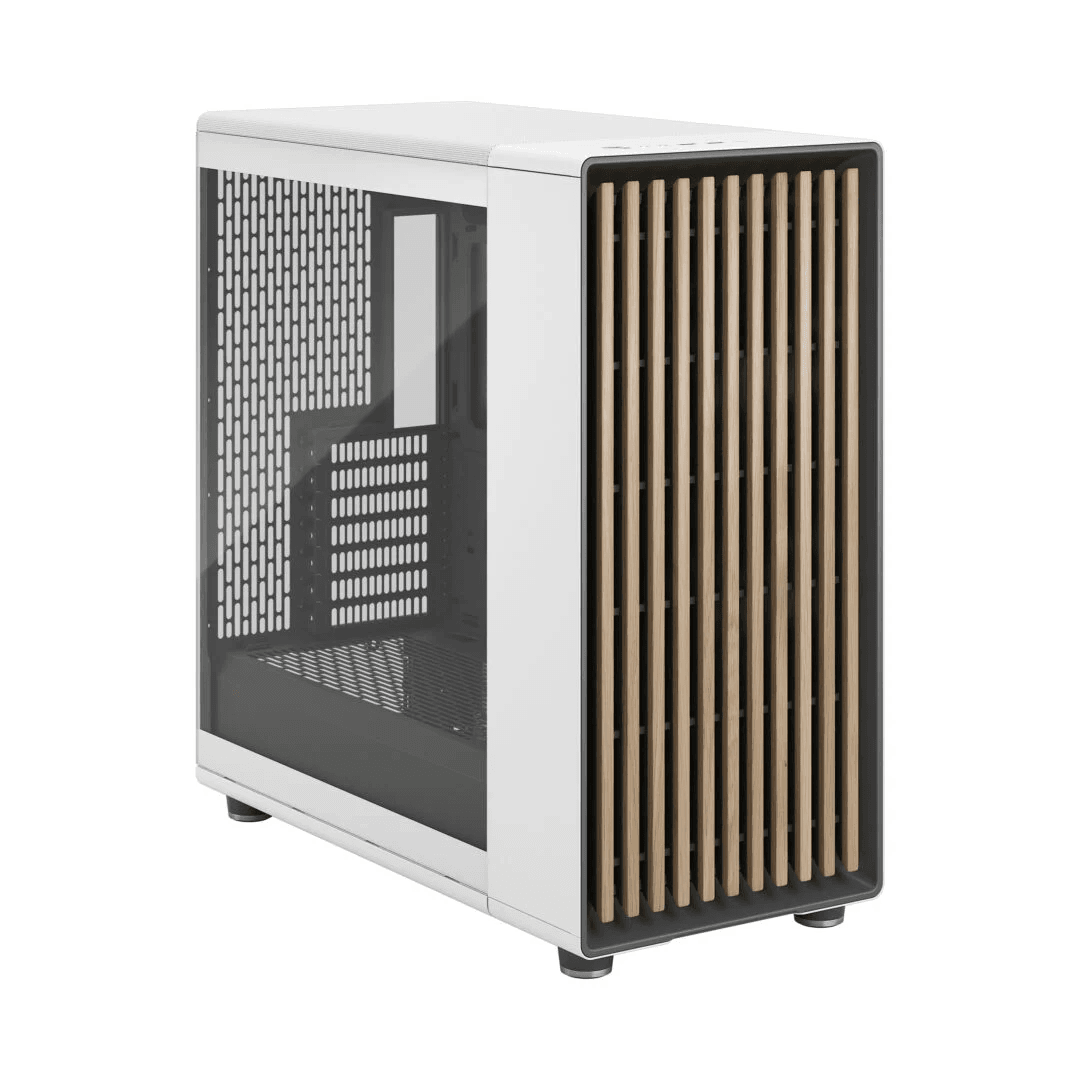

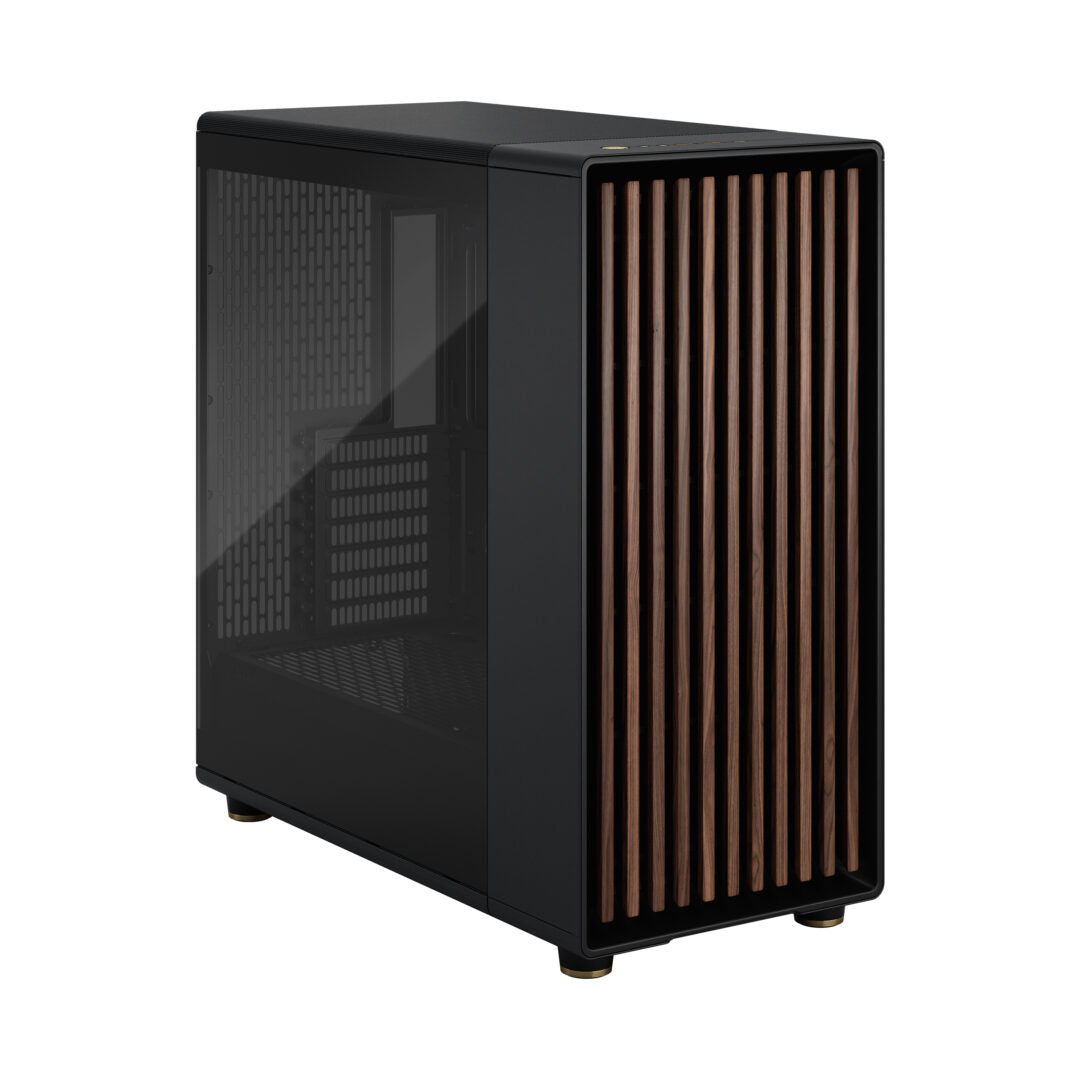

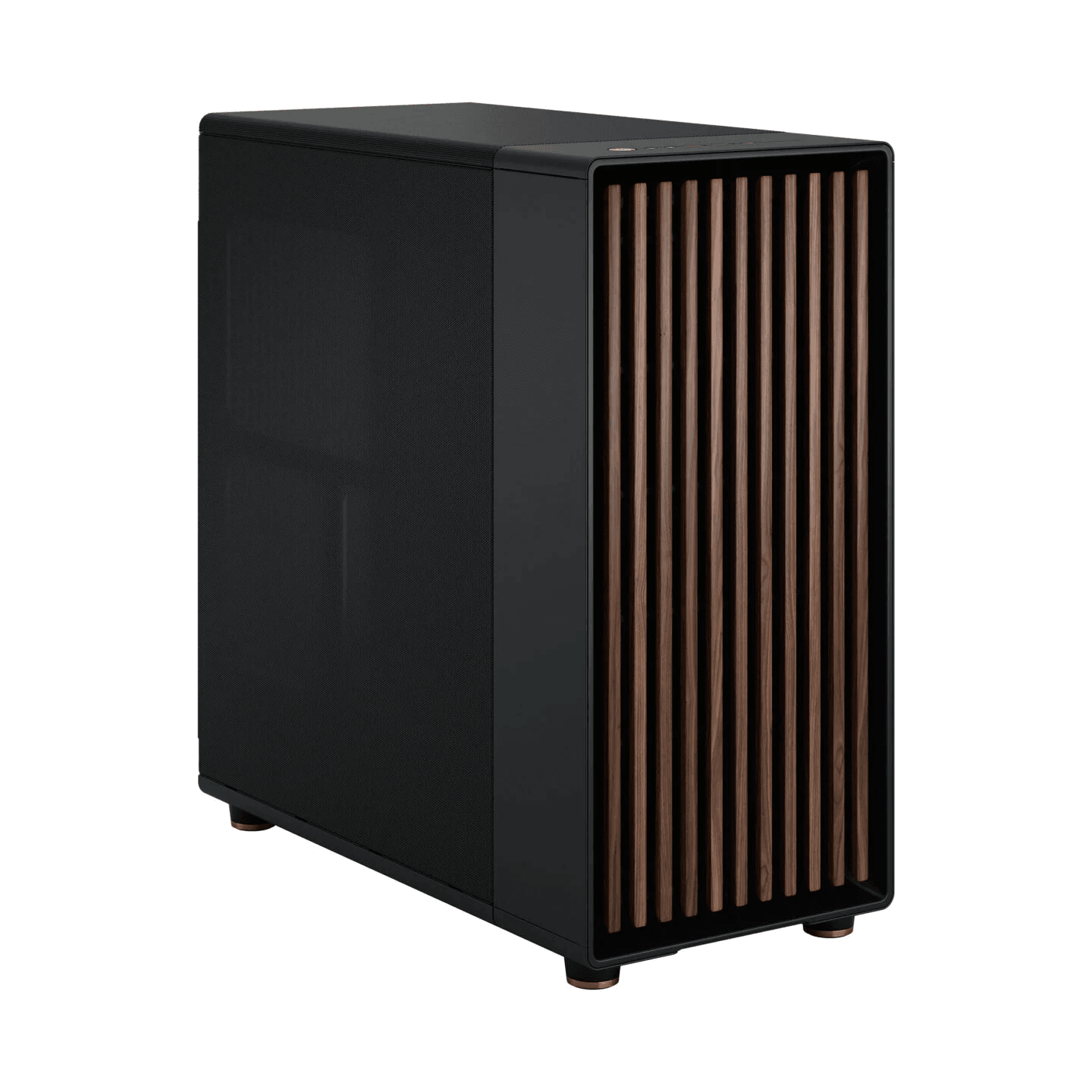

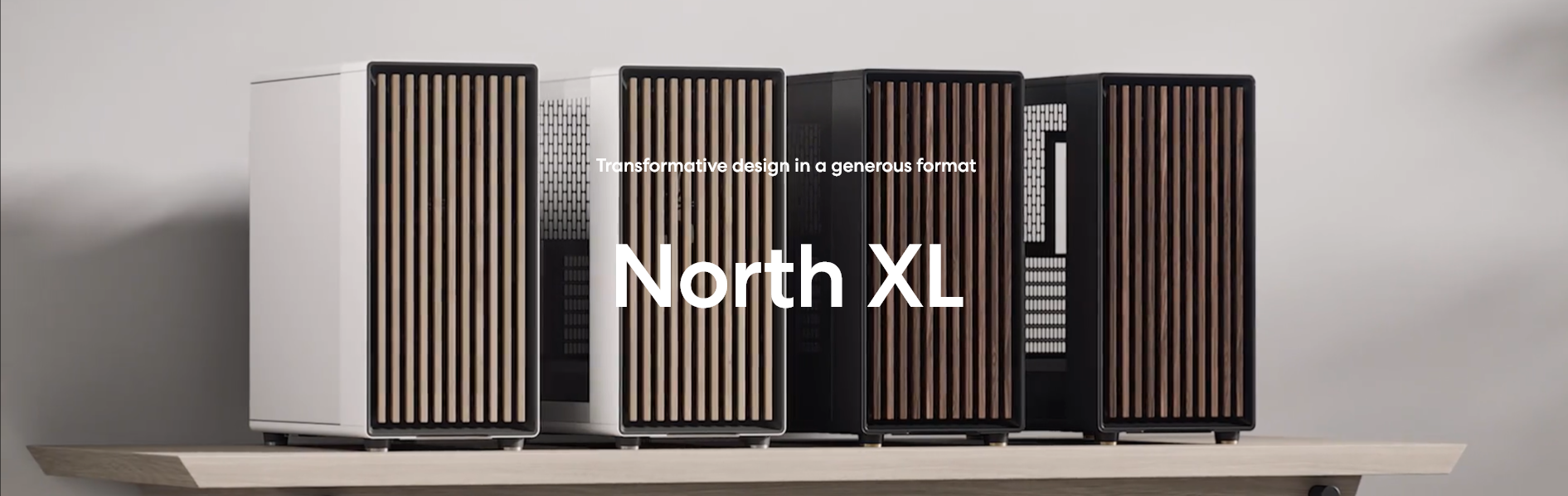

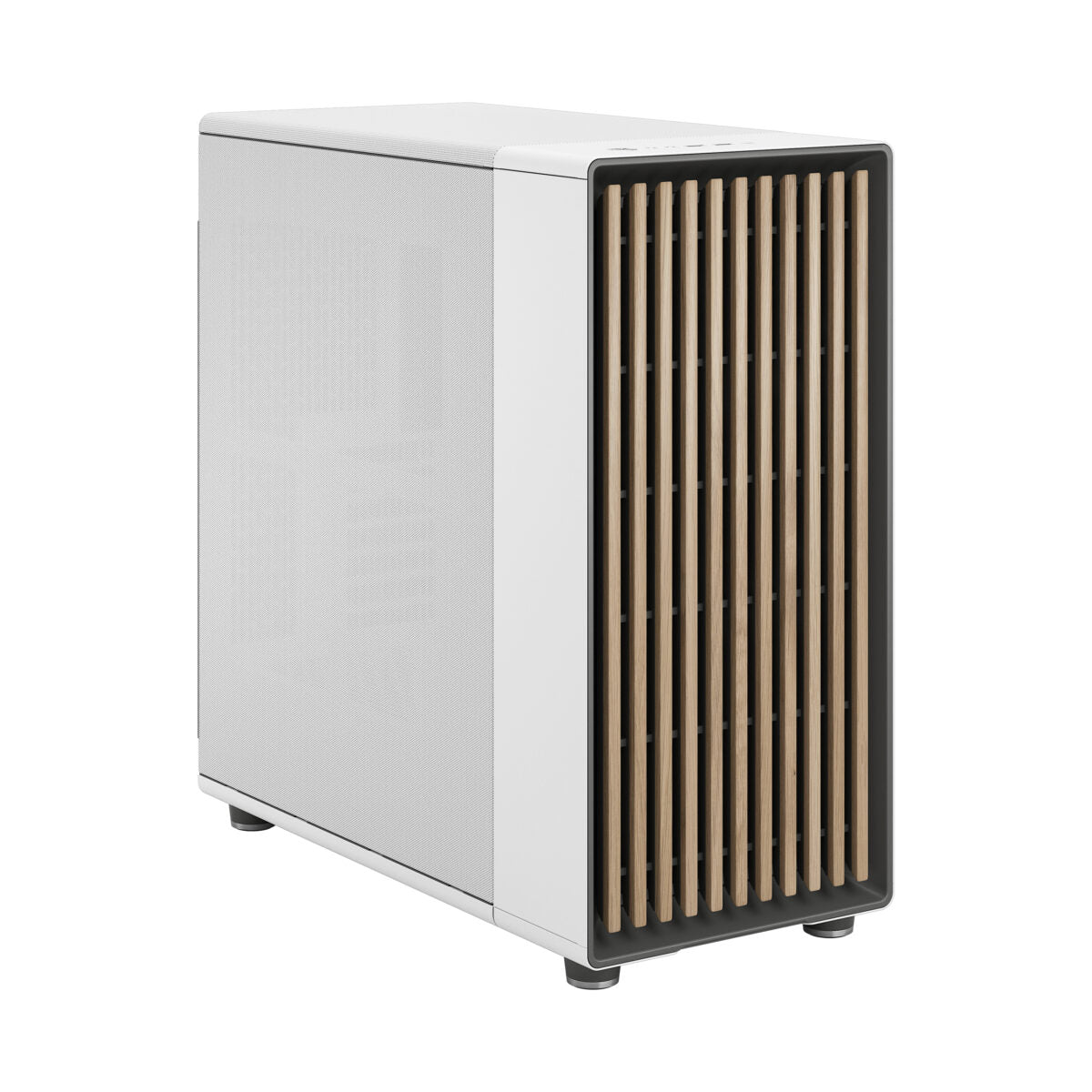

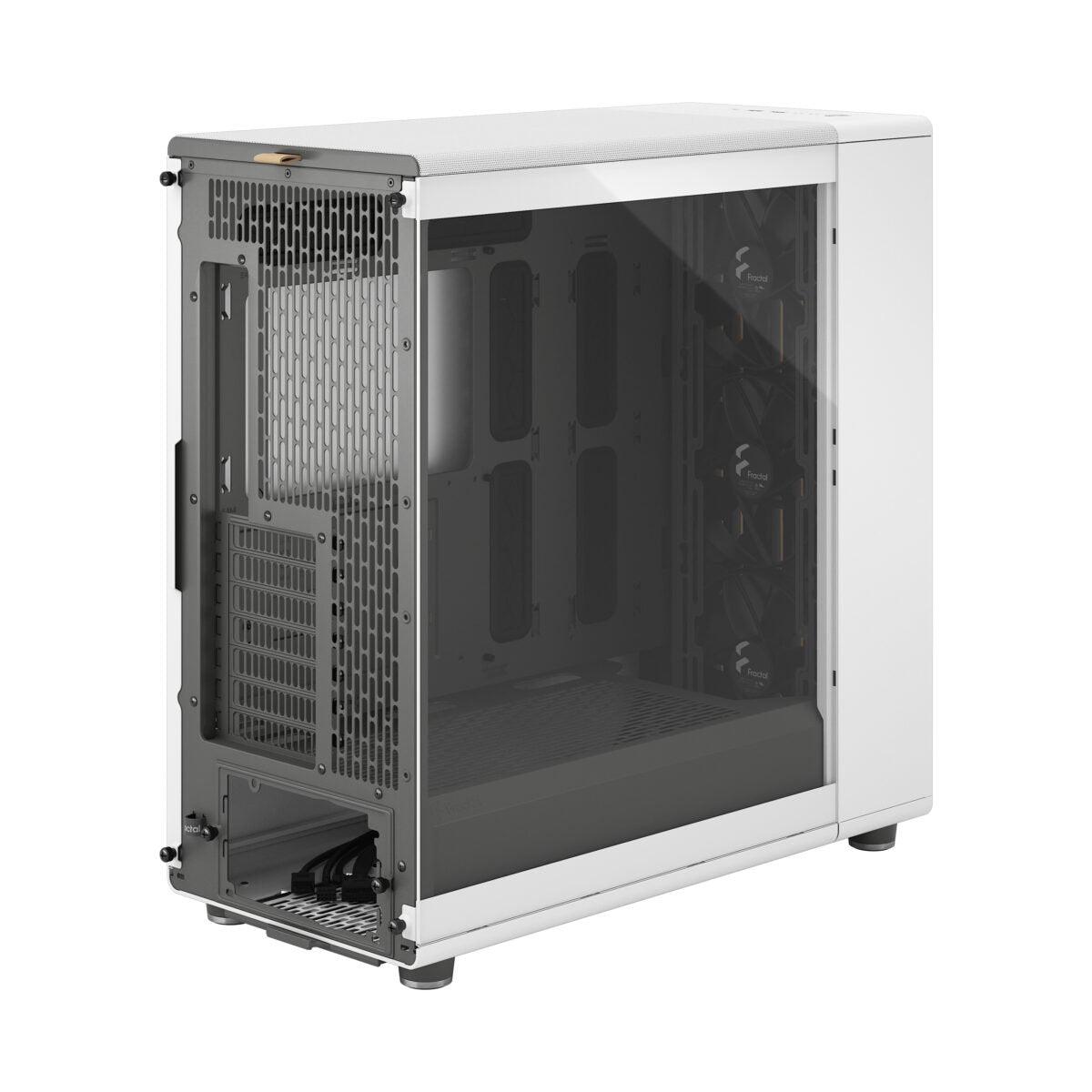

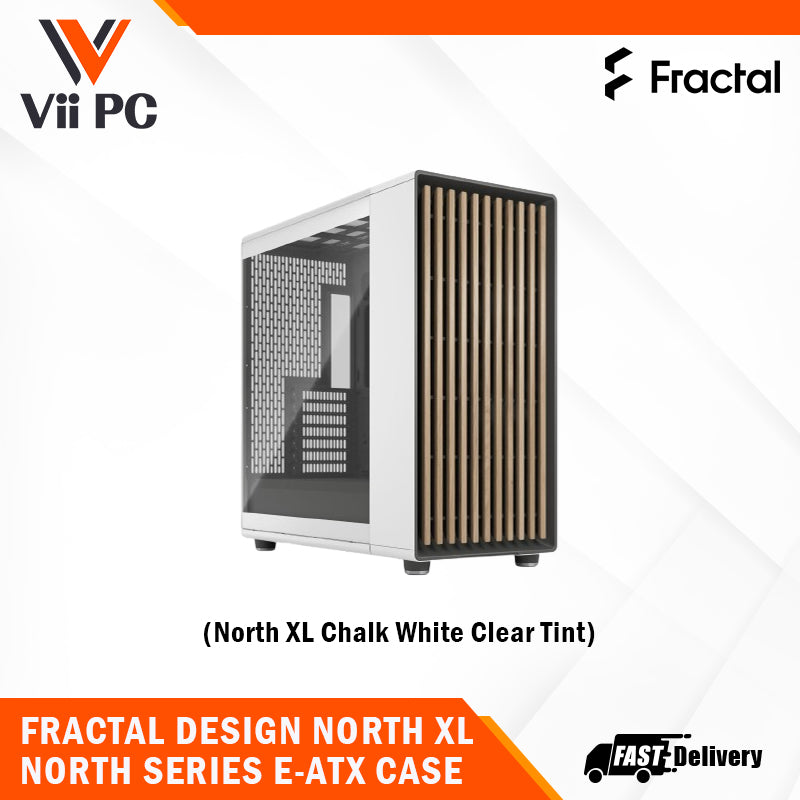

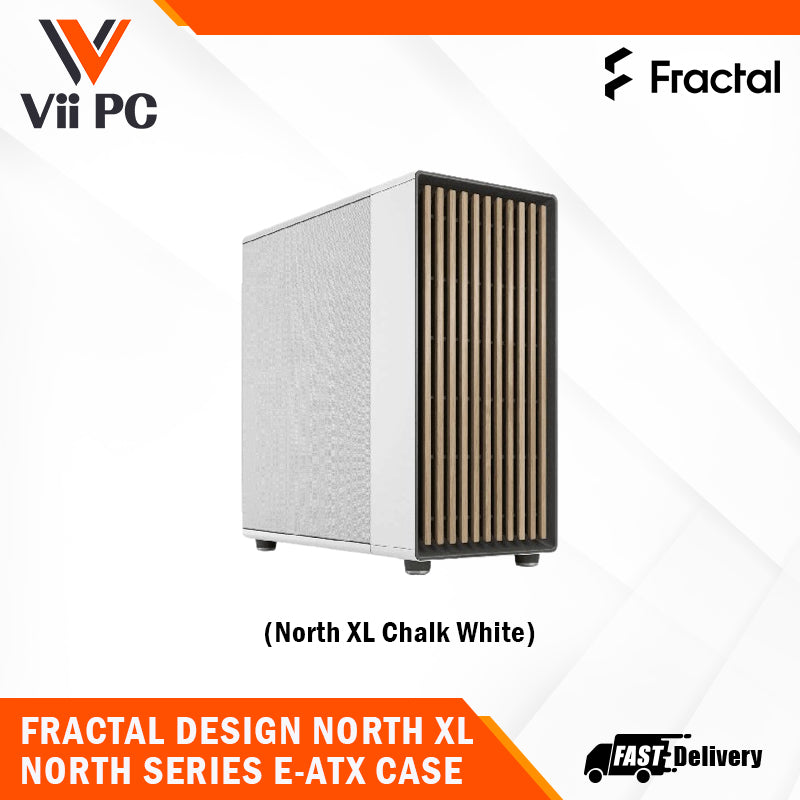

Fractal Design North XL (Charcoal Black/Chalk White) (Mesh/Tempered Glass) E-ATX/ATX/mATX/Mini-ITX CASE Wood Chassis

Fractal Design North XL (Charcoal Black/Chalk White) (Mesh/Tempered Glass) CASE Wood Chassis

North XL combines a transformative take on the gaming PC case with a generous form factor. It fuses design materials with airflow engineering, to make performance gaming a stylish addition to the living space. Inside, it boasts a spacious, flexible, and intuitive interior layout so you can make the most of your building and gaming experience.

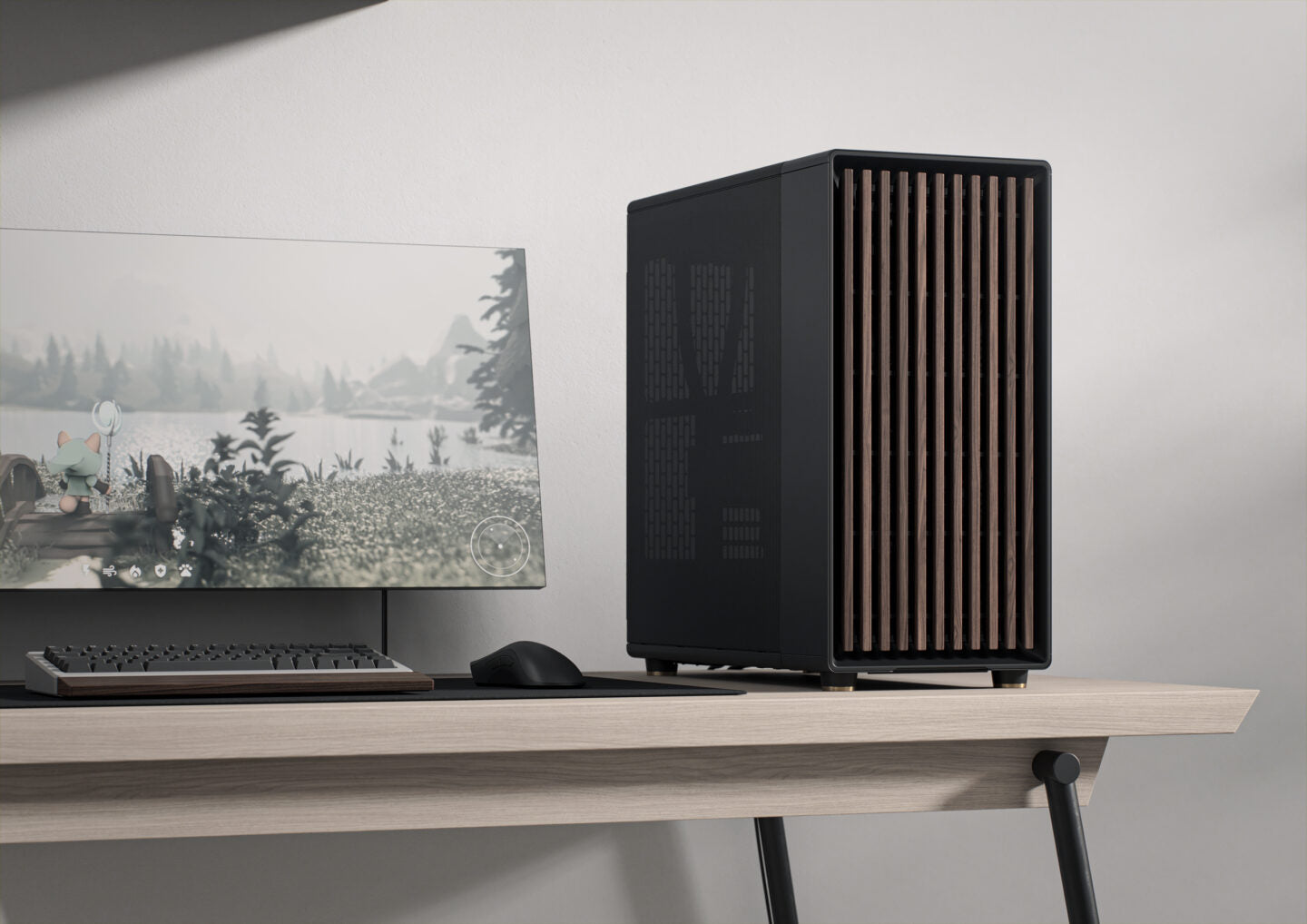

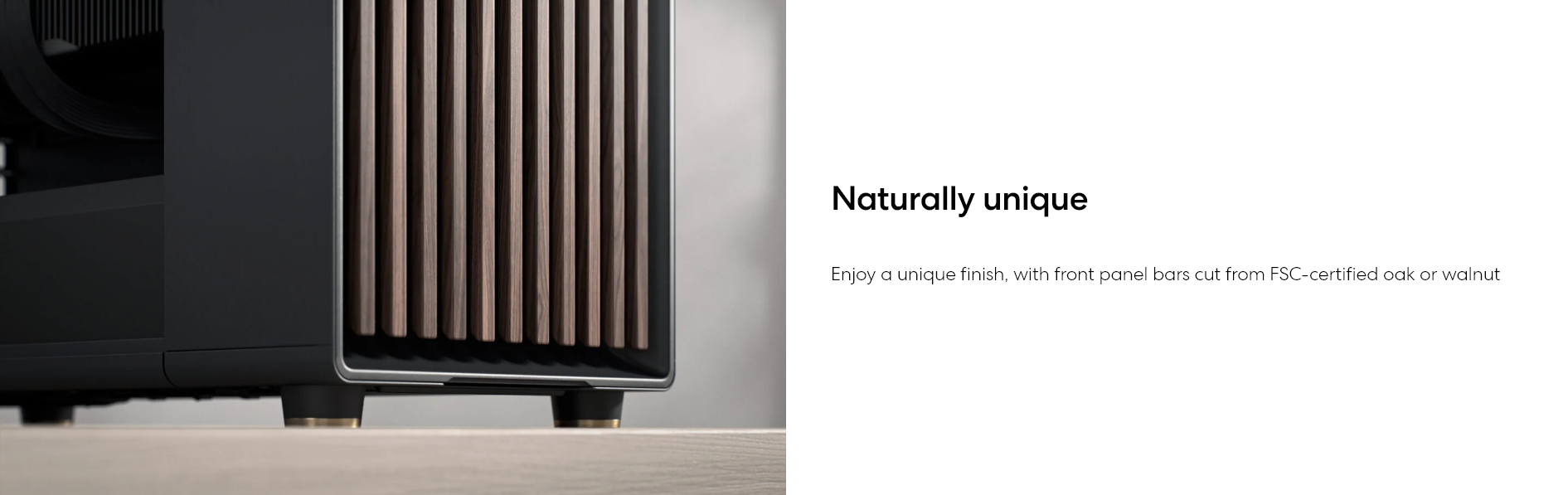

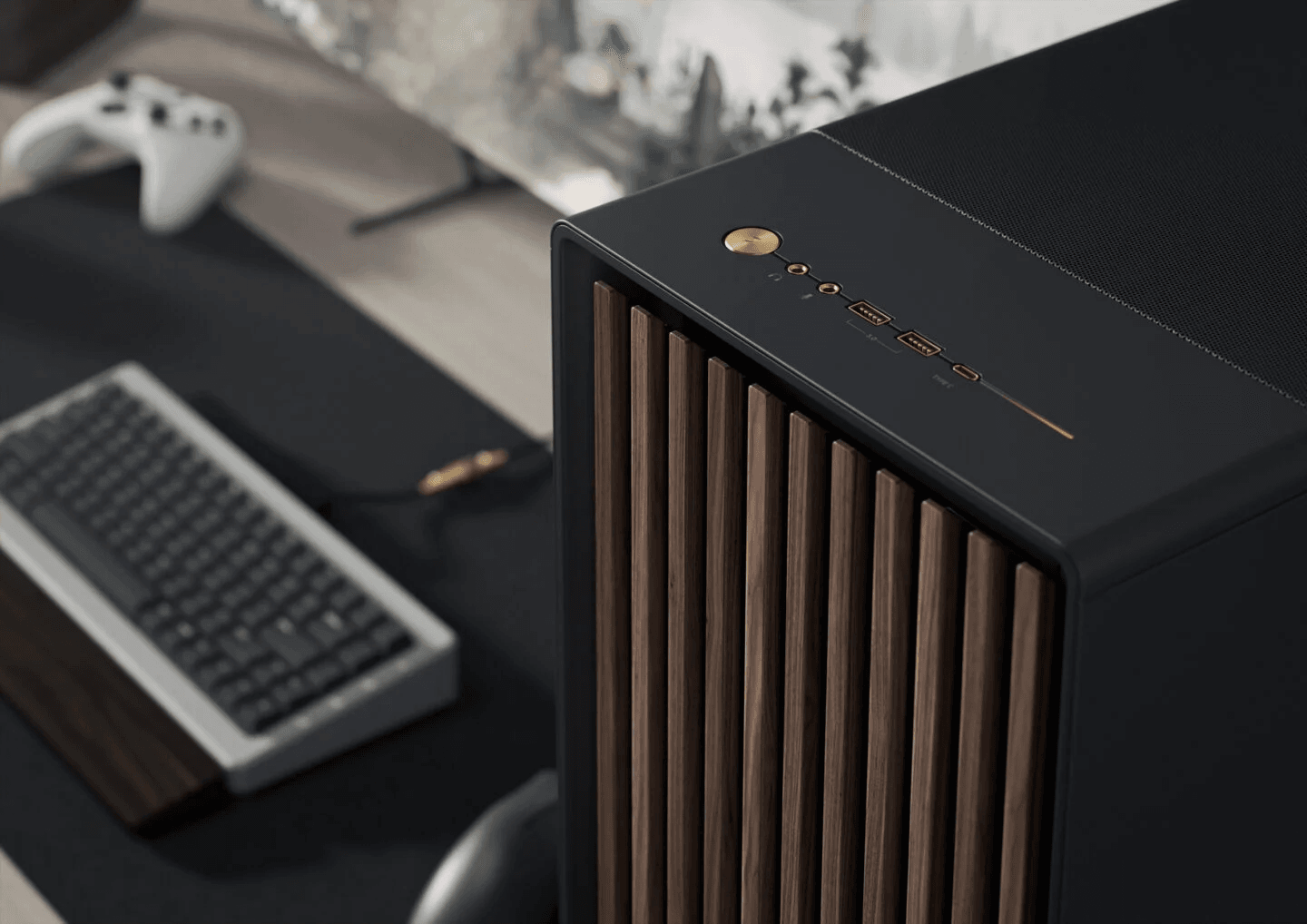

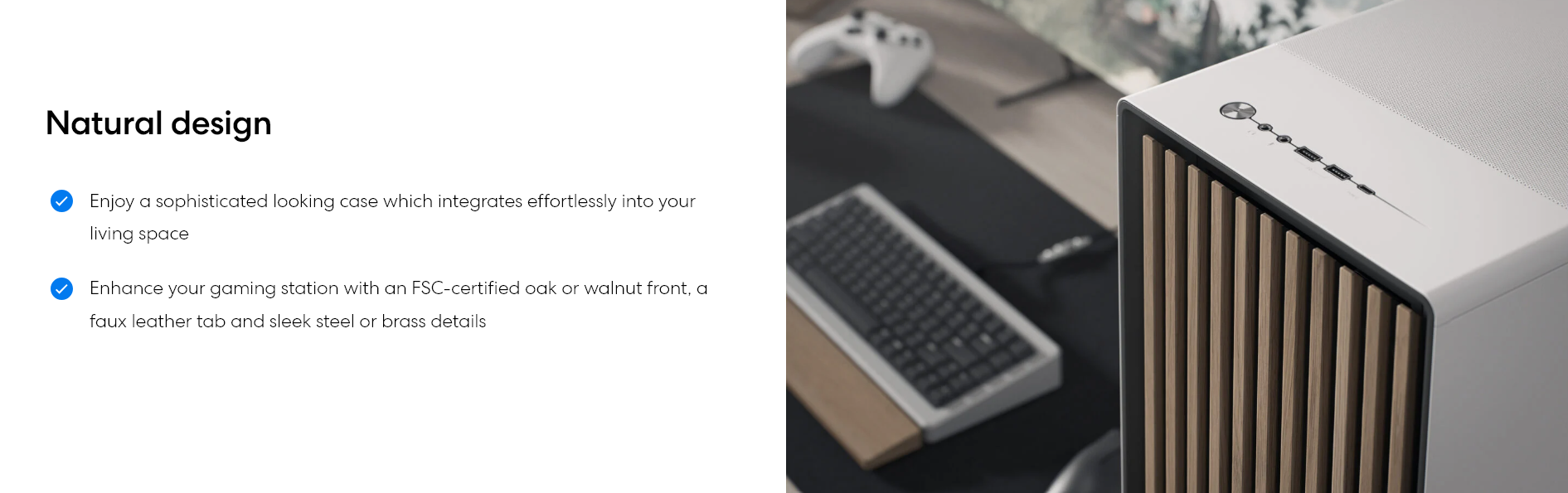

• Enhance the look of your gaming station with sleek wood and alloy details

• Designed for E-ATX / ATX / mATX / mITX motherboards

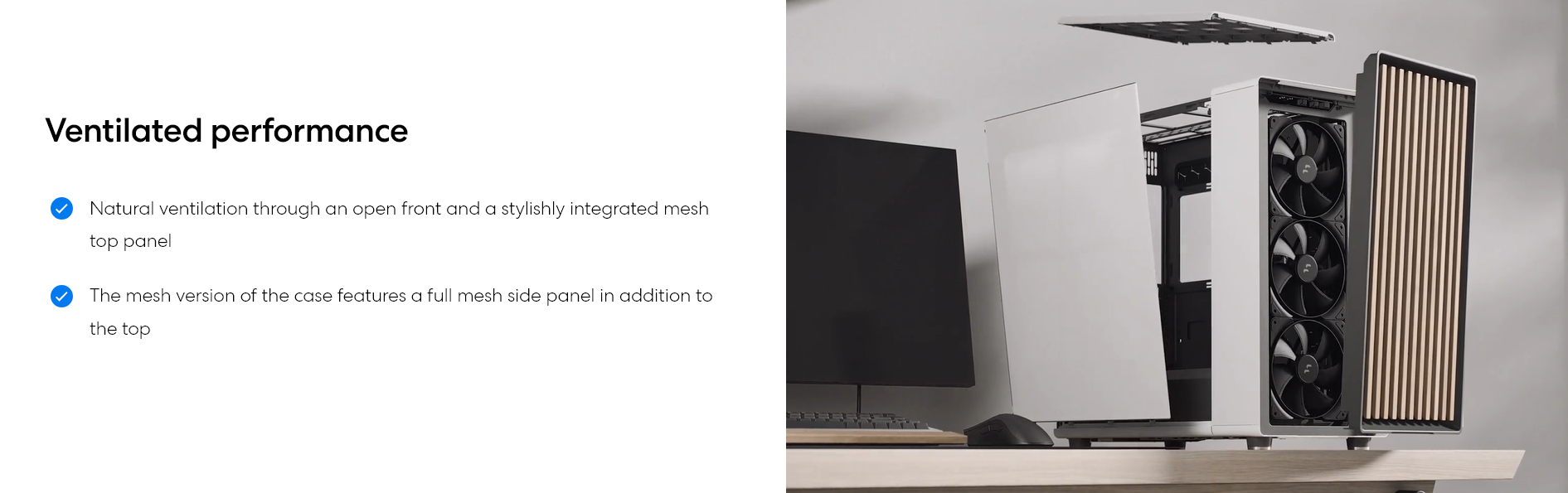

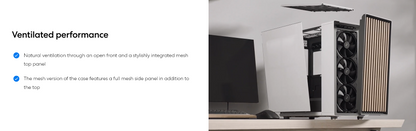

• Enjoy natural ventilation through an open front and stylishly integrated mesh

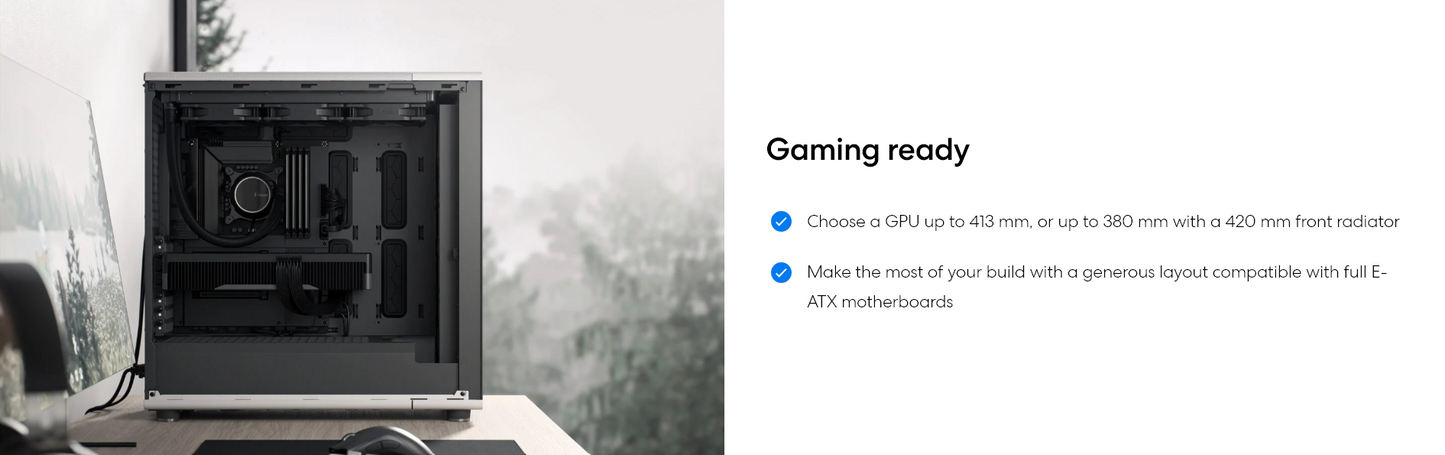

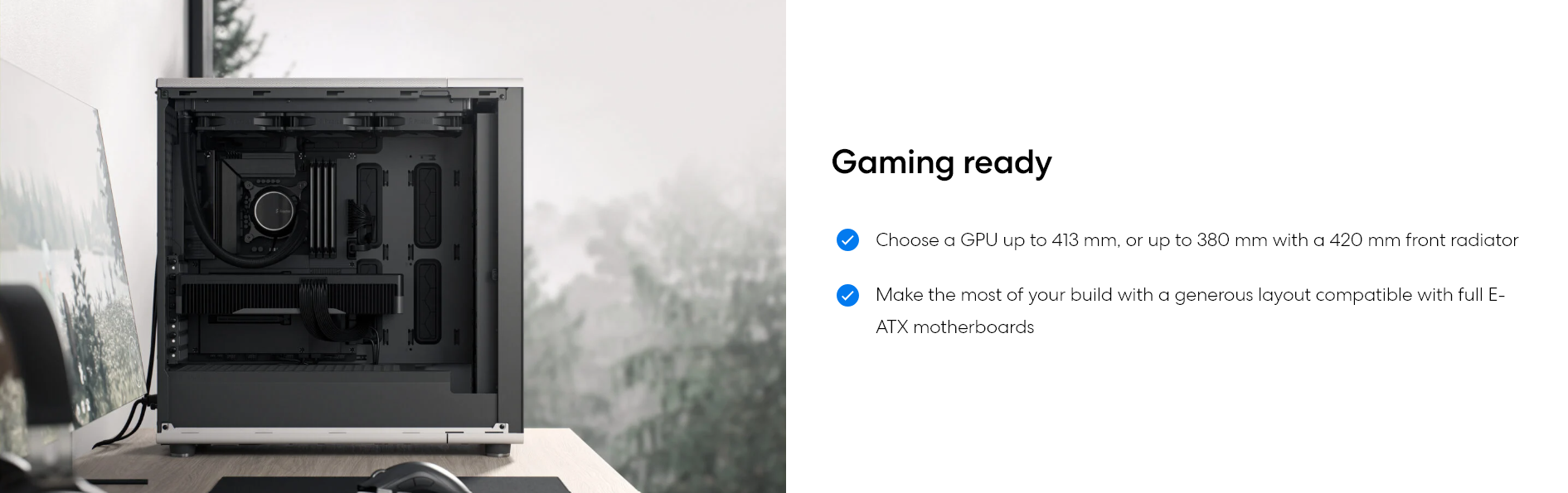

• Choose a GPU up to 413mm, around up to 380mm with a 420mm front radiator

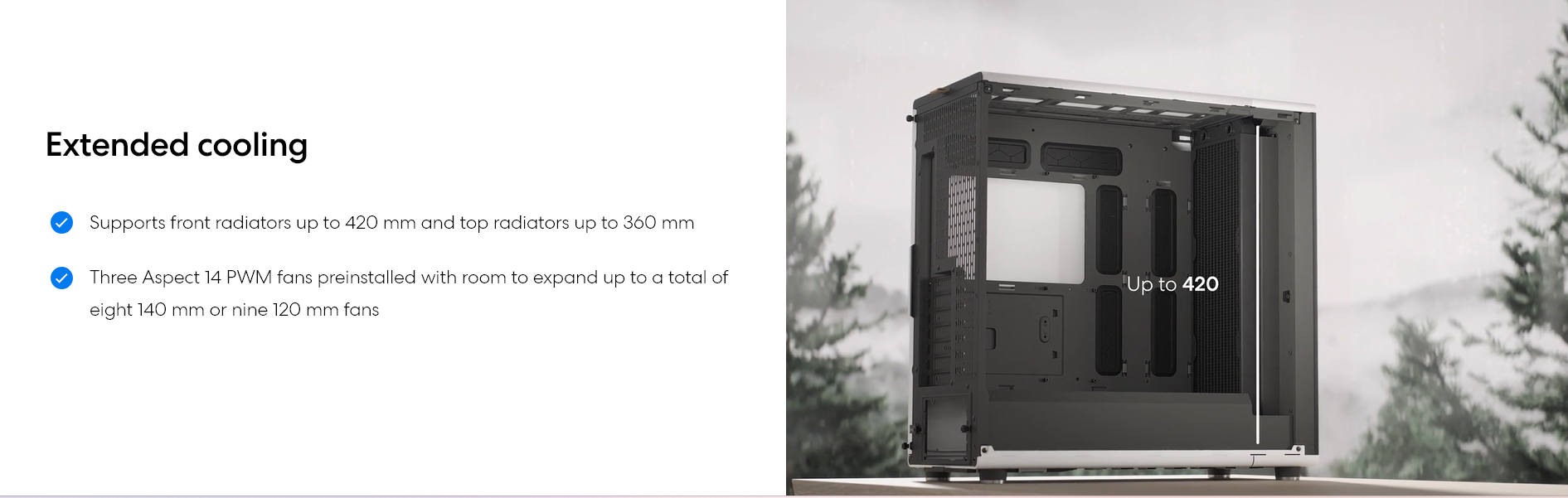

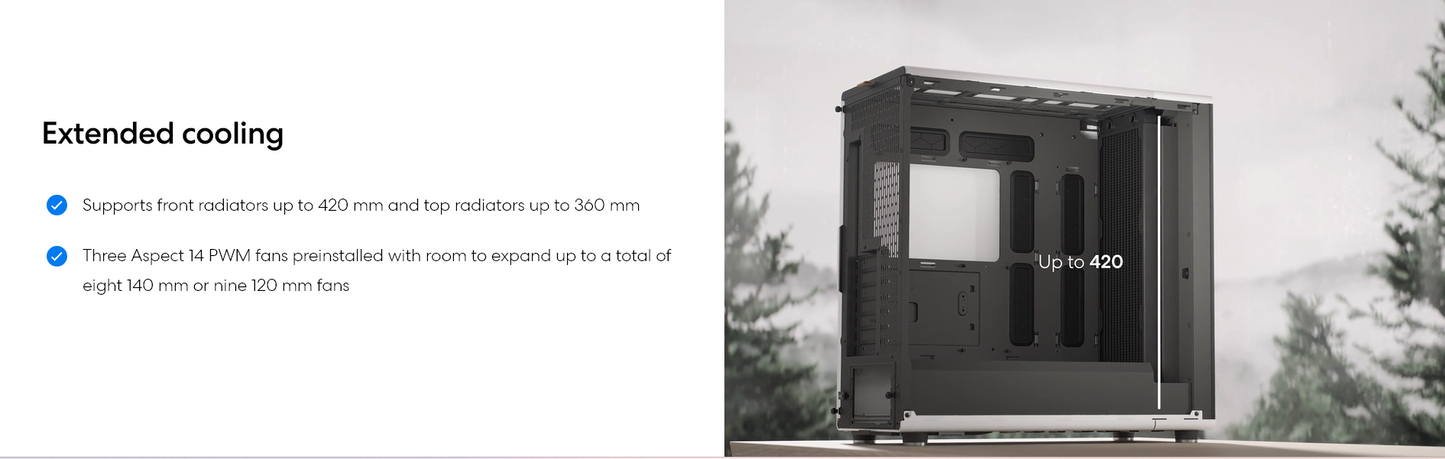

• Compatible with front radiators up to 420mm and top radiators up to 360mm

• Get a head start on your build with the three included 140mm Aspect PWM fans

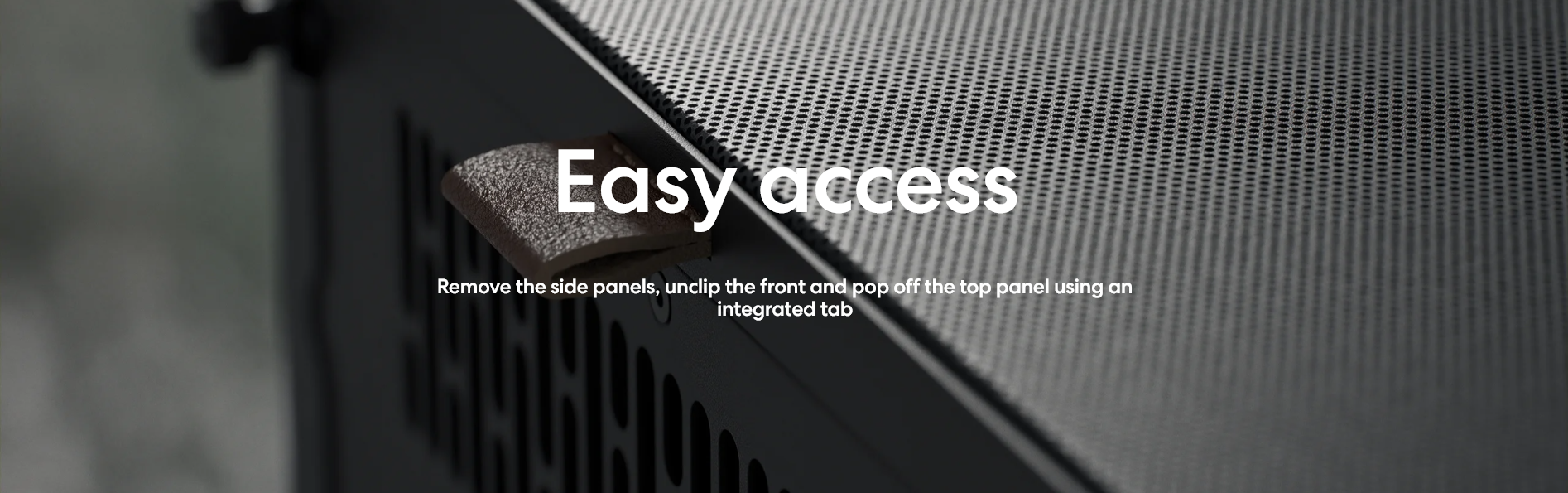

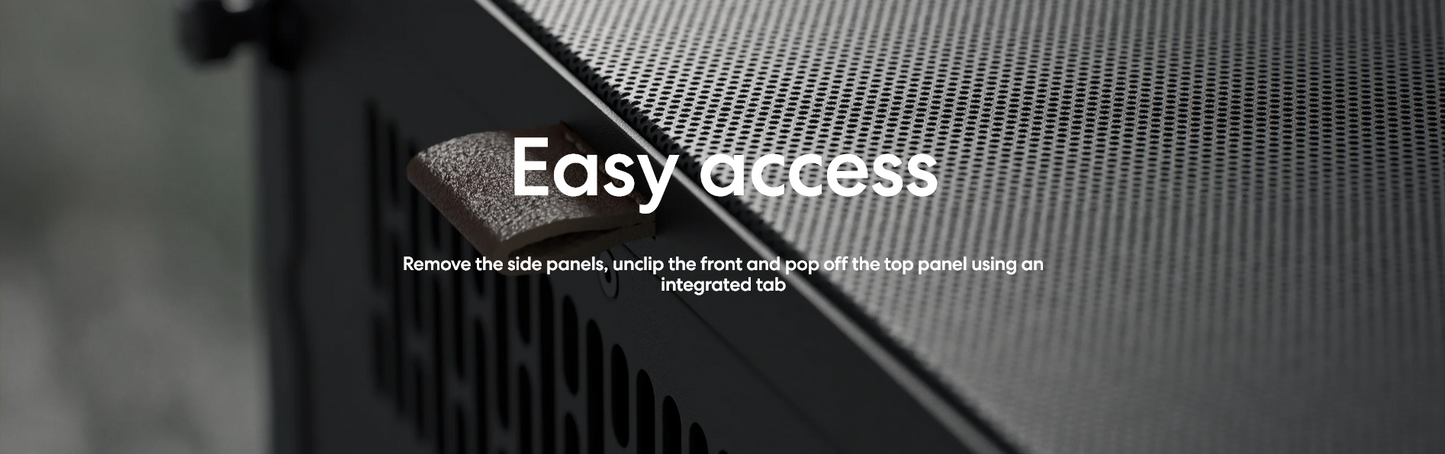

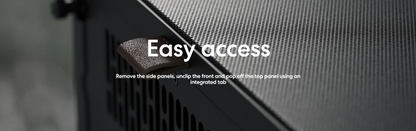

• Slide open the side panels, unclip the front and use the integrated tab to pop off the top panel

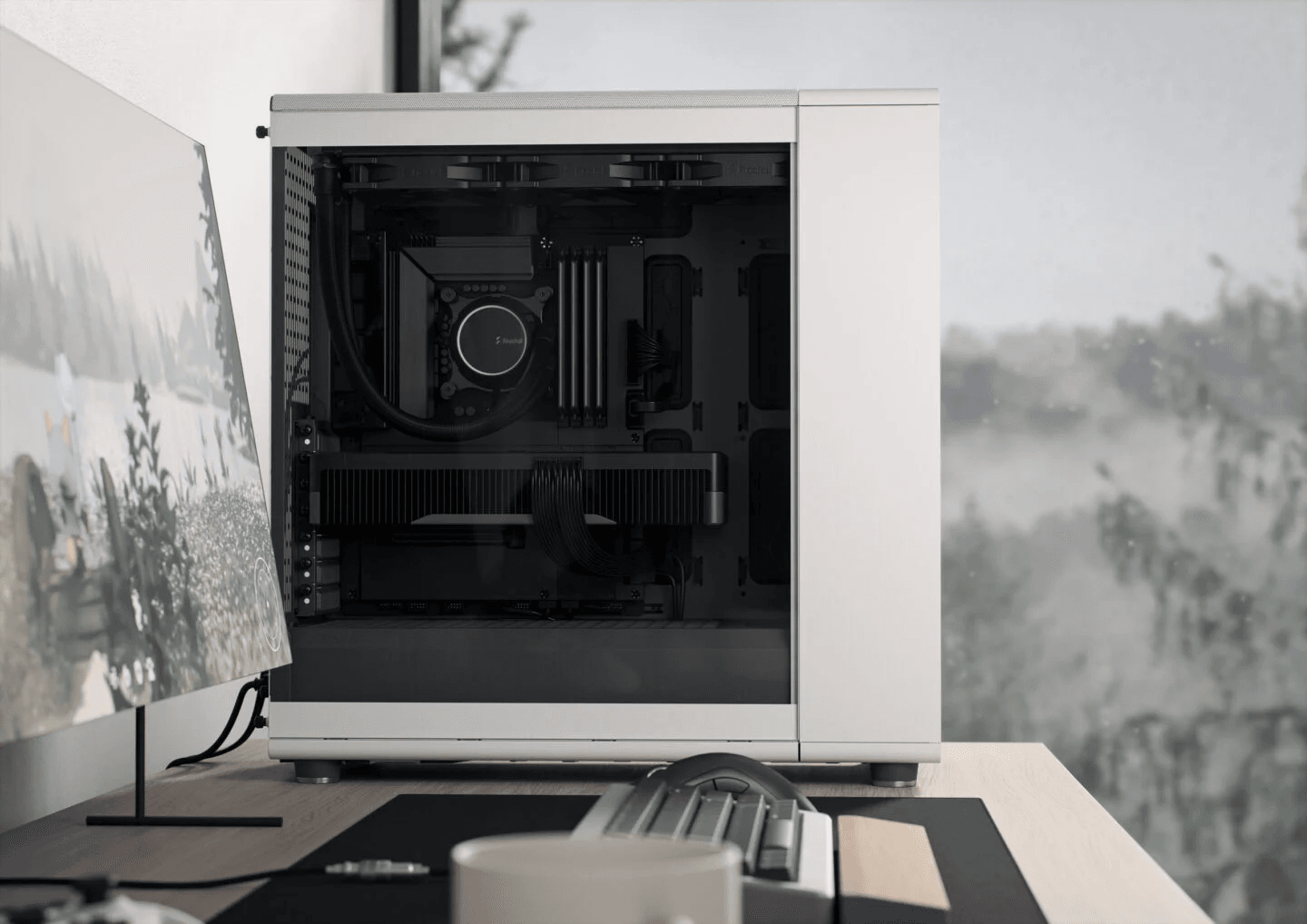

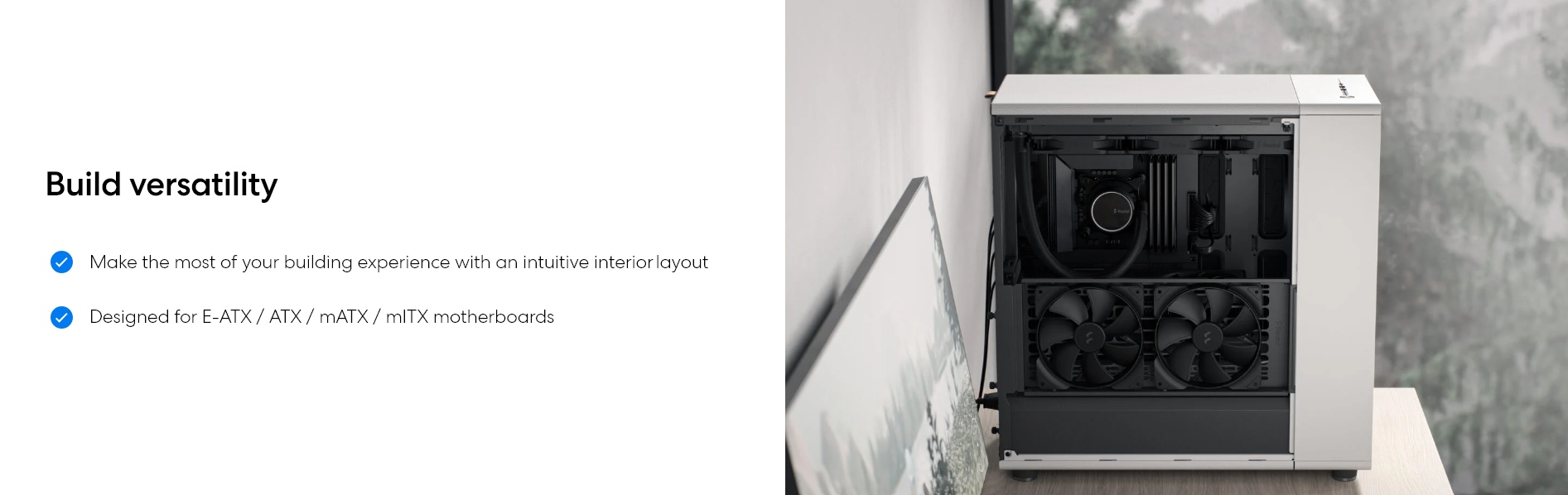

• Make the most of your building experience with an intuitive interior layout

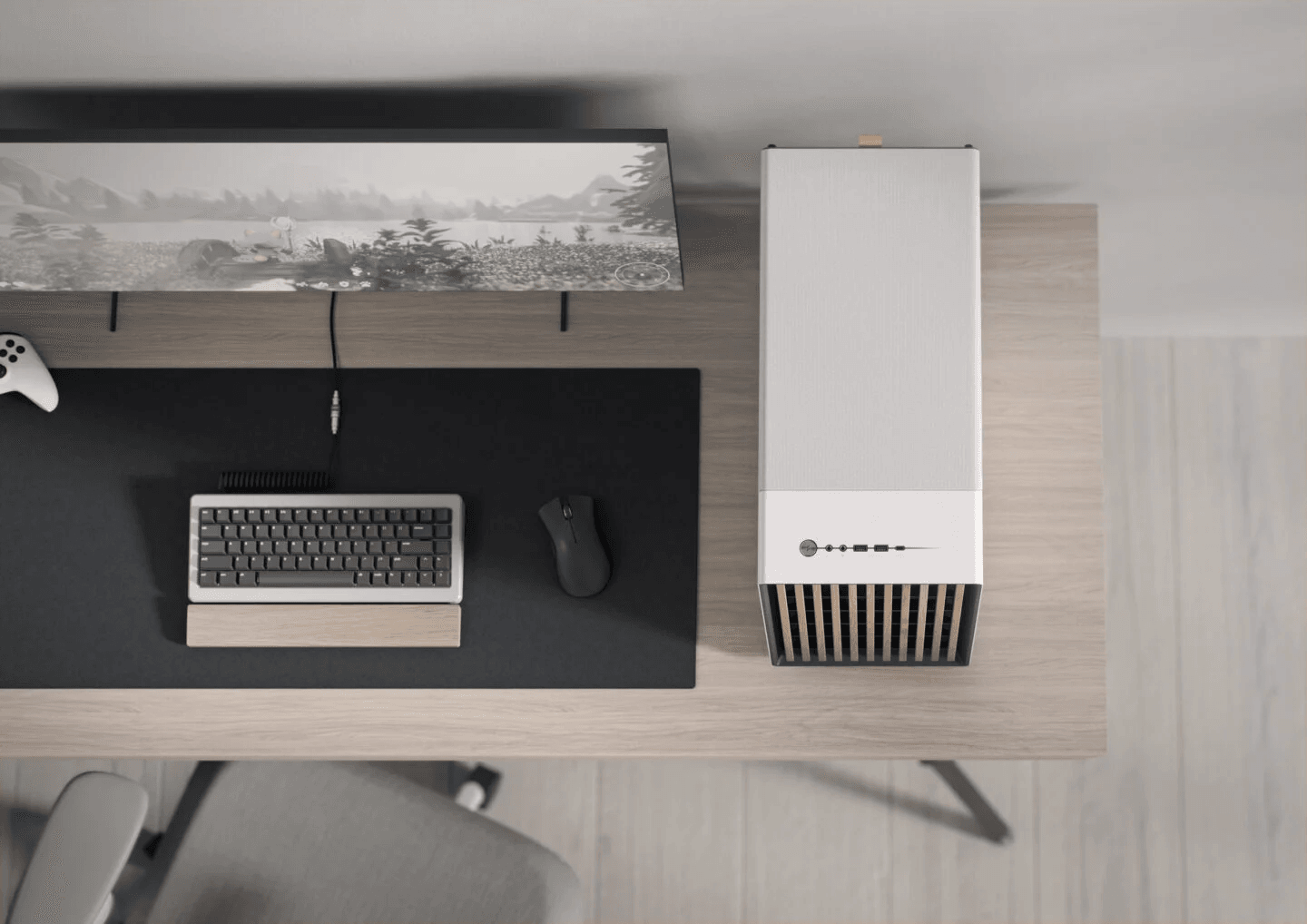

• Enjoy a sophisticated looking case which integrates effortlessly into your living space

SPECIFICATIONS

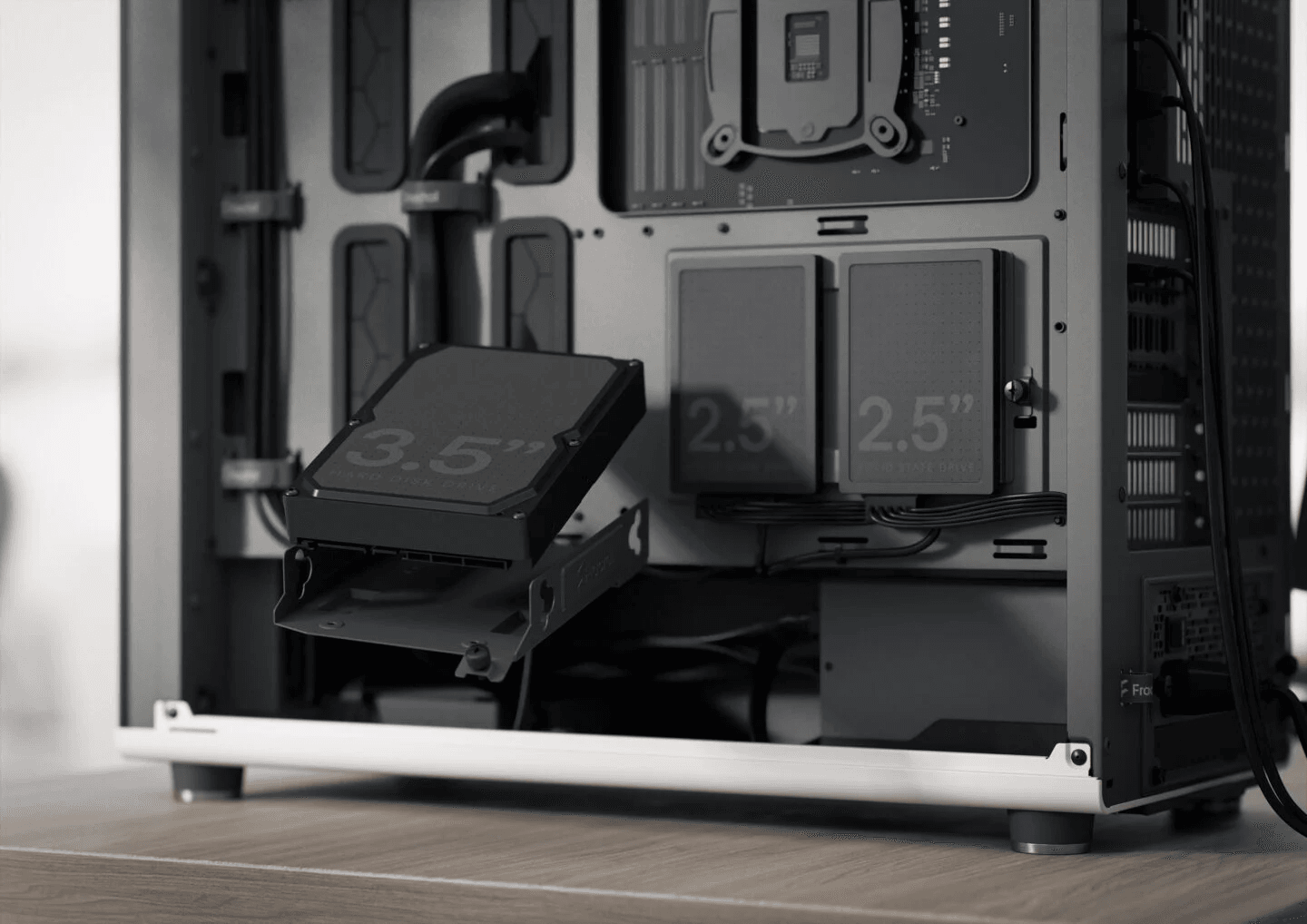

Dedicated 2.5" drive mounts : 2
Combined 3.5/2.5” drive mounts : 2 included
5.25” drive mounts : 0
Expansion slots : 7

Front interface :

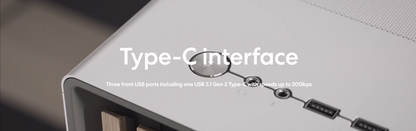

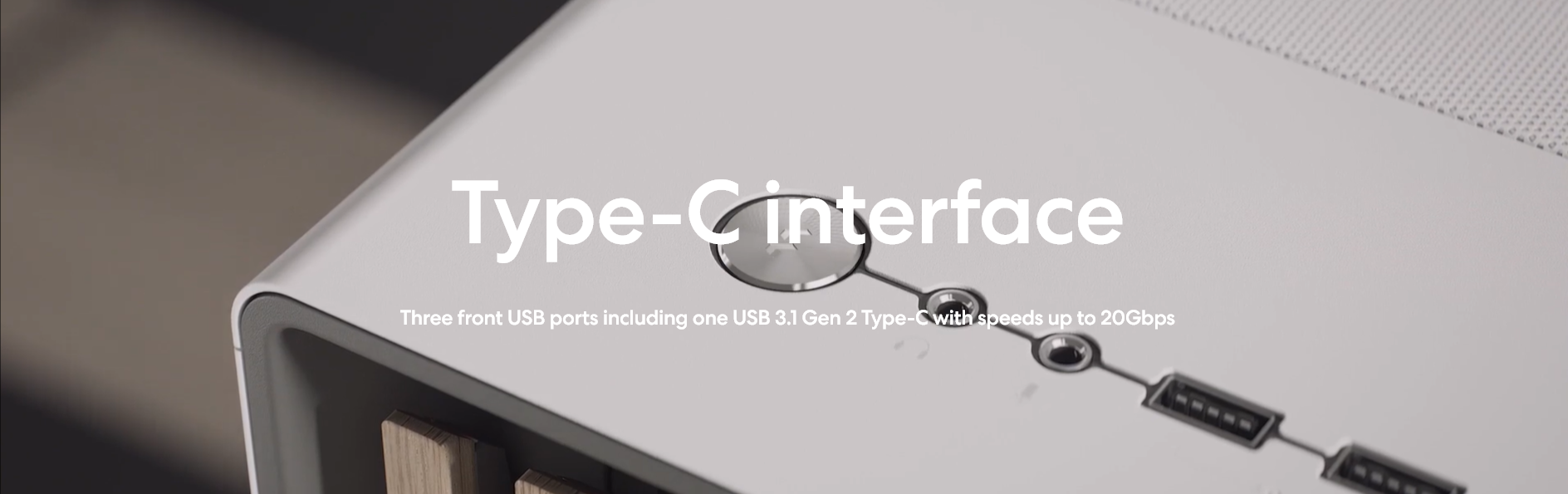

• 1xUSB 3.1 Gen 2 Type-C
• 2xUSB 3.0, Audio & Mic

Total fan mounts (TG Version) : 7 x 120 mm or 6 x 140 mm

Total fan mounts (Mesh Version) : 9 x 120 mm or 8 x 140 mm

Front fan : 3 x 120 mm, 3 x 140 mm (3 x Aspect 140mm PWM included)
Top fan : 3 x 120 mm, 2 x 140 mm or 2 x 180 mm
Rear fan : 1 x 120/140 mm

Dust filters : Front, PSU
Fixed cable straps : Yes
Cable routing grommets : Yes

Captive thumbscrews :
• HDD brackets
• SSD bracket
• Side Panels
• Fan Bracket
• PSU Bracket

Left side panel : Mesh
Right side panel : Steel

COMPATIBILITY

Motherboard compatibility : E-ATX / ATX / mATX / Mini-ITX

Power supply type : ATX

PSU max length :

• 1 HDD Tray: 290mm max
• 2 HDD Trays: 175 mm

GPU max length : 413 mm with front fan mounted / 380 mm with 420/360 mm front mounted radiator

CPU cooler max height : 155 mm with Fan Bracket / 185 mm w.o.

Front radiator : Up to 420/360 mm
Top radiator : Up to 280/360 mm
Rear radiator : 1 x 120/140 mm
Cable routing space : 29 mm

DIMENSIONS

Case dimensions (LxWxH) : 503 x 240 x 509 mm
Case dimensions w/o feet/protrusions/screws : 490 x 240 x 490 mm

Net weight : 9.7 kg (Mesh) / 9.5kg (TG)
Package dimensions (LxWxH) : 604 x 355 x 608 mm
Gross weight : 11.9 kg (Mesh) / 11.7kg (TG)

OTHER

Package contents (Mesh version) :
• North case
• Accessory Box
• Fan Bracket Accessory Box
• User Manual

Package contents (TG version) :
• North case
• Accessory Box
• User Manual

EAN :

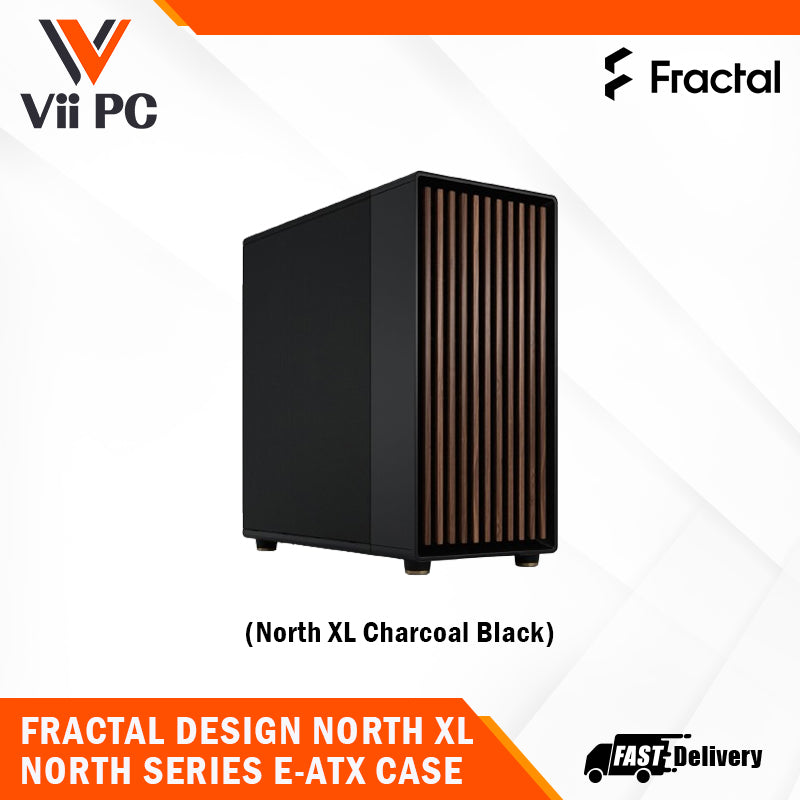

• Charcoal Black: 7340172706533

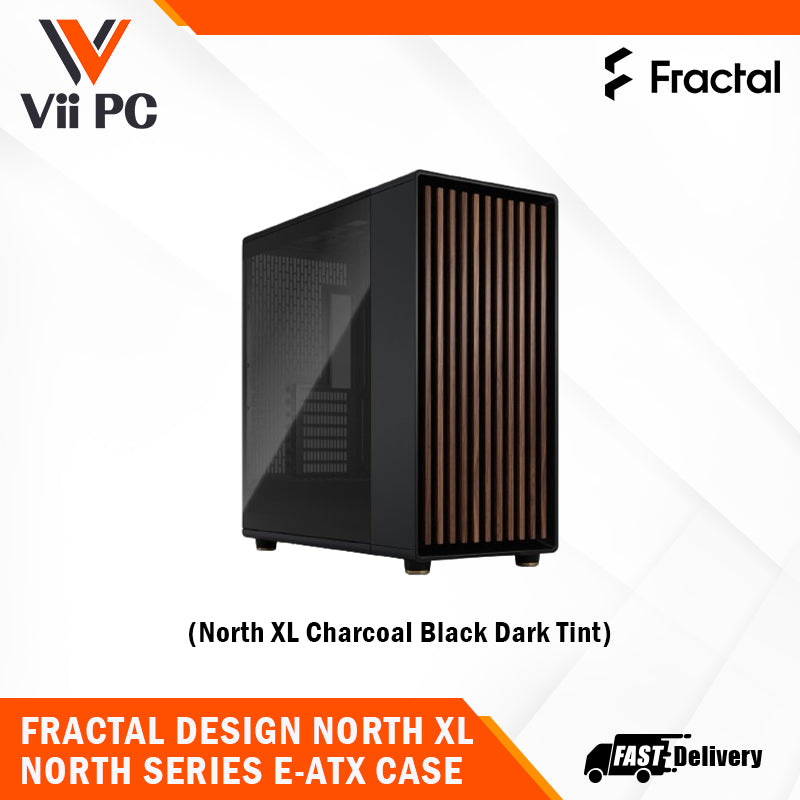

• Charcoal Black TGD: 843276106546
• Chalk White: 7340172706557
• Chalk White TGC: 7340172706564

UPC :
• Charcoal Black: 843276106539
• Charcoal Black TGD: 843276104719
• Chalk White: 843276106553
• Chalk White TGC: 843276106560

JAN :
• Charcoal Black: 4537694326902
• Charcoal Black TGD: 4537694326919
• Chalk White: 4537694326926
• Chalk White TGC: 4537694326933

Product Code :
• Charcoal Black: FD-C-NOR1X-01
• Charcoal Black TGD: FD-C-NOR1X-02
• Chalk White: FD-C-NOR1X-03
• Chalk White TGC: FD-C-NOR1X-04

Warranty : 2 Years
