FSP Dagger Pro (650W / 850W) 80 Plus® Gold SFX Full Modular Power Supply (ATX 3.0 + PCIe Gen5)
FSP Dagger Pro (650W / 850W) 80 Plus® Gold SFX Full Modular Power Supply (ATX 3.0 + PCIe Gen5)
FSP Dagger Pro 80 Plus® Gold SFX Full Modular (ATX 3.0/PCIe Gen 5)
- Compliant with SFX12V V3.3
- Efficiency ≧ 90% at typical load
- MIA IC (Multiple Intelligence Ability) chip set inside
- Semi-fanless design for silent operation
- Quiet and long-lasting 92mm ball bearing fan
- All black ribbon cables
- Powerful single +12V rail design
- Japanese electrolytic capacitors
- Full protections OCP, OVP, SCP, OPP, OTP
Tiny but Powerful
The DAGGER PRO series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.

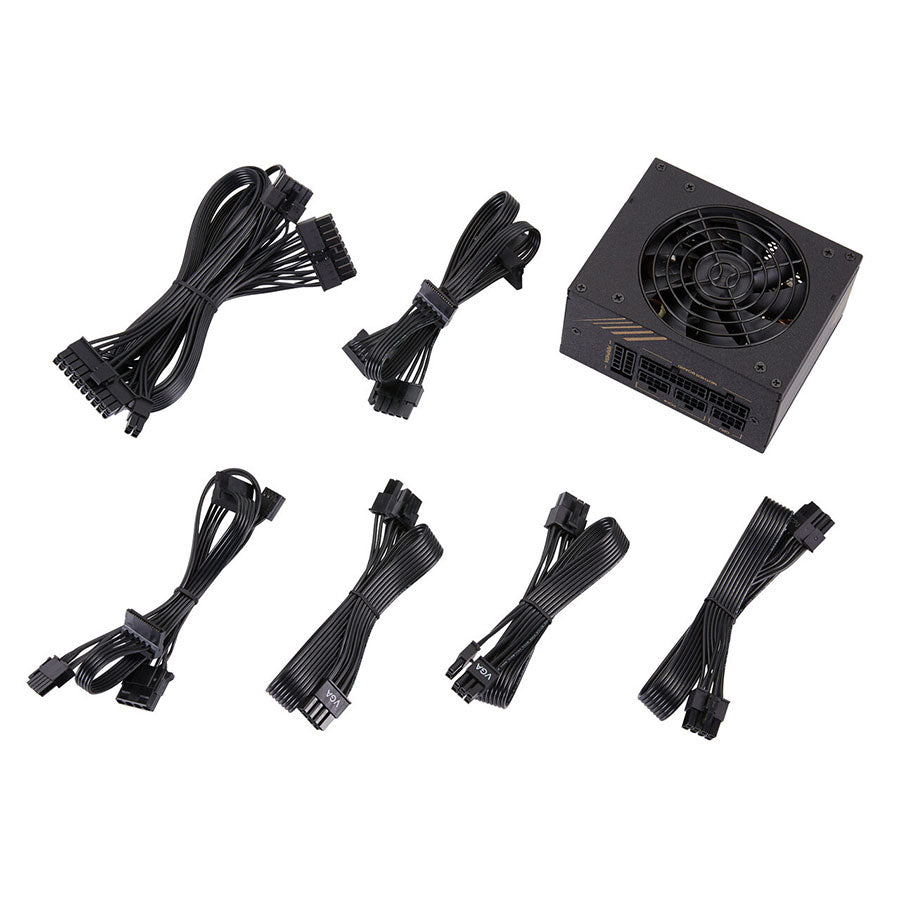

Advance Cable Management and Flat Ribbon Cables
Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.
92mm Fan Optimized for Low-noise Operation
Dagger PRO is included an advanced semi-fanless design that will spin over 20% loading, make silent and reduce noise under maximum operation.
80 Plus® Gold Certification
Dagger PRO series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
Powerful +12V Single Rail for your VGA
VGA card is a component which needs greedy and stable power supporting most. The compact size DAGGER PRO series comes with a single +12V rail design that offers VGA cards full power individually and to avoid any overloading conditions.
Supports High-end Motherboard
For gaming enthusiast, the DAGGER PRO 650W features dual CPU power connectors to support high-end motherboard and and provide stable power to the CPU for gaming enthusiast.
SPECIFICATIONS
- Model: SDA2-650 / SDA2-850
- Rated Output Power: 650W (SDA2-650) / 850W (SDA2-850)
- Form Factor: SFX
- 80 PLUS Certification: Gold
- Input Voltage: 100-240V
- Input Current: 10-5A (SDA2-650) / 12-6A (SDA2-850)
- Input Frequency: 50-60Hz
- Efficiency: ≥90% at typical load
- Fan Type: Ball bearing fan, 92mm
- Dimensions(L x W x H): 125 × 100 × 63.5 mm
- Protection: OCP, OVP, SCP, OPP, OTP
