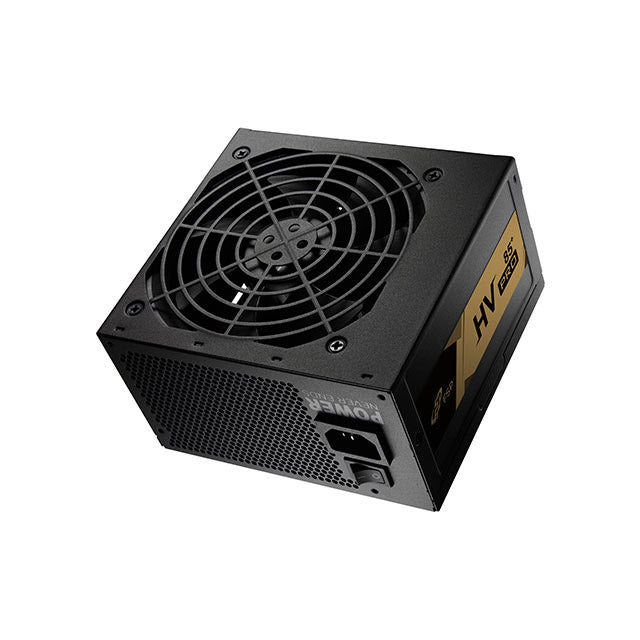

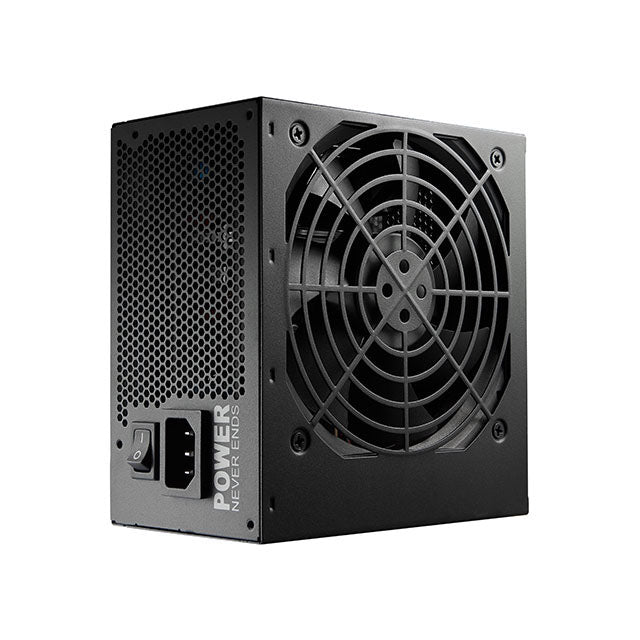

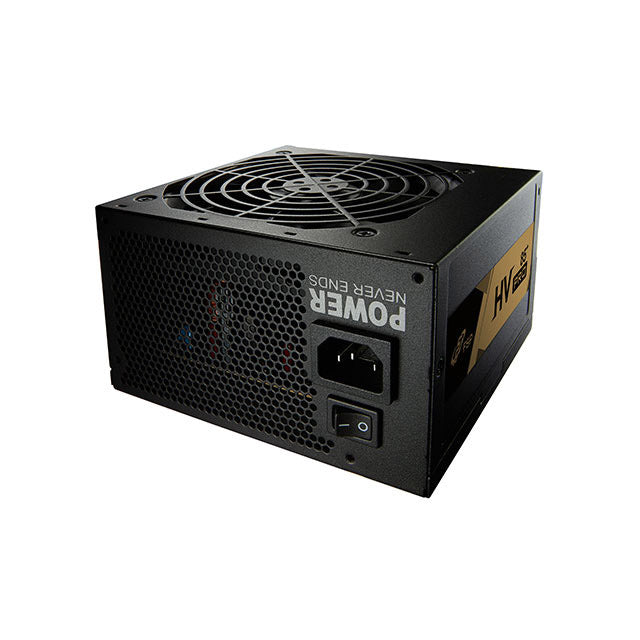

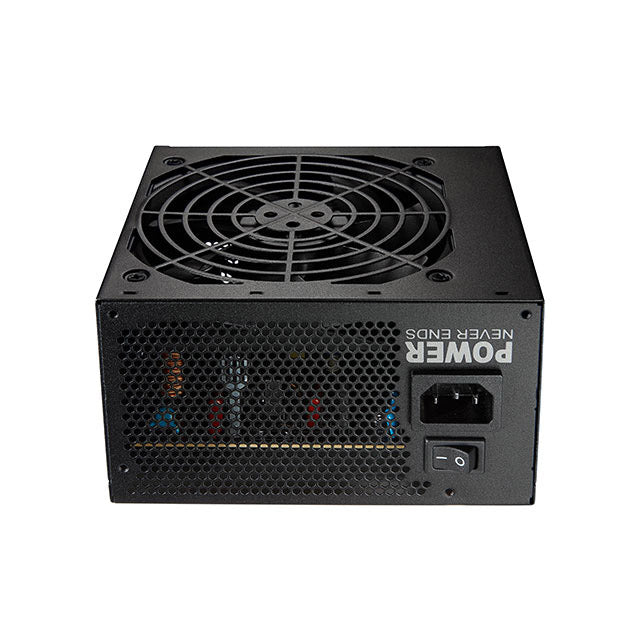

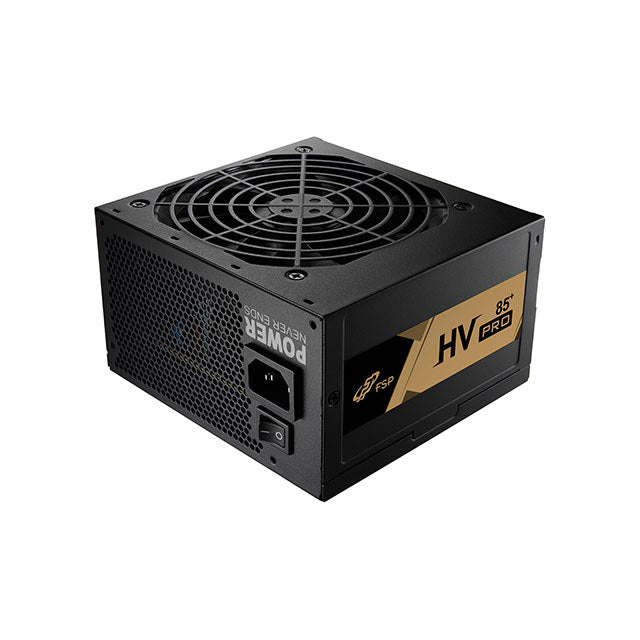

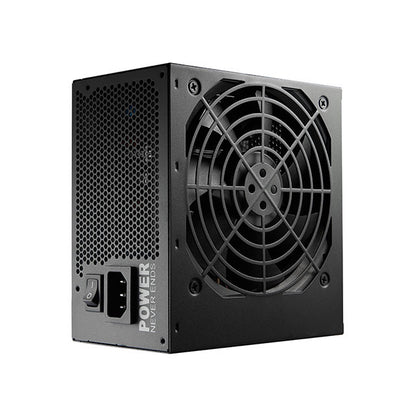

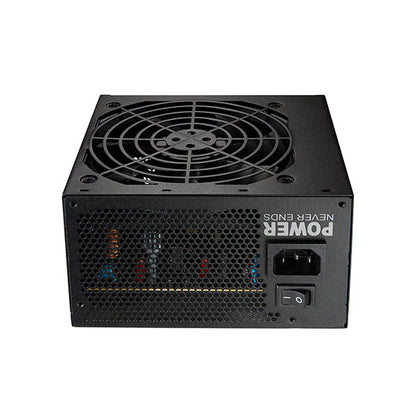

FSP HV PRO 85+ 550W 80 Plus® 230V Bronze Power Supply - Efficiency 88%, DC to DC Output, +12V Single-rail design

FSP HV PRO 85+ 550W 80 Plus® 230V Bronze

• Complies with ATX12 v2.52 & EPS12 v2.92
• Efficiency 88% at typical load
• Active PFC ≧ 0.9
• Hold up time > 17ms at 80% load
• Durable 450V / 105°C main capacitor
• +12V Single-rail design
• +5V &3.3V DC to DC module design
• 120mm silent & long life fan
• All black cables
• Complete protections: OCP/OVP/OPP/SCP



80 PLUS® 230V Bronze - Efficiency 88%

The 80 PLUS® 230V Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill.

450V 105°C, Heavy-duty capacitor

The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

Low Noise, Less Heat

A 120mm Sleeve Fan, an advanced thermal control fan makes optimal cooling and reduces noise. And longer lifespan than a standard fan.

Stable DC to DC Output Quality

DC to DC modules with low ripple noise and prolongs system lifetime

All Black Cables

We know what builders need. The all black cables give your system a superior look.

More Than Your Expectation

For gaming enthusiast, the HV PRO 85+ series features with dual CPU power connectors to support high-end motherboard and provide CPU stable power.

SPECIFICATIONS

• Model: FSP550-51AAC
• Rated Output Power: 550W
• Form Factor: ATX
• 80 PLUS Certification: 230V EU Bronze
• Input Voltage: 200-240V
• Input Current: 4A
• Input Frequency: 50-60Hz
• PFC: Active PFC
• Efficiency: ≥88% at typical load
• Fan Type: Sleeve Fan, 120mm
• Dimensions(L x W x H): 150 x 140 x 86mm

• Protection: OCP, OVP, OPP, SCP
