GIGABYTE Z790 AORUS ELITE X Motherboard + Intel i7-14700K / i7-14700KF (14th GEN) Processor BUNDLE

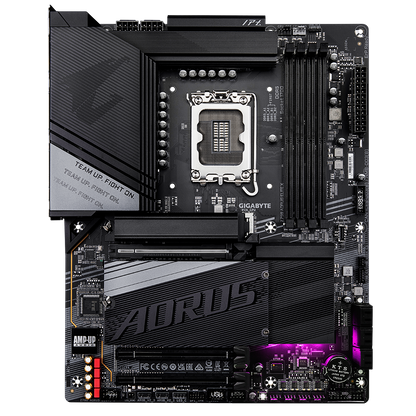

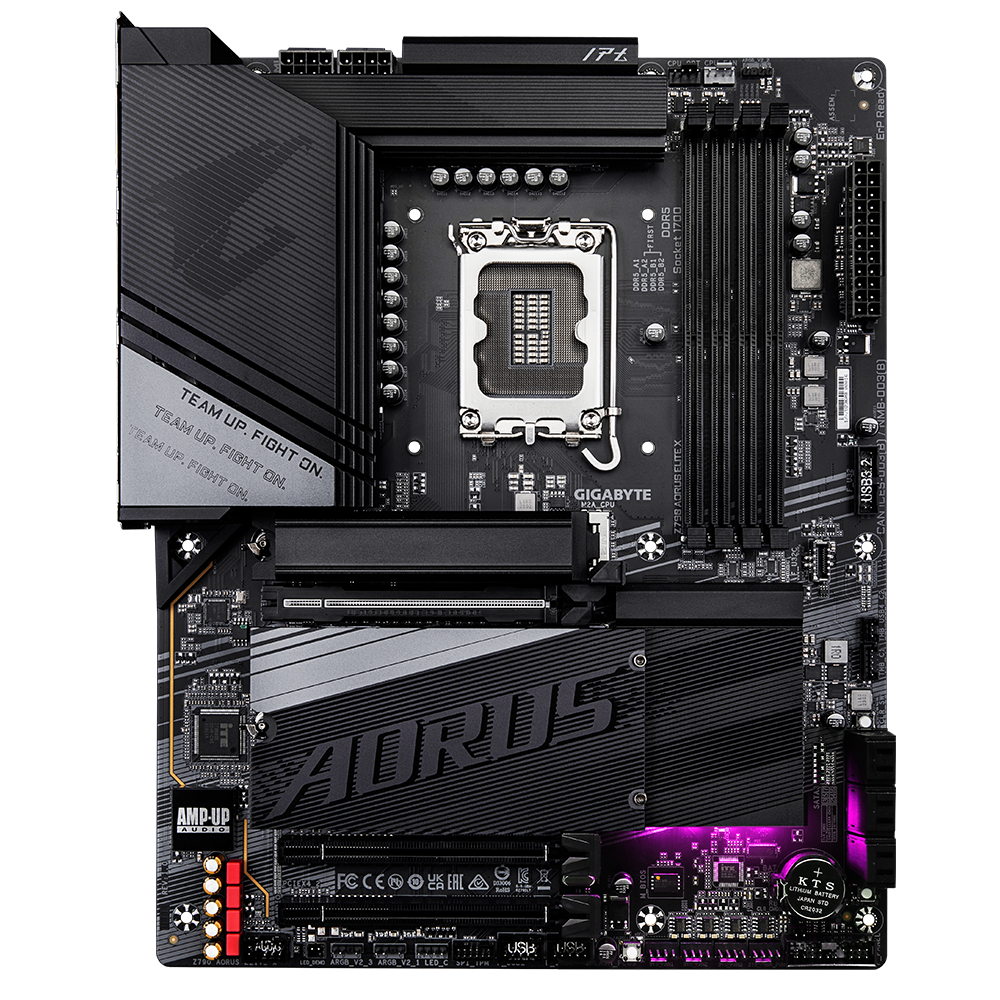

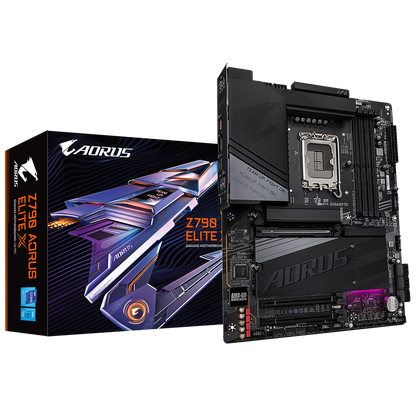

Gigabyte Z790 AORUS ELITE X

Intel® Z790 Express Chipset

X Gen Designed for 14th Gen

X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.

• Supports Intel® Core™ 14th and 13th processors
• Digital twin 16+1+2 phases VRM solution
• Dual Channel DDR5: 4*DIMMs with XMP 3.0 memory module support
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
• EZ-Latch Click: M.2 heatsinks with screwless design
• EZ-Latch Plus: M.2 slots with quick release design
• UC BIOS: User-Centred intuitive UX with Quick Access function
• Ultra-Fast Storage: 4*PCIe 4.0 x4 M.2 slots
• Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
• Fast Networking: 2.5GbE LAN

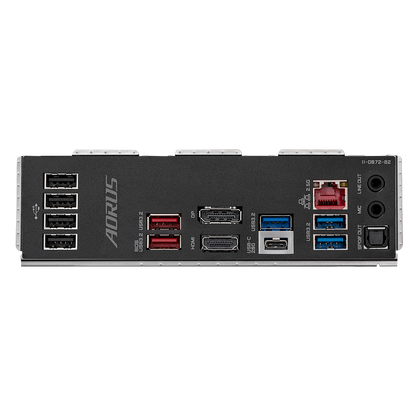

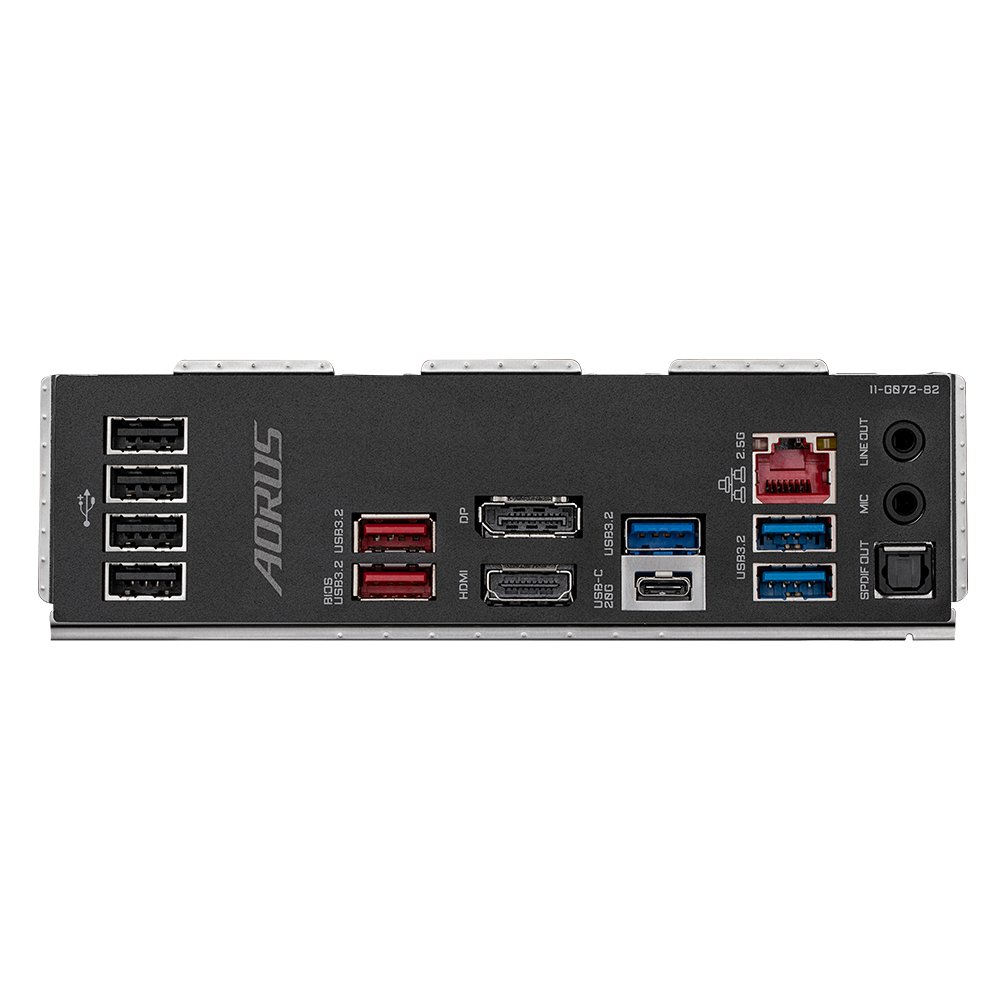

• Extended Connectivity: DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
• Precision Audio: ALC1220 & Audiophile Grade Capacitors

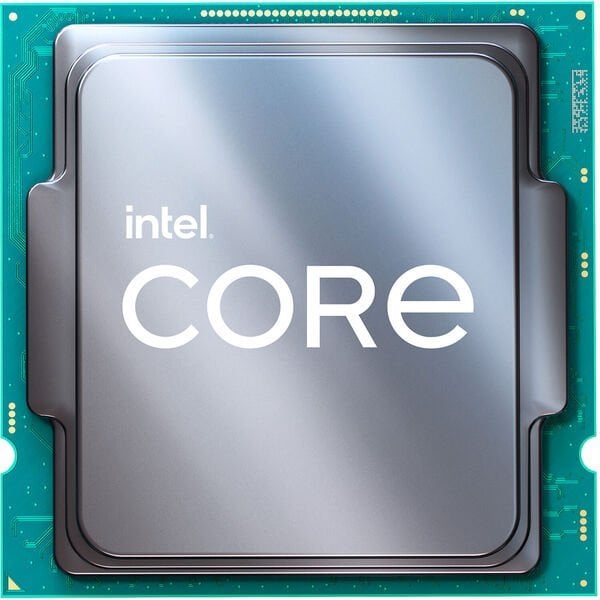

Intel® Core™ i7-14700K / i7-14700KF
(33M Cache, up to 5.60 GHz)

CPU Specifications

• Total Cores - 20
• # of Performance-cores - 8
• # of Efficient-cores - 12
• Total Threads - 28
• Max Turbo Frequency - 5.6 GHz
• Intel® Turbo Boost Max Technology 3.0 Frequency ‡ - 5.6 GHz
• Performance-core Max Turbo Frequency - 5.5 GHz
• Efficient-core Max Turbo Frequency - 4.3 GHz
• Performance-core Base Frequency - 3.4 GHz
• Efficient-core Base Frequency - 2.5 GHz
• Cache - 33 MB Intel® Smart Cache
• Total L2 Cache - 28 MB
• Processor Base Power - 125 W
• Maximum Turbo Power - 253 W

Memory Specifications

• Max Memory Size (dependent on memory type) - 192 GB
• Memory Types -  Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s
• Max # of Memory Channels - 2
• Max Memory Bandwidth - 89.6 GB/s
• ECC Memory Supported ‡ - Yes (i7-14000K) / No (i7-14700KF)

GPU Specifications (i7-14700K)

• GPU Name‡ - Intel® UHD Graphics 770
• Graphics Base Frequency - 300 MHz
• Graphics Max Dynamic Frequency - 1.6 GHz
• Graphics Output - eDP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units - 32
• Max Resolution (HDMI)‡ - 4096 x 2160 @ 60Hz
• Max Resolution (DP)‡ - 7680 x 4320 @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel)‡ - 5120 x 3200 @ 120Hz
• DirectX* Support - 12
• OpenGL* Support - 4.5
• OpenCL* Support - 3.0
• Multi-Format Codec Engines - 2
• Intel® Quick Sync Video - Yes
• Intel® Clear Video HD Technology - Yes
• # of Displays Supported ‡ - 4
• Device - ID0xA780

Expansion Options

• Direct Media Interface (DMI) Revision - 4.0
• Max # of DMI Lanes - 8
• Scalability - 1S Only
• PCI Express Revision - 5.0 and 4.0
• PCI Express Configurations ‡ - Up to 1x16+4, 2x8+4
• Max # of PCI Express Lanes - 20

Package Specifications

• Sockets Supported - FCLGA1700
• Max CPU Configuration - 1
• Thermal Solution Specification - CG 2020A
• T_JUNCTION - 100 °C
• Package Size - 5.0 mm x 37.5 mm
• Max Operating Temperature - 100 °C

Advanced Technologies

• Intel® Volume Management Device (VMD) - Yes
• Intel® Gaussian & Neural Accelerator - 3.0
• Intel® Thread Director - Yes
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU - Yes
• Intel® Speed Shift Technology - Yes
• Intel® Turbo Boost Max Technology 3.0 ‡ - Yes
• Intel® Turbo Boost Technology ‡ - 2.0
• Intel® Hyper-Threading Technology ‡ - Yes
• Intel® 64 ‡ - Yes
• Instruction Set - 64-bit
• Instruction Set Extensions - Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States - Yes
• Enhanced Intel SpeedStep® Technology - Yes
• Thermal Monitoring Technologies - Yes

Security Reliability (i7-14700K)

• Intel vPro® Eligibility ‡ - Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform
• Intel® Threat Detection Technology (TDT) - - Yes
• Intel® Active Management Technology (AMT) ‡ - Yes
• Intel® Standard Manageability (ISM) ‡ - Yes
• Intel® Remote Platform Erase (RPE) ‡ - Yes
• Intel® One-Click Recovery ‡Yes Intel® Hardware Shield Eligibility ‡ - Yes
• Intel® Control-Flow Enforcement Technology - Yes
• Intel® Total Memory Encryption - Multi Key - Yes
• Intel® AES New Instructions - Yes
• Secure Key - Yes
• Intel® OS Guard - Yes
• Intel® Trusted Execution Technology ‡ - Yes
• Execute Disable Bit ‡ - es
• Intel® Boot Guard - Yes
• Mode-based Execute Control (MBEC) - Yes
• Intel® Stable IT Platform Program (SIPP) - Yes
• Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ - Yes
• Intel® Virtualization Technology (VT-x) ‡ - Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) ‡ - Yes
• Intel® VT-x with Extended Page Tables (EPT) ‡ -Yes

Security Reliability (i7-14700KF)

• Intel® Standard Manageability (ISM) ‡ - Yes
• Intel® Control-Flow Enforcement Technology - Yes
• Intel® AES New Instructions - Yes
• Secure Key - Yes
• Intel® OS Guard - Yes
• Execute Disable Bit ‡ - Yes
• Intel® Boot Guard - Yes
• Mode-based Execute Control (MBEC) - Yes
• Intel® Virtualization Technology (VT-x) ‡ - Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) ‡ - Yes
• Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
