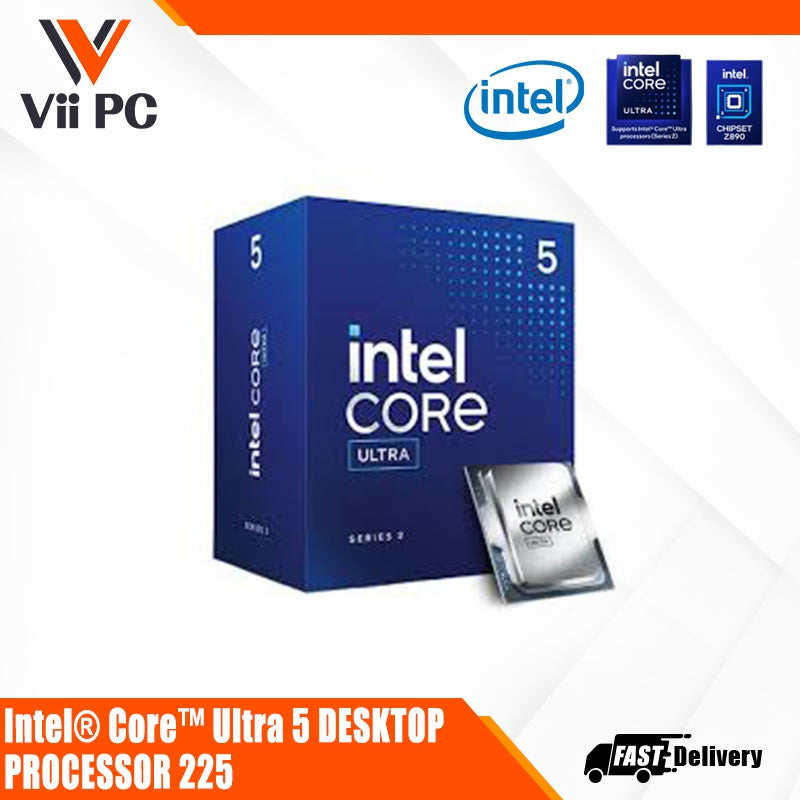

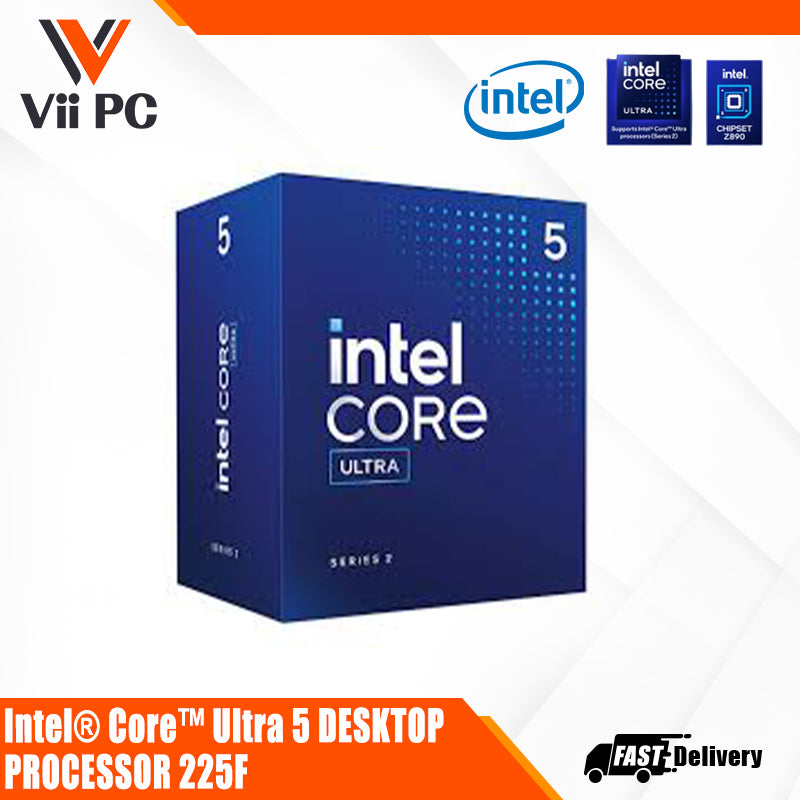

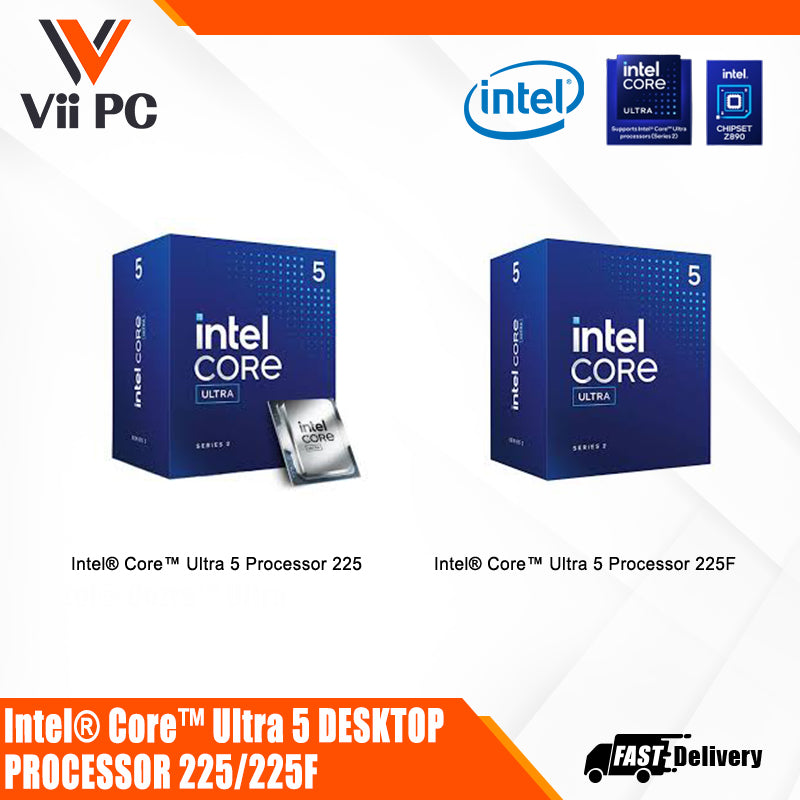

Intel® Core™ INTEL Ultra 5 Processor 255 OR 225F 20M Cache, up to 4.90 GHz LGA1851 Gaming Desktop Processor

CPU Specifications

Total Cores

10

# of Performance-cores

6

# of Efficient-cores

4

Total Threads

10

Max Turbo Frequency

4.9 GHz

Performance-core Max Turbo Frequency

4.9 GHz

Efficient-core Max Turbo Frequency

4.4 GHz

Performance-core Base Frequency

3.3 GHz

Efficient-core Base Frequency

2.7 GHz

Cache

20 MB Intel® Smart Cache

Total L2 Cache

22 MB

Processor Base Power

65 W

Maximum Turbo Power

121 W

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

AI Software Frameworks Supported by CPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

CPU Lithography

TSMC N3B

Supplemental Information

Marketing Status

Launched

Launch Date

Q1'25

Embedded Options Available

Yes

Use Conditions

PC/Client/Tablet

Datasheet

View now

Memory Specifications

Max Memory Size (dependent on memory type)

256 GB

Memory Types

Up to DDR5 6400 MT/s

Max # of Memory Channels

2

GPU Specifications

GPU Name‡

Intel® Graphics

Graphics Base Frequency

300 MHz

Graphics Max Dynamic Frequency

1.8 GHz

GPU Peak TOPS (Int8)

4

Graphics Output

DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

Xe-cores

2

Max Resolution (HDMI)‡

4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)

Max Resolution (DP)‡

8K @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡

4K @ 60Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3

Intel® Quick Sync Video

Yes

# of Displays Supported ‡

4

Device ID

0x7D67

Intel® Deep Learning Boost (Intel® DL Boost) on GPU

Yes

NPU Specifications

NPU Name‡

Intel® AI Boost

NPU Peak TOPS (Int8)

13

Sparsity Support

Yes

Windows Studio Effects Support

Yes

AI Software Frameworks Supported by NPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
