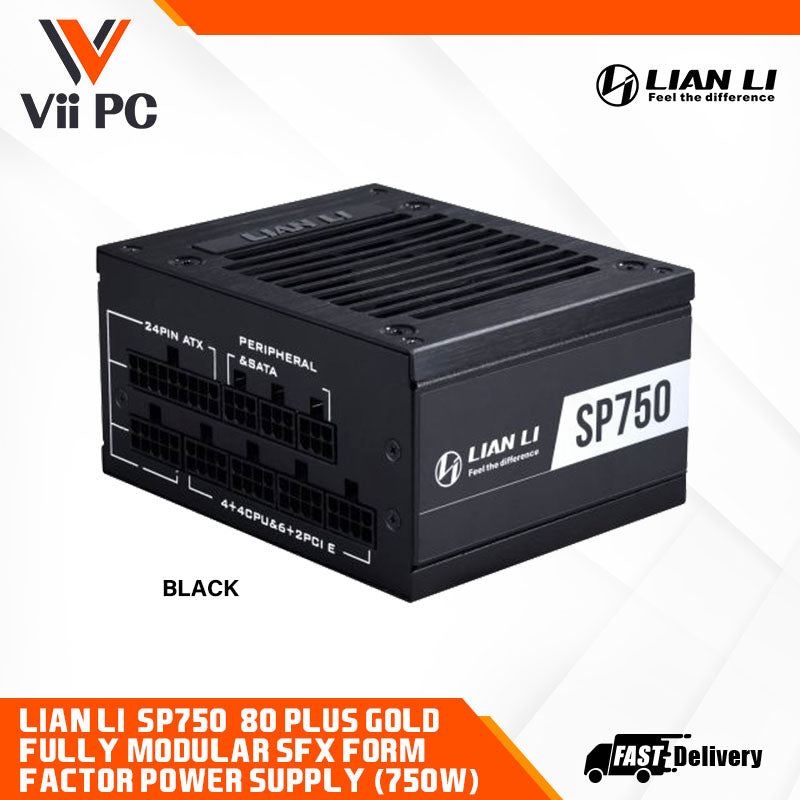

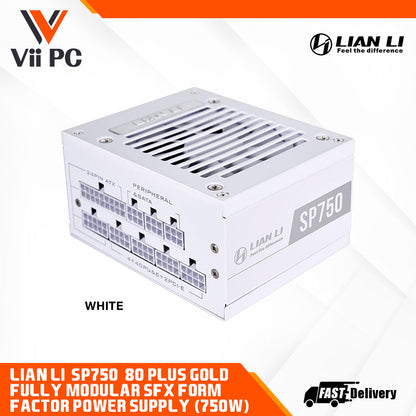

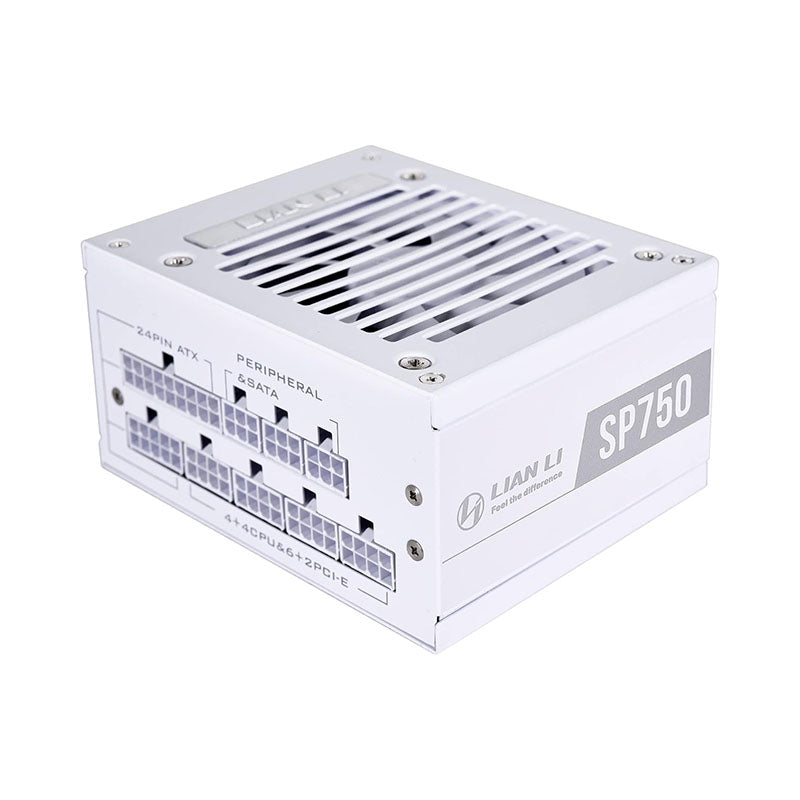

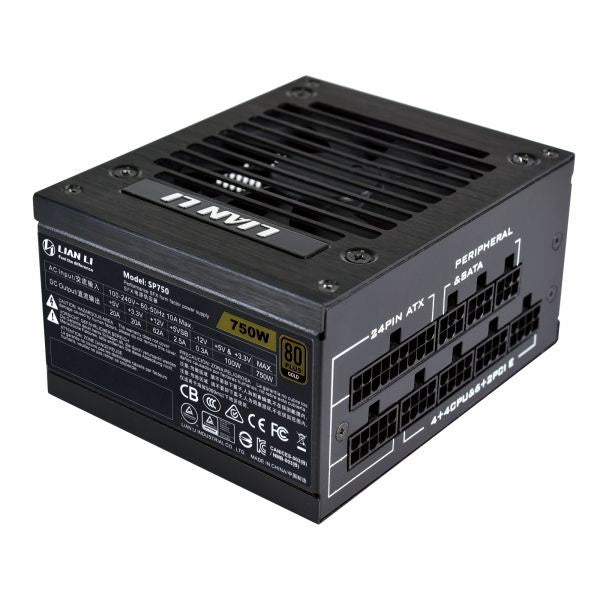

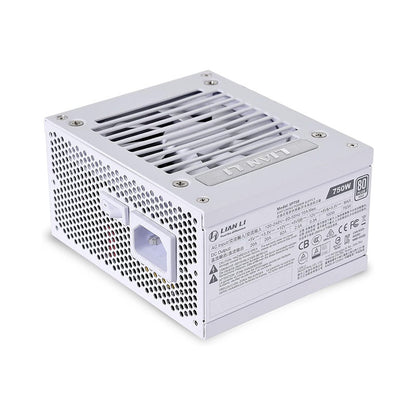

LIAN LI SP750 (750W) 80 Plus® Gold Fully Modular Performance SFX Form Factor Power Supply (5 Years Warranty)
Performance SFX Form Factor Power Supply
The SP750 is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.
⦁ 80 PLUS GOLD Efficiency ⦁ Fully modular braided cables for a clean look ⦁ Japanese electrolytic capacitors for high durability ⦁ ZERO RPM mode under 40% load for silent operation ⦁ Sleek and classic exterior with brushed aluminum housing
SPECIFICATIONS

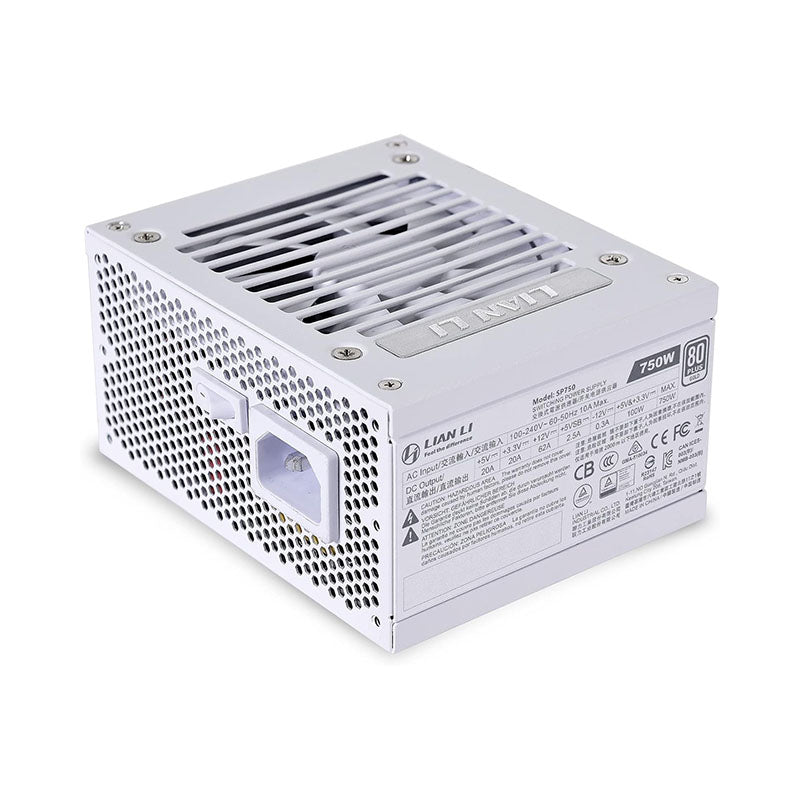

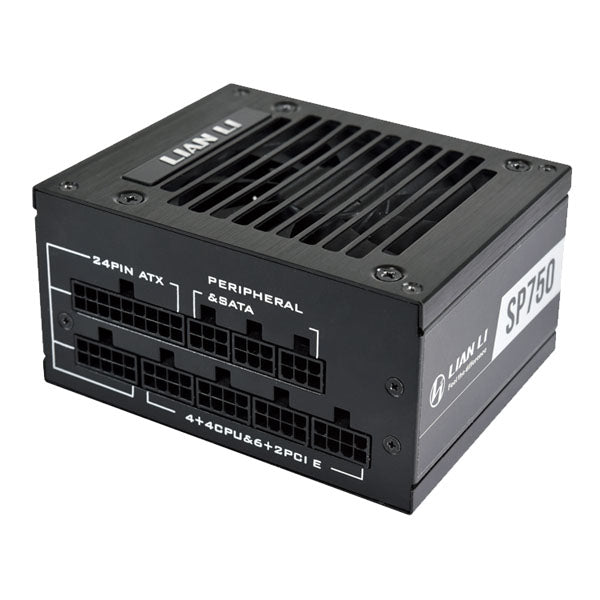

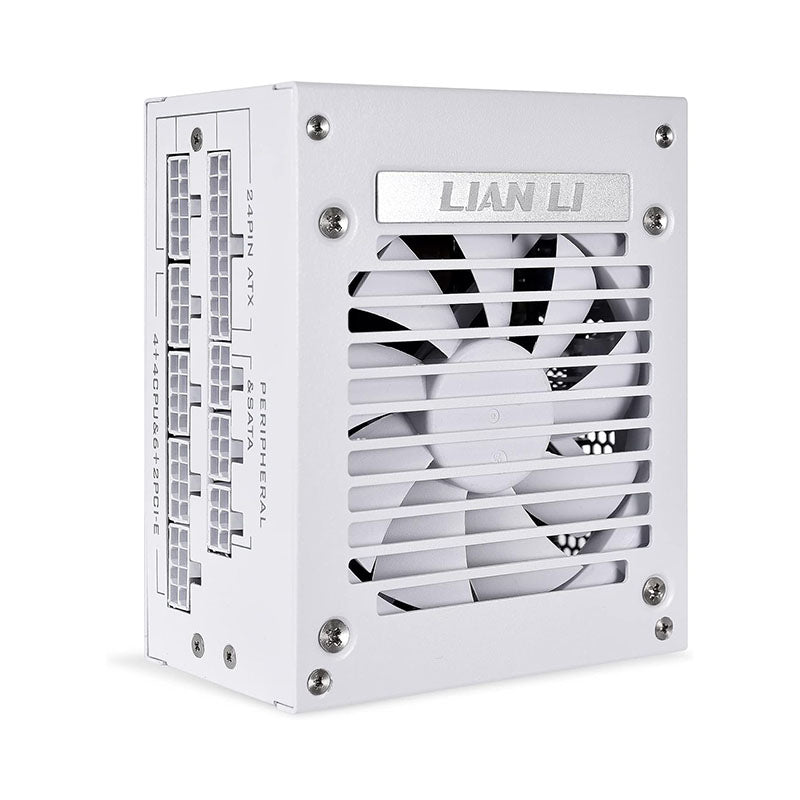

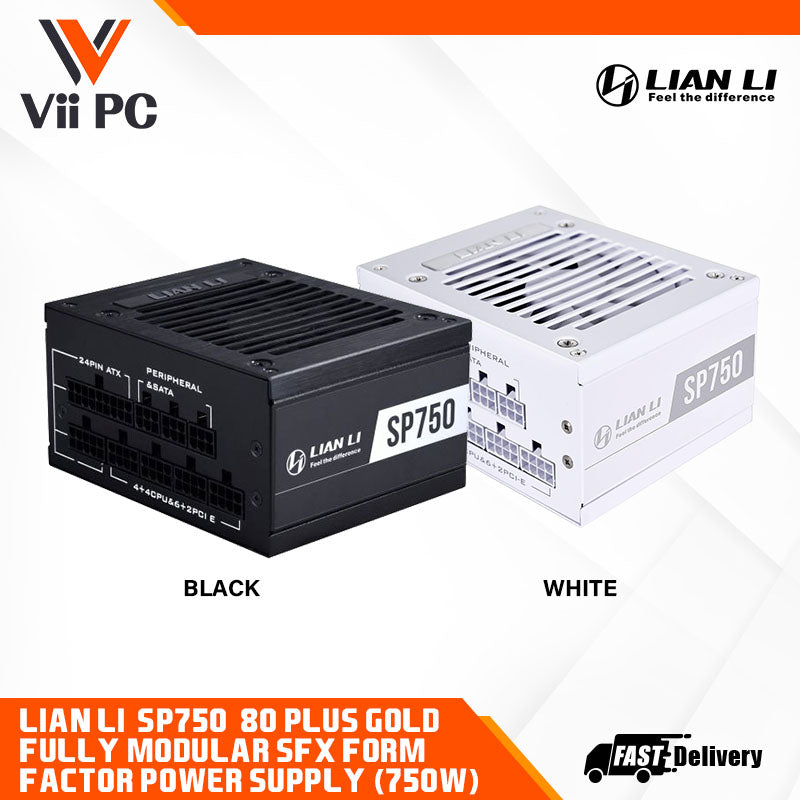

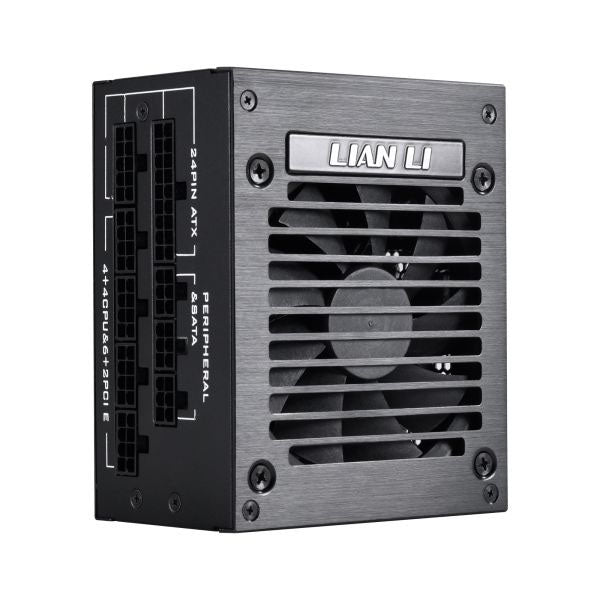

- MODEL : SP750 BLACK / SP750 WHITE - DIMENSIONS : (D)100 mm X (W)63.5mm X (H)125 mm - POWER SUPPLY DESIGN :Fully modular - COLOR :Black / White - MATERIAL :Steel/brushed aluminum housing - FORM FACTOR :SFX - CERTIFICATION :80 PLUS Gold - MAX. DC OUTPUT : 750W - COMBINED +3.3V & +5V :100W - COMBINED +12V : 744W - INPUT VOLTAGE :100-240Vrms - INPUT FREQUENCY RANGE :50Hz-60Hz - PFC : Active PFC (PF)>0.90 at full load - EFFICIENCY : 91.89% Max - PROTECTIVE CIRCUIT : OCP / OPP / UVP / OVP / OTP / SCP

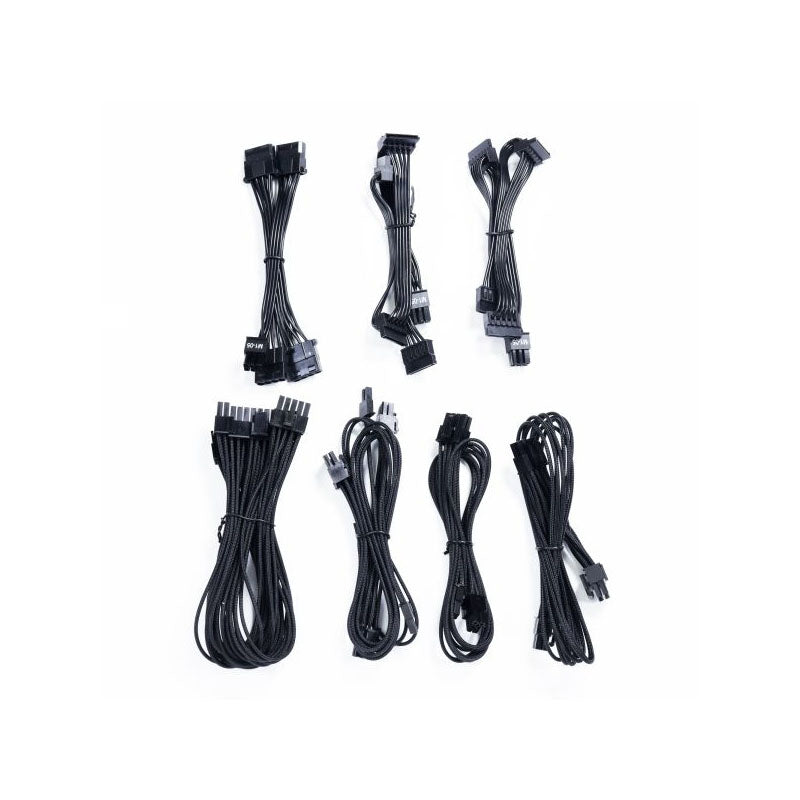

- CONNECTORS : • 1 x 24 / 20-Pin motherboard connector (300mm) x 1pc • 2 x 8 / 4-Pin CPU / ATX 12V connector (450mm-70mm) x 1 pc • 1 x 8 / 6+2 Pin PCIe connector (400mm) x 1pc • 2 x 8 / 6+2 Pin PCIe connector (400mm-120mm) x 1pc • 4 x SATA connector (120mm-120mm-120mm-120mm) x 2pcs • 4 x 4-Pin Peripheral connector (120mm-120mm-120mm-120mm) x 1pc
- NOISE LEVEL : 17.1-43.1 DBA - FAN RPM : 1000-2800 RPM - BEARING TYPE : 31.Fluid Dynamic Bearing (FDB)
