LIAN LI UNI FAN TL120 RGB Triple Pack
• Noise-optimized and performance-oriented fan .
• LCP (liquid crystal polymer) fan blades are used for tight tolerance .
• FDB bearing with copper shielding to ensure stable rotation of the impeller .

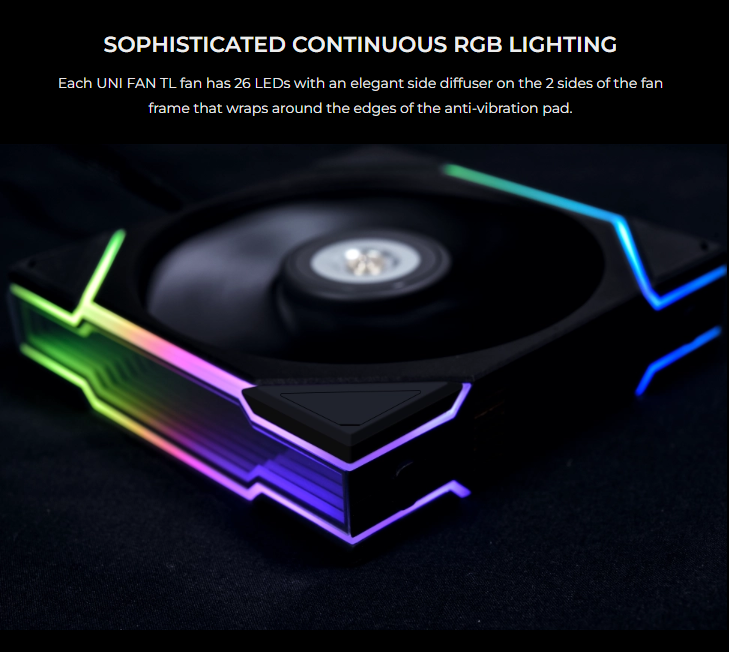

• Enlarged infinity mirror around the frame with a longer light guide for a unified daisy-chained look .
• Features two light zones for increased lighting customizability .
• UNIFAN interlocking system for ease of cable management .
• Cable connection is supported on both sides of the fan .
• Support up to 10 fans per controller port via a daisy-chain POGO cable .
• LED lighting and fan speed controller shared with UNIFAN TL LCD .
• Complete software control with L-Connect 3 .
SPECIFICATIONS
• PRODUCT NAME : UNI FAN TL 120
• MODEL : 12TL3B(Black)/12TL3W(White)
• COLOR : Black/White
• NUMBER OF FANS : 3
• CONTROLLER : Yes
• CONNECTOR TYPE :
- UNI FAN Controller Cable x 1 (P-7P)
- Extension Cable x 1 (P-P)
- Power Adapter Cable x 1 (P-SA)
• FAN DIMENSION : 124 x 120 x 28 mm
• FAN SPEED : 0, 200~2600 RPM
• MAX. AIR PRESSURE : 3.97 mmH2O (Maximum)
• MAX. AIRFLOW : 90.1 CFM (Maximum)
• ACOUSTIC NOISE : 33 dB(A) Max
• INPUT POWER : 5.8W
• MATERIAL : PA66 / LCP
• RATED VOLTAGE : DC 12V (FAN) & 5V (LED)
• BEARING TYPE : Fluid Dynamic Bearing (FDB)
• OPERATE VOLTAGE : DC12V & 5V
• WARRANTY : 3 years
