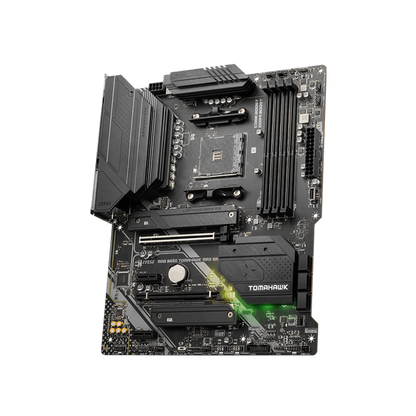

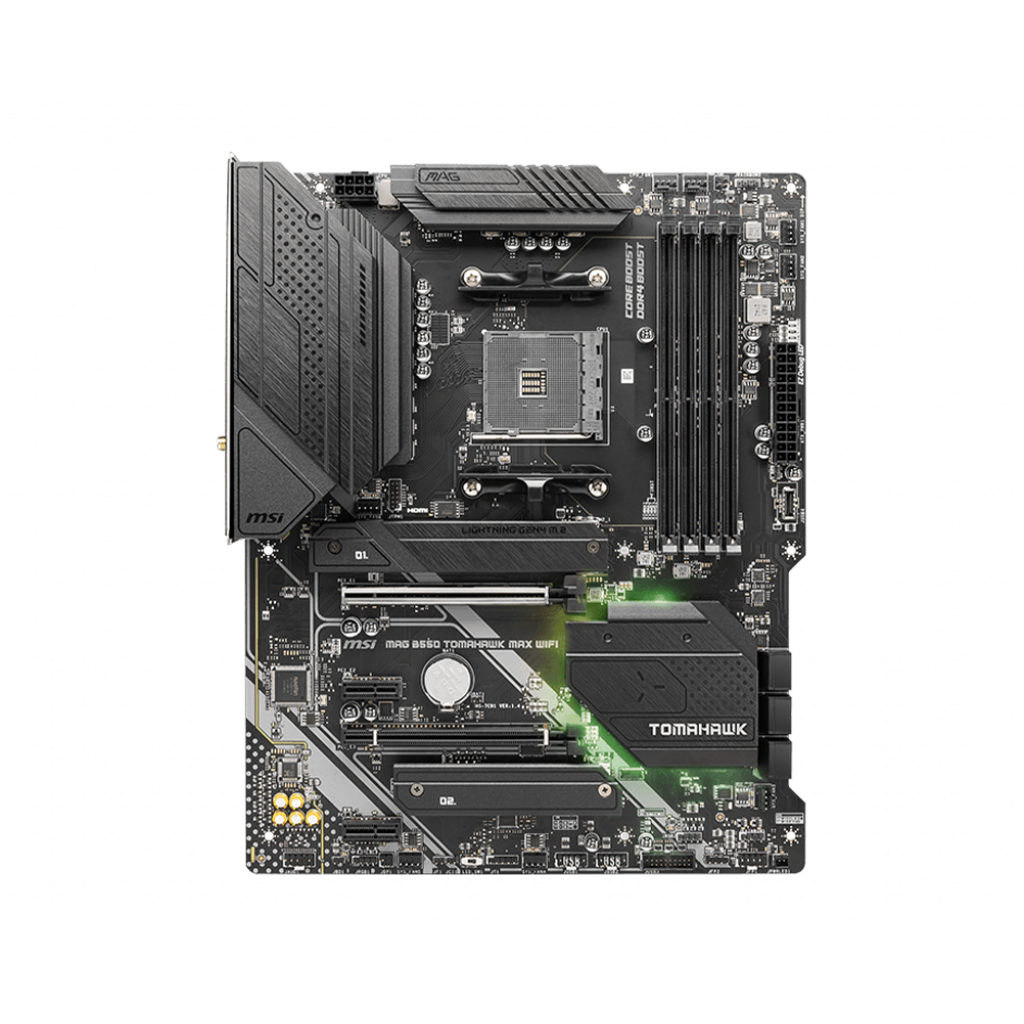

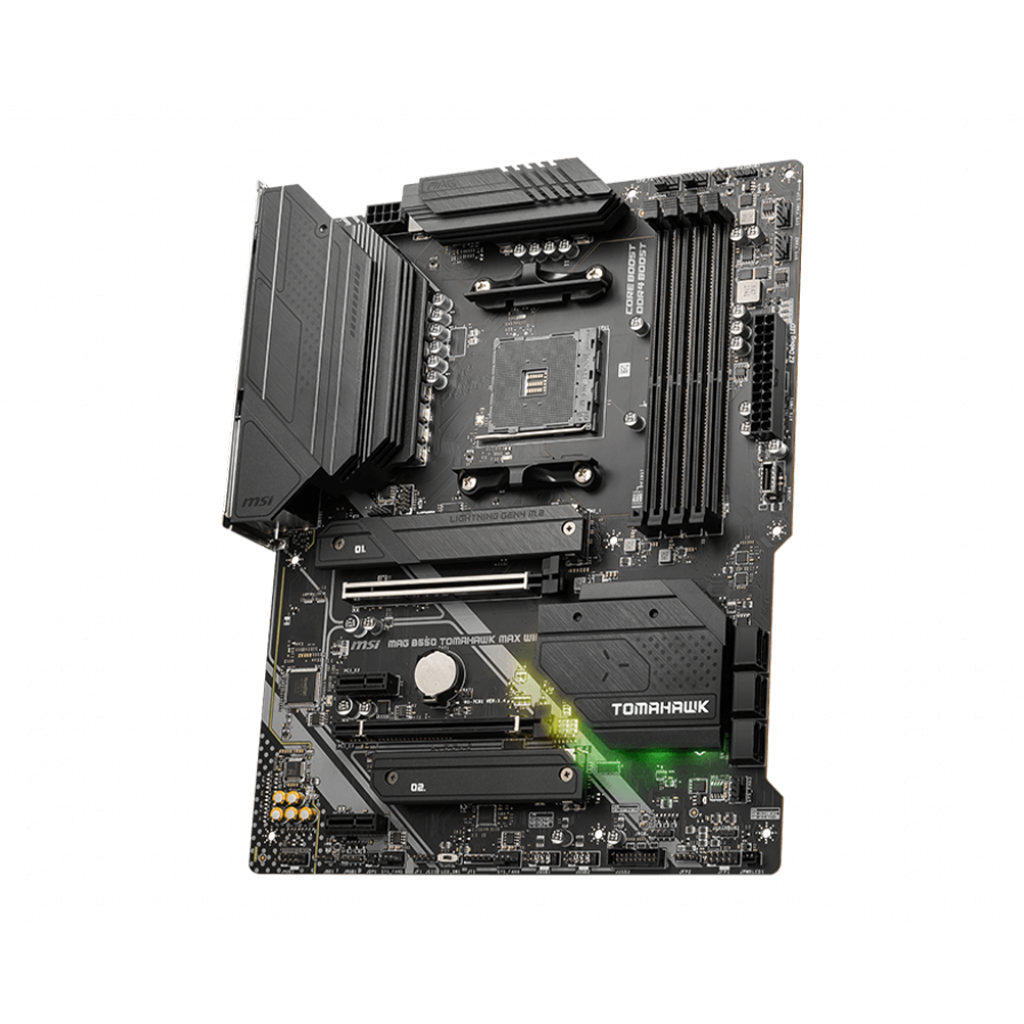

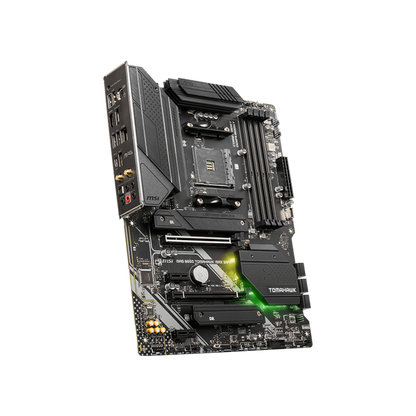

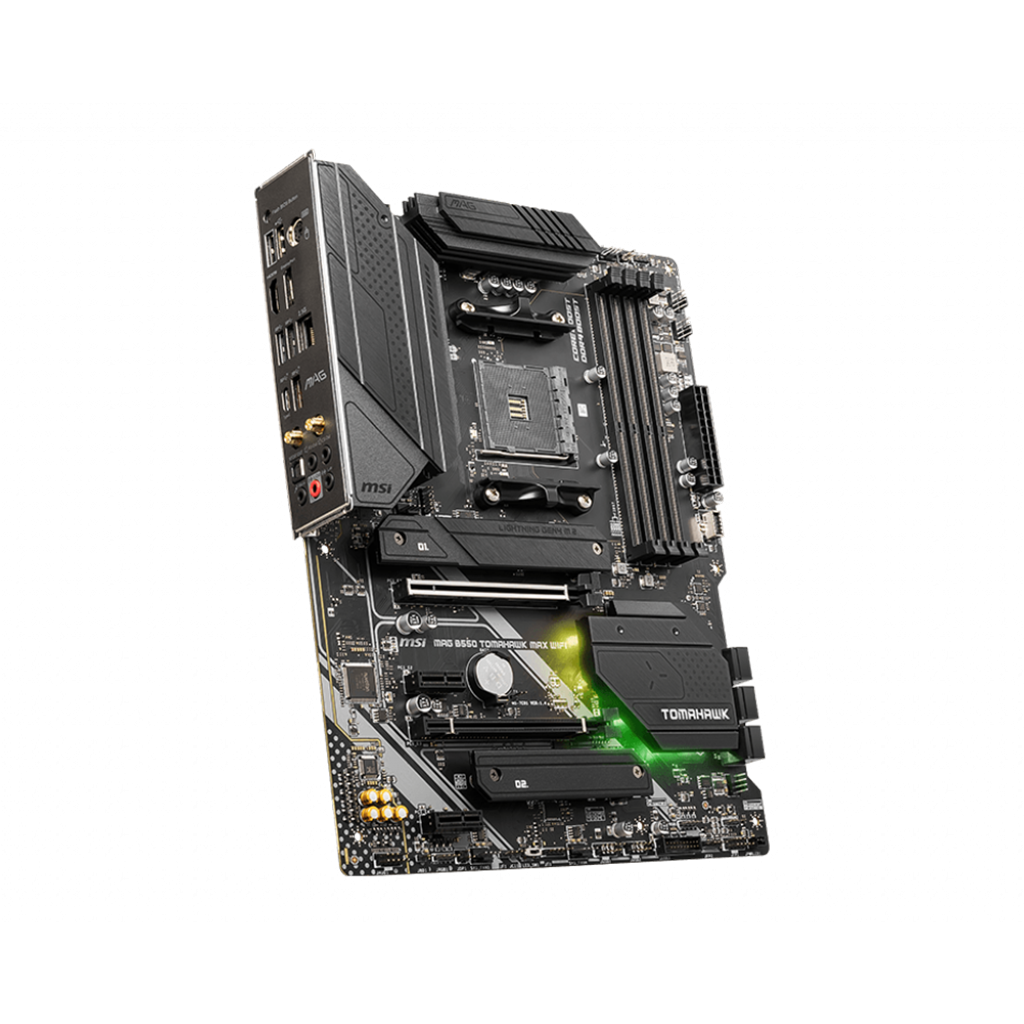

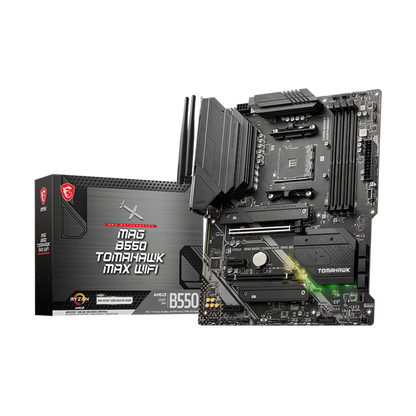

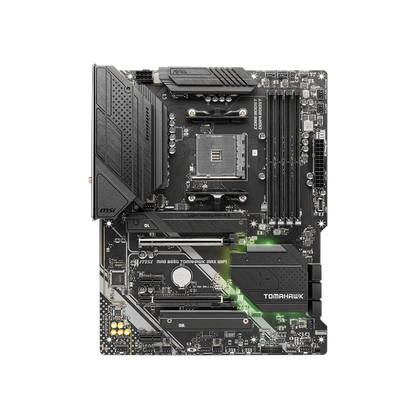

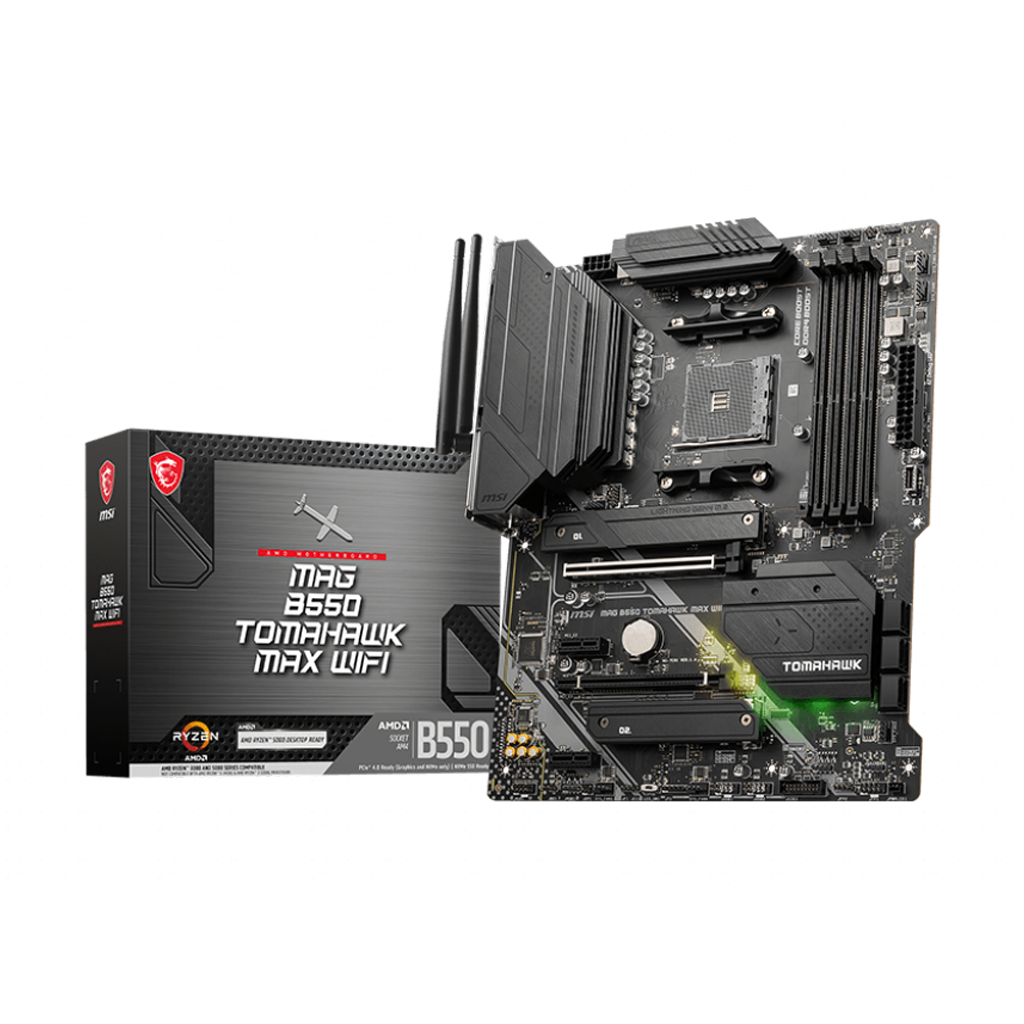

The MAG B550 TOMAHAWK MAX WIFI was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
-
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
-
Supports DDR4 Memory, up to 5100+(OC) MHz
-
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
-
Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
-
Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
-
2.5G LAN with LAN Manager and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
-
Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
-
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
-
Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™
DETAIL SPECIFICATION
OPERATING SYSTEM : Support for Windows® 10 64-bit
MANUFACTURER NUMBER : MAG B550 TOMAHAWK MAX WIFI
PRODUCT CONDITION : New
CPU COMPATIBLE : Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Seriesband 3000 Series processors
*CPU not compatible : AMD Ryzen™ 5 3400G & AMD Ryzen™ 3 3200G processors
CHIPSET : AMD® B550 Chipset
CPU SOCKET : AM4
FORM FACTOR : ATX
MEMORY :
- 4 x DDR4 memory slots, support up 128GB
-
Supports DDR4 1866/2133/2400/2667/2800/2933/3066/3200 Mhz by JEDEC
-
Supports DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/ 4133/4366/4400/4533/4600/4733/4800/4866/500/5100+ Mhz by A-XMP OC MODE
-
1DPC 1R max speed 5100 MHZ
-
1DPC 2R max speed 3866 MHZ
-
2DPC 1R max speed 4000 MHZ
-
2DPC 2R max speed 3600 MHZ
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
LAN : 1 x Realtek® RTL8125B 2.5Gbps LAN controller
WIRELESS LAN :
- AMD Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2,4GHz/ 5GHz/ 6GHz
- 1(160MHz) up to 2.4Gbps
- Supports 802.11 a/b/g/n/ac/ax
BLUETOOTH : Supports Bluetooth® 5.2 2, FIPS, FISMA
AUDIO :
- Realtek® ALC897 Codec
-
7.1-Channel High Definition Audio
-
Supports Optical S/PDIF output
MULTI-GPU : Supports AMD CrossFire™ Technology
STORAGE :
- 1 x M.2 Gen4 x4 64Gbps slot
- 1 x M.2 Gen3 x4 32Gbps slot
- 6 x SATA 6Gbps ports
ONBOARD GRAPHICS :
- 1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @ 60Hz Supports HDCP 1.4 & 2.3
- 1 x DisplayPort, supports a maximum resolution of 4096x2160 @ 60Hz Maximum shared memory of 16 GB
RAID :
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

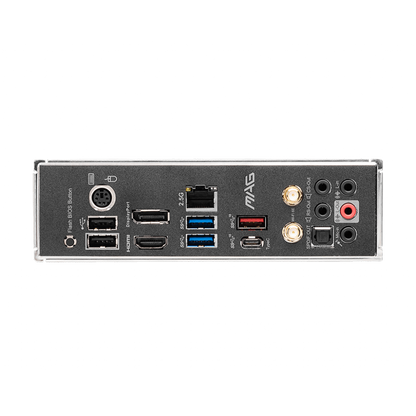

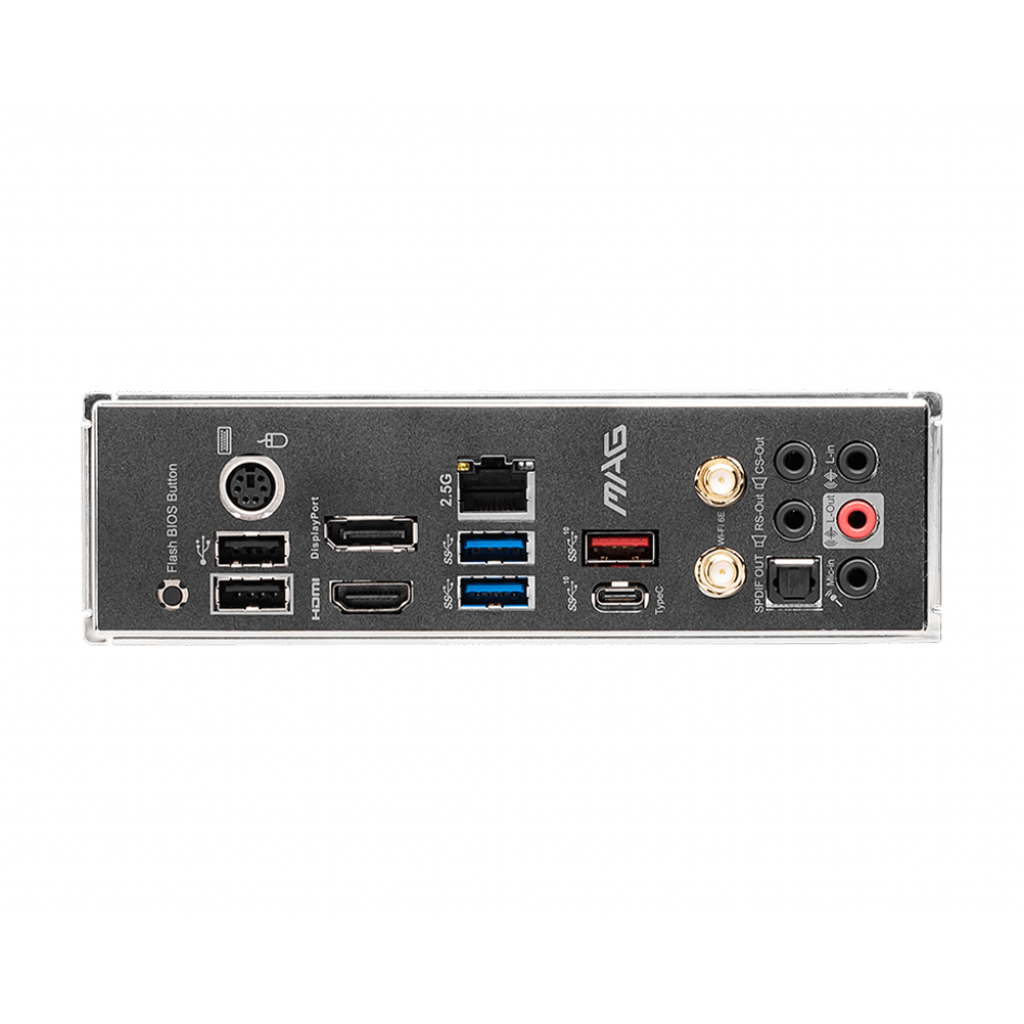

I/O (REAR) :
- Keyboard / Mouse
- DisplayPort 1.4
- 2.5G LAN Port
- USB 3.2 Gen 2 10Gbps Type-A
- Wi-Fi / Bluetooth Antenna
- Audio Connectors
- Flash BIOS Button
- USB 2.0 Port
- HDMI 2.1 Port
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 2 10Gbps Type-C
- Optical S/PDIF OUT
EXPANSION SLOTS :
- 1 x PCIe 4.0/ 3.0 x 16 slot (PCI_E1)
- 1 x PCIe 3.0 x 16 slot (PCI_E3), supports x4 speed
- 2 x PCIe 3.0 x1 slots
USB (FRONT) :
- 1 x (Gen1, Type C)
- 2 x (Gen1, Type A)
- 4 x (v2.0)
USB (REAR) :
- 1 x (Gen2, Type C)
- 1 x (Gen2, Type A)
- 2 x (Gen1, Type A)
- 2 x (v2.0)
INTERNAL CONNECTORS :
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x M.2 slots (M-Key)
- 1 x USB 3.2 Gen 1 5Gbps Type-C port
- 1 x USB 3.2 Gen 1 5Gbps connector
- 2 x USB 2.0 connectors
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump fan connectors
- 6 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 2 x 4-pin RGB LED connectors
- 2 x 3-pin RAINBOW LED connectors
- 1 x TDM module connector
- 1 x Clear CMOS jumper
DIMENSIONS : 12.0" x 9.60"
WARRANTY : 3 Years Local
