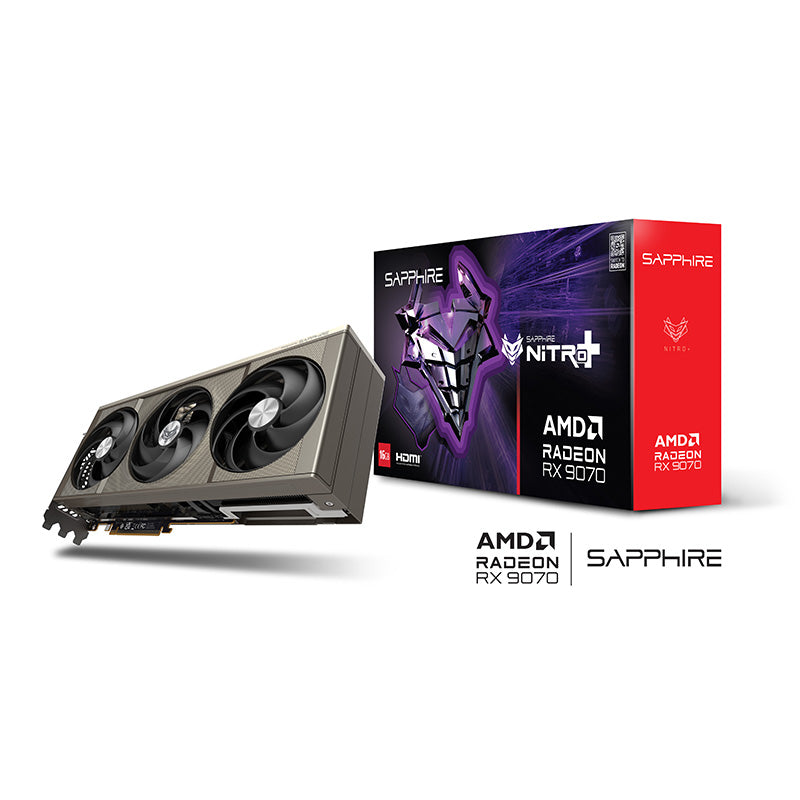

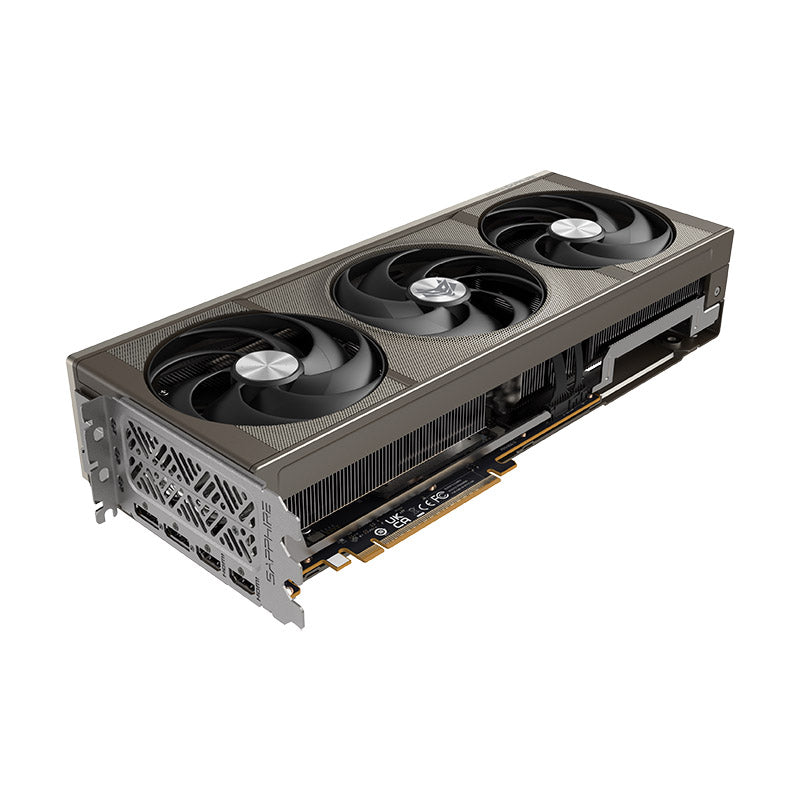

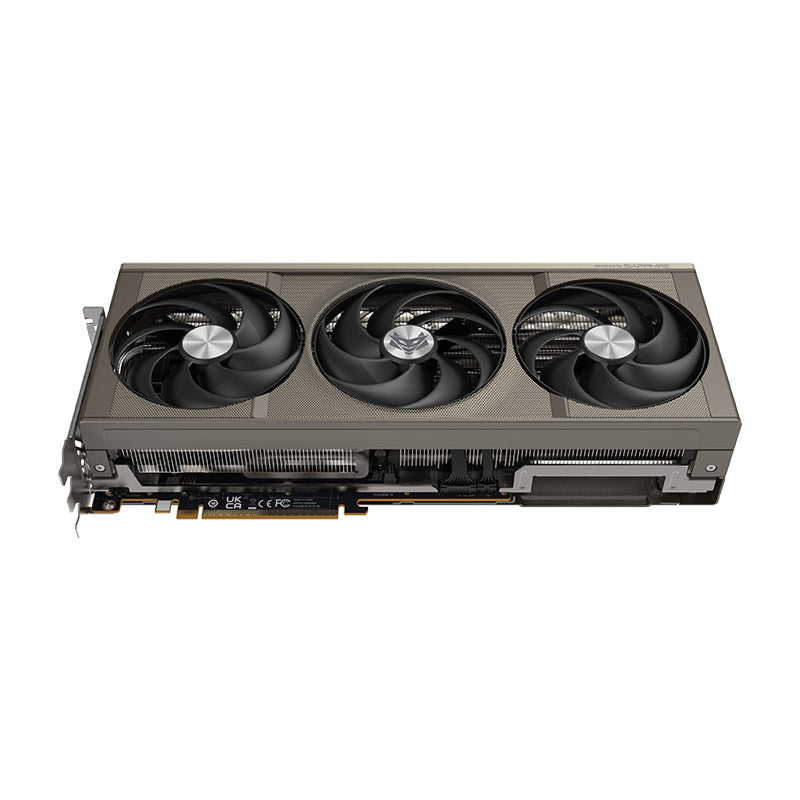

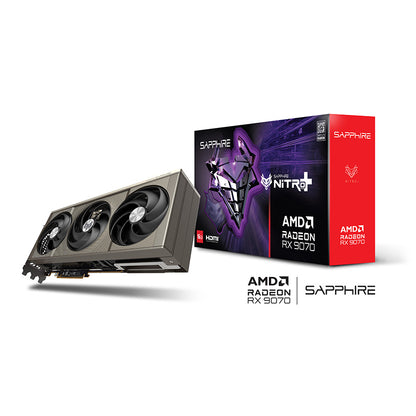

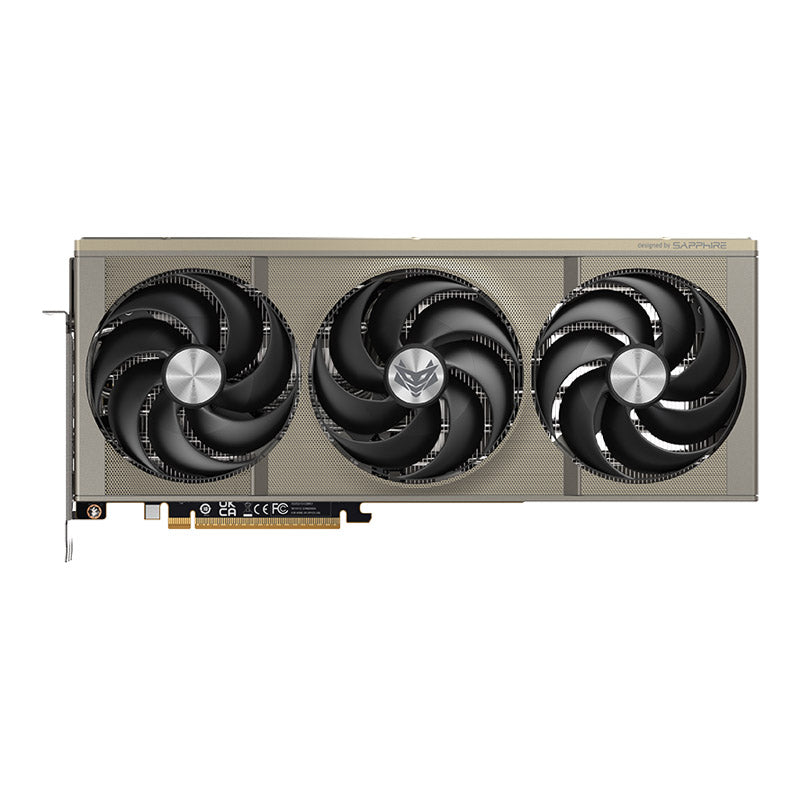

SAPPHIRE NITRO+ AMD Radeon™ RX 9070 16GB GDDR6 Graphics Card

NITRO+ AMD Radeon™ RX 9070

FEATURES

• GPU: Boost Clock: Up to 2700 MHz
• GPU: Game Clock: Up to 2210 MHz
• Memory:   16GB/256 bit DDR6. 20 Gbps Effective
• Stream Processors: 3584
• AMD RDNA™ 4 Architecture
• Ray Accelerator: 56

AMD RDNA™ 4 Architecture

• 16GB of GDDR6 memory
• AMD HYPR-RX with AFMF 2
• DisplayPort™ 2.1a
• AMD FidelityFX™ Super Resolution 4 with AI Upscaling
• AMD Radiance Display™ Engine
• AMD Fluid Motion Frames 2 technology

SAPPHIRE NITRO+ Graphics Cards

• Backplate - Provides rigidity and helps cool your card by increasing heat dissipation.
• Engineered
• ARGB - Personalize the look of your NITRO + card with its built-in ARGB.
• Outputs - Choose from HDMI® and DisplayPort™ 2.1a slots for a maximum of 4 outputs.
• Cooling - Innovative cooling technologies to ensure optimal performance and airflow.



Honeywell PTM7950 TIM

The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.

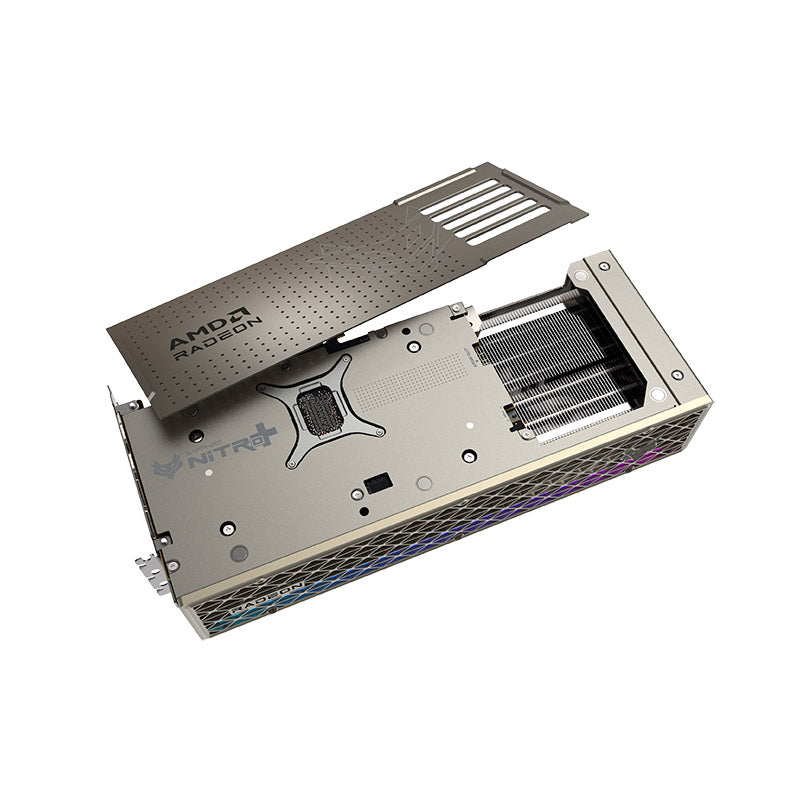

Quick Connect MagniPlate

The magnetic backplate on the graphics card combines sleek design with practical functionality. Engineered for effortless installation, its magnetic attachment ensures a secure fit while enhancing heat dissipation and overall durability. This premium feature not only protects your graphics card but also elevates your build with a clean, modern aesthetic—perfect for gamers and creators who demand performance and style.

AeroCurve Fan Blade

The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.

STEALTH Hidden Power Cable

The hidden power connection feature seamlessly conceals external power cables, delivering a clean and clutter-free look for your build. Designed for maximum aesthetics and organization, it ensures your graphics card stands out without any visible distractions—perfect for showcasing a sleek, professional setup.

FrameDefense

The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability. This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation. This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure. With this design, users can confidently handle the card without worrying about compromising its integrity or performance.

Cold Rolled Steel Frame

Experience a superior and beautifully crafted frame on the NITRO+ AMD Radeon™ RX 9070 Graphics Card with a Cold Rolled Steel Frame that fortifies the shroud structure and durability while encasing the sides of the PCB for a strong encasement alongside the All Metal Backplate.

Integrated Cooling Module

Integrated Cooling is an advanced thermal management solution engineered to provide efficient heat dissipation across all critical components of a graphics card. This innovative design ensures direct contact with the GPU, memory modules, and VRMs, delivering uniform thermal regulation. By addressing all major heat sources, the Integrated Cooling Module helps maintain stable operating temperatures, improving overall system performance and reliability. Ideal for demanding workloads such as gaming, content creation, and overclocking, it ensures optimal thermal efficiency under sustained use.

Free Flow

The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads.

High TG Copper PCB

The GPU is mounted on to the high-density 12 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

Fan Quick Connect

If there’s a fan problem, you don’t have to return the entire card. SAPPHIRE or our channel partners will send out a replacement fan directly to you! That means they’re easy to remove, clean and replace, with just one screw holding them securely in place.

Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

L-Shape Graphics Card Supporter

The L-Shaped Graphics Card Holder is a versatile solution designed to secure heavy GPUs, prevent sagging, and simplify removal of the graphics card from the PCIe slot during upgrades or maintenance. Crafted from durable materials with a sleek design, it ensures stability, longevity, and seamless integration into any modern PC build. Use the rubber tip of the bracket to help conduct the extraction of the graphics card easily and safely when removing for cleaning and maintenance.

External ARGB Control Sync

Enable the external synchronization of RGB LEDs between the graphics card and the motherboard using the 3-pin header in the tail. Gamers can then choose if the graphics card performs the RGB LED effects independently or if the motherboard acquires control.

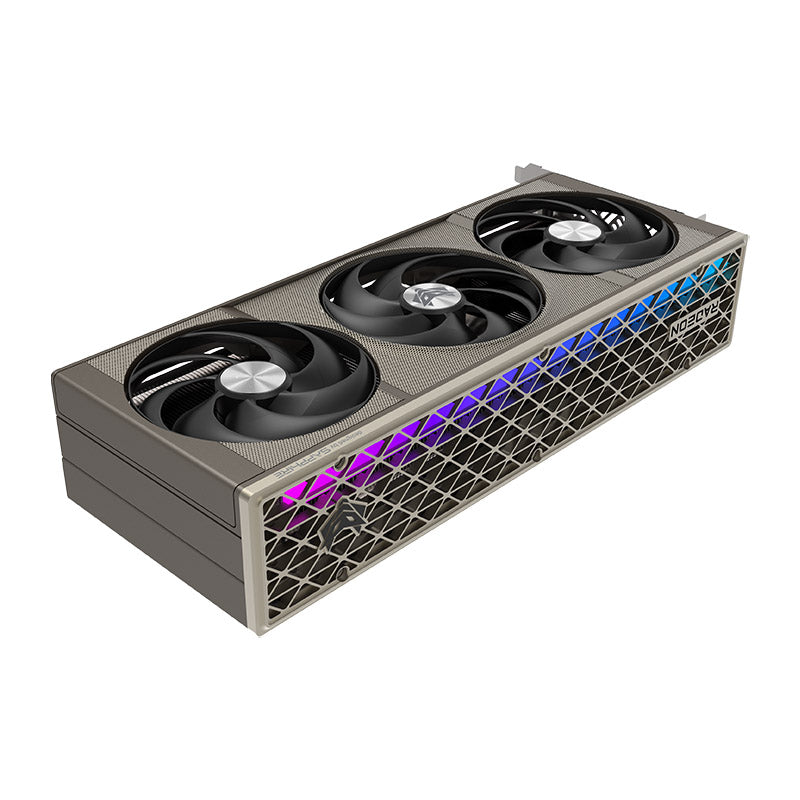

ARGB Light Bar

With tasteful shroud design augmented by ARGB LEDs, you can change the colors of the LED, for a customized design. This can be controlled via TriXX software. Choose from different modes including the colourful rainbow mode or turn off the LEDs.

Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Digital Power Design

SAPPHIRE NITRO+ AMD Radeon™ RX 9000 Series are designed with digital power which provides accurate power control and excellent power efficiency

TRI-X COOLING TECHNOLOGY

• An innovative mixture of Robust VRM Cooling and independent memory thermal modules work in tandem to remove heat efficiently and effectively across all sections

• Tunneled fins increase convection airflow and ensure wind continuously flows through the cooling and fan system

•  Heat is dissipated by a trio of large efficient fans running anticlockwise to maximize airflow.



SPECIFICATION:

GPU:

• AMD Radeon™ RX 9070 Graphics Card
• AMD RDNA™ 4 Architecture

Engine Clock:

• Boost Clock: Up to 2700 MHz
• Game Clock: Up to 2210MHz

^{Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.}

Stream Processors: 3584

Compute Units: 56 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache: 64MB

Ray Accelerators: 56

AI Accelerator: 112

Memory Size / Bus: 16GB / 256 bit GDDR6

Memory Clock: 20 Gbps Effective

Displays: Maximum 4 Displays

Resolution: HDMI®: 7680×4320 / DisplayPort™ 2.1a: 7680×4320

Interface: PCI-Express 5.0 x16

Output: 2x HDMI® / 2x DisplayPort™ 2.1a

BIOS Support: UEFI

Game Index: 4K

Sapphire Features:

• Quick Connect MagniPlate
• STEALTH Hidden Power Cable
• 12V-2x6(H++) External Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)
• Honeywell PTM7950 Thermal Interface Material (TIM)
• AeroCurve Fan Blade
• Free Flow
• FrameDefense
• Integrated Cooling Module
• Cold Rolled Steel Frame
• Tri-X Cooling Technology
• High TG Copper PCB
• Optimized Composite Heatpipes
• Metal Backplate
• ARGB Light Bar
• Fan Quick Connect
• Two-Ball Bearing Fans
• Premium 14-Phase Digital Power Design
• Fuse Protection
• Intelligent Fan Control
• Precision Fan Control
• TriXX Supported
• Performance vs. Efficiency Quicksets
• Glow!
• Fan Check
• TriXX Boost
• External RGB LED MB Synchronization

Accessories Bundled:

• L-Shape Support Bracket
• 3pin 5V ARGB Cable
• Magnetic Backplate
• 12V-2x6(H++) to PCI Express 3x8-pin power adapter

AMD Features:

• AMD RDNA™ 4 Architecture
• 56 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
• AMD HYPR-RX with AFMF 2
• AMD FidelityFX™ Super Resolution 4 with AI Upscaling
• DisplayPort™ 2.1a
• AMD Radiance Display™ Engine
• AMD Fluid Motion Frames 2 technology
• AMD Radeon™ Anti-Lag 2 technology
• AV1 Encode/Decode
• AMD FidelityFX™ technologies
• Microsoft® DirectX® 12 Ultimate
• AMD Noise Suppression
• AMD Freesync™ technology
• 16 GB of GDDR6 on 256-bit Memory Bus
• AMD smart technologies
• AMD Software: Adrenalin Edition™ application

Cooler Type:

• Tri-X Cooling
• AeroCurve Fan Blade
• Free Flow
• Integrated Cooling Module
• High TG Copper PCB
• Optimized Composite Heatpipes
• Two-Ball Bearing

Form Factor:

• 3.2 slot, ATX
• Dimension: 330.8(L) X 128.5(W) X 65.68 (H)mm

Power Consumption: 245W Typical Board Power

OS: Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement:

• Minimum 650 Watt Power Supply
• 12V-2x6(H++) Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
