TP-LINK AX5400 Ceiling Mount Dual-Band WiFi 6 Wireless Access Point (EAP670)
-
Blazing-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.†
-
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
-

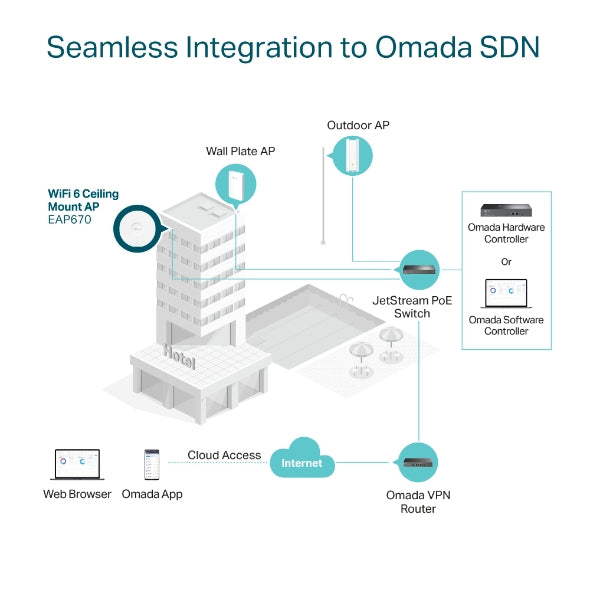

Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
-
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
-
Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
-
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
-
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
SPECIFICATIONS
HARDWARE FEATURES
INTERFACE: 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
BUTTON: Reset
POWER SUPPLY
• 802.3at PoE
• 12 V / 1.5 A DC
POWER CONSUMPTION:
• EU: 18.1 W
• US: 19.8 W
DIMENSIONS(W x D x H): 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
ANTENNA TYPE
Internal Omni:
• 2.4 GHz: 2× 4dBi
• 5 GHz: 2× 5dBi
MOUNTING: Ceiling/Wall Mounting (Kits included)
WIRELESS FEATURES
WIRELESS CLIENT CAPACITY: 250+**
WIRELESS STANDARDS: IEEE 802.11ax/ac/n/g/b/a
FREQUENCY: 2.4 GHz and 5 GHz
SIGNAL RATE
• 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 574 Mbps
WIRELESS FUNCTIONS
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
WIRELESS SECURITY:
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
TRANSMISSION POWER:
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, , band1 & band2, EIRP)
<30 dBm(5 GHz, , band3, EIRP)
• FCC:
<25 dBm(2.4 GHz)
<28 dBm(5 GHz)
MANAGEMENT
OMADA APP: Yes
CENTRALIZED MANAGEMENT:
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
CLOUD ACCESS: Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
EMAIL ALERTS: Yes
LED ON/OFF CONTROL: Yes
MANAGEMENT MAC ACCESS CONTROL: Yes
SNMP: v1, v2c, v3
SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Local/Remote Syslog
SSH: Yes
WEB-BASED MANAGEMENT: HTTP/HTTPS
L3 MANAGEMENT: Yes
MULTI-SITE MANAGEMENT: Yes
MANAGEMENT VLAN: Yes
ZERO-TOUCH PROVISIONING: Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
CERTIFICATION: CE, FCC, RoHS
PACKAGE CONTENTS:
• EAP670
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
SYSTEM REQUIREMENTS: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
ENVIRONMENT
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
