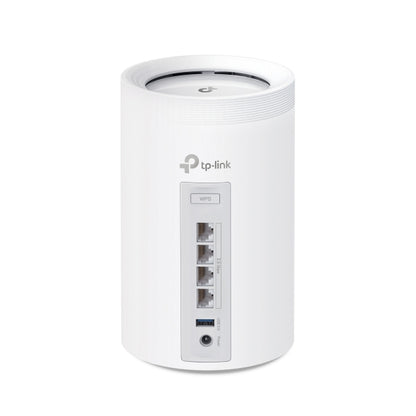

TP-LINK Deco BE65 (2-Pack) BE11000 Tri-Band Whole Home Mesh Wi-Fi 7 System
4x 2.5 Gbps, Wireless & Wired Combined, Multi-Link Operation, 320 MHz Channel, Universal Compatibility
-
11 Gbps Tri-Band WiFi – 5760 Mbps(6 GHz) + 4320 Mbps(5 GHz) + 574 Mbps(2.4 GHz).†
-

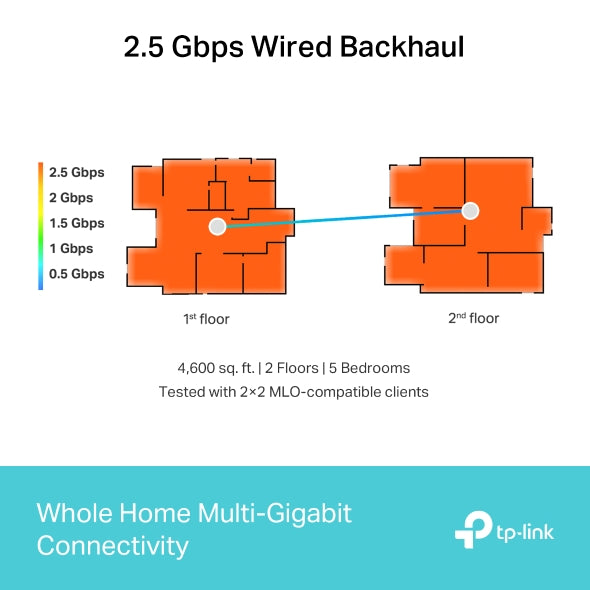

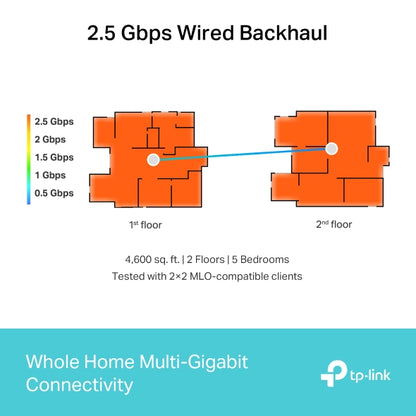

2.5 Gbps Wired Connections – 4× 2.5 Gbps ports ensure max flexibility and boosted throughput.§
-

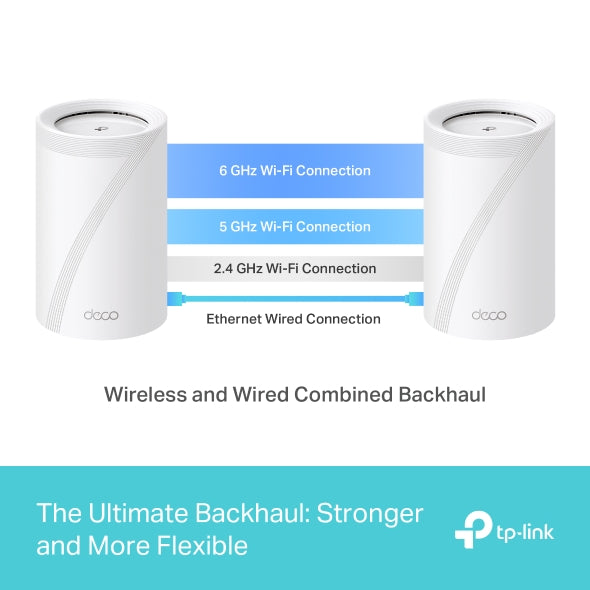

Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
-
Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
-
320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.△
-
Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.△
-
TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
-
Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.☆
SPECIFICATIONS
WIRELESS
STANDARDS
• Wi-Fi 7
- IEEE 802.11be/ax 6 GHz
- IEEE 802.11be/ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz
WIFI SPEEDS
• BE11000
- 6 GHz: 5760 Mbps (802.11be)
- 5 GHz: 4320 Mbps (802.11be)
- 2.4 GHz: 574 Mbps (802.11ax)
WIFI RANGE
• Broader Whole Home Coverage
- TP-Link Mesh Technology: Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
- AI-Driven Mesh: Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
- 4× High-Performance Antennas (Internal): Multiple antennas form a signal-boosting array to cover more directions and large areas
- Tri-Band: A newly-opened 6 GHz band brings more bandwidth and faster speeds
WIFI CAPACITY
• Very High
- Tri-Band: Distribute devices to different bands for optimal performance
- 2×2 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
- OFDMA: Simultaneously communicates with multiple WiFi 7 clients
- 6 Streams: More than enough bandwidth for connected devices
WORKING MODES
• Router Mode
• Access Point Mode
ADVANCED FUNCTIONS
• Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs
• Works with Alexa and Google Assistant
SECURITY
NETWORK SECURITY
• SPI Firewall
• Access Control
• HomeShield Security
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
GUEST NETWORK
• 1× 6 GHz Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
- Effective Time
- Bandwidth Control
VPN SERVER
• OpenVPN Server
• PPTP VPN Server
• L2TP/IPSec VPN Server
VPN CLIENT
• OpenVPN Client
• PPTP VPN Client
• L2TP/IPSec VPN Client
WIFI ENCRYPTION
• WPA-Personal
• WPA2-Personal
• WPA3-Personal

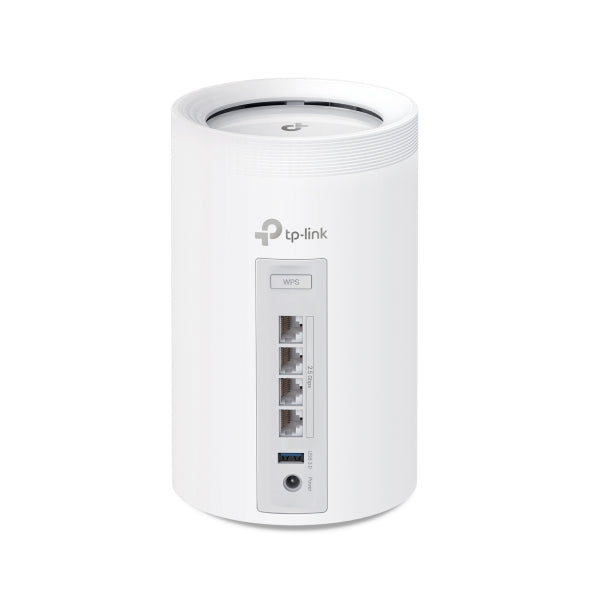

HARDWARE

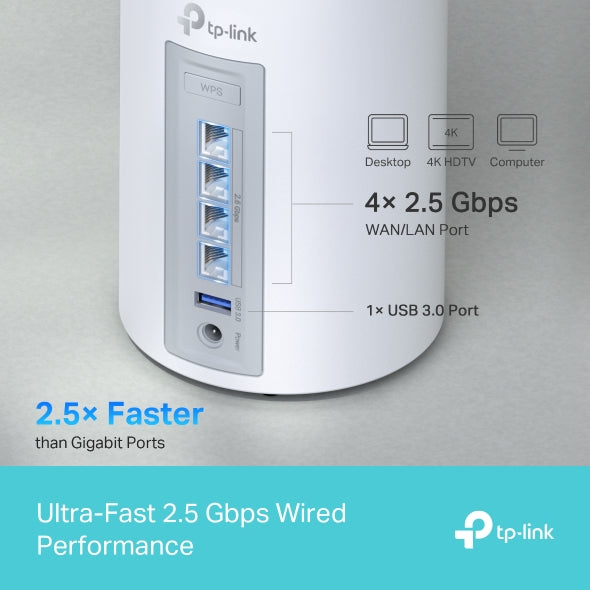

ETHERNET PORTS
• 4× 2.5 Gbps
*Per Deco Unit
• Supports WAN/LAN auto-sensing
USB SUPPORT
• 1× USB 3.0 Port
- FTP Server
- Media Server
- Apple Time Machine
- Samba Server
BUTTONS
• 1× Reset Button
• 1× WPS
SOFTWARE
ADVANCED FEATURES
• Reboot Schedule
• Tapo/Kasa Onboarding
• IoT network & Device Isolation
• Static Routing Function
• Node/Band Connection Preference
PROTOCOLS
• IPv4
• IPv6
SERVICE KITS: HomeShield
PARENTAL CONTROLS
• HomeShield Parental Controls
- Youtube Restriction
- SafeSearch
- Custom Profiles
- Professional Content Filter Library
- Family Time
- Bedtime
- Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Reports
WAN TYPES
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
QUALITY OF SERVICE
HomeShield QoS: QoS by Device
CLOUD SERVICE
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
NAT FORWADING
• Port Forwarding
• UPnP
IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP
• Address Reservation
• DHCP Client List
• Server
DDNS: TP-Link
MANAGEMENT: Deco App
PHYSICAL
DIMENSIONS (WxDxH): 4.23 × 4.23 × 6.93 in (107.5 × 107.5 × 176 mm)
PACKAGE CONTENTS
Deco BE65(2-pack)
• 2 Deco BE65 units
• 1 RJ45 Ethernet cable
• 2 Power adapters
• Quick Installation Guide
OTHERS
CERTIFICATIONS: CE, FCC, RoHS
ENVIRONMENT
• Operating Temperature: 0°C~40°C (32 °F~104 °F)
• Storage Temperature: -40°C~60°C (-40 °F~140 °F)
• Operating Humidity: 10%~90% RH
• Storage Humidity: 5%~90% RH
