TP-LINK Deco BE95 V1 (2-Pack) BE33000 Quad-Band Whole Home Mesh Wi-Fi 7 System
10 Gbps, Wireless & Wired Combined, Multi-Link Operation, 320 MHz Channel, Universal Compatibility
-
16-Stream 33 Gbps Quad-Band WiFi – 11520 Mbps(6 GHz-1) + 11520 Mbps(6 GHz-2) + 8640 Mbps(5 GHz) + 1148 Mbps(2.4 GHz).†
-
Unprecedented 10 Gbps Network – 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 2× 2.5 Gbps ports ensure max flexibility and boosted throughput.§
-

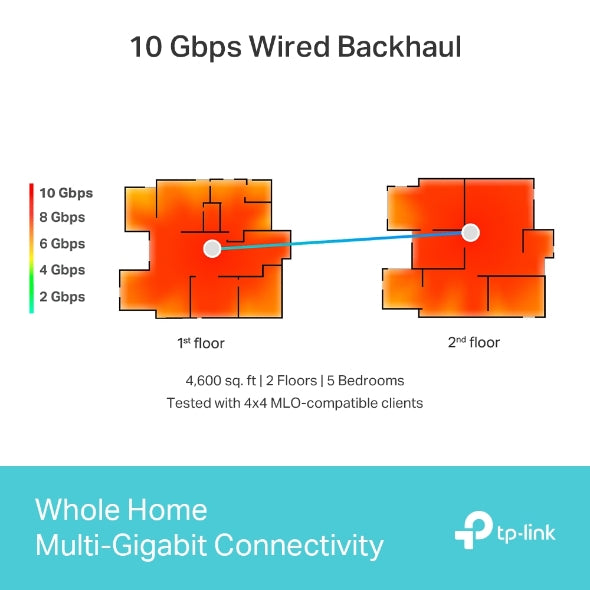

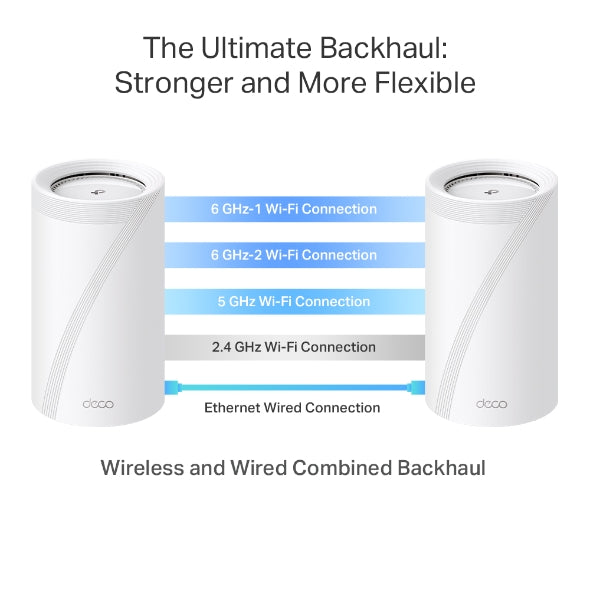

Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
-
Multi-Link Operation(MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
-
320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.△
-
Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.△
-
TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
-
Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider(ISP) and modem.☆
SPECIFICATIONS
WIRELESS
STANDARDS
Wi-Fi 7:
• IEEE 802.11be/ax 6 GHz
• IEEE 802.11be/ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz

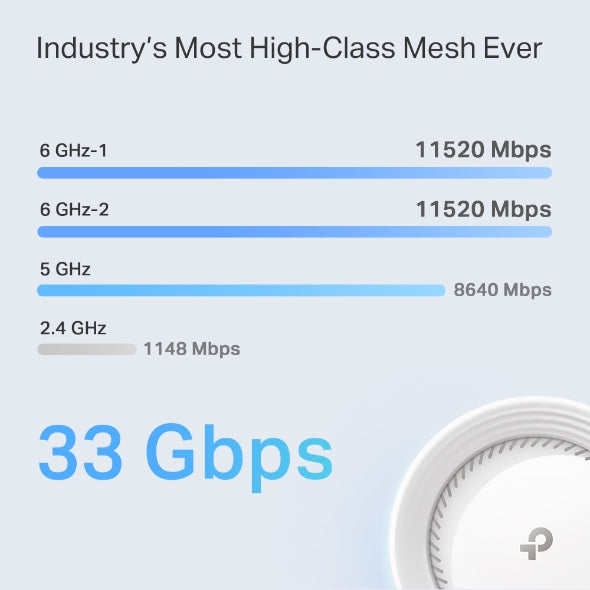

WIFI SPEEDS
BE33000:
• 6 GHz-1: 11520 Mbps (802.11be)
• 6 GHz-2: 11520 Mbps (802.11be)
• 5 GHz: 8640 Mbps (802.11be)
• 2.4 GHz: 1148 Mbps (802.11ax)
WIFI RANGE
Broader Whole Home Coverage:
• TP-Link Mesh Technology - Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
• AI-Driven Mesh - Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

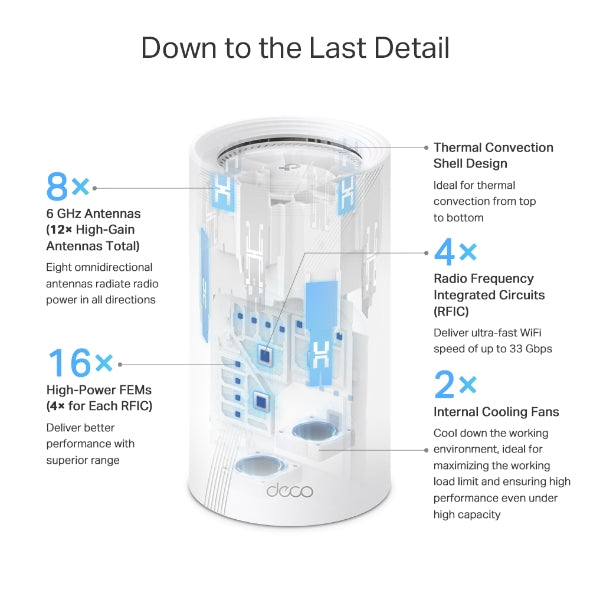

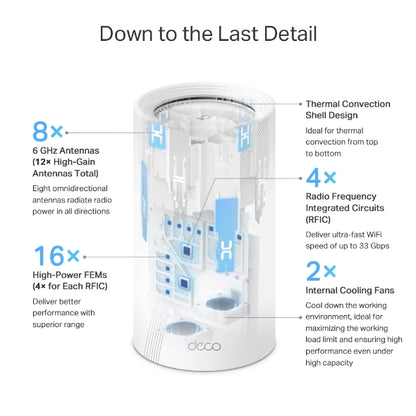

• 12× High-Gain Antennas (Internal) - Multiple antennas form a signal-boosting array to cover more directions and large areas
• Quad-Band - The greenfield 6 GHz band brings more bandwidth and faster speeds
WIFI CAPACITY
Very High
• Quad-Band - Distribute devices to different bands for optimal performance
• 4×4 MU-MIMO - Simultaneously communicates with multiple MU-MIMO clients
• OFDMA - Simultaneously communicates with multiple WiFi 7 clients
• 16 Streams, 4 Streams on Each Band - More than enough bandwidth for connected devices
WORKING MODES
• Router Mode
• Access Point Mode
ADVANCED FUNCTIONS
• Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs
• Works with Alexa and Google Assistant
SECURITY
NETWORK SECURITY
- SPI Firewall
- Access Control
- HomeShield Security
• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner
GUEST NETWORK
1× 6 GHz Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
• Effective Time
• Bandwidth Control
VPN SERVER
• OpenVPN Server
• PPTP VPN Server
• L2TP/IPSec VPN Server
VPN CLIENT
• OpenVPN Client
• PPTP VPN Client
• L2TP/IPSec VPN Client
WIFI ENCRYPTION
• WPA-Personal
• WPA2-Personal
• WPA3-Personal
HARDWARE

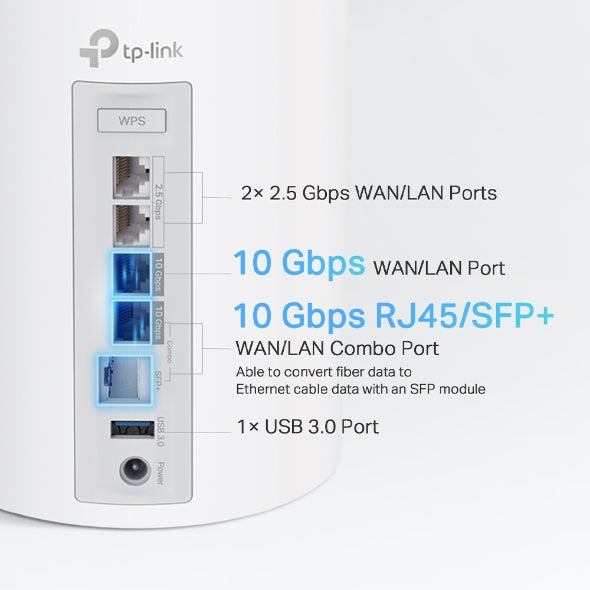

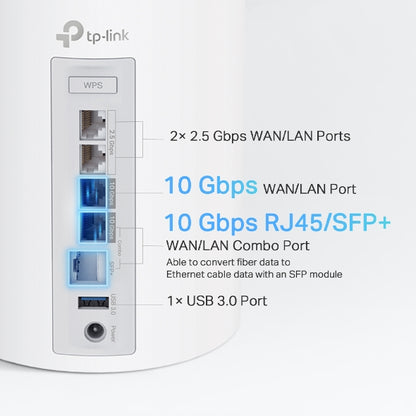

ETHERNET PORTS
• 1× 10 Gbps
• 1× 10 Gbps SFP+/RJ45 Combo
• 2× 2.5 Gbps
*Per Deco Unit, Supports WAN/LAN auto-sensing
USB SUPPORT
- 1× USB 3.0 Port
• FTP Server
• Media Server
• Apple Time Machine
• Samba Server
BUTTONS
• 1× Reset Button
• 1× WPS
SOFTWARE
ADVANCED FEATURES
• Reboot Schedule
• Tapo/Kasa Onboarding
• IoT network & Device Isolation
• Static Routing Function
• Node/Band Connection Preference
PROTOCOLS
• IPv4
• IPv6
SERVICE KITS: HomeShield
PARENTAL CONTROL
HomeShield Parental Controls:
• Youtube Restriction
• SafeSearch
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
WAN TYPES
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
QUALITY OF SERVICE: HomeShield QoS: QoS by Device
CLOUD SERVICE
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
NAT FORWARDING
• Port Forwarding
• UPnP
IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP
• Address Reservation
• DHCP Client List
• Server
DDNS: TP-Link
MANAGEMENT: Deco App
PHYSICAL
DIMENSIONS ( W × D × H ): 5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm)
PACKAGE CONTENTS
Deco BE95 (2-pack)
• 2 Deco BE95 unit
• 1 RJ45 Ethernet cable
• 2 Power adapter
• Quick Installation Guide
OTHERS
CERTIFICATIONS: CE, FCC, RoHS
ENVIRONMENT
• Operating Temperature: 0°C~40°C (32 °F~104 °F)
• Storage Temperature: -40°C~60°C (-40 °F~140 °F)
• Operating Humidity: 10%~90% RH
• Storage Humidity: 5%~90% RH
