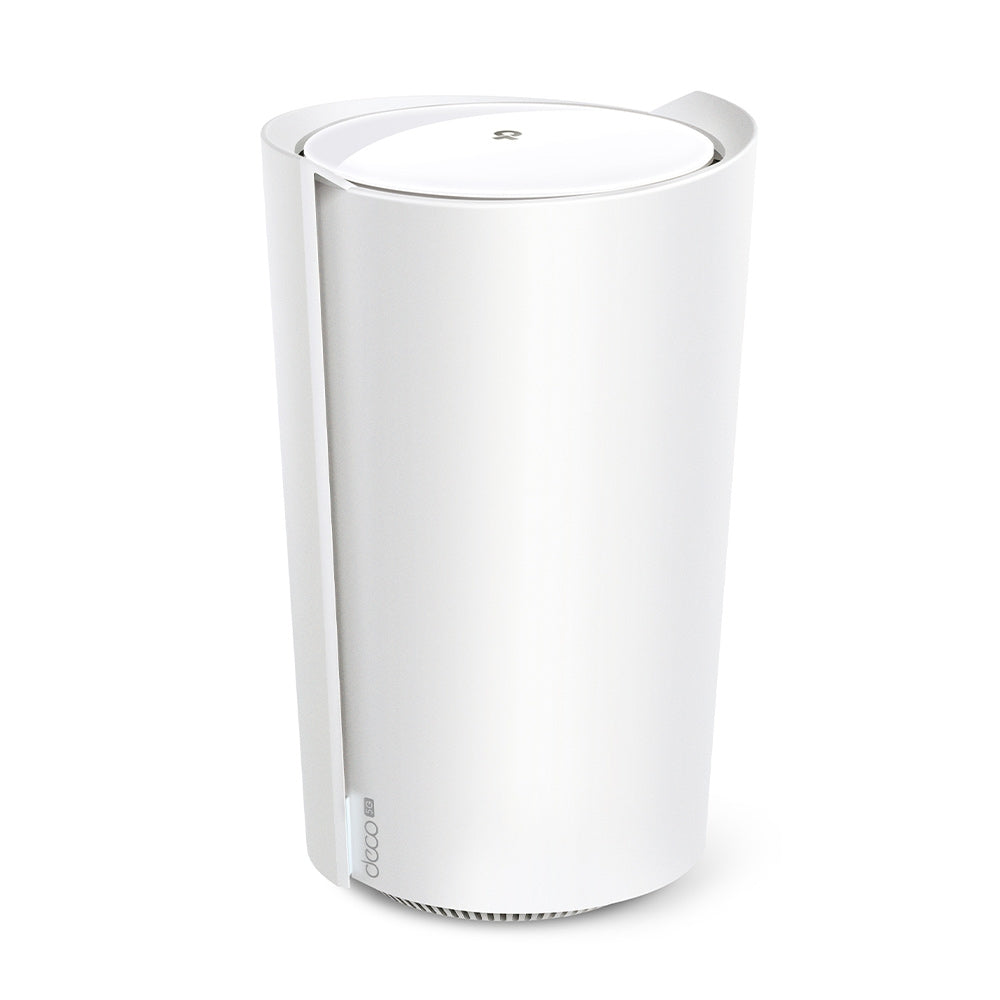

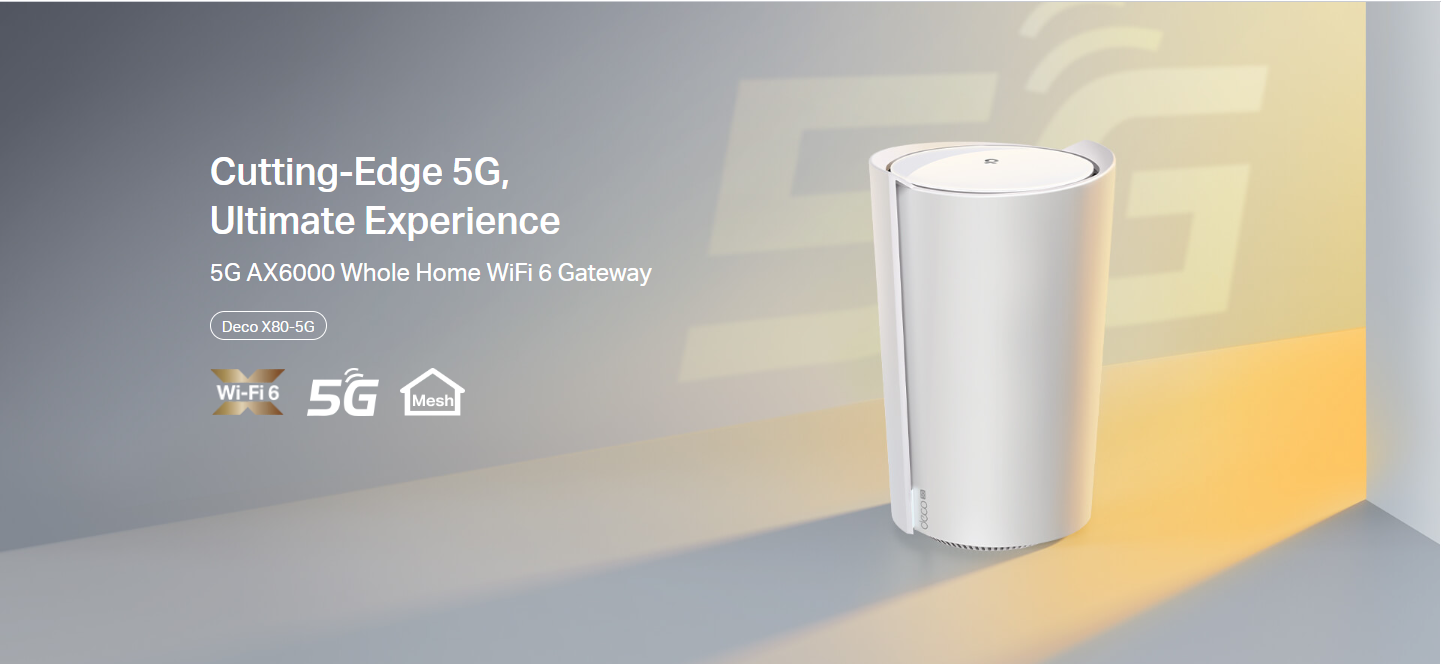

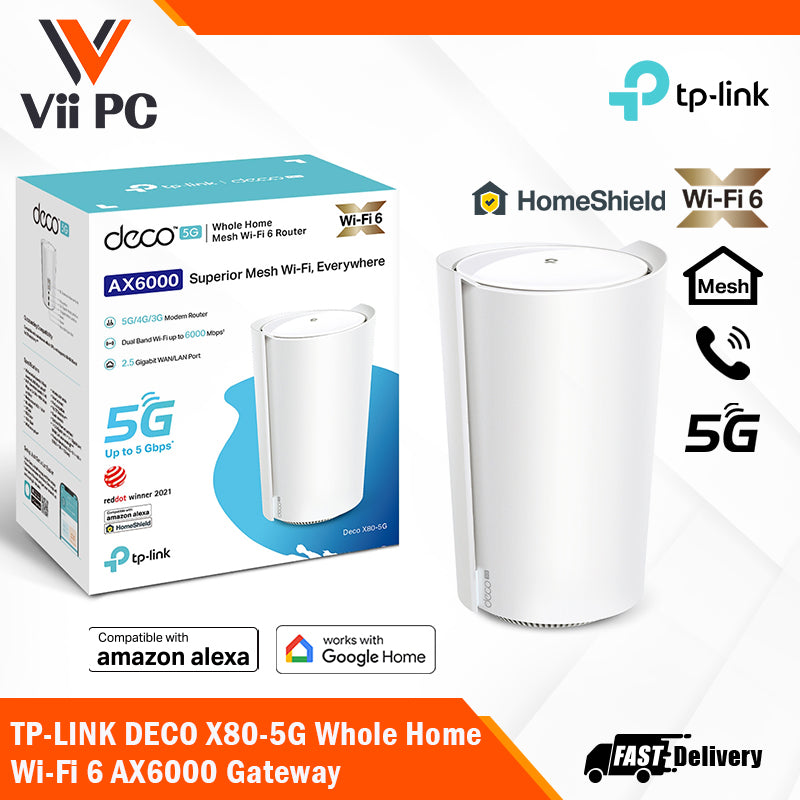

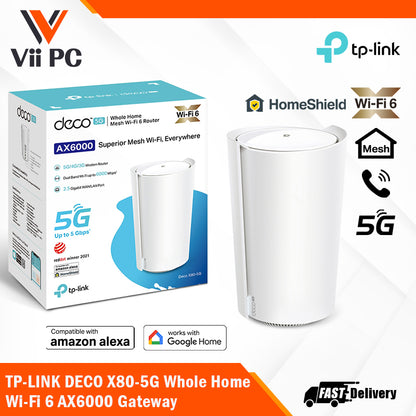

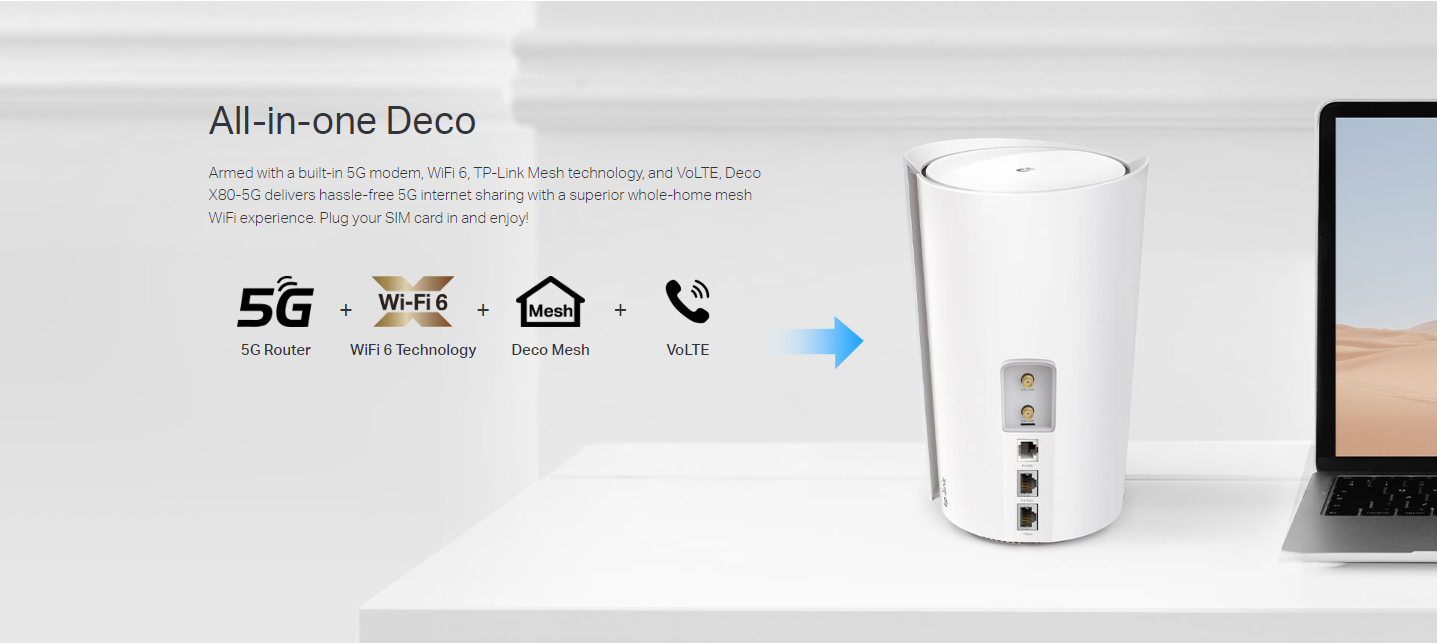

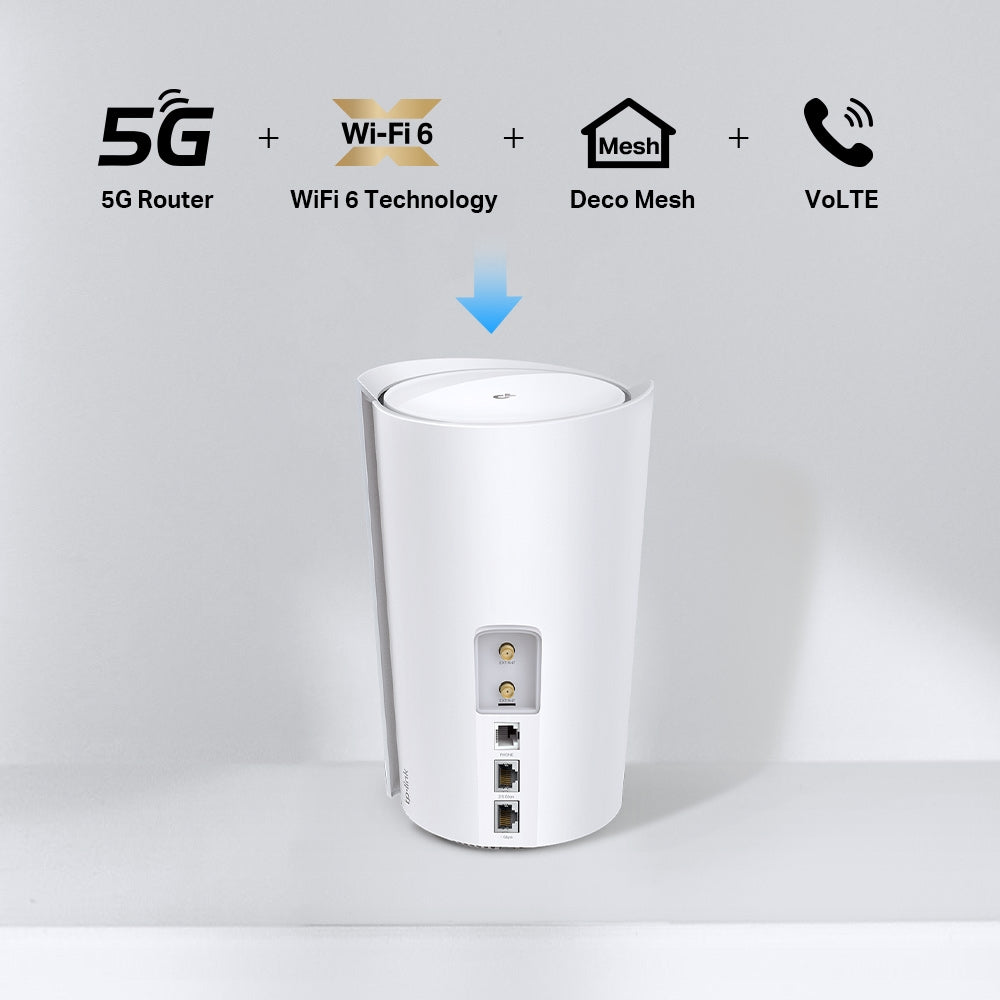

TP-LINK DECO X80-5G Whole Home Wi-Fi 6 AX6000 Gateway
TP-LINK DECO X80-5G Whole Home Wi-Fi 6 AX6000 Gateway
TP-LINK DECO X80-5G Whole Home Wi-Fi 6 AX6000 Gateway
-
Ultra-Fast Broadband Connection: Supports Sub-6 GHz 5G technology boosts download speeds up to 5.0 Gbps§
-
Ultra-Low Latency: 5G brings responsive network connections with only 1 ms latency§
-
AX6000 Dual-Band Wi-Fi 6 Speed: 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)†
-
2.5 Gigabit Wired Connections: 1× 2.5 Gbps port + 1× Gigabit port**
-

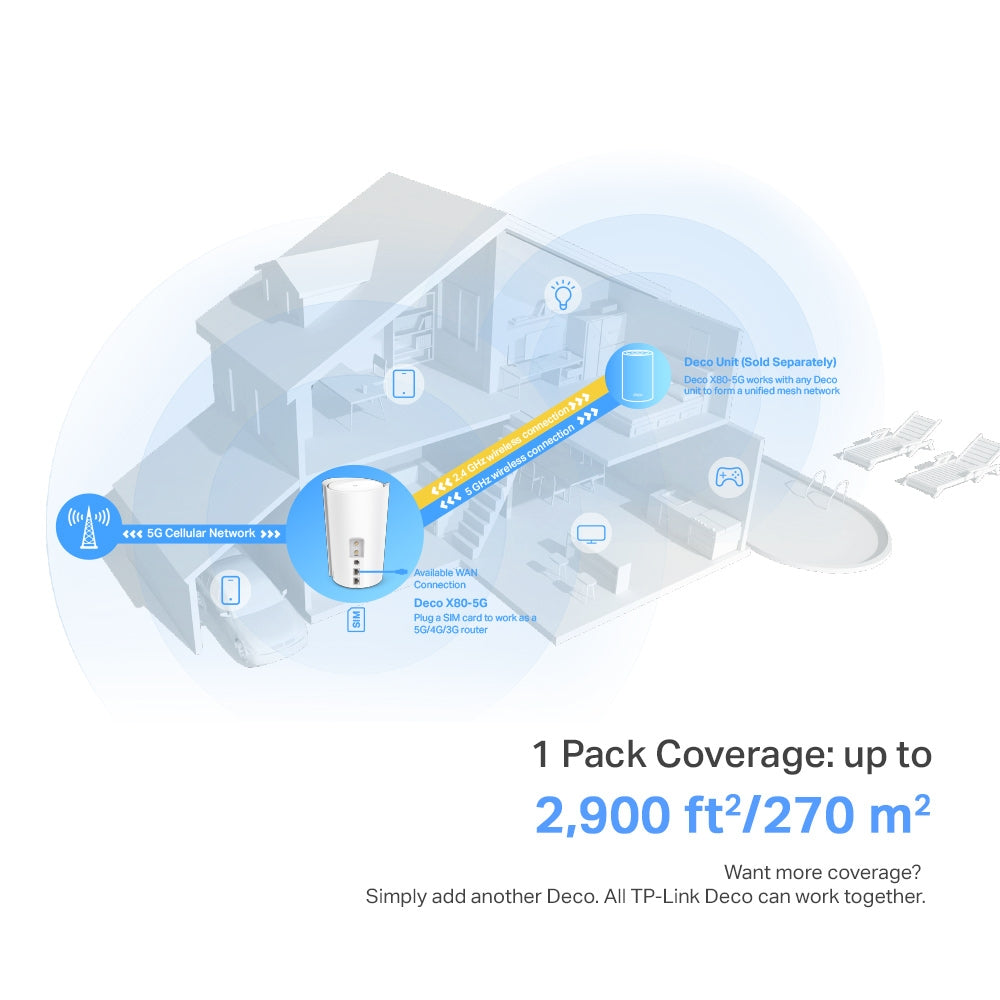

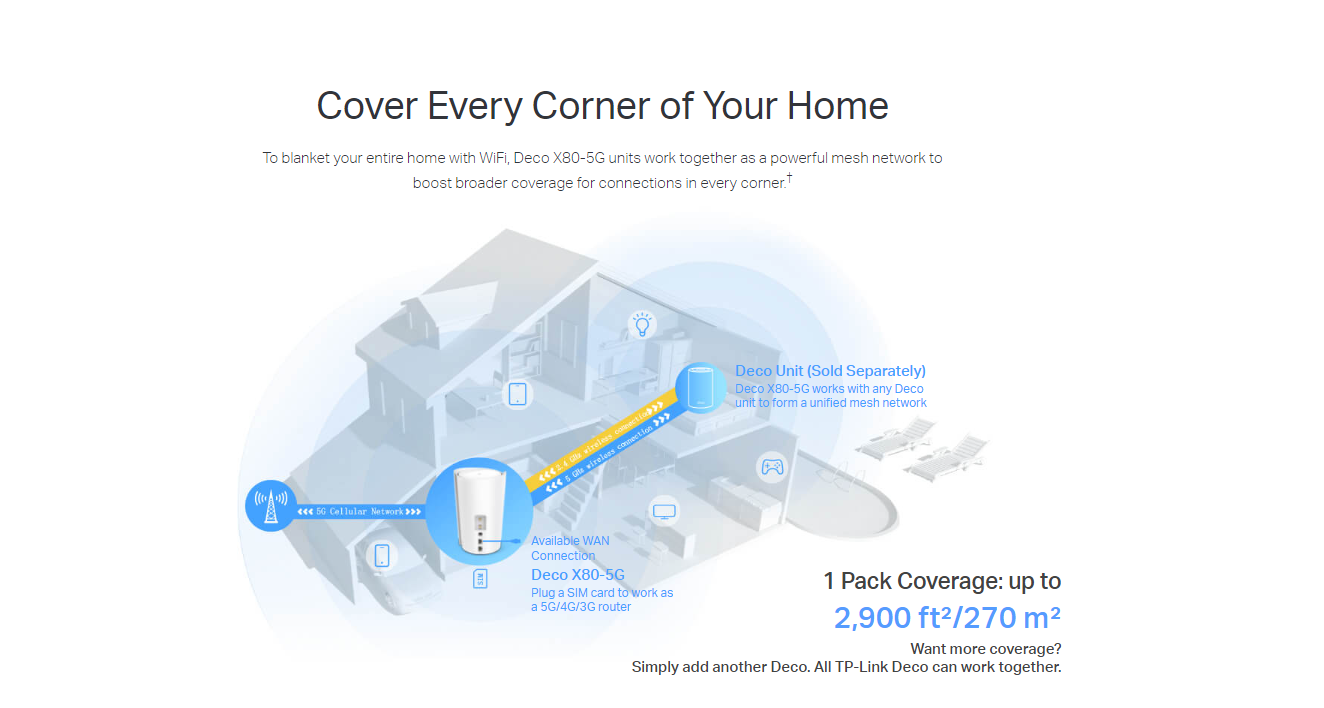

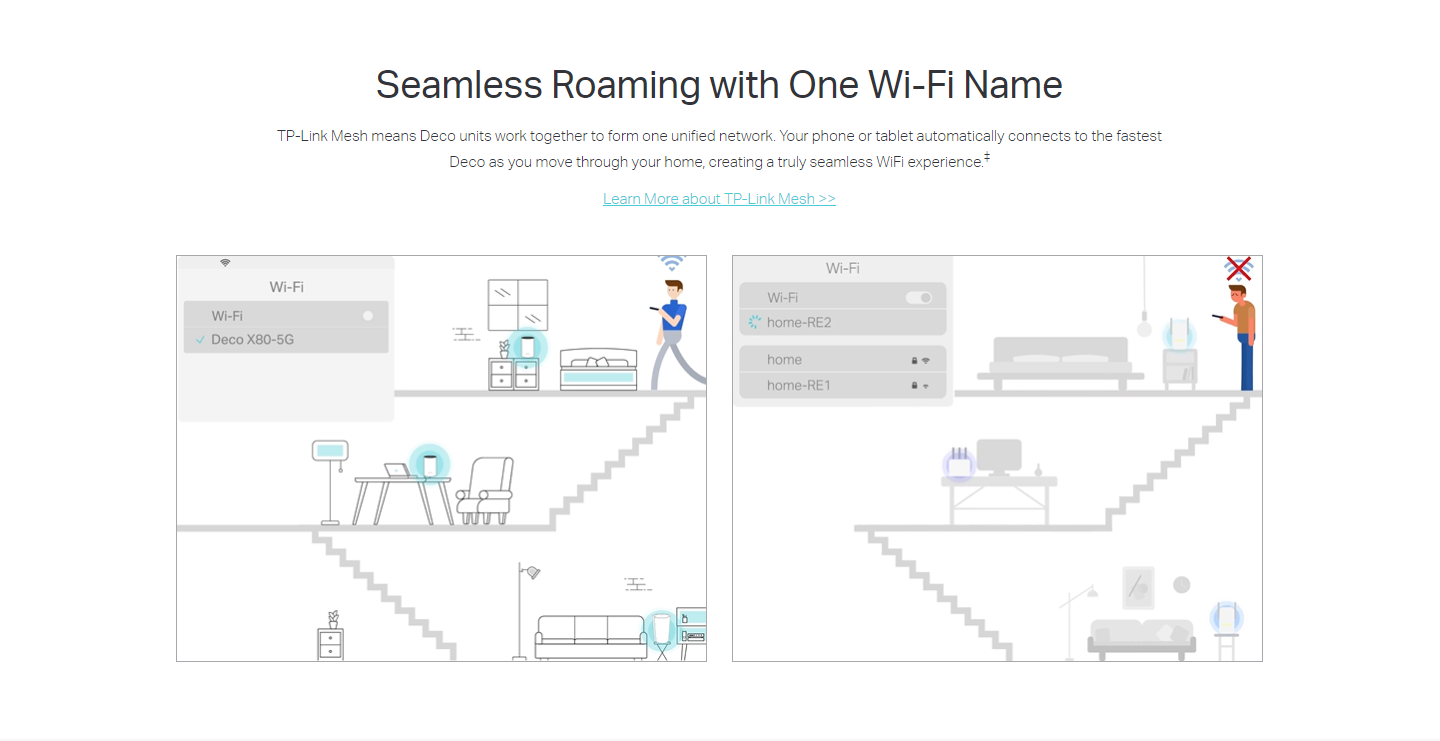

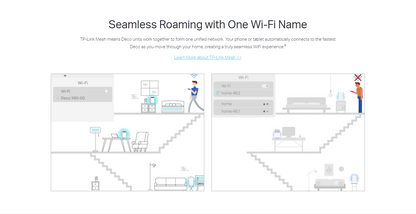

Mesh Network: Deco mesh technology ensures strong Wi-Fi signals everywhere‡
-
Flexible Network Access: 4G, 5G, Fixed-Line Internet Access
-
Plug & Play: Enjoy Deco 5G right after inserting a SIM card
-
VoLTE Support: Home phone over VoLTE
-
Simplified Setup: Easily set up and manage your network with the TP-Link Deco app
-
TP-Link HomeShield: Provides comprehensive network protection, robust parental controls, and real-time loT security*
SPECIFICATIONS
SECURITY :
- Network Security :
-
SPI Firewall
-
Access Control
-
HomeShield Security :
◦ Real-Time IoT Protection
◦ Malicious Site Blocker
◦ Intrusion Prevention System
◦ DDoS Attack Prevention
◦ Home Network Scanner
- Guest Network :
-
1× 5 GHz Guest Network
-
1× 2.4 GHz Guest Network
- WiFi Encryption :
-
WPA-Personal
-
WPA2-Personal
-
WPA3-Personal
WIRELESS :
- Standards :
-
Wi-Fi 6
◦ IEEE 802.11ax/ac/n/a 5 GHz
◦ IEEE 802.11ax/n/b/g 2.4 GHz
- WiFi Speeds :
-
AX6000
◦ 5 GHz: 4804 Mbps (802.11ax)
◦ 2.4 GHz: 1148 Mbps (802.11ax)
- WiFi Range :
-
1-3 Bedroom Houses (1-pack)
◦ TP-Link Mesh Technology : Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
◦ 8× LTE/5G internal antennas + 8× Wi-Fi internal antennas+ 2× external antenna interface : Multiple antennas form a signal-boosting array to cover more directions and large areas
- WiFi Capacity :
-
High
◦ Dual-Band : Distribute devices to different bands for optimal performance
◦ MU-MIMO : Simultaneously communicates with multiple MU-MIMO clients
◦ OFDMA : Simultaneously communicates with multiple WiFi 6 clients
◦ 12 Streams : More than enough bandwidth for connected devices
- Working Modes : 5G/4G Router, Router, Access Point
HARDWARE :

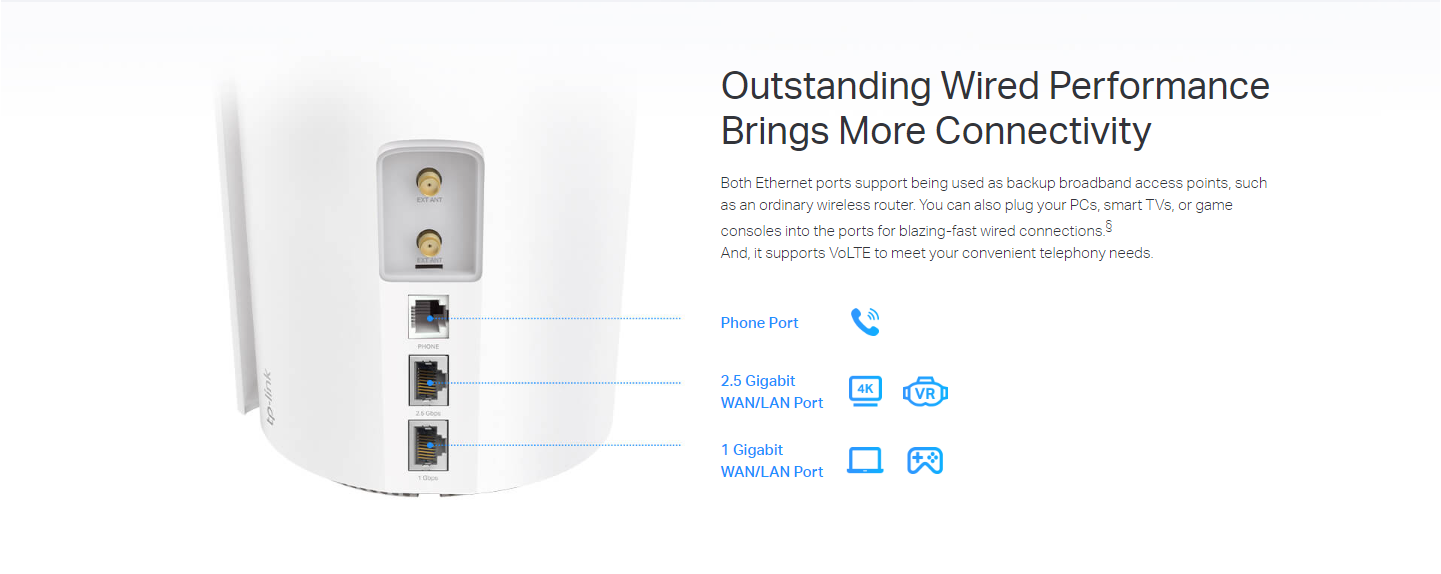

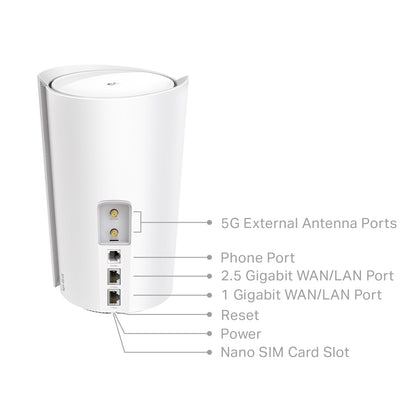

- Ethernet Ports : 1×2.5 Gigabit port + 1×1 Gigabit port (WAN/LAN auto-sensing)

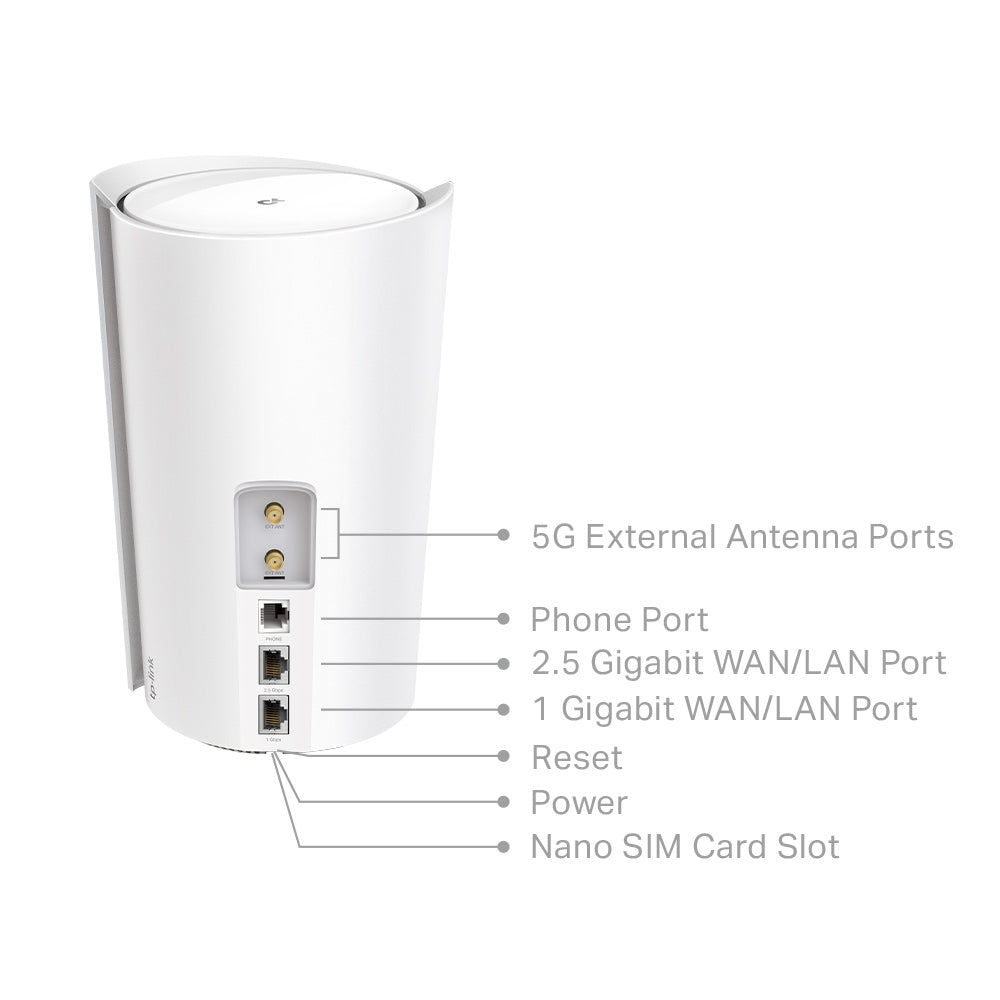

- Ports and Connections :
-
2× 5G External Antenna Ports
-
1× Phone Port
-
Compatibility
◦ 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79
◦ 4G FDD-LTE: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28
◦ 4G TDD-LTE: B34/B38/B39/B40/B41/B42/B43
TEST DATA :
- WiFi Transmission Power :
-
CE:
◦ ≤20 dBm (2.4 GHz),
◦ ≤23 dBm (5 GHz)
PHYSICAL :
- Dimensions (W×D×H) :
-
8.3 × 5.1 × 4.8 in (210.5 × 130 × 123mm)
-
Package Contents :
◦ 1-pack
◦ 1 Deco X80-5G unit
◦ 1 RJ45 Ethernet Cable
◦ 1 RJ11 Telephony Cable
◦ 1 Power Adapter
◦ Quick Installation Guide
