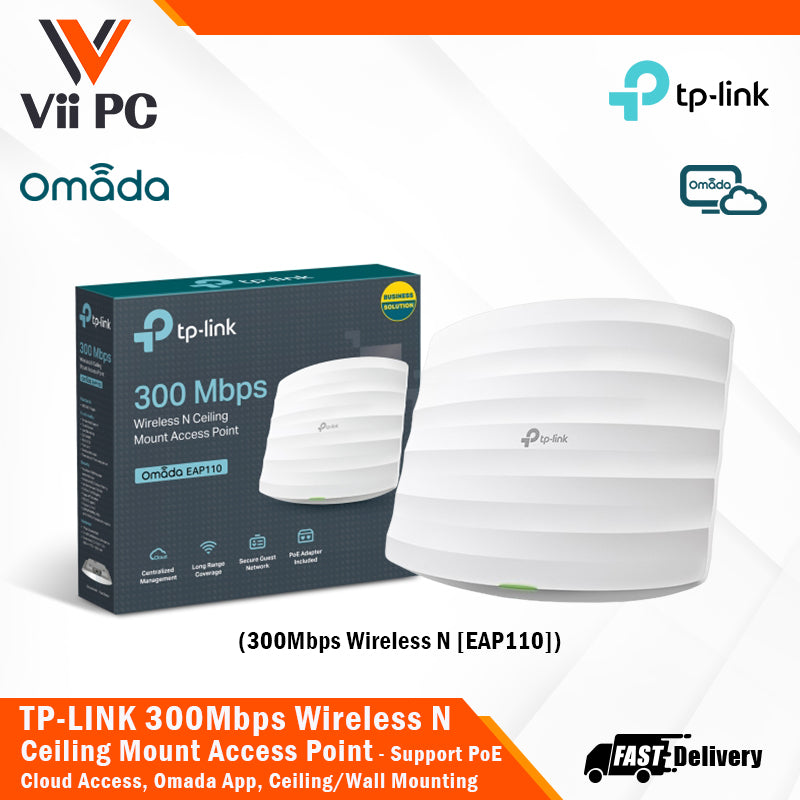

TP-LINK EAP110 300Mbps Wireless N Ceiling Mount Access Point Cloud Access, Omada App, PoE Support, Long Range Coverage, Ceiling/Wall Mount

TP-LINK EAP110 300Mbps Wireless N Ceiling Mount Access Point

Cloud Access, Omada App, PoE Support, Long Range Coverage, Ceiling/Wall Mount



• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• PoE Support: Supports Passive PoE (PoE adapter included) for convenient deployment.
• Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
• Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.

SPECIFICATIONS

HARDWARE FEATURES

INTERFACE: 1× Fast Ethernet (RJ-45) Port (Support Passive PoE)

BUTTON: Reset

POWER SUPPLY: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

POWER CONSUMPTION: 2.8 W

DIMENSIONS( W x D x H ): 7.5×6.7×1.2in (189.5×170.5×29.7mm)

ANTENNA TYPE: Internal 2× 4 dBi Omni

MOUNTING: Ceiling/Wall Mounting (Kits included)

WIRELESS FEATURES

WIRELESS CLIENT CAPACITY: 100+**

WIRELESS STANDARDS: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

FREQUENCY: 2.4–2.4835 GHz

SIGNAL RATE

• 11n: Up to 300 Mbps (dynamic)

• 11g: Up to 54 Mbps (dynamic)

• 11b: Up to 11 Mbps (dynamic)

RECEPTION SENSITIVITY

• 300M: -71 dBm@10% PER

• 150M: -75 dBm@10% PER

• 54M: -78 dBm@10% PER

• 11M: -93 dBm@8% PER

• 6M: -92 dBm@10% PER

• 1M: -96 dBm@8% PER

WIRELESS FUNCTIONS

• Multiple SSIDs (Up to 8 SSIDs)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

WIRELESS SECURITY

• Captive Portal Authentication

• Access Control

• Wireless MAC Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

TRANSMISSION POWER

• CE: ≤19 dBm (EIRP)

• FCC: ≤21 dBm

MANAGEMENT

OMADA APP: Yes

CENTRALIZED MANAGEMENT

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

CLOUD ACCESS: Yes(Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

EMAIL ALERTS: Yes

LED ON/OFF CONTROL: Yes

MANAGEMENT MAC ACCESS CONTROL: Yes

SNMP: v1,v2c

SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Local/Remote Syslog

SSH: Yes

WEB-BASED MANAGEMENT: HTTP/HTTPS

L3 MANAGEMENT: Yes

MULTI-SITE MANAGEMENT: Yes

MANAGEMENT VLAN: Yes

OTHERS

CERTIFICATIONS: CE, FCC, RoHS

PACKAGE CONTENTS

• 300Mbps Wireless N Ceiling Mount Access Point EAP110

• Passive PoE Adapter

• Power Cord

• Mounting Kits

• Installation Guide

SYSTEM REQUIREMENTS: Microsoft Windows 10/8/7/Vista/XP

ENVIRONMENT

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.op[-0]

‡Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
