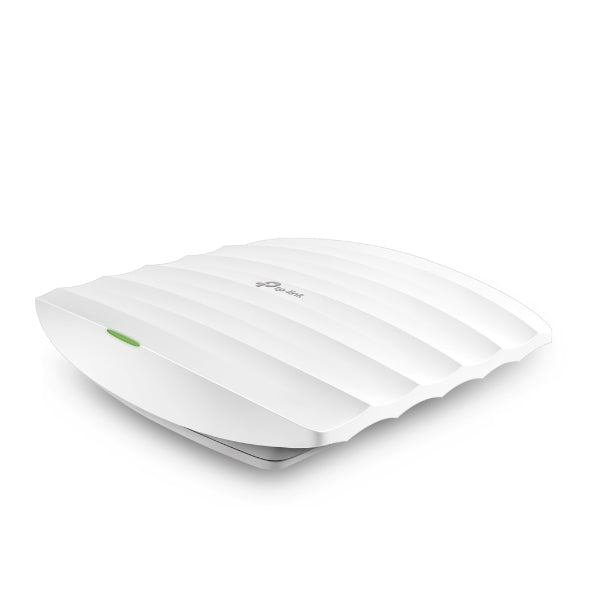

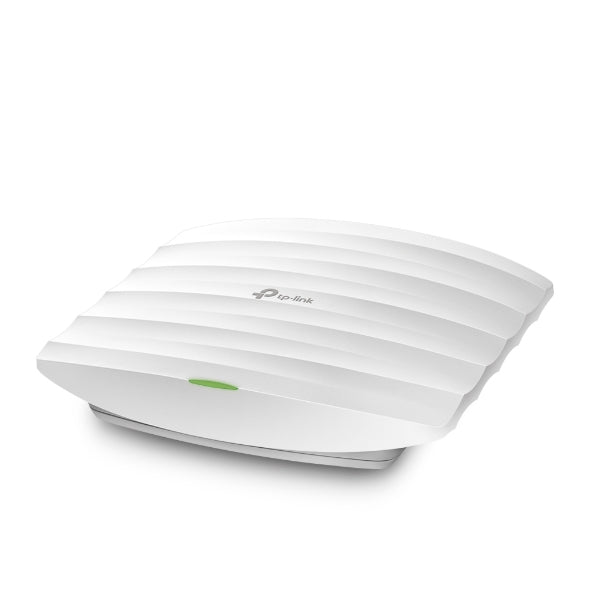

TP-LINK EAP223 AC1350 Wireless MU-MIMO Gigabit Dual Band Ceiling Mount Access Point Cloud Access, Omada Mesh and Omada App, Seamless Roaming, PoE Supported

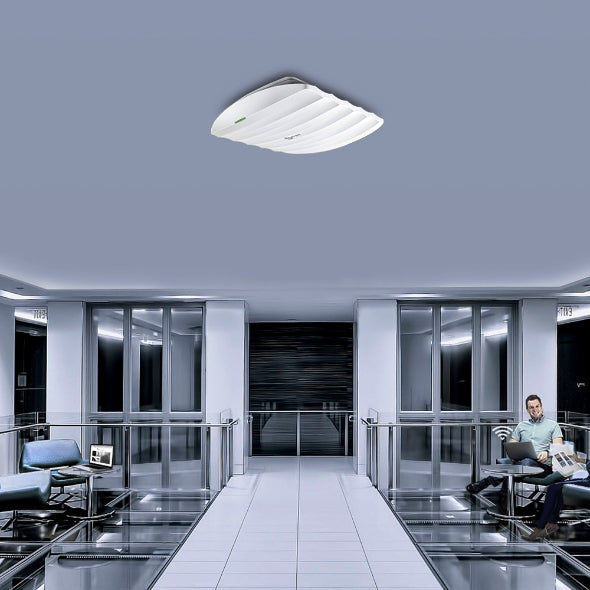

TP-LINK EAP223 AC1350 Wireless MU-MIMO Gigabit Dual Band Ceiling Mount Access Point

Cloud Access, Omada Mesh and Omada App, Seamless Roaming, PoE Supported



• Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.†

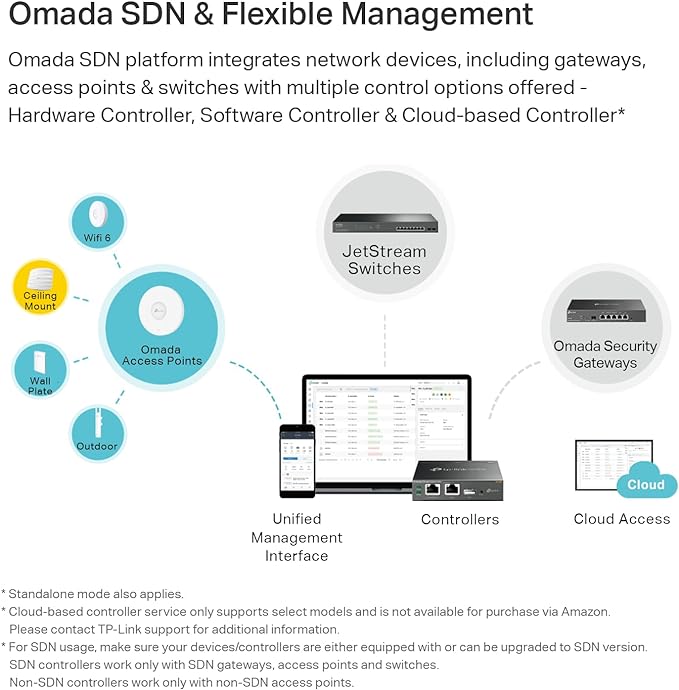

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*

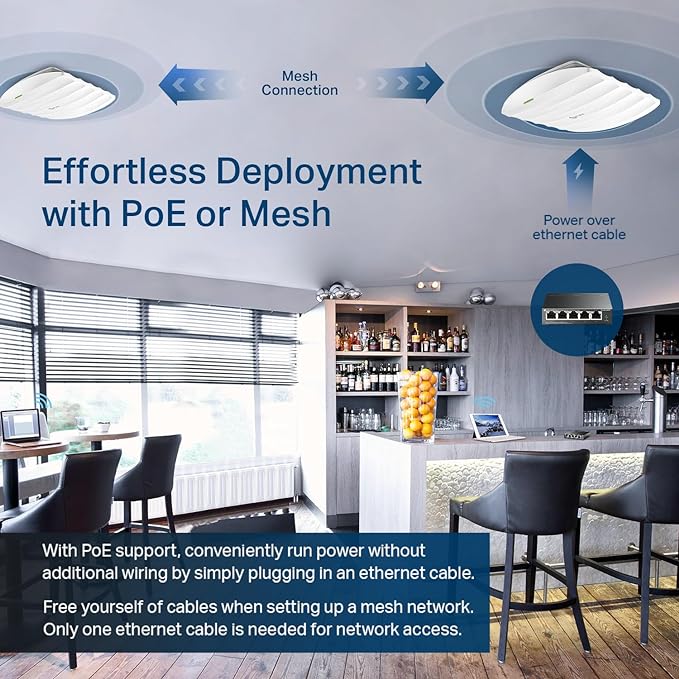

• PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter is not included) for flexible installations.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.



HARDWARE FEATURES

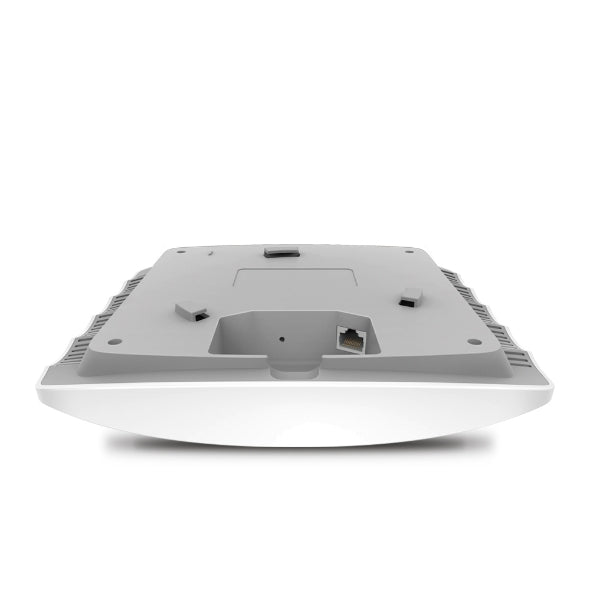

INTERFACE: Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)

PHYSICAL SECURITY LOCK: Yes

BUTTON: Reset

POWER SUPPLY

• 802.3af/at PoE

• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)

POWER SONSUMPTION

• EU: 9.7W

• US: 12.1W

DIMENSIONS ( W x D x H ): 8.1×7.1×1.5in (205.5×181.5×37.1mm)

ANTENNA TYPE

3 Internal Omni

• 2.4 GHz: 4 dBi

• 5 GHz: 5 dBi

MOUNTING: Ceiling/Wall Mounting (Kits included)

WIRELESS FEATURES

WIRELESS STANDARDS: IEEE 802.11ac/n/g/b/a

FREQUENCY: 2.4 GHz and 5 GHz

SIGNAL RATE

• 5 GHz: Up to 867 Mbps

• 2.4 GHz: Up to 450 Mbps

WIRELESS FUNCTIONS

• Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Seamless Roaming*

• Omada Mesh*

• Band Steering

• Load Balance

• MU-MIMO

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

WIRELESS SECURITY

• Captive Portal Authentication*

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

TRANSMISSION POWER

• CE:

≤20 dBm(2.4 GHz, EIRP)

≤23 dBm(5 GHz, EIRP)

• FCC:

≤24 dBm(2.4 GHz)

≤22 dBm(5 GHz)

MANAGEMENT

OMADA APP: Yes

CENTRALIZED MANAGEMENT

• Omada Hardware Controller OC300

• Omada Hardware Controller OC200

• Omada Software Controller

• Omada Cloud-Based Controller

CLOUD ACCESS: Yes, through

• OC300

• OC200

• Omada Software Controller

• Omada Cloud-Based Controller

EMAIL ALERTS: Yes

LED ON/OFF CONTROL: Yes

MANAGEMENT MAC ACCESS CONTROL: Yes

SNMP: v1,v2c

SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Local/Remote Syslog

SSH: Yes

WEB-BASED MANAGEMENT: HTTP/HTTPS

L3 MANAGEMENT: Yes

MULTI-SITE MANAGEMENT: Yes

MANAGEMENT VLAN: Yes

ZERO-TOUCH PROVISIONING: Yes

OTHERS

CERTIFICATIONS: CE, FCC, RoHS

PACKAGE CONTENTS

• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223

• Mounting Kits

• Installation Guide

SYSTEM REQUIREMENTS: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

ENVIRONMENT

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing



†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

‡Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.

*Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
