TP-LINK EAP245 AC1750 Wireless MU-MIMO Gigabyte Dual Band Wi-Fi 6 Omada Ceiling Mount Access Point Cloud Access, Omada App, PoE Support, Seamless Roaming

TP-LINK EAP245 AC1750 Wireless MU-MIMO Gigabyte Dual Band Wi-Fi 6 Omada Ceiling Mount Access Point Cloud Access, Omada App, PoE Support, Seamless Roaming

$202.00 SGD
$202.00 SGD
Sale Sold out

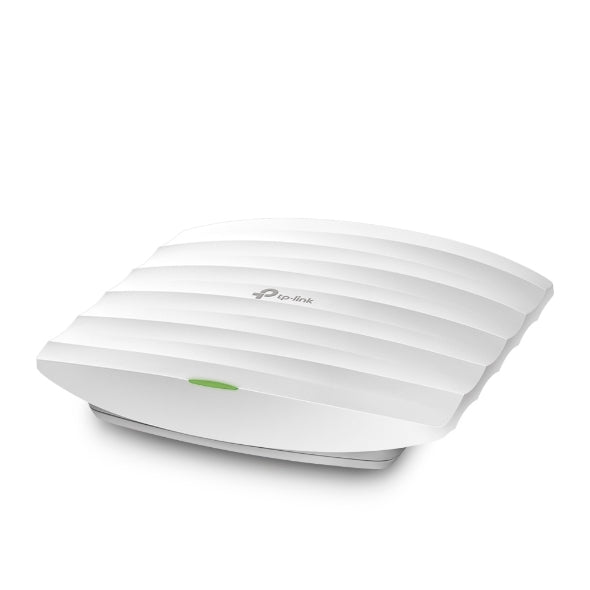

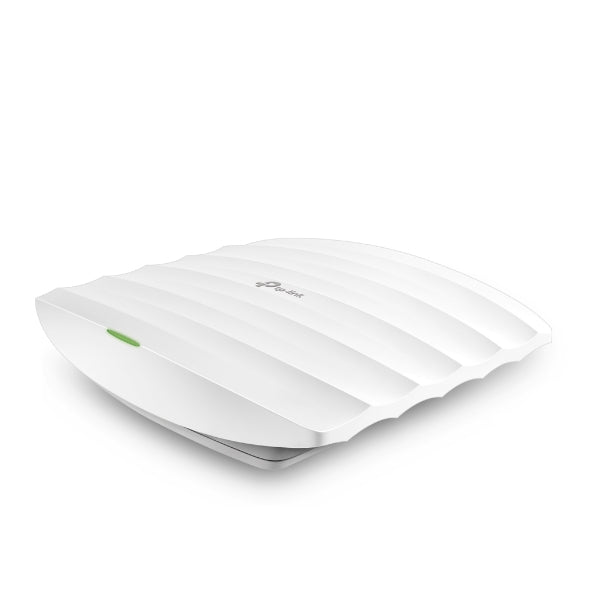

TP-LINK EAP245 AC1750 Wireless MU-MIMO Gigabyte Dual Band Wi-Fi 6 Omada Ceiling Mount Access Point

Cloud Access, Omada App, PoE Support, Seamless Roaming



  • Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.†

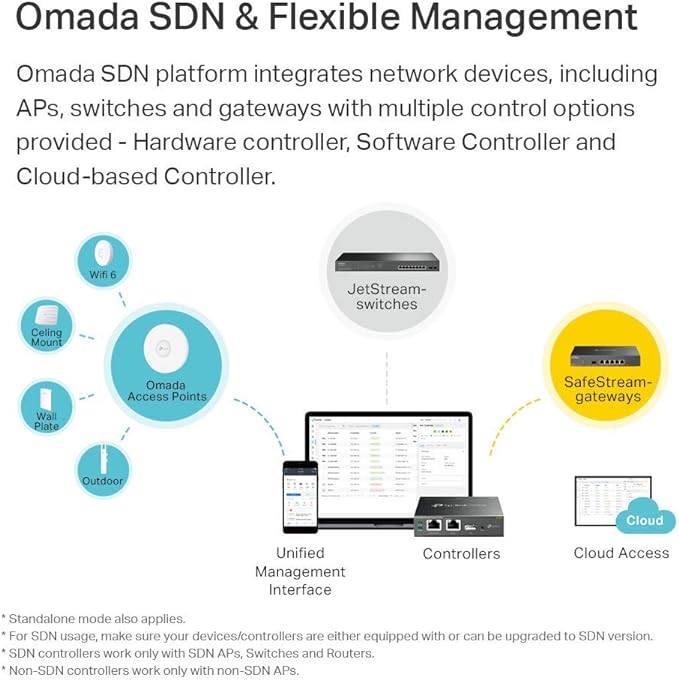

  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

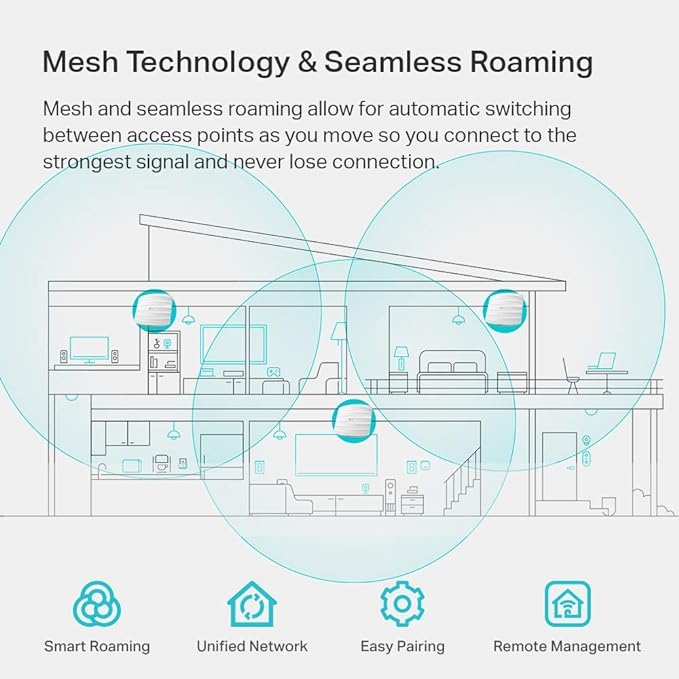

  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
  • PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.



SPECIFICATIONS

HARDWARE FEATURES

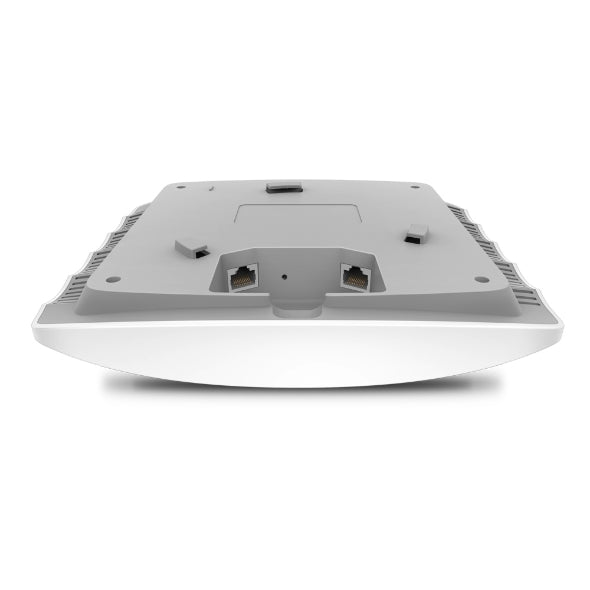

INTERFACE: 2 × Gigabit Ethernet (RJ-45) Ports

PHYSICAL SECURITY LOCK: Yes

BUTTON: Reset

POWER SUPPLY: 802.3af/at PoE / 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

POWER CONSUMPTION: 12.3 W

DIMENISIONS ( W x D x H ): 8.1 × 7.1 × 1.5 in (206 × 182 × 37 mm)

ANTENNA TYPE:

Internal Omni

• 2.4GHz: 3 × 4dBi

• 5GHz: 3 × 4dBi

MOUNTING: Ceiling or Wall Mount (Mounting kit included)

WIRELESS FEATURES

WIRELESS STANDARDS: IEEE 802.11ac/n/g/b/a

FREQUENCY: 2.4GHz and 5GHz

SIGNAL RATE

• 5GHz: Up to 1300Mbps

• 2.4GHz: Up to 450Mbps

WIRELESS FUNCTIONS

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO (Wave 2)

• Seamless Roaming

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

WIRELESS SECURITY

• Captive Portal Authentication

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• 64/128/152-bit WEP / WPA / WPA2-Enterprise,

• WPA-PSK / WPA2-PSK

TRANSMISSION POWER

FCC:

• ≤25dBm(2.4GHz)

• ≤27dBm(5GHz)

MANAGEMENT

OMADA APP: Yes

CENTRALIZED MANAGEMENT

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

CLOUD ACCESS: Yes, omada.tplinkcloud.com

EMAILS ALERT: Yes

LED ON/OFF CONTROL: Yes

MANAGEMENT MAC ACCESS CONTROL: Yes

SNMP: v1, v2c

SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Local/Remote Syslog

SSH: Yes

WEB-BASED MANAGEMENT: HTTP/HTTPS

L3 MANAGEMENT: Yes

MULTI-SITE MANAGEMENT: Yes

MANAGEMENT VLAN: Yes

ZERO-TOUCH PROVISIONING: Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

CERTIFICATION: FCC, RoHS

PACKAGE CONTENTS

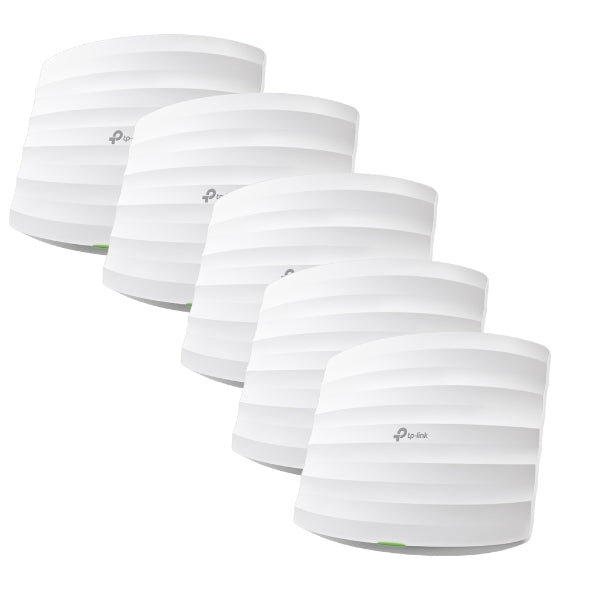

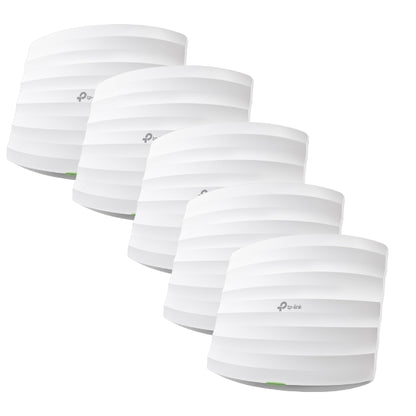

• 5 EAP245 Access Points

• 5 Mounting Kits

• 1 Installation Guide

ENVIRONMENT

• Operating Temperature: 0℃~40℃ (32℉~104℉)

• Storage Temperature: -40℃~70℃ (-40℉~158℉)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

‡Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.

§Seamless Roaming is only supported under the use of Omada Controllers, and requires that clients need to support 802.11k/v and may require additional set up. Performance may vary depending on the client device.
