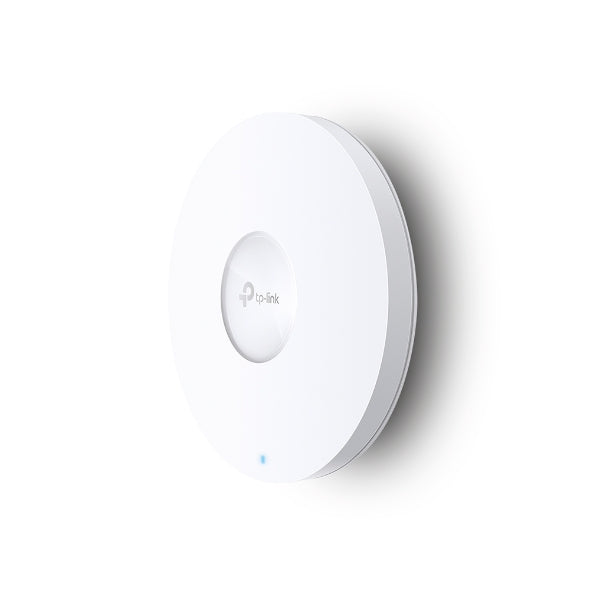

TP-LINK EAP653 AX3000 Ceiling Mount Wi-Fi 6 Wireless Access Point, Support PoE, Omada Mesh & Omada Cloud

TP-LINK AX3000 Ceiling Mount Wi-Fi 6 Wireless Access Point, Support PoE, Omada Mesh & Omada Cloud (EAP653)

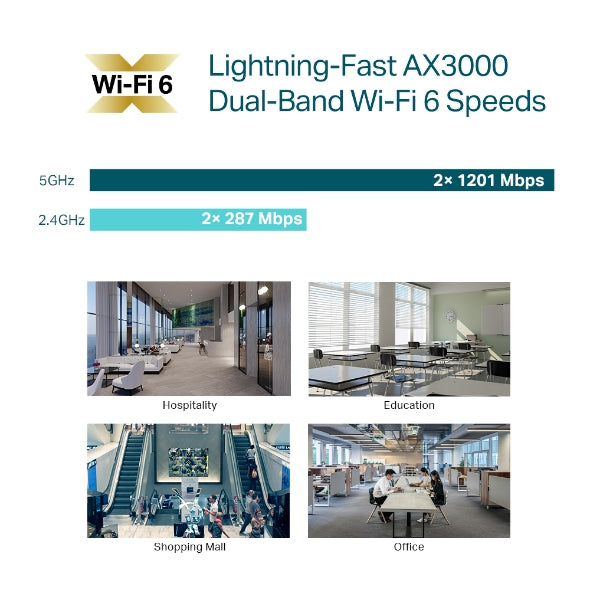

• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

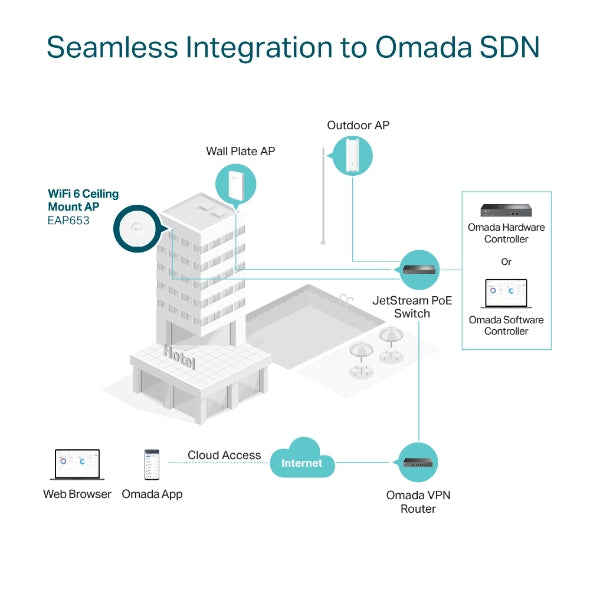

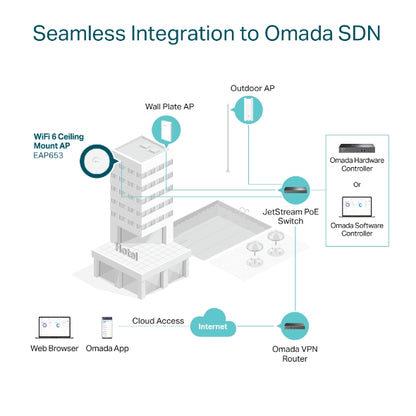

• Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
• 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
• Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
• PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.
• Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.

SPECIFICATIONS

HARDWARE FEATURES

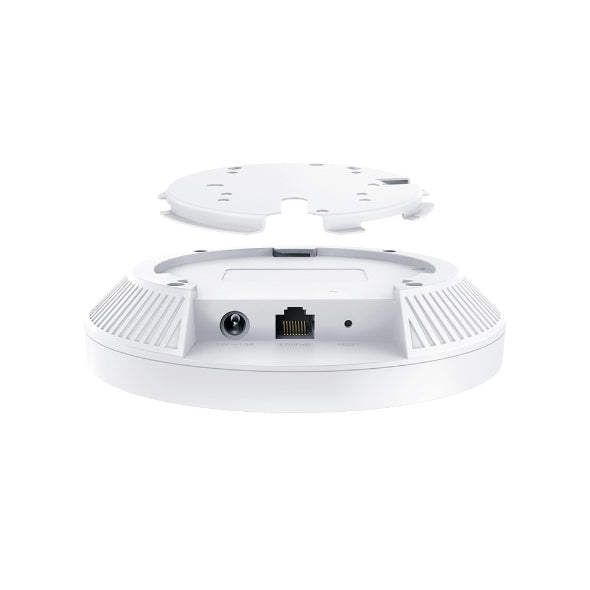

INTERFACE: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

BUTTON: Reset

POWER SUPPLY

• 802.3at PoE

• 12V DC (Power Adapter IS NOT included)

(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC)

• 48V Passive PoE

POWER CONSUMPTION:

• EU: 13.07 W

• US: 13.98 W

DIMENSIONS(W x D x H): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)

ANTENNA TYPE

Internal Omni:

• 2.4 GHz: 2× 4dBi

• 5 GHz: 2× 5dBi

MOUNTING:

• Ceiling /Wall Mounting (Kits included)

• Junction Box Mounting

WIRELESS FEATURES

WIRELESS STANDARDS: IEEE 802.11ax/ac/n/g/b/a

FREQUENCY: 2.4 GHz and 5 GHz

SIGNAL RATE

• 5 GHz: Up to 2402 Mbps

• 2.4 GHz: Up to 574 Mbps

WIRELESS FUNCTIONS

• 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• HE160 (160 MHz Bandwidth)‡

• Seamless Roaming §

• Omada Mesh§

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

WIRELESS SECURITY:

• Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

TRANSMISSION POWER:

• CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, Band1 & Band2, EIRP)

<30 dBm(5 GHz, Band3, EIRP)

• FCC:

<22 dBm(2.4 GHz)

<22 dBm(5 GHz)

MANAGEMENT

OMADA APP: Yes

CENTRALIZED MANAGEMENT:

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller

CLOUD ACCESS: Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)

EMAIL ALERTS: Yes

LED ON/OFF CONTROL: Yes

MANAGEMENT MAC ACCESS CONTROL: Yes

SNMP: v1, v2c, v3

SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Local/Remote Syslog

SSH: Yes

WEB-BASED MANAGEMENT: HTTP/HTTPS

L3 MANAGEMENT: Yes

MULTI-SITE MANAGEMENT: Yes

MANAGEMENT VLAN: Yes

ZERO-TOUCH PROVISIONING: Yes. Require the use of Omada Cloud-Based Controller.

OTHERS

CERTIFICATION: CE, FCC, RoHS

PACKAGE CONTENTS:

• EAP653

• Ceiling/Wall Mounting Kits

• Installation Guide

Note: DC adapter is not included in the package, and is sold separately.

SYSTEM REQUIREMENTS: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

ENVIRONMENT

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.

§Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.

*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
